The award-winning Veritas series from Bose Professional delivers superior background/foreground music, paging and multimedia for commercial applications. Bluetooth® 5.0 wireless input and user-intuitive OLED screen with quick-start QR code simplify setup—whether you’re a pro installer or a DIYer. With four models to choose from, Veritas amplifiers offer the perfect combination of power, performance and flexibility.

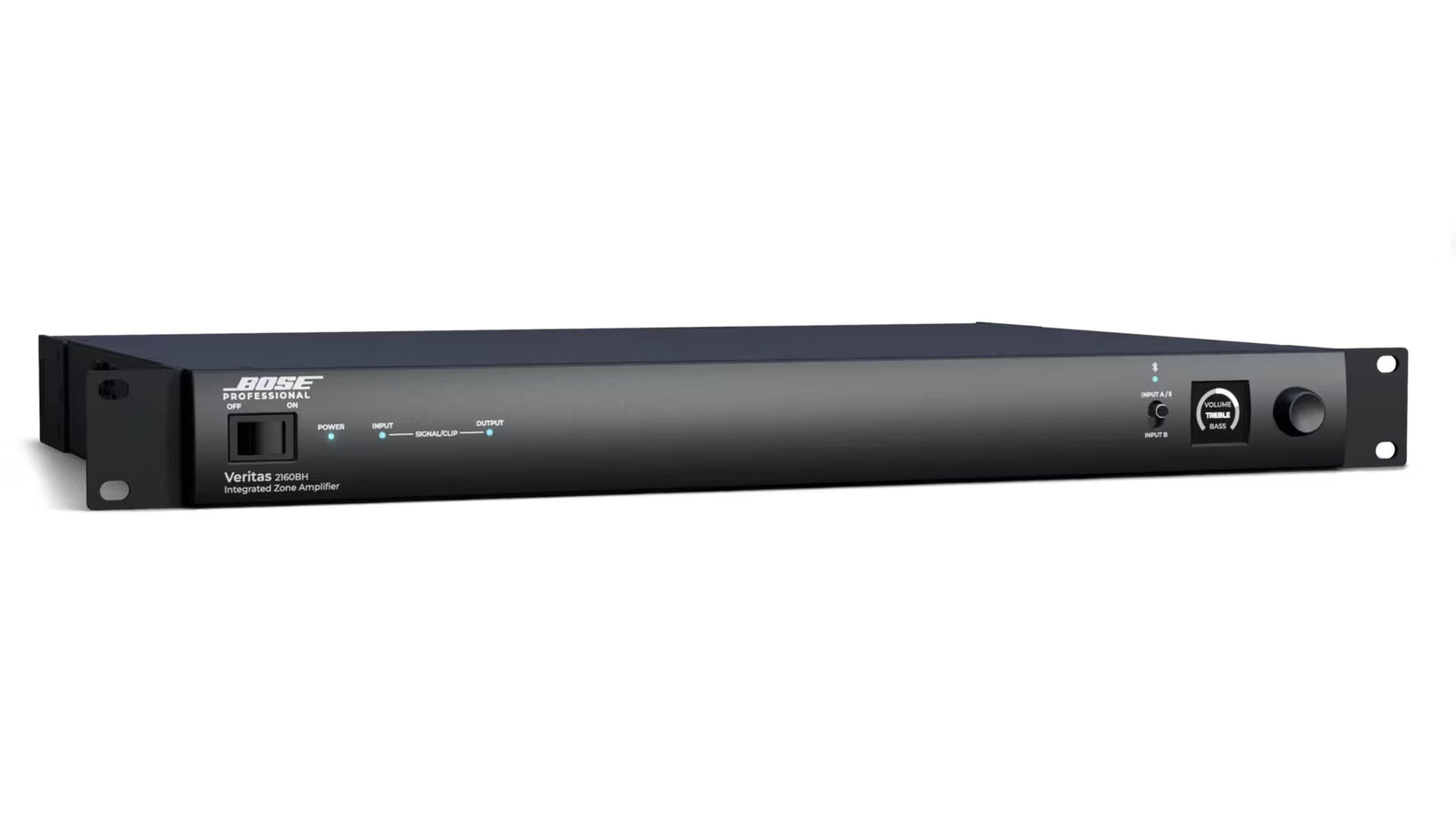

The ultimate choice for large-scale 70V/100V distributed audio systems, the 2160BH efficiently powers multiple zones with premium sound clarity and reliable, consistent coverage. Ideal for hotels, conference centers, and multi-room installations, the 2160BH offers high output with advanced features for integrators handling complex, high-demand applications.
FEATURES
Premium amplification with advanced DSP for optimized performance
Bluetooth connectivity and RCA connectivity—no wire splicing required
Intuitive front-panel OLED screen for easy setup and control
Embedded quick-start QR code in the OLED screen simplifies installation
Supports high-impedance (70/100V) applications
Multi-zone flexibility—support for up to two independent zones
Remote level control with Bose Professional or third-party wall controllers
Dynamic EQ adjusts bass levels to achieve a fuller sound even at low volumes
Up to 30 selectable EQ presets ensure Bose Professional signature sound performance and long-term reliability
Opti-Voice paging feature ensures clear speech intelligibility
Applications
Designed for a wide range of applications, including:
Retail stores
Restaurants and bars
Hospitality venues
Conference centers
Schools
Auxiliary zones
| Channel Separation | ≤ -58 dBu below rated power, 1 kHz | Dynamic Range | 88 dB |
| Frequency Response | 20 Hz – 20 kHz (+0/-3 dB) at 1 W, 1 kHz ref | Rated Power | 2 x 160 W at 70/100V |
| THD+N | ≤ 0.5% at rated power | Adjustment Range | 0 dB to -30 dB (line), 0 dB to +50 dB (page) |
| Input Channels | (2) balanced line, (2) unbalanced line, (1) mic/line | Input Connectors | RCA pairs, 5-pin & 4-pin Euroblock |
| Input Impedance | 20 kΩ (line), 2 kΩ (page) | Input Range | -8 to +22 dBu (line), -58 to +12 dBu (page) |
| Max Input Level | 22 dBu (line), 12 dBu (page) | Nominal Input Level | 4 dBu (line), -38 dBu (page) |
| Sensitivity | -8 dBu (line), -58 dBV (page) | Output Channels | (2) loudspeaker, (1) unbalanced line |
| Output Connectors | 2-pin Euroblock, RCA pair | Nominal Output Level | 2×160 W (70/100V), 2 dBu (aux) |
| Mains Connector | IEC C14 inlet | Mains Voltage | 100–240 VAC (±10%), 50/60 Hz |
| Protections | Temp, short circuit, AC voltage | Power Consumption | 13.6 W standby, 500 W max |
| Front Controls | Power, input select, rotary encoder | Rear Controls | Mode DIP, gain knobs, mute, ControlCenter ports |
| Converters | 48 kHz / 24-bit | Audio Latency | 10.4 ms |
| Presets | HPF 70/80 Hz, AMU, DesignMax, EdgeMax, FS, subwoofer | Processing | EQ, Opti-Voice, Dynamic EQ |
| Cooling System | Fan, left-to-right airflow | Dimensions (H×W×D) | 44×483×324 mm |
| Net Weight | 4.4 kg | Shipping Weight | 5.8 kg |
| Product Codes | 892121-1110, 2110, 4110, 3140, 2140, 5110 | Included Packaging | Feet, Euroblocks, power cord, guide |
| Description | Downloads |
|---|---|
| Bose Veritas 2160BH Integrated Zone Amplifiers | 892121-2110 DataSheet | Download |
| Bose Veritas 2160BH Integrated Zone Amplifiers | 892121-2110 Installation Guide | Download |
