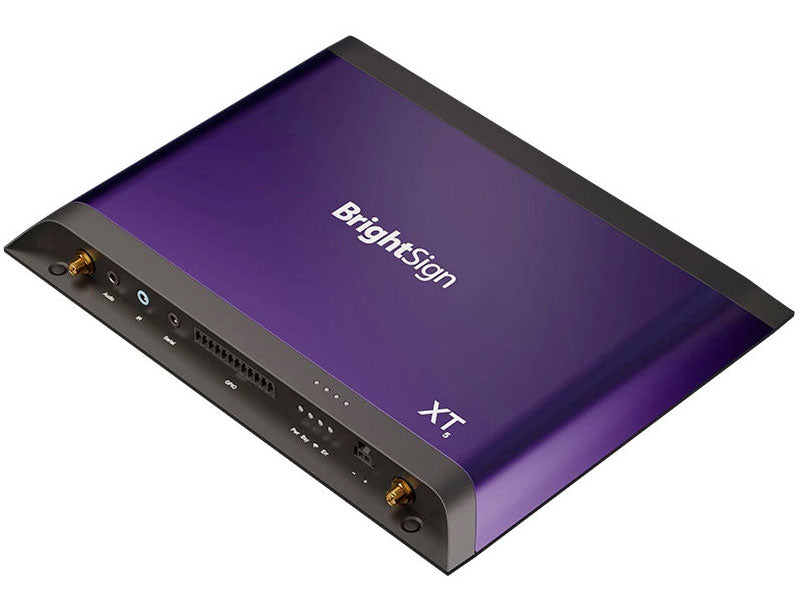

XT2145 Powerful ultra-thin player
THE PERFECT COMBINATION OF POWER AND PERFORMANCE
BrightSign XT5 delivers power, performance, and flexibility to create captivating experiences with confidence. This product line consists of three ultra-thin models, all capable of delivering stunning 8K video and impressive HTML motion graphics performance. With a wide range of connectivity and HDMI options, each model offers extensive I/Os to accommodate various add-ons and engagement features.
The HDMI input option plays live TV or video from outside sources, while the dual HDMI outputs allow for simultaneous display on two screens. The remarkable versatility, power, and performance of BrightSign XT5 guarantees an exceptional experience not only in the present but also for years to come.
• Plays brilliant 1080p to 8K video
• Supports dual 4K video decoding to drive two screens at once
• Runs highly responsive motion graphics at high frame rates
• Streamlined deployments with PoE+ and comprehensive I/O capabilities
• Efficient, ultra-thin design with anodized aluminium enclosure
• Runs BrightSignOS
| Category | Specification |
|---|---|
| VIDEO & HTML5 ENGINES | |
| 8K60p Video Decoding | Yes (10-bit) |
| 4K60p Video Decoding | Dual (10-bit) |
| HDR10, HLG, Rec.2020 Support | Yes |
| 4K Video Rotation | Yes |
| 8K Full Resolution Graphics | Yes |
| HTML5 Performance | Intense graphics, video, live TV |
| HTML Support | HTML5, CSS, JavaScript, WebGL, Chromium |
| MEDIA FORMATS | |
| 8K Video Codec (H.265) | Yes |
| 8K Video Containers | .ts, .mov, .mp4, .mkv |
| 4K Video Codecs | H.265, H.264 |
| 4K Video Containers | .ts, .mov, .mp4, .mkv |
| Full HD Codecs | H.265, H.264, MPEG-2 |
| Full HD Containers | .ts, .mpg, .vob, .mov, .mp4, .m2ts |
| Image Formats | BMP, JPEG, PNG |
| Audio Formats | MP2, MP3, AAC, WAV, AC3 passthrough |
| I/O | |
| HDMI Outputs | 1x HDMI 2.1a, 1x HDMI 2.0a |
| HDMI Inputs (Live TV) | 1x HDMI 2.0a |
| USB Ports | 1x USB-A, 1x USB-C |
| Serial Port | 3.5mm RS-232 |
| GPIO Ports | 12-pin Phoenix, 8 bi-directional |
| IR Ports | 3.5mm In/Out |
| Ethernet | Gigabit with PoE+ |
| DISPLAY RESOLUTIONS | |
| Max Resolution | 8K (7680x4320 @60fps) |
| Custom Display Resolutions | Yes |
| ACCESSORIES | |
| BP200 & BP900 USB Button Pads | Supported |
| WD-105 Dual Antenna Wireless | Supported |
| MicroSD Class 10 Cards | Supported |
| 256GB PCIe NVMe M.2 SSD | Supported |
| BrightSign Mobile USB Modem | Supported |
| MISCELLANEOUS | |
| Dimensions (WxDxH) | 238.62 x 185.90 x 19.19 mm |
| Shipping Weight | 1.41 kg |
| Player Weight | 0.68 kg |
| Power Supply | 12V / 3A |
| Built-in Wall Mounting | Yes |
| Regulatory Approvals | Multi-Country, UK/EU |
| Warranty | 2-Year UK/EU Warranty |
