THE PERFECT COMBINATION OF POWER AND PERFORMANCE

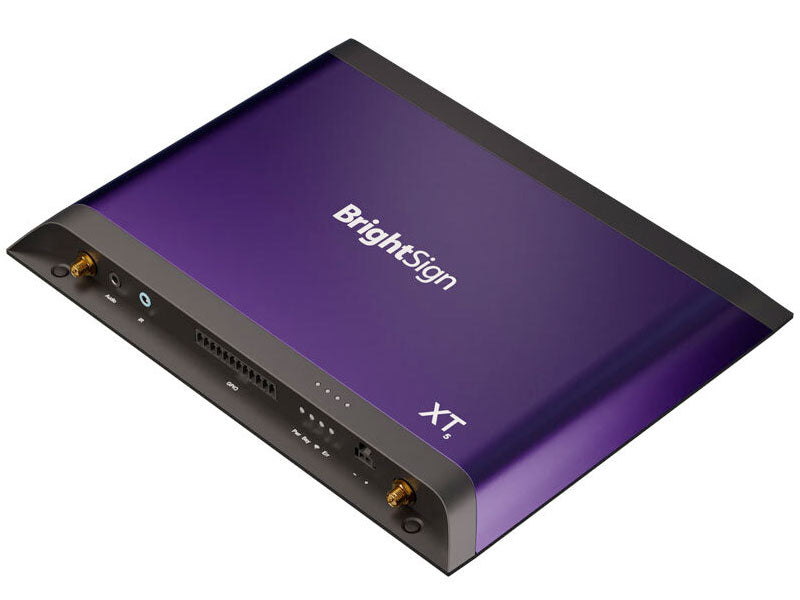

BrightSign XT5 delivers power, performance, and flexibility to create captivating experiences with confidence. This product line consists of three ultra-thin models, all capable of delivering stunning 8K video and impressive HTML motion graphics performance. With a wide range of connectivity and HDMI options, each model offers extensive I/Os to accommodate various add-ons and engagement features.
The remarkable versatility, power, and performance of BrightSign XT5 guarantees an exceptional experience not only in the present but also for years to come.
• Plays brilliant 1080p to 8K video
• Supports dual 4K video decoding to drive two screens at once
• Runs highly responsive motion graphics at high frame rates
• Streamlined deployments with PoE+ and comprehensive I/O capabilities
• Efficient, ultra-thin design with anodized aluminium enclosure
• Runs BrightSignOS
| Category | Details |
|---|---|
| VIDEO & HTML5 ENGINES | |
| 8K60p Video Decoding | Yes (10-bit) |
| 4K60p Video Decoding | Dual (10-bit) |
| HDR10, HLG, Rec.2020 Support | Yes |
| 4K Video Rotation | Yes |
| 8K Full Graphics | Yes |
| HTML5 Performance | 3D WebGL & Real-Time Data |
| HTML Support | HTML5, CSS, JavaScript, WebGL, Chromium Compatible |
| MEDIA FORMATS | |
| 8K Video Codec (H.265) | Yes |
| 8K Containers | .ts, .mov, .mp4, .mkv |
| 4K Video Codecs | H.265, H.264 |
| 4K Containers | .ts, .mov, .mp4, .mkv |
| Full HD Codecs | H.265, H.264, MPEG-2 |
| Full HD Containers | .ts, .mpg, .vob, .mov, .mp4, .m2ts |
| Image Formats | BMP, JPEG, PNG |
| Audio Formats | MP2, MP3, AAC, WAV |
| I/O | |
| HDMI Output | 1x HDMI 2.1a |
| HDMI Inputs (LiveTV) | None |
| USB | None |
| Serial | None |
| GPIO | 12-pin Phoenix Connector with 8 bi-directional Ports |
| IR | 3.5mm In/Out |
| Ethernet | Gigabit with PoE+ |
| DISPLAY RESOLUTIONS | |
| Max Resolution | 8K (7680x4320 @60fps) |
| Custom Display Resolutions | Yes |
| ACCESSORIES | |
| BP200/BP900 Pads | Not Supported |
| WD-105 Wireless Module | Supported |
| MicroSD Class 10 Cards | Supported |
| 256GB PCIe NVMe M.2 SSD | Supported |
| BrightSign Mobile USB Modem | Not Supported |
| MISCELLANEOUS | |
| Dimensions (WxDxH) | 238.62 x 185.90 x 19.19 mm |
| Player Weight | 0.68 kg |
| Power Supply | 12V / 3A |
| Power Consumption | Standard Power Usage |
| Built-in Wall Mounting | Yes |
| Multi-Country Regulatory | Yes |
| Description | Downloads |
|---|---|
| BrightSign XT245 8K Digital Signage Player DataSheet | Downloads |
