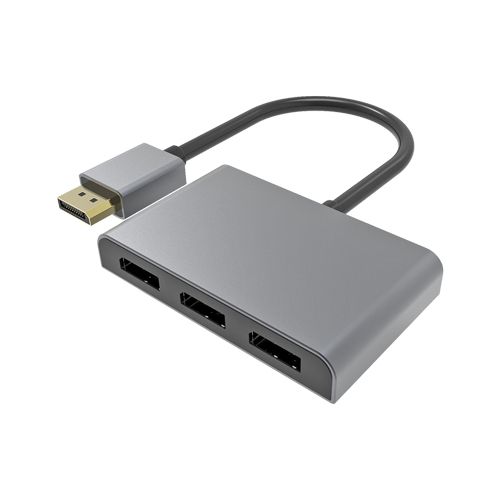

Cablenet 3 Way DisplayPort MST Splitter - 3 x Display Port | 24-0315
SKU: 24-0315
£49.90 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Cablenet 3 Way DisplayPort MST Splitter - 3 x Display Port | 24-0315
The 1 to 3 DisplayPort 1.4 MST Splitter can boost your productivity by connecting up to three DisplayPort displays to a single DisplayPort output with MST (Multi-Stream Transport) Technology.
Mirror Mode: Clone or duplicate the display, so the same image appears on each monitor. This is useful in settings such as retail environments; arrival & departure boards in airports, bus terminals and train stations; video presentations in classrooms, auditoriums and multiple information booths at trade shows.
Extended Mode: Boost productivity. Display a different image on each monitor whilst they still function as separate displays. Extending your workspace makes multitasking a lot easier as you are able to view multiple documents at once.
Built-in cable with DisplayPort Connector (Male).
3 x DisplayPort Connectors (Female).
Connect supplied USB cable to a USB power supply providing 10W (5V 2A).For full functionality of this DisplayPort MST Splitter, you must ensure that your device's graphics card (GPU) supports DisplayPort Multi-Stream Transport (MST) technology.
If your PC/Laptop has an Intel HD (onboard) GPU, you must ensure that the processor (CPU) is Intel® Core™ 4th generation and above as they support Multi-Stream Transport (MST) technology, but you must check with your device manufacturer to ensure that it supports the modes you require.
MST for NVIDIA and Intel Graphics Processor Units is not supported on Mac OS X; you can use the duplicate mode, but not extended or video wall modes.
-
Category Attribute Value Input Connector 1 x DisplayPort 1.4 Male (15cm) Output Connectors 3 x DisplayPort 1.4 Female Resolution Single Display 8K @ 60Hz (7680x4320) Dual Display 5K @ 60Hz (5120x2880) Triple Display 4K @ 30Hz (3820x2160) Bandwidth Max Bandwidth 32.4 Gbps Power Input USB (5V 2A, 10W) Dimensions Hub Size 84 x 51 x 14 mm Cable Length 15 cm Video Ports Output Ports 3 x DisplayPort Port Type DisplayPort Vendor Info Brand Cablenet MPN 24-0315 EAN 5056750301695 Packaging Quantity Per Pack 1 pc(s) Gross Weight 0.026 kg Package Size (L×W×H) 170 x 20 x 160 mm -
Description Downloads Cablenet 3 Way DisplayPort MST Splitter - 3 x Display Port | 24-0315 DataSheet Downloads
