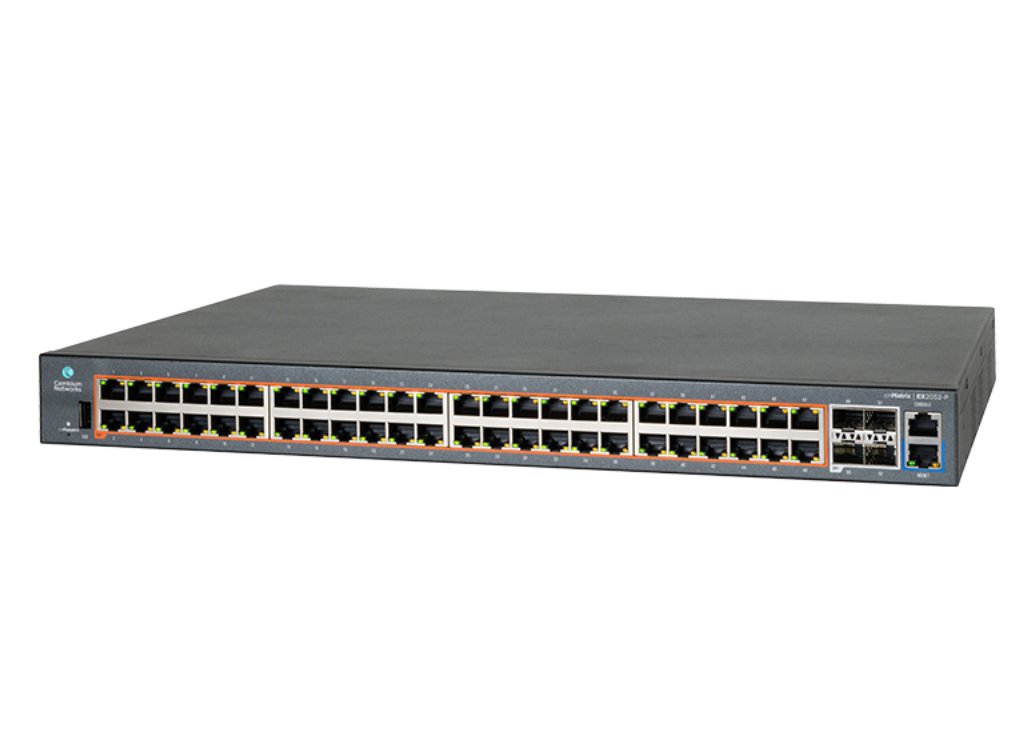

Cambium Networks’ next generation switching platform offers a cloud managed, high performance, feature rich enterprise grade ethernet switching solution.
| Category | Specification |
|---|---|
| Data transmission | |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Throughput | 176 Mpps |
| Design | |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.1Q/IEEE 802.1s/IEEE 802.1x |
| Number of VLANs | 4000 |
| Policy-based routing | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 3.6 kg |
| Performance | |
| Flash memory | 128 MB |
| Harmonized System (HS) code | 85176990 |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 393648 Hour |
| Memory type | DRAM |
| Processor frequency | 800 MHz |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| Power | |
| AC input voltage | 100 - 240 V |
| Power consumption (max) | 33.88 Watt |
| Power over Ethernet (PoE) | Yes |
| Product dimensions | |
| Net Weight (Product, kg) | 3.5 kg |
| Product Depth | 25 cm |
| Product Height | 4.4 cm |
| Product Width | 44 cm |
| Security | |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) egress | 128 |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client/DHCP relay/DHCP server/DHCP snooping |
| IGMP proxy | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 5 Year(s) |
