Improve network performance while reducing the time and cost of provisioning and management

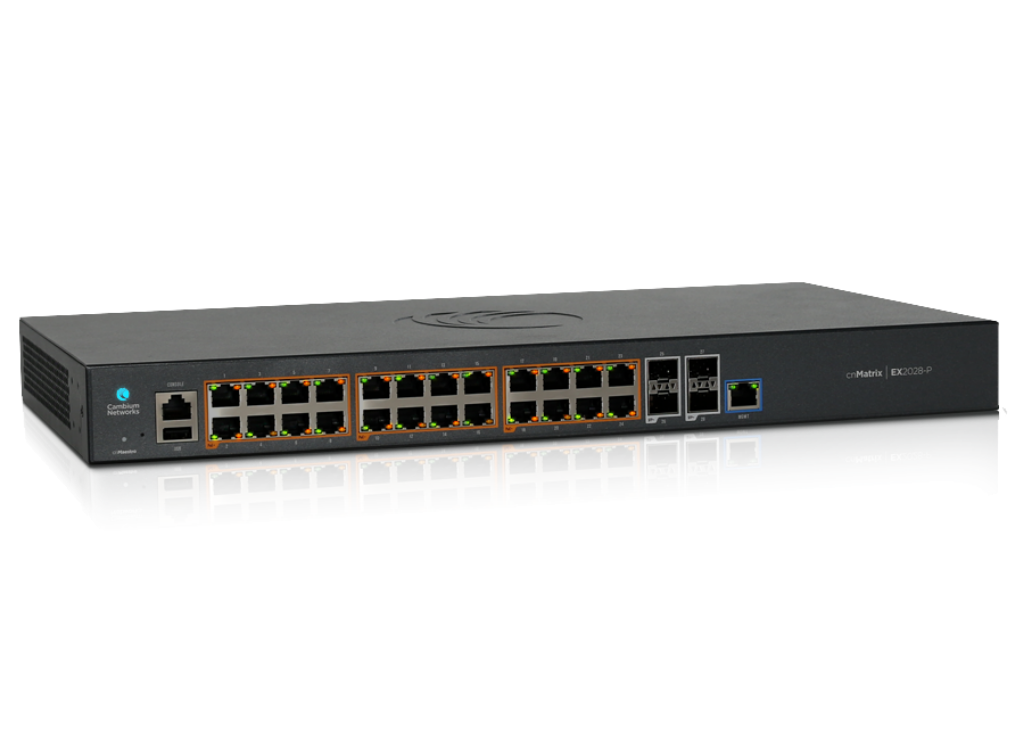

cnMatrix™ EX2028-P switches simplify network deployment and operation. When deployed with cnPilot™ WLAN access points and the cnMaestro™ management system, network operators have an affordable, feature rich, high quality unified wired/ wireless enterprise grade network. Improve performance, security and end user satisfaction while reducing costs with cnMatrix EX2028-P.
| Category | Specification |
|---|---|
| Data transmission | |
| MAC address table | 16384 entries |
| Switching capacity | 128 Gbit/s |
| Throughput | 128000 Mpps |
| Design | |
| Form factor | 1U |
| LED indicators | Link/PoE |
| Number of fans | 2 fan(s) |
| Product colour | Grey |
| Rack mounting | Yes |
| Legal Information | |
| EU ECCN Code | 5A002 |
| UNSPSC Code | 43222612 |
| US ECCN Code | 5A002 |
| Management features | |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| System event log | Yes |
| User operation log | Yes |
| Web-based management | Yes |
| Network | |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Flow control support | Yes |
| Networking standards | IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ac/IEEE 802.3ad/IEEE 802.3ak/IEEE 802.3u/IEEE 802.3x |
| Number of VLANs | 4094 |
| VLAN support | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | 40 - 70 °C |
| Package dimensions | |
| Depth (package, cm) | 9.5 cm |
| Gross Weight (Package, kg) | 4.8 kg |
| Height (package, cm) | 34 cm |
| Width (package, cm) | 48 cm |
| Performance | |
| Mean time between failures (MTBF) | 338917.2 Hour |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| USB 2.0 ports quantity | 1 |
| Power | |
| Power supply included | Yes |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 400 Watt |
| Product dimensions | |
| Net Weight (Product, kg) | 3.96 kg |
| Product Depth | 25 cm |
| Product Height | 4.4 cm |
| Product Width | 44 cm |
| Protocols | |
| Management protocols | SNMP v1, v2, and v3, SSH 1.5 and 2.0, RFC 4252: SSH, RFC 4253: SSH, RFC 4254: SSH, RFC 4251: SSH, RFC 4716: SECSH, RFC 4419, SSL 3.0, RFC 2246, RFC 2818, RFC 3268 |
| Security | |
| Access Control List (ACL) | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCPv6 snooping |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| MAC address filtering | Yes |
| Password protection | Yes |
| Security algorithms | 802.1x RADIUS |
| SSH/SSL support | Yes |
| Static port security | Yes |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 5 Year(s) |
| Description | Downloads |
|---|---|
| Cambium Networks MX-EX2028PXA-E 24-Port PoE Managed Switch with 4 SFP+ Fiber Ports Datasheet | Downloads |
