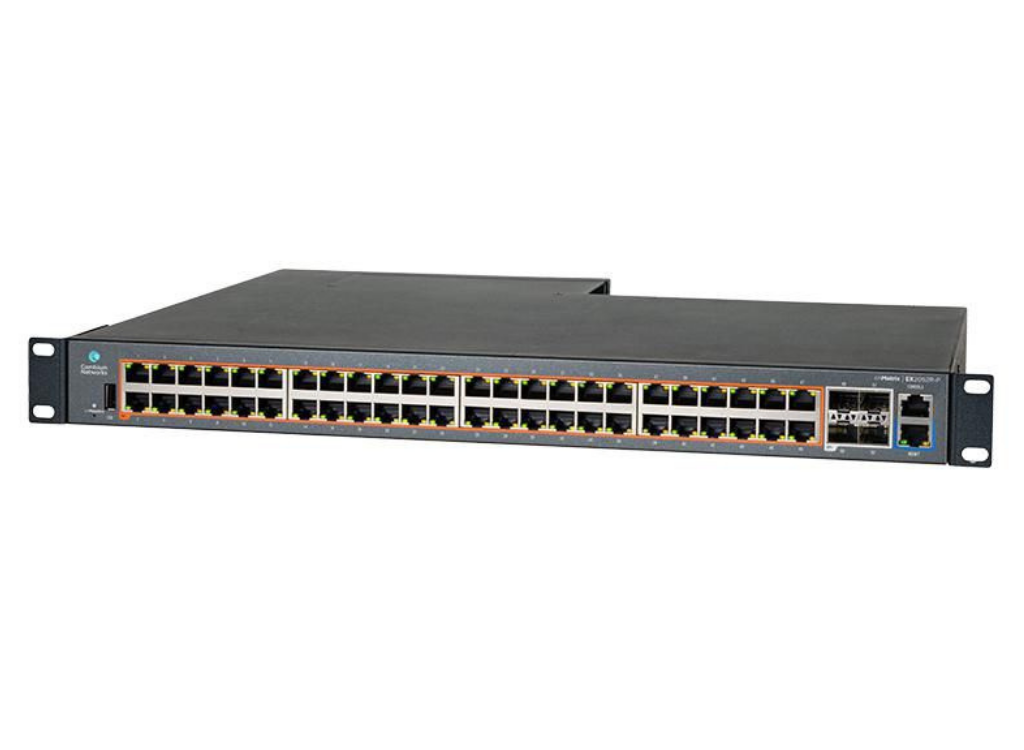

cnMatrix Switch EX2052R-P
176 Gbps throughputs, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets), 4 SFP+ Uplink ports
| Category | Specification |
|---|---|
| Data transmission | |
| Forwarding rate | 120 Mpps |
| Jumbo frames | 9000 |
| Jumbo frames support | Yes |
| MAC address table | 16000 entries |
| Throughput | 176 Gbit/s |
| Design | |
| Form factor | 1U |
| LED indicators | Activity/Link/PoE |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Rack mounting | Yes |
| Reset button | Yes |
| Legal Information | |
| UNSPSC Code | 43222612 |
| Management features | |
| Quality of Service (QoS) support | Yes |
| Switch type | Managed |
| Multicast features | |
| Multicast support | Yes |
| Network | |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Broadcast storm control | Yes |
| Networking standards | IEEE 802.3af/IEEE 802.3at |
| Number of VLANs | 4000 |
| Policy-based routing | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Package dimensions | |
| Gross Weight (Package, kg) | 5 kg |
| Performance | |
| Built-in processor | Yes |
| Flash memory | 128 MB |
| Internal memory | 512 MB |
| Mean time between failures (MTBF) | 202977 Hour |
| Memory type | DDR-SDRAM |
| Processor frequency | 800 MHz |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 4 |
| SFP+ module slots quantity | 4 |
| Power | |
| Power source | AC |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) power per port | 30 Watt |
| Power over Ethernet (PoE) voltage | 54 V |
| Product dimensions | |
| Net Weight (Product, kg) | 4.3 kg |
| Product Depth | 35 cm |
| Product Height | 4.4 cm |
| Product Width | 44 cm |
| Security | |
| BPDU filtering/protection | Yes |
| DHCP features | DHCP client/DHCP relay/DHCP snooping |
| IGMP proxy | Yes |
| IGMP snooping | Yes |
| Password protection | Yes |
| SSH/SSL support | Yes |
| Vendor information | |
| Brand Name | Cambium Networks |
| Warranty | 3 Year(s) |
