Official Partner
CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY
The e410 supports seamless roaming for up to 2,048 clients without needing a
controller in the network! Hotspot portal hosting on the AP itself offers controllerless simplicity.
MONETIZE: VOUCHERS. SOCIAL LOGIN
Monetize your Wi-Fi service with cnMaestro’s Guest Access capabilities that support splash page hosting, social login, temporary access vouchers, and payment gateway. These features – along with the ability to create time, rate and volume-limited traffic profiles – make the e410 ideal for hotels, coffee shops, schools, campgrounds, and office guest Wi-Fi.
SERVICE AWAREWLANS FOR BETTER USER EXPERIENCE
Make sure that every connection to an access point is successful. When service to a critical resource such as an external Gateway or AAA is down, the e410 can turn off the impacted SSIDs, enabling client devices to redirect to a functional, neighboring access point.
INDOOR/OUTDOOR WI-FI MESH. FLEXIBILITY
Indoor meshing across multiple e410s, or Indoor/ Outdoor meshing across both the Indoor e410 and the Outdoor Enterprise APs, offers convenient options to wirelessly expand Wi-Fi coverage.
COVERAGE, CAPACITY. SPEED
The plenum-rated e410 packs a max transmit power of 25 dBm and supports 20MHz, 40MHz as well as 80MHz channels on
5GHz – offering more flexibility than ever for both coverage and capacity. Throughput management via Airtime fairness, increased performance by Automatic RF management (AutoRF), and higher client device speeds from band steering ensure your network can adapt to dynamic client behaviors.
HIGH DENSITY, HIGHLY AVAILABLE
A capacity of 256 concurrent client associations and 16 SSIDs, along with dual on-board Active/Standby memory banks, ensure the e410 combines high density with high availability.
LICENSE-FREE HIGH PERFORMANCE AT A LOW PRICE
The 802.11ac wave 2 e410 comes with a free controller and no AP management license fees. No hidden charges. Affordable.
WARRANTY
Limited Lifetime Warranty (5 years)
| Category | Attribute | Details |
|---|---|---|
| Antenna | Antenna Direction Type | Omni-directional |
| Antenna Features | Integrated antenna | |
| Antenna Type | Internal | |
| Design | Cable Lock Slot | Yes |
| LED Indicators | Yes | |
| Placement | Table/Wall | |
| Product Colour | White | |
| Reset Button | Yes | |
| Features | 2.4 GHz | Yes |
| 5 GHz | Yes | |
| Ethernet LAN Data Rates | 10/100/1000 Mbit/s | |
| Max Data Transfer Rate | 867 Mbit/s | |
| Max Data Transfer Rate (2.4 GHz) | 400 Mbit/s | |
| Max Data Transfer Rate (5 GHz) | 867 Mbit/s | |
| Maximum Indoor Range | 180 m | |
| MIMO | Yes | |
| MIMO Type | Multi User MIMO | |
| Networking Standards | IEEE 802.11a/b/g/n/ac and more | |
| Quality of Service (QoS) Support | Yes | |
| Management Features | Syslog | Yes |
| Operational Conditions | Operating Temperature (T-T) | 0 - 50 °C |
| Storage Humidity (H-H) | 0 - 95 % | |
| Storage Temperature (T-T) | -40 - 70 °C | |
| Package Dimensions | Gross Weight | 0.796 kg |
| Packaging Content | Products Included | 1 pc |
| Ports & Interfaces | Ethernet LAN (RJ-45) Ports | 1 |
| USB 2.0 Ports Quantity | 0 | |
| Product Dimensions | Net Weight | 0.696 kg |
| Depth | 18 cm | |
| Height | 4.2 cm | |
| Width | 18 cm | |
| Protocols | DHCP Server | Yes |
| Security | Number of SSIDs Supported | 16 |
| Security Algorithms | WPA2-AES, RADIUS, EAP-TLS, and more | |
| Vendor Information | Brand Name | Cambium Networks |
| Warranty | 5 Year(s) | |
| Categories | Main Category | Network |
| Subcategory | Wireless Access Points |
| Description | Downloads |
|---|---|

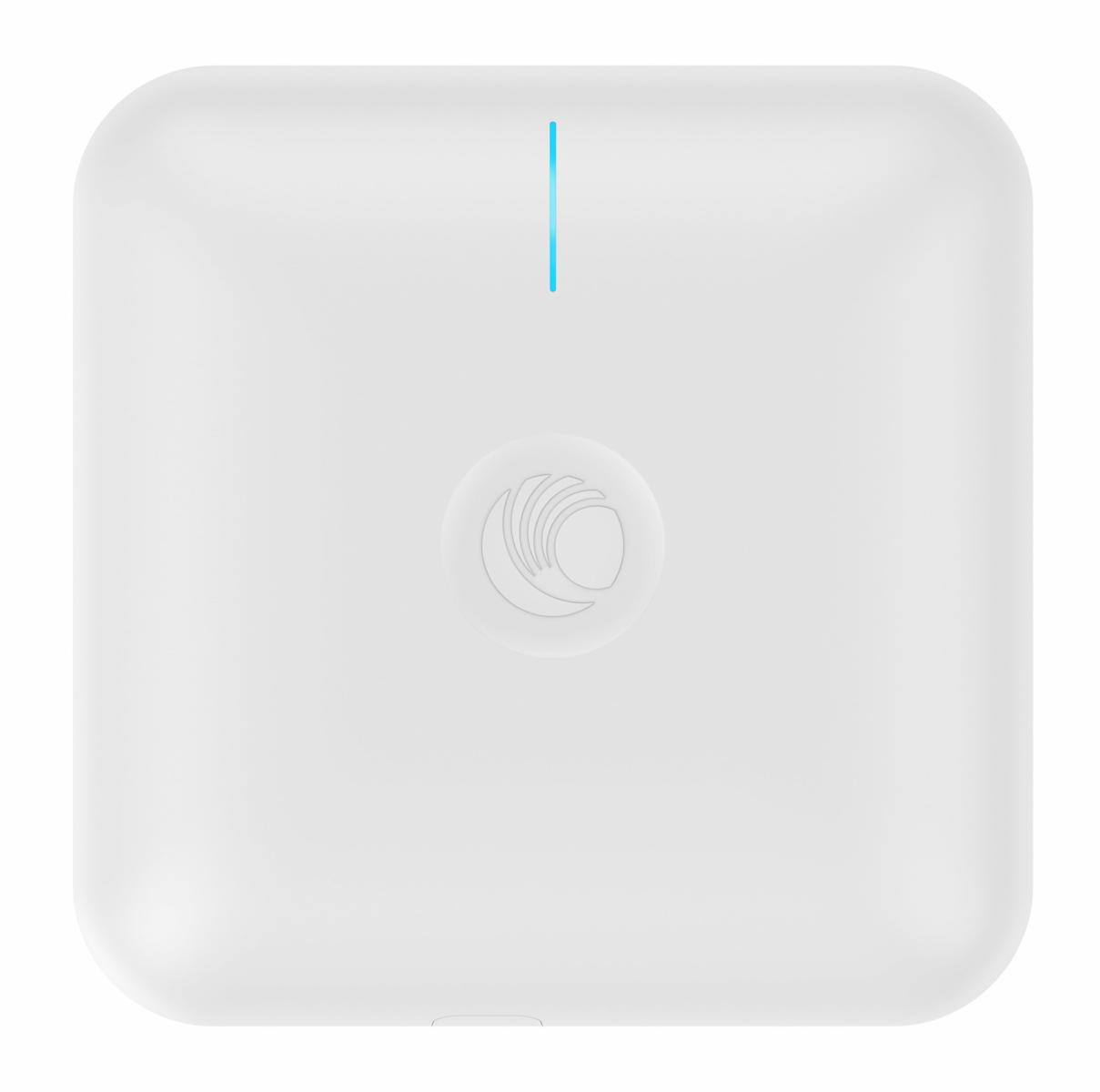

| Cambium Networks cnPilot e410 Indoor Access Point | PL-E410X00B-EU SpecSheet | Downloads |
