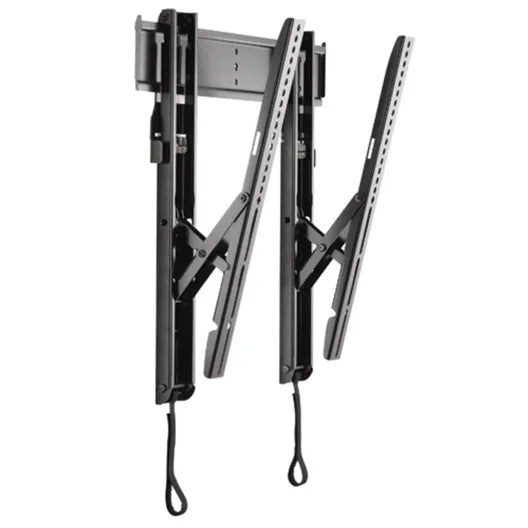

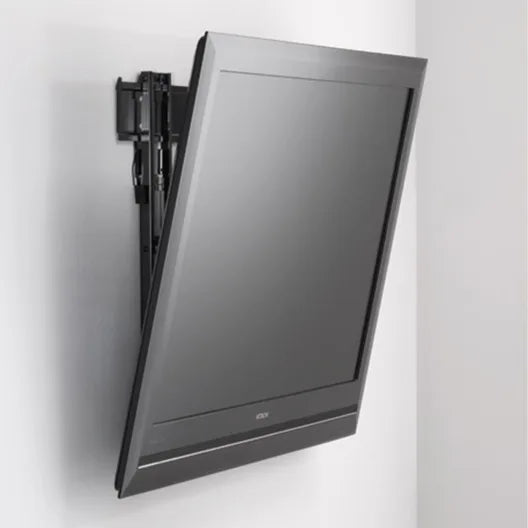

Chief 32" - 65" LTTU Large THINSTALL Tilt Wall Mount
Designed specifically for and only compatible with new ultra-thin TVs 2" (51 mm) deep or less
Ultra low-profile design compliments ultra-thin flat panel TVs
Provides 12° of smooth, fingertip tilt
GlideLock provides tool-less latching for faster installation
Consists of one-piece steel bracket with two tilting interfaces
Each interface includes a sliding flag for increased security
Features a cable stand and bottom pullout for cable access
Provides lateral shift for increased flexibility
Can be installed in landscape mode only
NOTE: Due to their low-profile design, we recommend using an in-wall accessory box to assist in outlet installation
| Dimensions & Measurements | |
|---|---|
| Lateral Shift | Depends on mounting pattern of screen |
| Maximum Screen Thickness | 2" (51 mm) |
| Minimum Depth | 1.9 cm (0.8 in) |
| Shipping Weight | 6.8 kg (14.9 lbs) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Wall Stud Compatibility In | 16" (406mm) and 20" (508mm) and 24" (610mm) |
| Weight Capacity | 45.4 kg (100 lbs) |
| Characteristics & Features | |
|---|---|
| Adjustability | Tilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | +0° and -12° |
| VESA Mounting Pattern | 200 x 200mm - 800 x 500mm |
| Certifications & Warranties | |
|---|---|
| Certifications | UL Listed |
| Description | Downloads |
|---|---|
| Drawings |
Downloads |
| Installation Manuals | Downloads |
