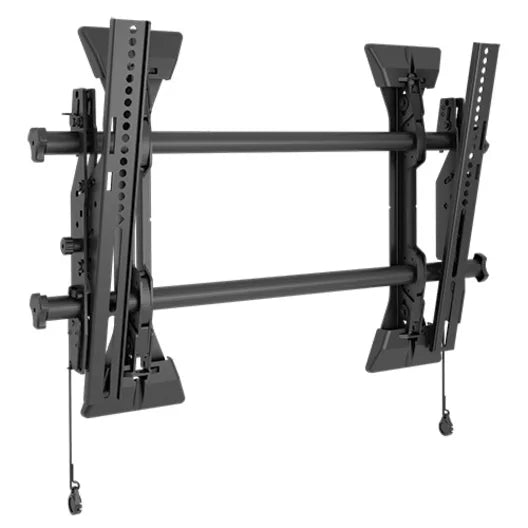

Chief 32" - 65" Medium Fusion Micro-Adjustable Tilt Wall Display Mount | MTM1U
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
| Dimensions & Measurements | |
|---|---|
| Depth | 5.1 cm (2 in) |
| Height | 43.8 cm (17.3 in) |
| Manual Height Adjustment | 25.4 mm (1 in) |
| Minimum Depth | 5.1 cm (2 in) |
| Overall Dimensions | 17.25" x 25.75" x 2" (432 x 654 x 51 mm) |
| Shipping Weight | 8.8 kg (19.3 lbs) |
| Typical Screen Size | 32" - 65" (813mm - 1651mm) |
| Weight Capacity | 56.7 kg (125 lbs) |
| Width | 65.4 cm (25.8 in) |
| Characteristics & Features | |
|---|---|
| Adjustability | Height Adjustable, Lateral Shift, Tilt |
| Application | Wall |
| Color | Black |
| Number of Displays | 1 |
| Orientation | Landscape |
| Solution Type | Universal |
| Tilt | +2° / -12° |
| VESA Mounting Pattern | 100 x 100mm - 650 x 400mm |
| Certifications & Warranties | |
|---|---|
| Certifications | OSHPD, UL Listed |
| Description | Downloads |
|---|---|
| Drawings |
Downloads |
| Installation Manuals | Downloads |
