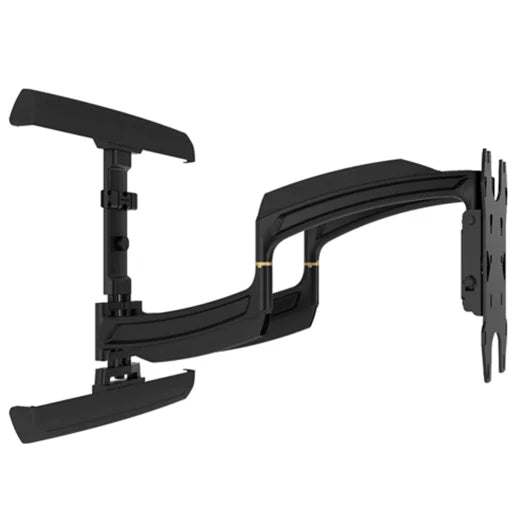

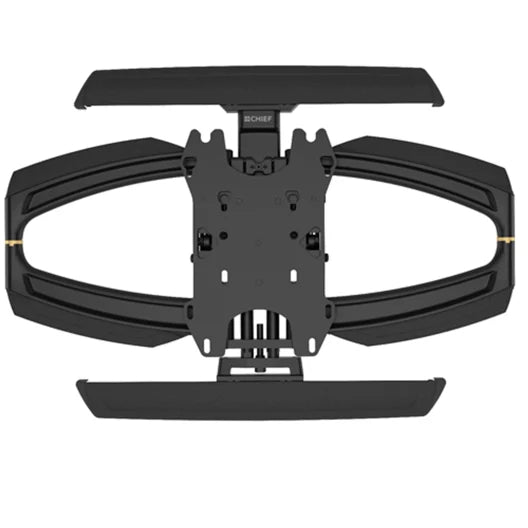

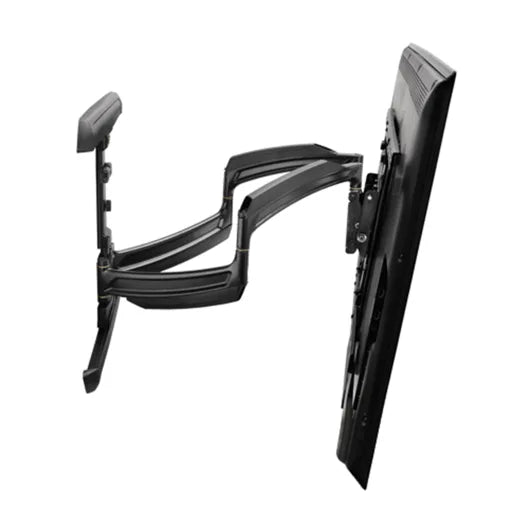

Chief 42" - 75" Large Thinstall Dual Swing Arm Wall Display Mount | TS525TU
A lightweight, low-profile full-motion wall display mount for TVs 42-75". Easily installs with one person by mounting the top rail and sliding on the assembly.

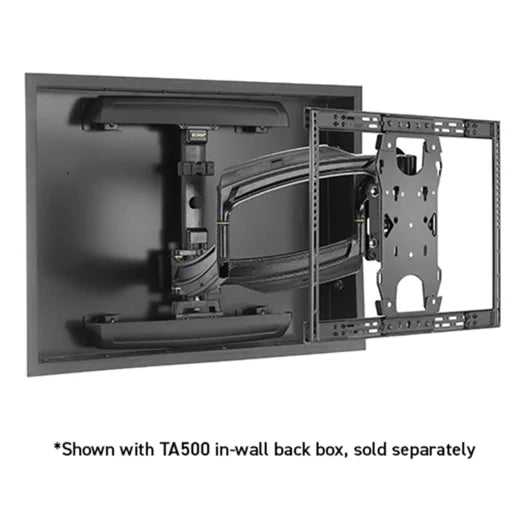

In-wall installation available when TA500 purchased with mount.
| Dimensions & Measurements | Specification |
|---|---|
| Lateral Shift | 40.6 cm (16 in) |
| Maximum Extension | 63.5 cm (25 in) |
| Maximum Screen Thickness | 3" (76mm) |
| Minimum Depth | 5.1 cm (2 in) |
| Shipping Weight | 25 kg (55 lbs) |
| Typical Screen Size | 42" - 75" (1067mm - 1905mm) |
| Wall Stud Compatibility In | Dual Stud |
| Weight Capacity | 56.7 kg (125 lbs) |
| Characteristics & Features | Specification |
|---|---|
| Adjustability | Extension, Height Adjustable, Lateral Shift, Micro-Adjustable, Swivel, Tilt |
| Application | Wall |
| Color | Black |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Yes |
| Solution Type | Universal |
| Tilt | +0° / -15° |
| VESA Mounting Pattern | 100x100mm-800x400mm |
| Certifications & Warranties | Specification |
|---|---|
| Certifications | OSHPD |
| UL Listed |
| Description | Downloads |
|---|---|
| Drawings |
Downloads |
| Installation Manuals | Downloads |
