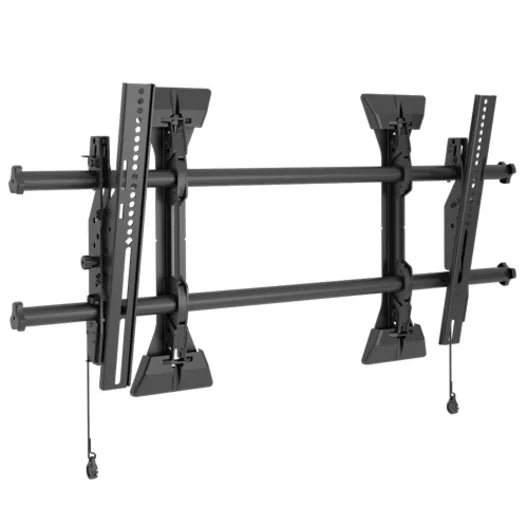

Chief 42"- 86" LTM1U Large Fusion Micro-Adjustable Tilt Wall Mount
SKU: LTM1U
£156.09 (Excl. VAT)
- Warranty10 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)90 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes40" - 86"
- VESA Patterns800x500
- Description
- Specifications
- Downloads
-
Chief 42"- 86" LTM1U Large Fusion Micro-Adjustable Tilt Wall Mount
Chief's Fusion® tilt wall mounts were developed based on installer feedback and direct observations of installers in the field. Favorite Fusion® features include Centerless shift, Centris tilt, ControlZone leveling adjustment and ClickConnect Latching.
Benefits included increased stability, fast installation, easy cable management and security.
The installer-inspired Fusion® tilt mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.Diagram
See a simple setup of an interactive classroom that incorporates a Fusion® tilt wall mount into its design.
Selection Guide
Ideal for digital signage, hospitality, transportation and corporate settings, find The Fusion® tilt wall mount that's perfect for you. -
Dimensions & Measurements Specification Depth 5.1 cm (2 in) Height 43.2 cm (17 in) Manual Height Adjustment 25.4 mm (1 in) Max Screen Size 15.2 cm (6 in) Maximum Screen Thickness 6" (152mm) Minimum Depth 5.1 cm (2 in) Shipping Weight 10 kg (22 lbs) Typical Screen Size 42"- 86" (1067mm - 2184mm) Wall Stud Compatibility In 16" - 32" (406mm - 813mm) Weight Capacity 90.7 kg (200 lbs) Width 88.3 cm (34.8 in) Characteristics & Features Specification Adjustability Height Adjustable, Lateral Shift, Micro-Adjustable, Tilt Application Wall Color Black Number of Displays 1 Orientation Landscape Solution Type Universal Tilt +2° / -12° VESA Mounting Pattern 100 x 100 - 878 x 500 mm Certifications & Warranties Specification Certifications OSHPD UL Listed -
Description Downloads Drawings Downloads
Installation Manuals Downloads
