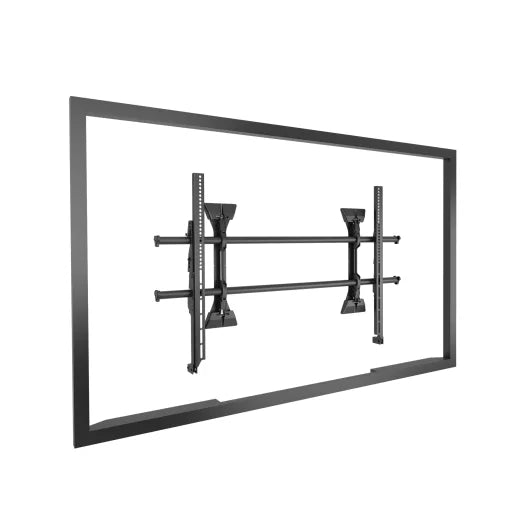

Chief 55"-100" X-Large Fusion Micro-Adjustable Fixed Wall Display Mount
SKU: XSM1U
£159.20 (Excl. VAT)
Open an Account – Tailored to Your Organisation
Education, healthcare, public sector, or trade — get exclusive pricing, expert support, and 30-day terms. Click here to open your account today.
Educational & Public Sector Prices Available
For more details, please call us at 020 8191 9223 or email us at info@screenmoove.com
- Warranty10 Year Warranty
- Mount ConfigurationMax 1 Screen
- Max Load (kg)110 kg per screen
- Mounting TypeWall Mounts
- Screen Sizes55" – 100"
- VESA Patterns1000x600
Book a Free Product Demo
Experience the power of our technology before you decide. Remote and on-site options available.
- Description
- Specifications
- Downloads
-
Chief 55"-100" X-Large Fusion Micro-Adjustable Fixed Wall Display Mount
Chief's upgraded fixed wall mounts are based on installer feedback and direct observations of installers in the field. Many new features join Fusion® favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching.
New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Installer-inspired, Fusion® fixed mounts solve top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution.
Integrated teardrop design speeds up wall plate installation by allowing pre-installation of the bolts to the wall
Centerless Shift provides post-installation lateral shift for limitless centering
Set screws keep the mount rigid, stable and secure throughout the life of the installation
ClickConnect offers an audible click when the screen safely engages with the mount
Built-in cable stand provides easy access under the screen
A full line of accessories can be installed with the mount and the entire unit can be adjusted together
Multiple installation options for various stud distances
Exclusive nesting spacers can be stacked to achieve any depth
Quick-Store Cords use magnets to easily store and access pull cords
Improved cable management with new end caps
Integrated Security
Ships with a custom hardware kit that can be hung from mount rails if installing in stages
Easy Open box with less waste to throw away -
Dimensions & Measurements Specification Depth 5.7 cm (2.3 in) Height 66.7 cm (26.3 in) Lateral Shift 54.4 cm (21.4 in) Shipping Weight 5 kg (11 lbs) Typical Screen Size 55-100" (1397mm - 2540mm) Wall Stud Compatibility In 24" - 42" (610mm - 1067mm) Weight Capacity 113.4 kg (250 lbs) Width 108.6 cm (42.8 in) Characteristics & Features Specification Adjustability Fixed, Micro-Adjustable, Height Adjustable, Lateral Shift Application Wall Color Black Orientation Landscape Solution Type Universal VESA Mounting Pattern 100 x 100 mm - 1070 x 600 mm Certifications & Warranties Specification Certifications OSHPD, TUV UL Listed -
Description Downloads Drawings Downloads
Installation Manuals Downloads
