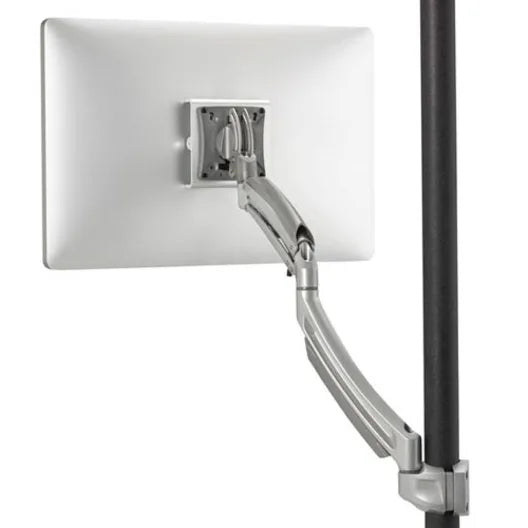

Chief 10" - 30" Kontour K1P Dynamic Pole Mount | K1P120S
The enhanced Kontour™K1P Dynamic Height-Adjustable Pole Mounts are the perfect monitor mount solutions for the office, public spaces, healthcare facilities, or home; with the Pole Mount offering extended manual height adjustment using Chief KTA pole accessories. Best-in-class weight capacity range makes specification simple!
Key enhancements have been made to Chief's patented Centris™Extreme Tilt technology for the ultimate in effortless fingertip monitor positioning. Kontour™ monitor mounts float your displays in the optimal ergonomic position to create a more productive and comfortable work space.
Note: Pole not included; see KTA Pole Accessories on Accessories tab
Best-in-class weight capacity range of 5 to 25 lbs. makes specification simple
No need to pay more for that "heavy duty" arm to support your Apple monitor or All-in-One!
Sleek, solidly-constructed forged aluminum arms in subtlesilver and black finishes
Enhanced patented Centris™Extreme Tilt provides +75°, -10° of effortless tilt, for optimal viewing comfort whether sitting or standing
13" (330 mm) of dynamic height adjustment using smooth motion gas-spring technology
Infinite manual height adjustment on the Pole for optimizing screen position
Easily clamps to poles ranging from 1.50" - 1.90" diameter, including Chief's KTA pole accessories
Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance
Tool-free cable management covers for a clean, professional look
With high levels of recycled content & a highly-recyclable design, Chief Kontour™monitor arms may contribute to valuable LEED-CI, -NC, and -EB credits!
VESA® 75 x 75 mm and 100 x 100 mm compliant (interface brackets available for non-VESA compliant displays)
| Dimensions & Measurements | |
|---|---|
| Dynamic Height Adjustment | 13" (330.2 mm) |
| Maximum Extension | 49.4 cm (19.4 in) |
| Pole Diameter Range | 1.50" - 1.90" (38.1mm - 48.3 mm) |
| Shipping Weight | 4.7 kg (10.4 lbs) |
| Typical Screen Size | 10" - 30" (254mm-762mm) |
| Weight Capacity | 5 - 25 lbs (2.3 - 11.3 kg) |
| Characteristics & Features | |
| Adjustability | Extension, Height Adjustable, Swivel, Tilt |
| Application | Pole |
| Color | Silver |
| Dual Array | No |
| Notes | Weight capacity is per monitor |
| Number of Arm Links | 2 |
| Number of Displays | 1 |
| Orientation | Landscape, Portrait |
| Reduced Height | No |
| Special Features | Extreme Tilt Technology, Height Assist |
| Tilt | +75°, -10° |
| Description | Downloads |
|---|---|
| Drawings |
Downloads |
| Installation Manuals | Downloads |
