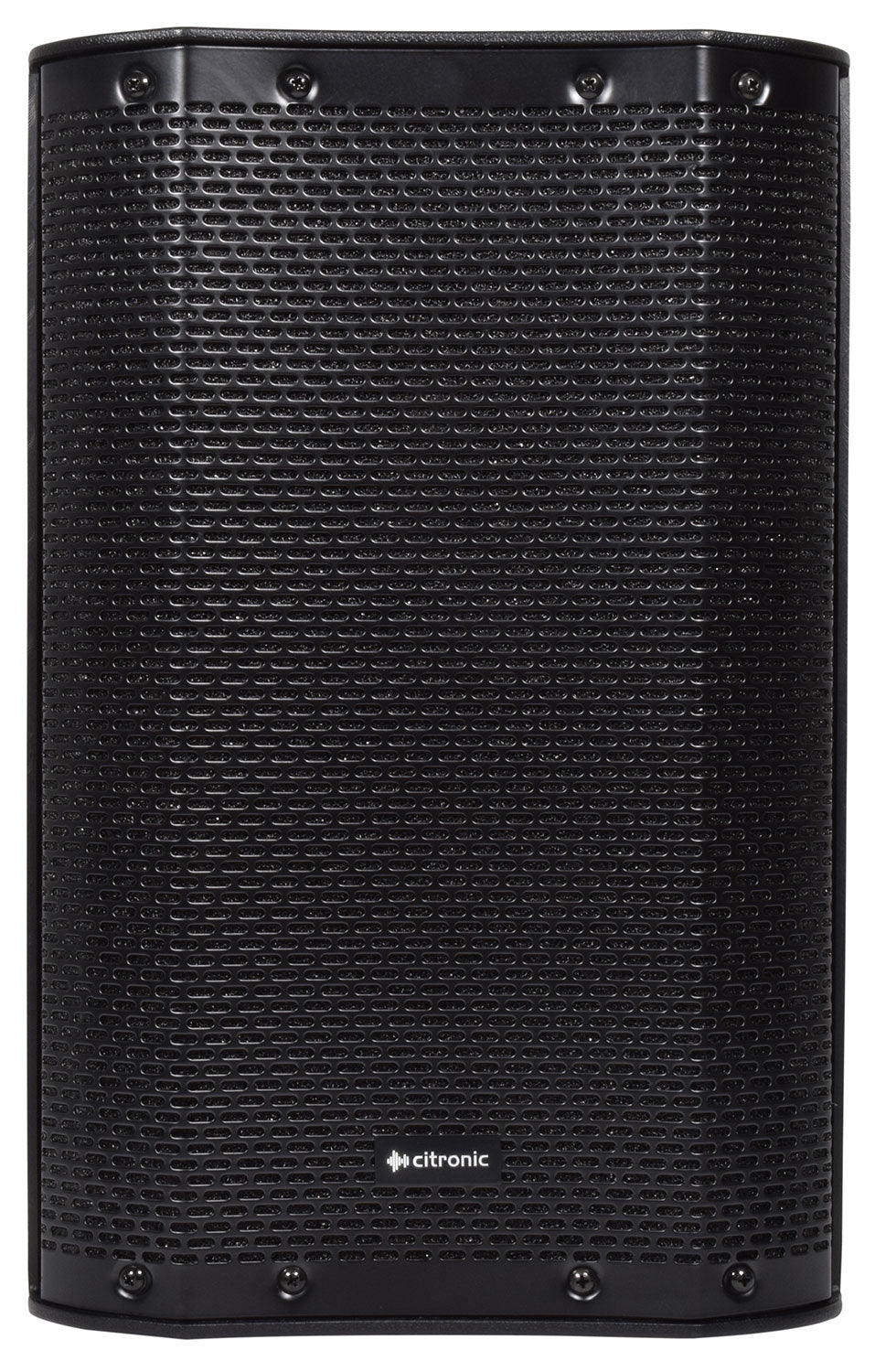

CASA Active PA Cabinets with DSP, USB/SD and Bluetooth
Versatile full-range active moulded PA cabinets with built-in high efficiency class D amplifier. A DSP controller offers 5 switchable output profiles which are suited to different program material. Inputs are provided on XLR/jack with mic/line level switching and RCA line connectors. A built-in audio module provides playback from USB or SD media and Bluetooth wireless pairing. These cabinets are fully featured for virtually any PA application and pair perfectly with the CASA series sub cabinets for high energy sound reinforcement.

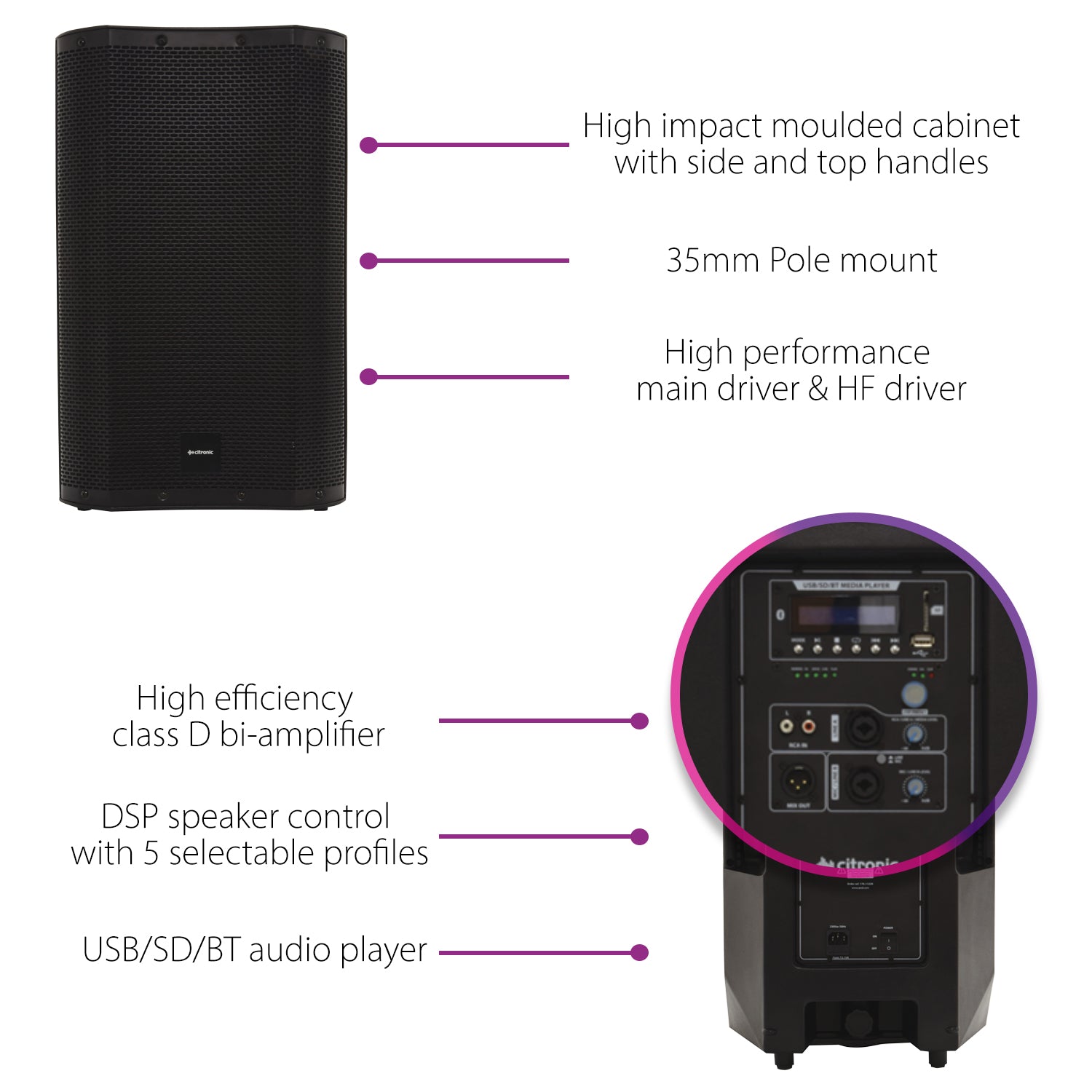

Features
High efficiency class D bi-amplifier section
DSP speaker control with 5 selectable profiles
Inbuilt USB/SD audio player
Bluetooth wireless connectivity

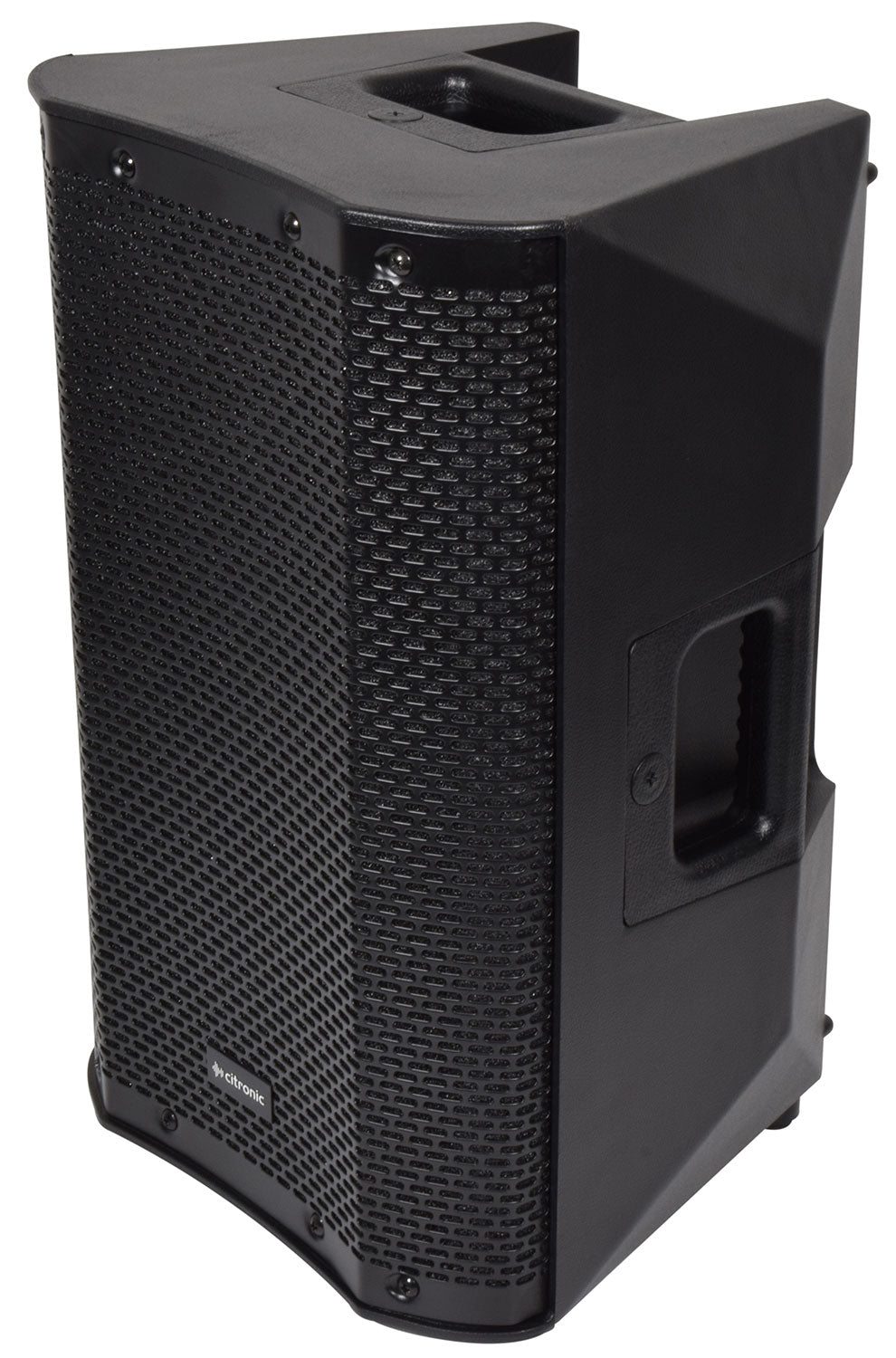

High impact moulded cabinet with side and top handles.

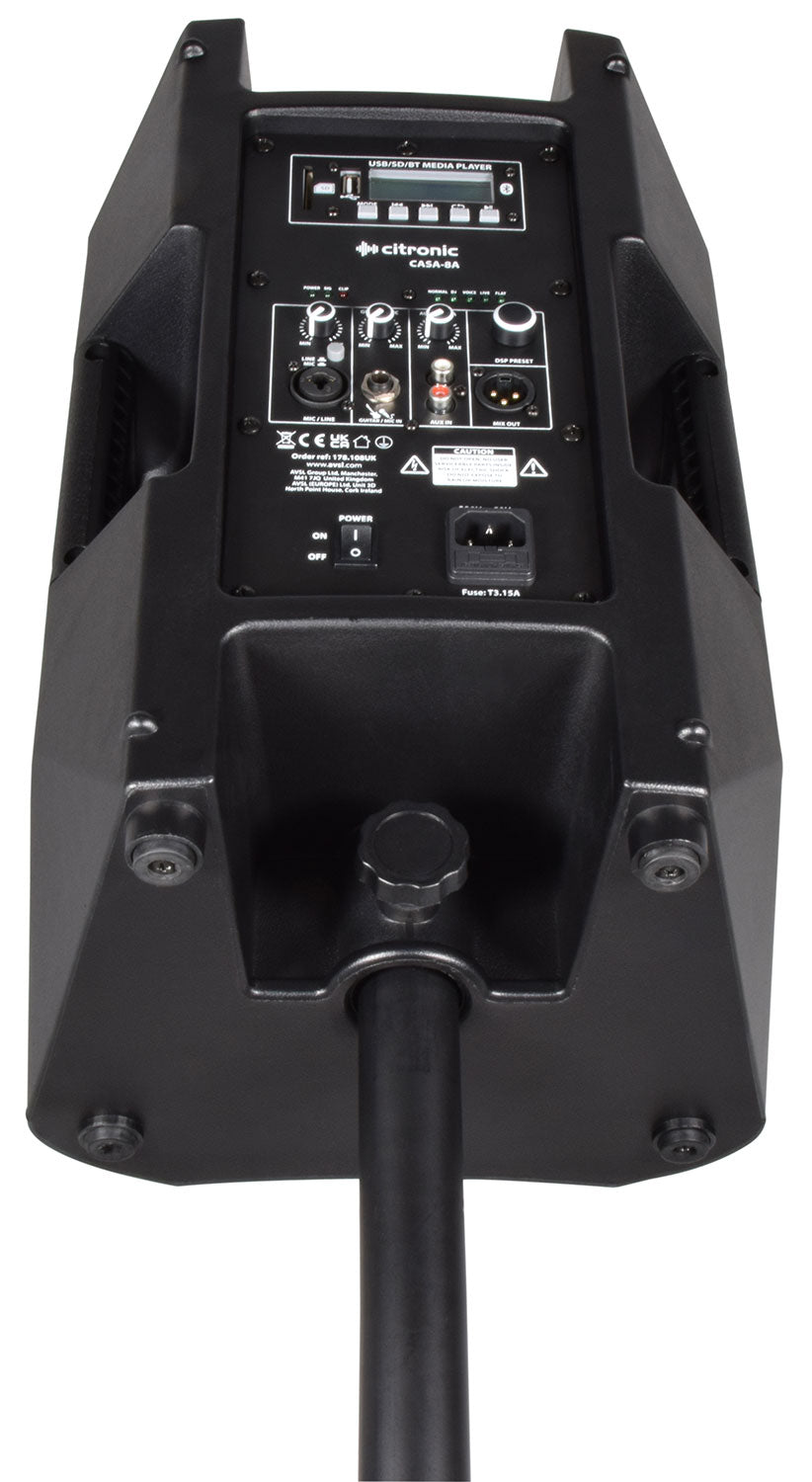

35mm pole mount socket
| Feature | Description |
|---|---|
| Weight | 8.71kg |
| Dimensions | 435 x 278 x 245mm |

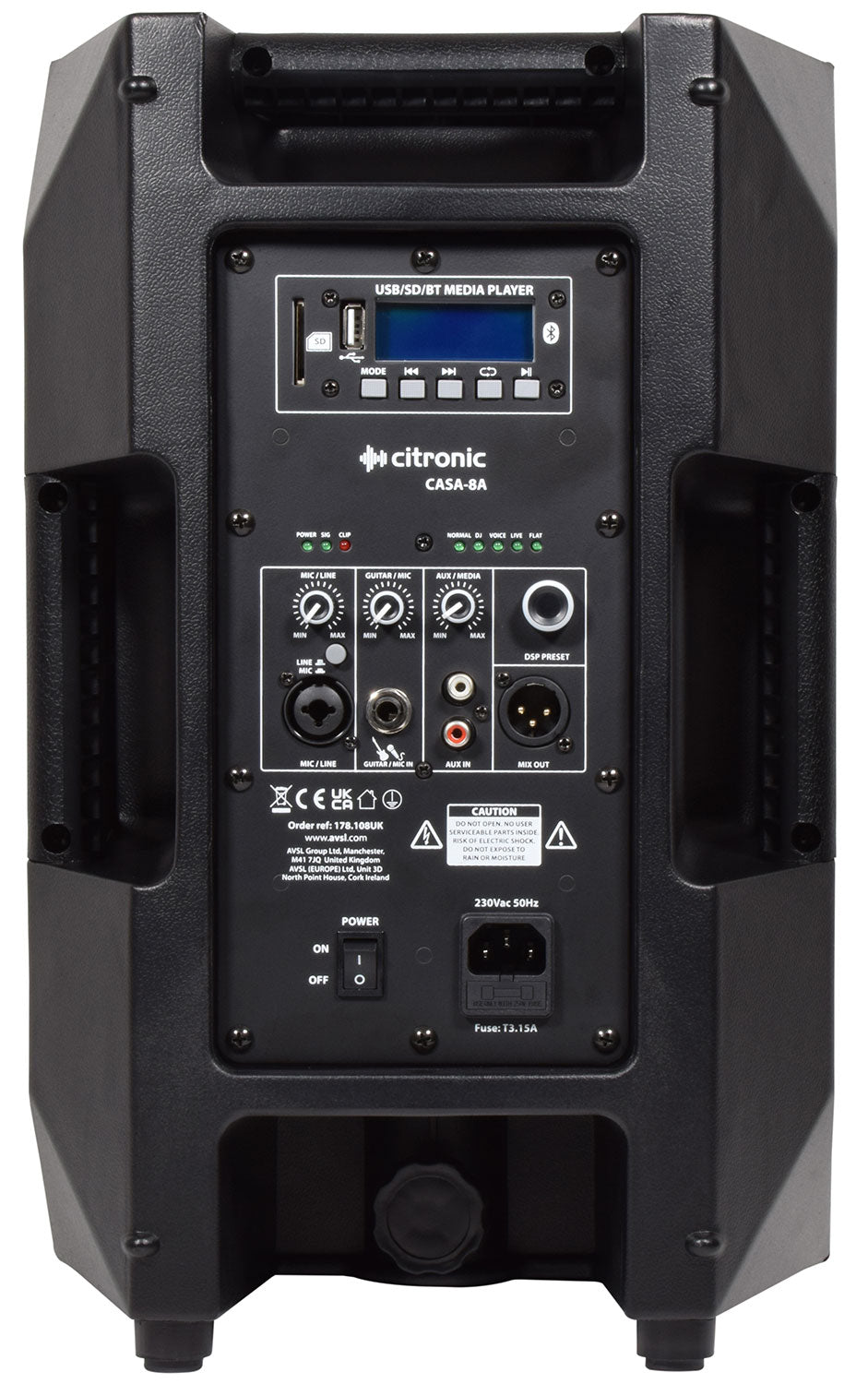

| Inputs | XLR/jack mic/line, 6.3mm jack mic/instrument, L+R RCA line |
| Frequency Response | 60Hz - 19kHz |
| SPL Max | 120.0dB |
| Sensitivity | 94dB |
| Output Power Peak | 800W |
| Output Power Max | 400W |
| Output Power RMS | 200W |
| HF Driver | 25mmØ (1") Ti compression driver |
| Voice Coil | 50mmØ (2") |
| Main Driver | 200mmØ (8") |
| Power Supply | 230Vac, 50Hz (IEC) |
| Audio Source | USB/SD player + Bluetooth receiver |
| Line Output | XLR |
| DSP Settings | Normal, DJ, Voice, Live, Flat |
