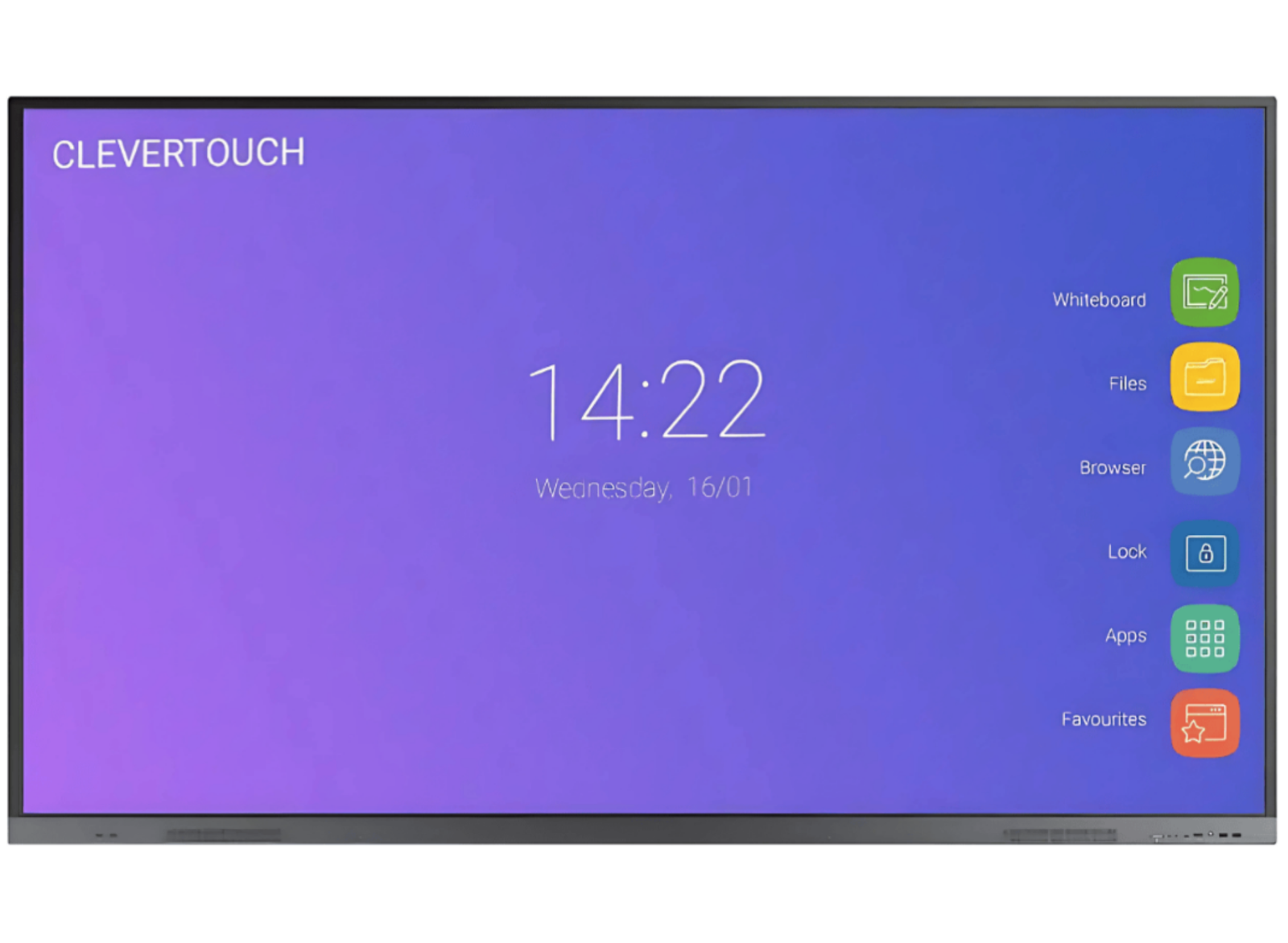

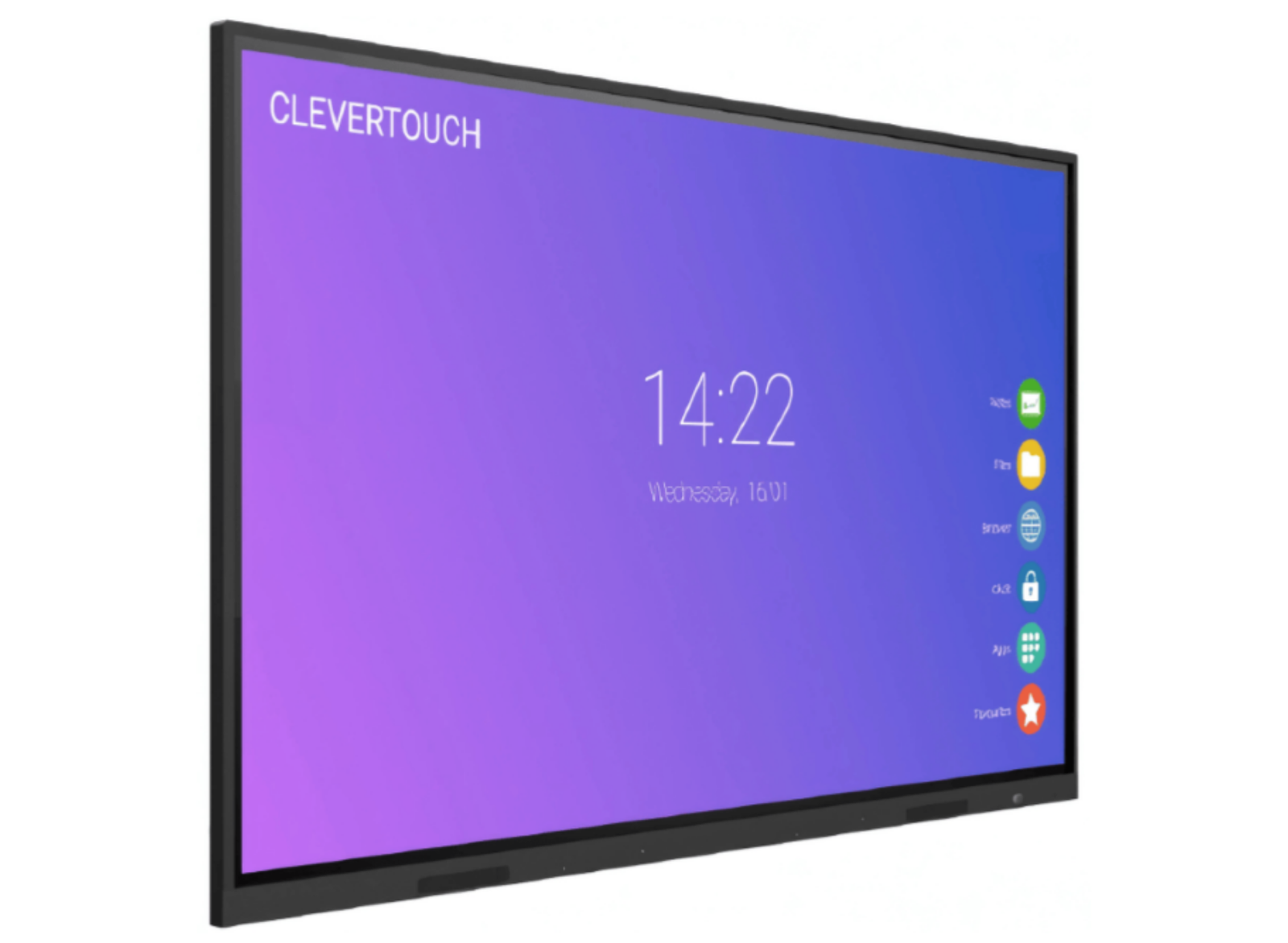

M Series
An interactive screen with unlimited possibilities
Full range of sizes: 65" 4k | 75" 4K | 86" 4K
Combines high-quality design, functionality, durability and 4K resolution.
Annotation tools
Lets you annotate over internet browsers, documents, apps or desktop..
Internet browser
Allows you to browse the web without the need to connect to a PC.
Super-Glide Surface
Smooth glass for a fluid writing experience.
Connectivity
Includes HDMI IN & HDMI Out, DisplayPort, VGA, RS232 and USB.
Compatibility
Compatible with Windows, Mac OS X, macOS and Chromebook.
OTA
Free over-the-air updates. Always have the latest firmware and features.
Clevershare
Screen mirror with up to 50 devices
LUX user interface
The LUX user interface has been designed to be simple to use and intuitive. With functionality similar to a tablet or smartphone, every task requires just a quick touch or swipe to action. Clevertouch Technologies have created a system that is so simple, anyone can walk into the room and use the screen with no training or prior knowledge.
Your most commonly used apps are available with one touch and are easily accessible via the Quick Launch Menu. This includes Apps, Browser, File Manager, Favourites and Lock Screen.
| Diagonal Size | 65" 4K | Screen Type | TFT LCD - Direct LED Backlight |
| Aspect Ratio | 16:9 | Display Colours | 1.07 Billion (10 bit) |
| Resolution | 4K UHD (3840x2160 @60Hz) | Response Time | 5ms |
| Refresh Rate | 60Hz | LCD Viewing Angle | 178° |
| Brightness | 450 cd/m² | Contrast Ratio | 65" 4000:1 |
| Dynamic Contrast Ratio | 65" 6000:1 | Glass Hardness | Tempered Glass - Mohs Level 7 |
| Glass Thickness | 3mm | Glass Type | Low Parallax 1mm Air Gap - Heat tempered |
| Main Board | Amlogic T982 (SoC) | Life of Screen | 50,000 Hours |
| NTSC | 65" 72% | Operating System | Android 11 |
| System Version | LUX 11 | RAM | 4GB |
| Internal Storage | 32GB | CPU | Quad Core A55 |
| GPU | Mali G52MP2 | Android Resolution | 4K |
| Android Module Slot | No | System Architecture | 32-bit |
| Integrated LUX UI | Yes | OPS Slot | 1 - Intel Spec 80Pin |
| HDMI In | 3 | HDMI Out | 1 |
| USB-A 2.0 | 1 | USB Touch (Type B) | 2 |
| USB-A 3.0 | 4 (Faster Data Transfer) | USB-C | 1 (Video, Audio & Touch, 65W charging) |
| LAN In (RJ45) | 1 GB | LAN Out (RJ45) | 1 |
| RS-232 | 1 | Wake-on-LAN | Yes |
| Wireless Adapter | 2.0 + WAP | WiFi Module | Clevertouch WiFi Module |
| Bluetooth | Yes 5.0 | DisplayPort In | No |
| VGA In | 1 | Audio In | 1 |
| Optical Out | 1 | Headphone | 1 (3.5mm) |
| Total Touch Out Ports | 2 | NFC Reader/Writer | Optional Extra |
| Camera | Optional Extra | Proximity Sensor | No |
| WiFi Standard | IEEE 802.11a/b/g/n/ac/ax, 2×2 MIMO | WiFi Bands | 2.4 & 5 GHz |
| WiFi Speed | Up to 433Mbps | Power Requirements | 100-240V ~ 50/60Hz |
| Power (Standby) | ≤0.5W | Fanless Design | Ultra Quiet |
| Power Consumption | 65" 178W | Writing Technology | High Precision IR Technology |
| Continuous Touch Points | 20 | Touch Resolution | 32768x32768px |
| Touch Response Time | ≤5ms | Touch Accuracy | 1mm |
| Minimum Object Size | 3mm | Touch Tool | Finger, passive pen, opaque objects |
| Simultaneous Writing | Yes | Ink In Tools | Yes - Lynx |
| Pens Included | 2 | Pen Type | Dual Recognition Stylus | Super Cool Stylus |
| Pen Holder | Integrated magnetic holders | Pen Tip Diameter | 3mm/7mm |
| Pen & Touch Differentiation | Yes | Pen Identities | 2 |
| Palm Rejection | Yes | Annotation Over Any Source | Yes |
| Classroom Apps | Whiteboard, Annotate, Timer, Media Players, Browser, PDF Reader, Screen Record, Spinner, Voting, Maths Tools | Compatibility | Windows 10, Linux, Mac, Android, Chrome |
| Tracking Rate | ≥1m/s | Scan Rate | 200Hz |
| Gestures & Edge Swipes | Windows Supported, OSX with additional Driver | LYNX App | Yes - Online Lesson Planning |
| Clevershare Mirroring | Yes - Any Device, Lifetime Free (Touch Back) | Personalised Accounts | Integrated Profiles |
| Cloud Account Access | OneDrive, Google Drive | Email Out | Direct From Touchscreen |
| Scan QR Code | For Saving Work | Remote Management | Yes - MDM (Five-year License) |
| Operating Temperature | 0˚ to 40˚ | Storage Temperature | -20˚ to 60˚ |
| Operating Humidity | 10% to 90% RH | Storage Humidity | 10% to 90% RH |
| Altitude | Below 5000 metres | Panel Dimensions | 65" 1489x906x87mm |
| Packed Dimensions | 65" 1628x208x1005mm | Net Weight | 65" 35.9kg |
| Packed Weight | 65" 46.25kg | VESA Mount Point | 65" 600x400mm |
| Certification | CE, FCC, UL, Energy Star & EEC | Audio Output | Dual Front Facing, Bass Enhanced 2 x 16W |
| SPDIF / Fibre | Yes | Sound Channel | 2 |
| Line | No | Super Wide Sound | No |
| What's in the Box | Clevertouch M Series 3, 1.5M HDMI Cable, 3M USB Cable (A-B), 1.5M USB-C Cable, 3M Power Cable, Remote Control, 2 Batteries, 2 Dual Recognition Stylus, User Guide, Quick Install Guide, Clevertouch WiFi Module | Warranty | Varies by region – contact reseller for details |
| Description | Downloads |
|---|---|
| Datasheet | Download |
