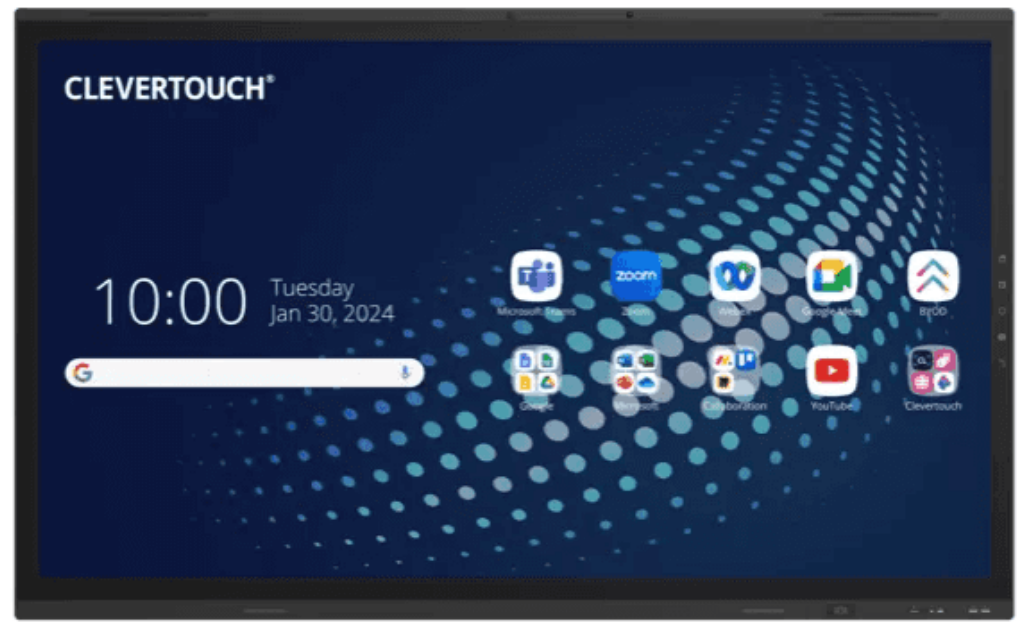

CleverTouch UX PRO Edge 75" 4K Ultra HD EDLA Certified Interactive Display

Clevertouch Edge
Achieve More Together
A total transformation for collaboration in the workplace.

Uncompromised writing performance, in-built 90º view top-mounted camera and FlatFrog InGlass™ edge-to-edge technology.
A flagship Interactive display with cutting-edge features.

A complete all round UC meeting room set up in just one panel, one purchase
This cutting-edge solution integrates a top-mounted Sony 4K camera equipped with advanced voice and face tracking technology, ensuring crystal-clear visuals and dynamic engagement. The immersive audio experience is delivered through front-mounted 2x 20W speakers and 2x 10W subwoofers, providing unparalleled clarity and depth to every discussion and is powered by Google EDLA, giving you complete access to all your favourite apps directly from the screen. With Clevertouch Edge you only need to buy one panel to create a complete all round UC meeting room set up

User experience takes centre stage
New revolutionary feature – embedded quick launch digital buttons
Streamlining simplicity has never been more efficient, as Clevertouch Edge places the most essential commands at your fingertips. From the indispensable back button to the swift launch of the Lynx Whiteboard and more, these quick buttons redefine user interaction, ensuring a seamless and intuitive experience.

FlatFrog InGlass™ Technology
FlatFrog's InGlassTM provides uncompromised writing performance for digital whiteboarding. With no lag time and real-time precision thanks to cutting-edge optical emitters and detectors. It's like using a traditional whiteboard, but better!

Flush Design

Natural pen-on-paper experience

Palm rejection

Passive pen, no charging

Natural pen-on-paper experience

Switch between Android and PC mode, or switch off the Android capabilities to just use the PC

Includes 1x CleverShare USB-C devices. Plug into your laptop and screenshare, use and control all connected devices instantly

Completely customise your home screen with your company branding, logos and news

Collaborate securely with standardised meetings wherever you are based

Highly secure with the option to lock down settings and functionality.

Anti Bacterial Glass

Flat Frog InGlass Edge to Edge

Top Mounted Camera

Integrated NFC/RFID

2x 10W Subwoofers & 2x Front Facing Speakers

8GB RAM & 128GB ROM

Android 13

Google Enterprise Partner

Google Enterprise Partner
Google EDLA-Certifed
A standout feature of the Clevertouch Edge is its Google EDLA Certification, enabling access to all the apps in Google Play. This includes popular collaboration tools like Microsoft Teams and Google Workspace, allowing users to leverage the full capabilities of these platforms directly from the display. Whether you use Google Drive, Docs, Sheets, Slides, or prefer Microsoft Word and PowerPoint, the Clevertouch Edge supports it all.

Instant screensharing
Any Screen, Any Time
With integrated NFC (Near Field Communication), users can effortlessly load their personal profiles on any compatible Clevertouch display worldwide. Simply swipe a fob, card, or compatible device to access your customised settings and preferences, ensuring a personalised experience every time you use a Clevertouch device.

CleverMDM software is included with no subscription fees
Control everything from anywhere
IT departments & administrators can take control without needing to leave their office. Link your entire fleet of UX Pro displays to your Remote Management MDM account so that you can control them from anywhere.

Award-winning Digital Signage
Sharing information in real time unlocks a new communication channel with more potential than ever. Your display screens become relevant and offer real-time information for your customers or staff members at any time. Dynamic and easy to use, CleverLive is a cloud digital signage platform that enables users to update and control your fleet of screens anywhere from a single portal login.

Feature	Specification
Diagonal Size	75"
Screen Type	TFT LCD - Direct LED Backlight
Aspect Ratio	16:9
Display Colours	1.07 Billion (10 bit)
Resolution	4K UHD (3840x2160 @60Hz)
Response Time	3ms
Refresh Rate	60Hz
LCD Viewing Angle	178°
Brightness	400 cd/m²
Contrast Ratio	4000:1
Dynamic Contrast Ratio	6000:1
Glass Hardness	AG Tempered Glass - Mohs Level 7
Glass Thickness	3mm
Glass Type	Low Parallax 1mm Air Gap - Heat tempered - Anti Glare & Anti Smudge for durability - Super Glide Surface
AntiGlare Glass	Yes
Antibacterial Glass	Yes
Antibacterial Power Button	Yes
Main Board	RK3588
Life of Screen	50,000 Hours
NTSC	72%
Writing Technology	FlatFrog InGlass™ Technology - M5
Continuous Touch Points	40
Touch Resolution	32768x32768px
Connectivity	Various (HDMI, USB, LAN, RS-232, Wireless, Bluetooth)
Operating System	Android 13
System Version	LUX 13
RAM	8GB
Internal Storage	128GB
CPU	Quad Core A76 + Quad Core A55
GPU	Mali G610 MC4
Integrated LUX UI	Yes
System Architecture	64-bit
Google Certification	EDLA Certified (Enterprise Device Licence Agreement)
Power Consumption (Standby)	≤0.5W
Audio	Dual Front Facing, Bass Enhanced Speakers + Subwoofers
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Operating Humidity	10% to 90% RH
Storage Humidity	10% to 90% RH
Altitude	Below 5000 metres
Panel Dimensions	1,731 x 1,061 x 85 mm
Packed Dimensions	1,890 x 1,186 x 225 mm
Net Weight	54.70 kg
Packed Weight	67 kg
VESA Mount Point	800 x 400mm (M8x25mm)
What's In The Box	Clevertouch EDGE, Cables, Remote Control, Stylus, User Guides, WiFi Module
Built-In Features	Embedded Digital Signage, Clevershare™, Room Booking, Whiteboard, Email Out, Scan QR Code, Alerts & Announcements, Over-the-Air Updates, Remote Management, CleverLauncher™, LynxShare™, Hardware Virtualisation, NFC User Login
Compliance & Certification	CE, FCC, UL, Energy Star & EEC
Warranty	5 Year De-install / Re-Install UK Warranty
USB C (Data Transfer)	1 x USB Top Type C Supports data transfer for top-mounted camera
USB C Out	1 x USB Type C Out with video, audio, touch, and network
LAN In (RJ45)	1
LAN Out (RJ45)	1
RS-232	Yes
Wake-on-Lan	Yes
Wireless Adapter 2.0 + WAP	Upgraded
Clevertouch WiFi Module	Yes
Bluetooth	Yes 5.0
Audio In	1
Optical Out	1
Headphone	1 (3.5mm)
Total touch out ports	3
NFC Reader / Writer	Yes - Integrated
Camera	Yes - Integrated
Proximity Sensor	Yes
WiFi	IEEE 802.11a/b/g/n/ac/ax with 2 x 2 MIMO (both 2.4 and 5 GHz bands)
WiFi Speed	Capable of speeds up to 433Mbps
Computing
Operating System	Android 13
System Version	LUX 13
RAM	8GB
Internal Storage	128GB
CPU	Quad Core A76 + Quad Core A55
GPU	Mali G610 MC4
Android Resolution	4K
Integrated LUX UI	Yes
System Architecture	64-bit
Google Certification	EDLA Certified (Enterprise Device Licence Agreement)
Access to Google Playstore Apps	Yes (certified)
Access to Microsoft Apps	Yes (certified)
Access to Google Cloud Services	Yes (certified)
Power
Power Requirements	100-240V ~ 50/60Hz
Power Consumption (Standby)	≤0.5W
Ultra Quiet Fanless Design	Yes
Audio
Dual Front Facing, Bass Enhanced Speakers	2 x 20W Speakers + 2 x 10W Subwoofer
Audio Out	Yes
SPDIF / Fibre	Yes
Sound Channel	2.2
Line Array Microphone (noise cancelling)	8-Array
Super Wide Sound	Yes
Operating & Storage Environment
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 60°C
Operating Humidity	10% to 90% RH
Storage Humidity	10% to 90% RH
Altitude	Below 5000 metres
Physical Spec
Panel Dimensions	1,510 x 937 x 83 mm
Packed Dimensions	1,654 x 1,026 x 208 mm
Net Weight	40.60 kg
Packed Weight	49.5 kg
VESA Mount Point	600 x 400mm (M8x25mm)
What's In The Box
What's In The Box	(1) Clevertouch EDGE, (1) 3M Length HDMI Cable, (1) 3M Length USB cable (A-B), (1) 1.5M USBC Cable, (1) 3M Regional Power Cable, (1) Remote Control, (2) Batteries for Remote Control, (2) Dual Recognition Stylus, (1) User Guide, (1) Quick Install Guide, and (1) CleverTouch WiFi Module
EDGE Built-In Features
Embedded Digital Signage	Yes
Clevershare™ Mirroring Any Device	Free for the life of the screen (touch back)
Integrated Personalised Accounts Profiles	Yes
Cloud Account Access	OneDrive, Google Drive, LYNX Cloud
Embedded Room Booking	Yes
Whiteboard Annotation	Yes
Email Out Direct From Touchscreen	Yes
Scan QR Code For Saving Work	Yes
Alerts and Announcements	Yes
Over-the-Air Updates	Yes
Remote Management Of Touchscreens (MDM)	Yes - one year license
CleverLauncher™	Yes
LynxShare™	Yes
Hardware Virtualisation	Yes
NFC User Login	Yes
Compliance & Certification
Regulatory Certification	CE, FCC, UL, Energy Star & EEC
Warranty
Warranty	5 Year De-install / Re-Install UK Warranty
