CVS-C83T
8” Ceiling Speaker, 2-Way Coaxial Open Back 8 ohm, Max 50W or 100v - 24W, 12W, 6W - WHITE or BLACK Magnetic Grille
The Cloud CVS-C62 & CVS-C83 are a more Premium in-ceiling speaker within the Contractor Series and are more specifically designed for high quality music reproduction. They are also suitable for speech and announcements and will find application where a better quality of music audio is desirable.
Constructed in lightweight ABS plastic with open back, infinite baffle characteristics. Connections are made via a multi-pin “Easy Connect” terminal block on a flying lead.

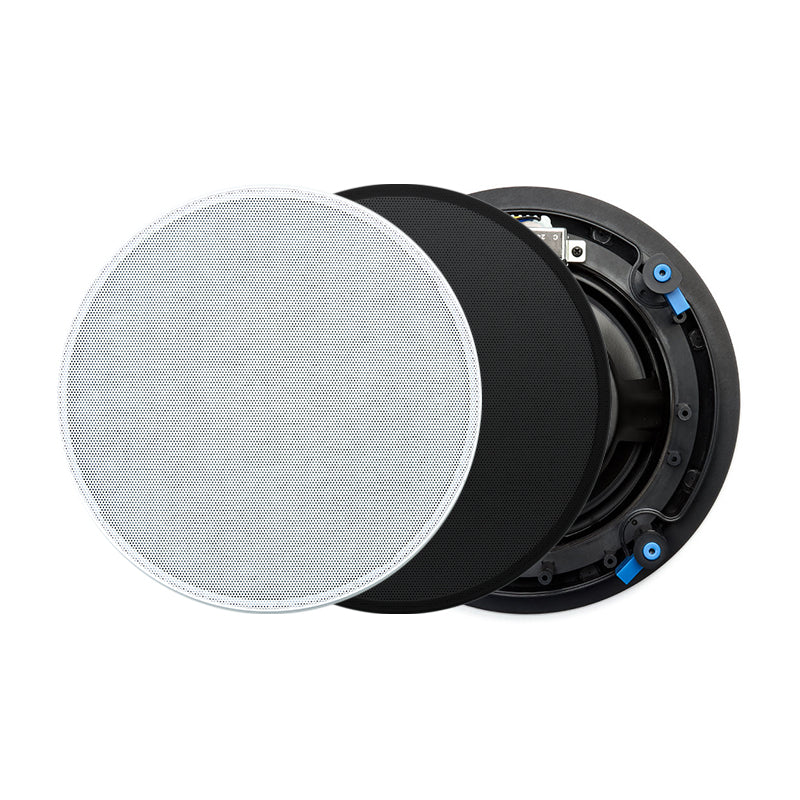

They come with painted steel grille in BLACK or WHITE which attaches magnetically, making for a very easy flush finish to the installation and a very clean appearance.
Features

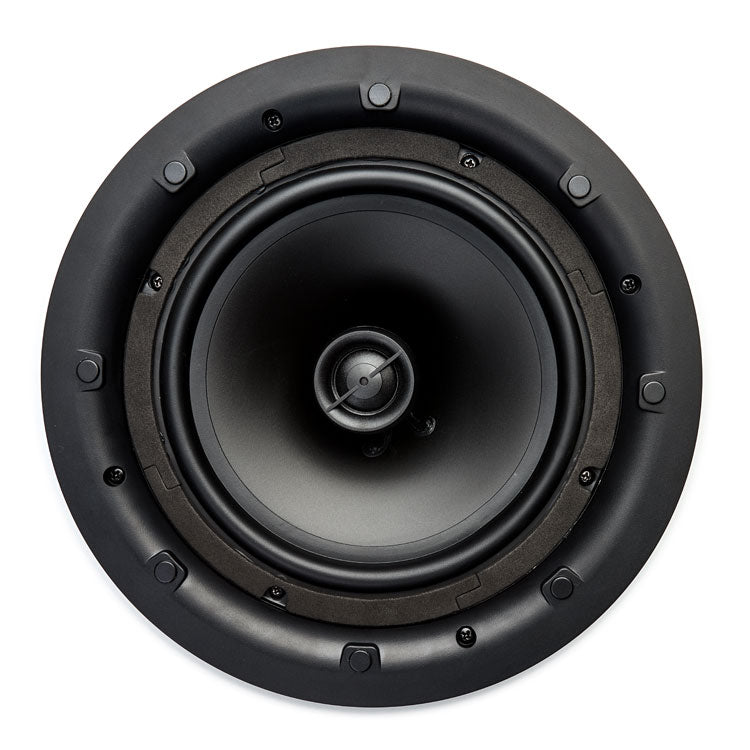

2-Way Premium Coaxial driver design
1” Silk dome Tweeter & 8” PP with rubber surround
High quality musical quality and speech intelligibility

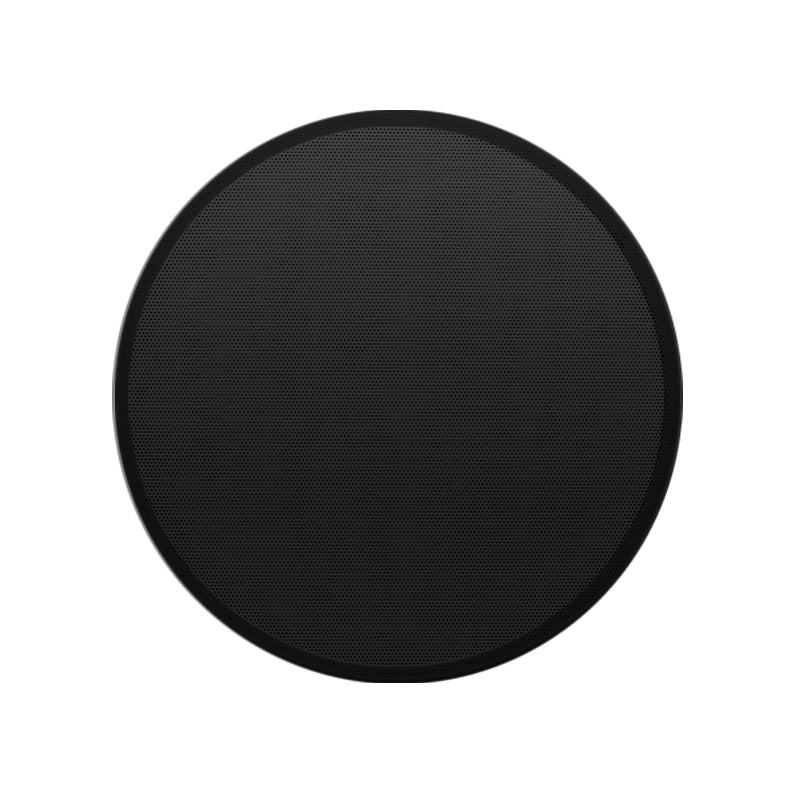

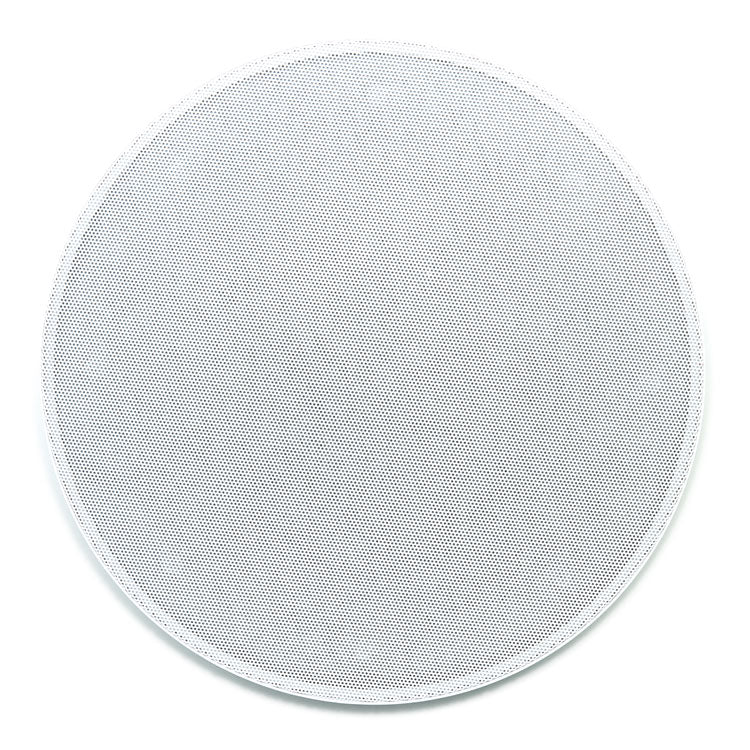

Magnetic interchangeable Grille in BLACK or WHITE
Low impedance 8Ω - Max 50W

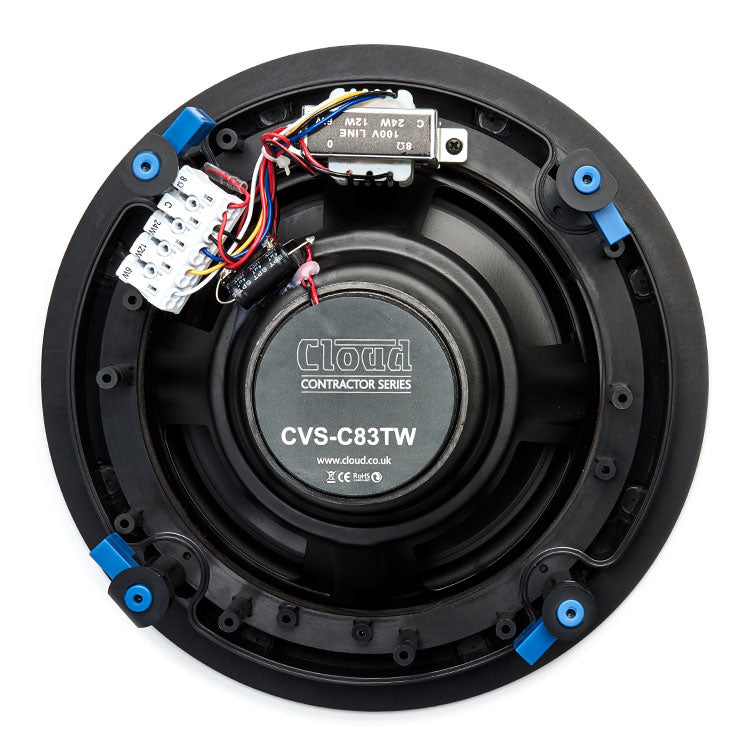

100 V-line - 24W, 12W or 6W integral multi-tap transformer
Low profile back can for installation into ceiling voids with limited height
“Easy Connect” terminal block simplifies installation
| Nominal Driver Diameter | 8” | Type | 2-way coaxial |
| Tweeter Design | 1” Silk dome | Woofer Design | 8” polypropylene cone, with soft rubber surround |
| Frequency Response (-3 dB) | 45 Hz – 20 kHz | Frequency Response (-10 dB) | 40 Hz – 20 kHz |
| Crossover Frequency | 4.2 kHz | Driver Impedance | 8 ohms |
| Sensitivity (1 W @ 1m) | 88 dBA | Power Rating | 25 W |
| Max Power Input | 50 W | Transformer Taps | 24 W, 12 W, 6 W, lo-Z |
| Cutout Hole Size | 248 mm | Grille Type | Painted steel, magnetically attached |
| Enclosure Dimensions (Dia x Height) | 273 mm x 101 mm (10.75” x 4”) | Net Weight | 2.1 kg (4.7 lb) |
| Shipping Weight (per unit) | 2.3 kg (5.15 lb) | Shipping Weight (per pack of 8) | 18.5 kg (41.5 lb) |
| Description | Downloads |
|---|---|
| Cloud Electronics Contractor CVS-C83T Ceiling Speaker DataSheet | Download |
| Cloud Electronics Contractor CVS-C83T Ceiling Speaker Installation Guide | Download |
