CS-C8B & CS-C8W

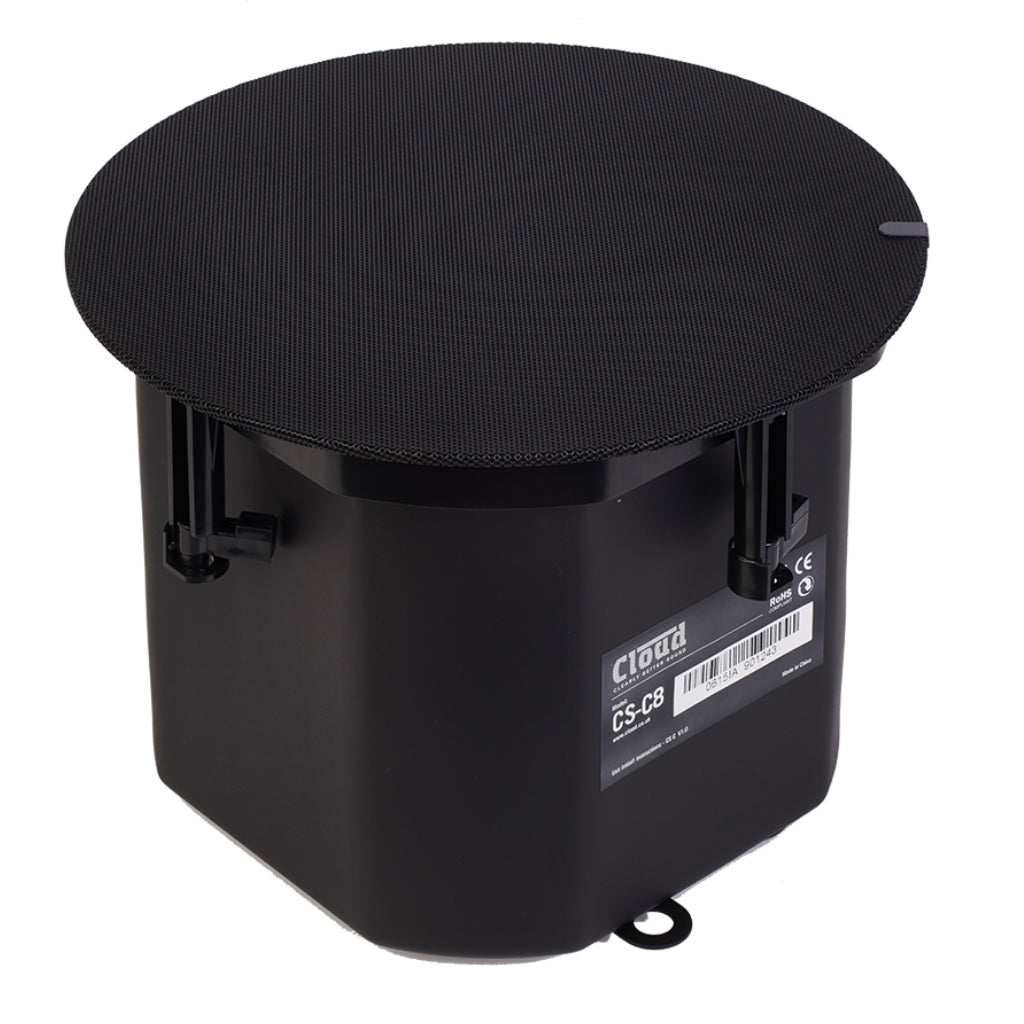

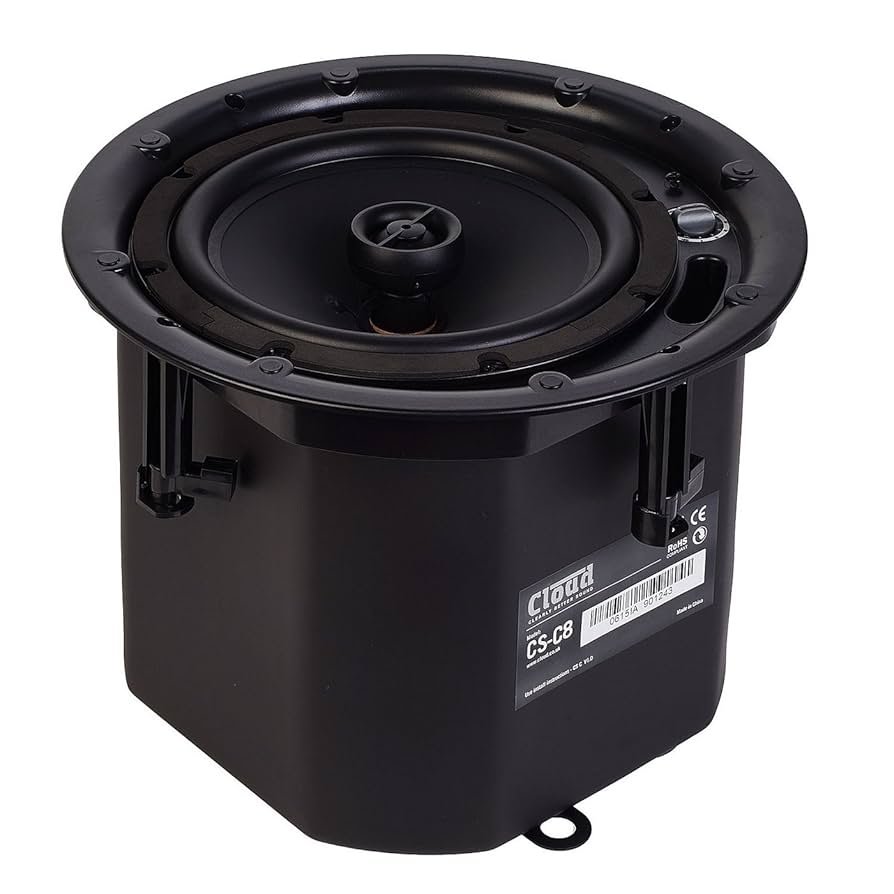

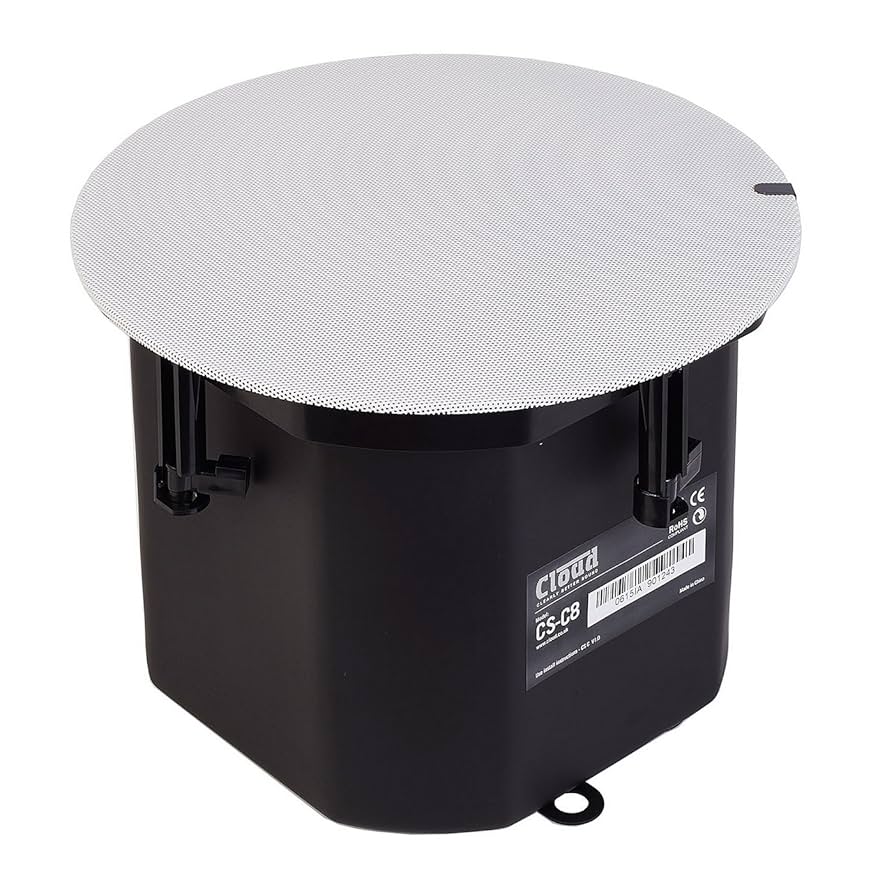

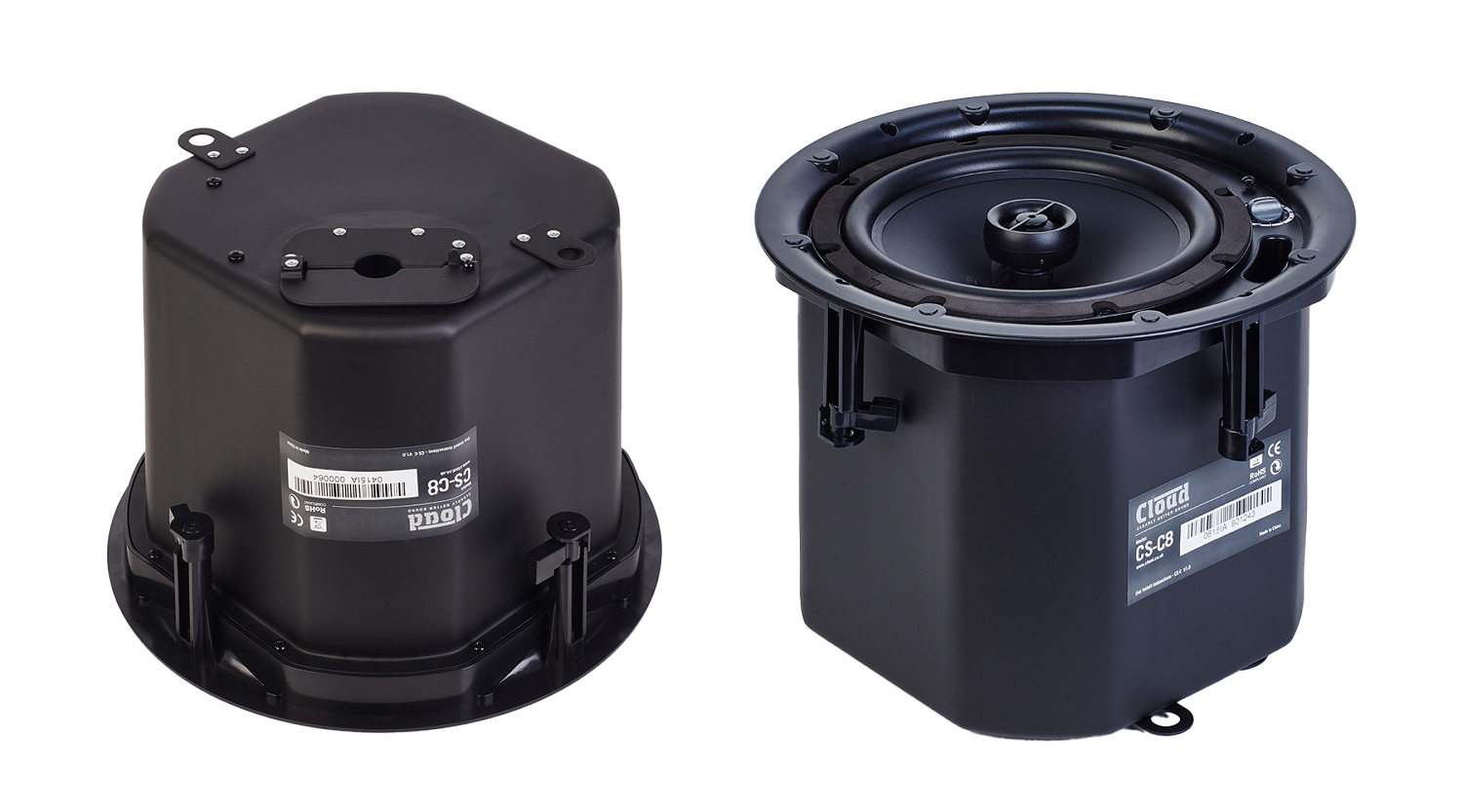

The Cloud CS-C8 In-Ceiling Speaker is a 8-inch coaxial two-way loudspeaker featuring exceptional intelligibility and musical performance. Using premium drivers and electronics, the CS-C8 offers high sensitivity, smooth frequency response and excellent off-axis performance. All models offer ZeroEdge™ magnetic grilles which reveal the high/low impedance switch settings for distributed audio systems.
Designed exclusively for Cloud Electronics in the USA by a specialist team of speaker design engineers, the new CS-C Series speakers are extremely installer friendly and are tuned to complement the Cloud range of amplifiers and mixer amplifiers. Built for quality performance Cloud speakers are designed and tested to a superior standard by engineers who care and include a comprehensive 5-Year commercial warranty.
Features
2-way concentrically mounted drivers offering consistent dispersion across broad frequency ranges.
8" Treated Paper Woofer with Rubber Surround
1" Silk Dome Tweeter with phase plug
Deep backcan design (200mm)

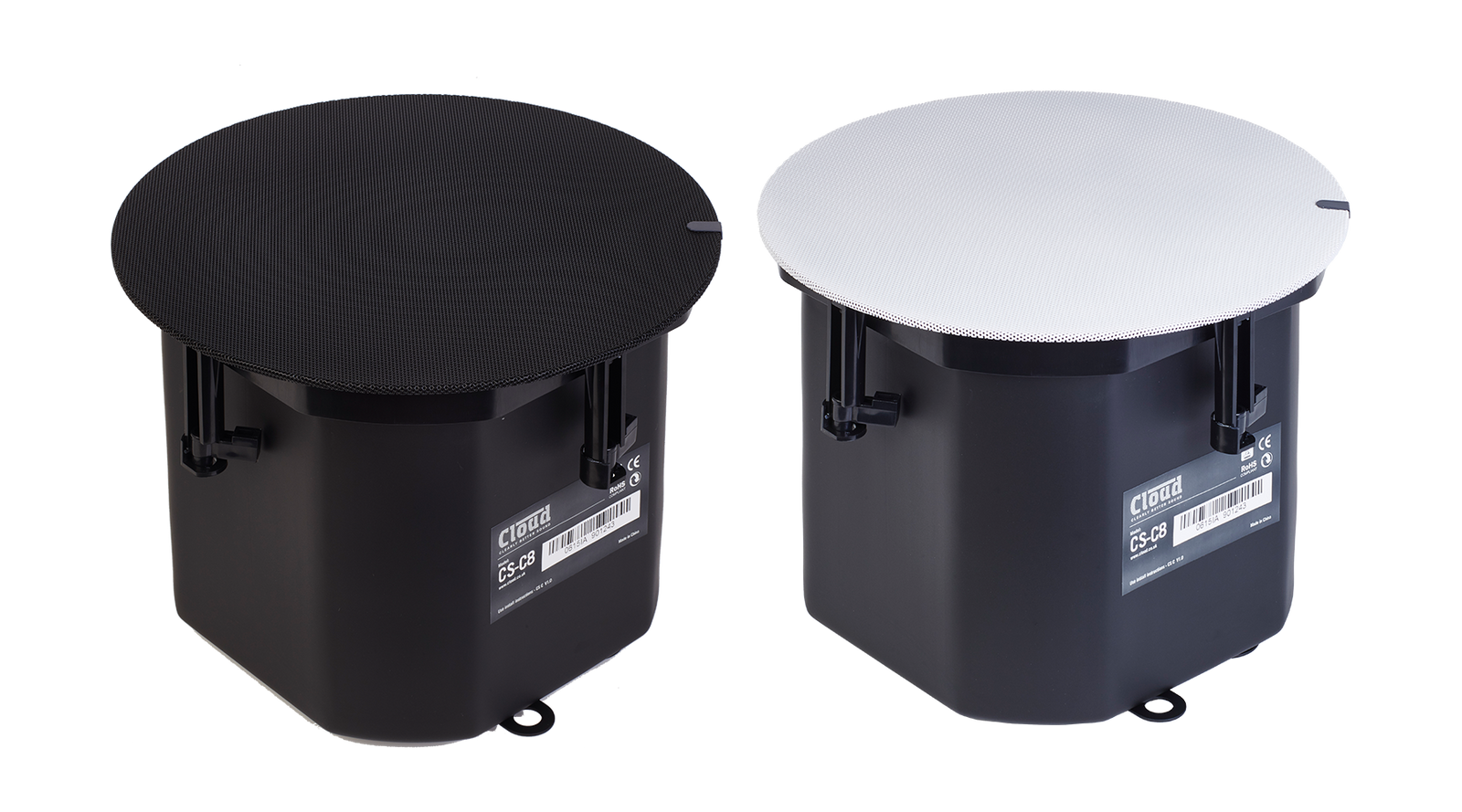

Magnetic speaker grilles available in black or white.
Accessible high-impedance or low impedance switch settings.
Removable logos to allow for discrete use.
100v - 64W, 32W, 16W, 8W or 75W@16Ω.
70v - 64W, 32W, 16W, 8W, 4W or 75W@16Ω.
25v - 8W, 4W, 2W, 1W, 0.5W or 75W@16Ω.
Nom SPL: 92dB@1mt Max SPL: 111db@1mt.
Optional Tile Bridge.
Dims: 286.0mm x 210.2mm.
Weight: 3.4kg net, 4.2kg gross.
Cutout: 271.0mm
| Description | 8” 2-way in-ceiling with magnetic grille and steel back can | Frequency Response (f3) | 86 Hz – 20 kHz |
| Frequency Response (f10) | 64 Hz – 20 kHz | Impedance | 16 Ω |
| Crossover Frequency | 3.8 kHz | Sensitivity (2.83V/1m) | 89 dB |
| Sensitivity (1W/1m) | 92 dB | Power Handling | 75 W |
| Maximum SPL | 111 dB | Coverage Angle | 107° (2 kHz – 10 kHz) |
| Transformer Taps | 64, 32, 16, 8, 4 W | Tweeter | 1" Silk Dome with Phase Plug |
| Woofer | 8" Treated Paper with Rubber Surround | Input Connector | 4-pin Euroblock |
| Included Accessories | Input cover plate (installed), male Euroblock | Optional Accessories | Tile bridge, square profile grilles (black or white) |
| Available Colours | Black (RAL9011), White (RAL9003) | Weight (Net/Gross) | 3.4 kg / 4.2 kg |
| Packaging | 1 per box, cardboard inner packaging, single instruction sheet | Conformance | UL1480 / 2043 planned, RoHS, CE approved |
| Description | Downloads |
|---|---|
| Cloud Electronics CS-C8B & CS-C8W 8" 2-Way In-Ceiling Speakers DataSheet | Download |
| Cloud Electronics CS-C8B & CS-C8W 8" 2-Way In-Ceiling Speakers Installation Guide | Download |
| Cloud Electronics CS-C8B & CS-C8W 8" 2-Way In-Ceiling Speakers Drawing | Download |
