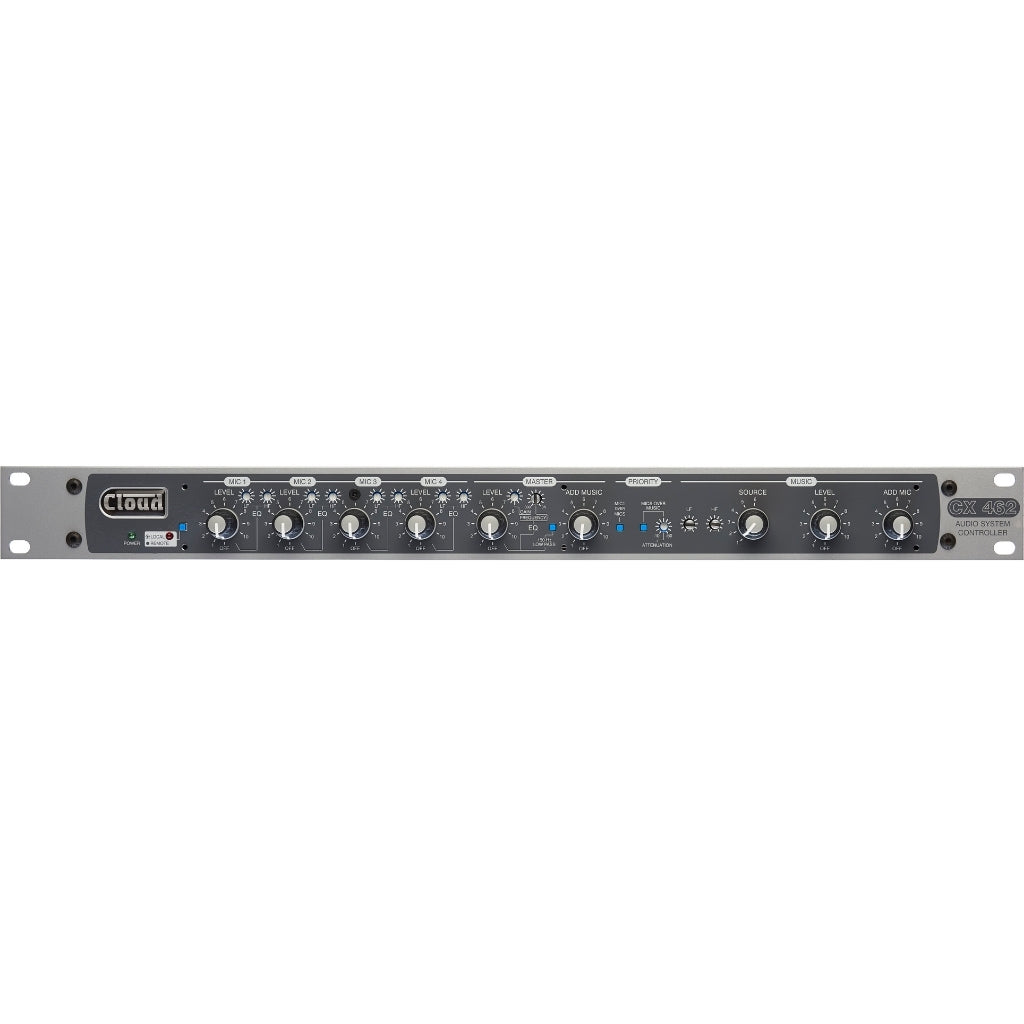

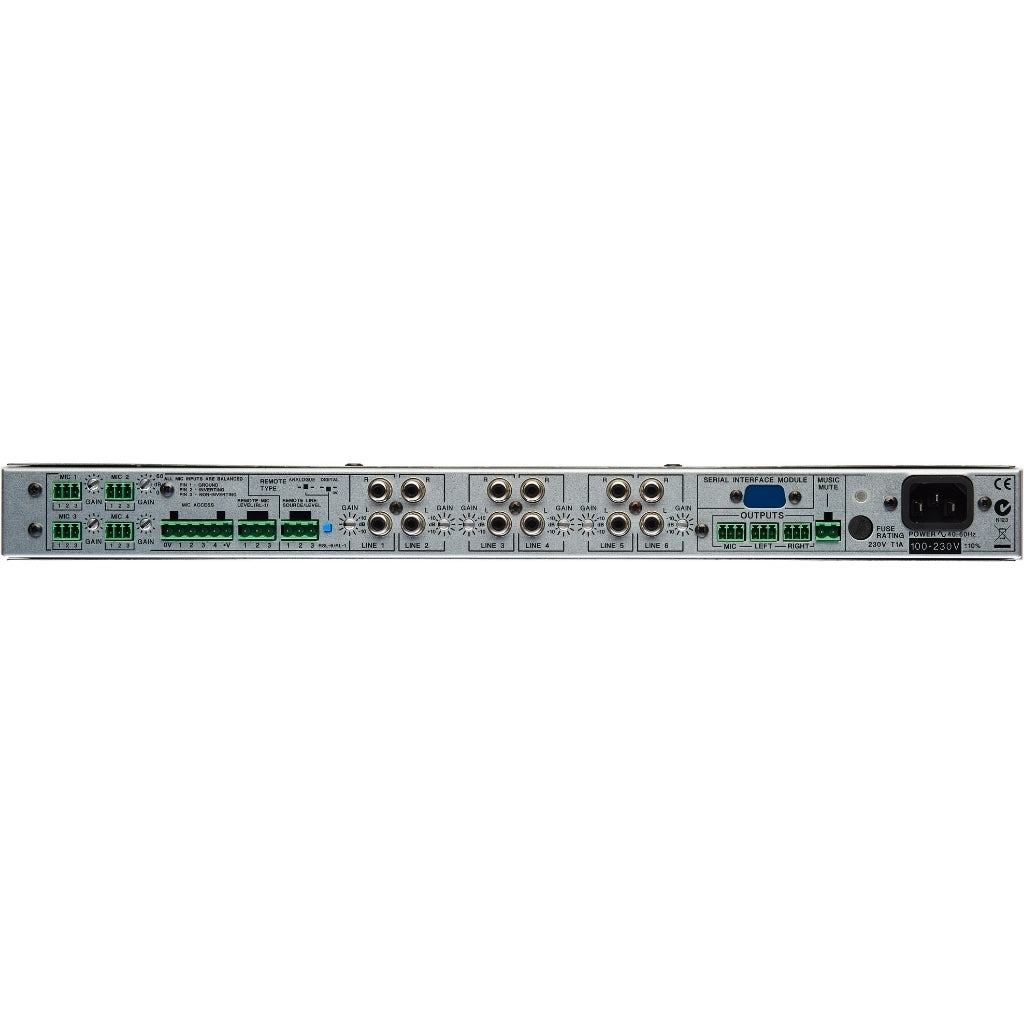

"Unique" best describes the CX462 Audio System Controller. We have included a set of features and configuration options that bring great diversity and make the unit the appropriate choice for applications such as AV presentations, places of worship, plus other sound systems often found in hotels, shops, bars and leisure venues.
Features
Independent music and microphone sections
6 line inputs with preset gain controls (music section)
Line 6 can be configured for priority (music section)
Music level and source selection with remote control
HF & LF EQ (music section)
Mic signal routable assignable to music section
4 Mic inputs with preset gain
Individual HF & LF controls (mic section)
Single parametric EQ (mic section)
150 Hz High pass filter
Selectable priority for Mic 1
Optional CDI-S100 serial interface (RS232)
Optional EQ modules
| Line Input Freq. Response | 20 Hz - 20 kHz, -0.5/+0 dB | Line Input Distortion | <0.03% typical, 80 kHz BW |
| Line Input Sensitivity | 100 mV (-17.8 dBu) to 1.5 V (+6 dBu) | Input Gain Control | 24 dB range |
| Input Impedance | 48 kΩ | Headroom | >20 dB |
| Noise (Line Inputs) | <-91 dBu rms @ 0 dB gain, 22 kHz BW | Line EQ | LF: ±10 dB @ 50 Hz, HF: ±10 dB @ 10 kHz |
| Mic Input Freq. Response | 20 Hz – 20 kHz | Mic Distortion | <0.05% |
| Mic Gain Range | 10 dB to 60 dB | Mic Input Impedance | >2 kΩ (balanced) |
| Common Mode Rejection | >70 dB typical @ 1 kHz | Mic Headroom | >20 dB |
| Mic Noise | -128 dB EIN, 22 kHz BW | Mic EQ | LF: ±10 dB @ 150 Hz, HF: ±10 dB @ 5 kHz |
| Output Level | 0 dBu (775 mV) balanced | Min Load Impedance | 600 Ω |
| Max Output Level | +20 dBu | Power Input | 230 V/115 V ±10% |
| Fuse Rating | T100 mA 230 V, T200 mA 115 V | Fuse Type | 20 mm x 5 mm 250 V |
| Dimensions (W x H x D) | 482.6 x 44 (1U) x 152.5 mm | Weight | 2.5 kg |
| Description | Downloads |
|---|---|
| Cloud Electronics CX462EK Zone Mixer DataSheet | Download |
| Cloud Electronics CX462EK Zone Mixer User Manual | Download |
