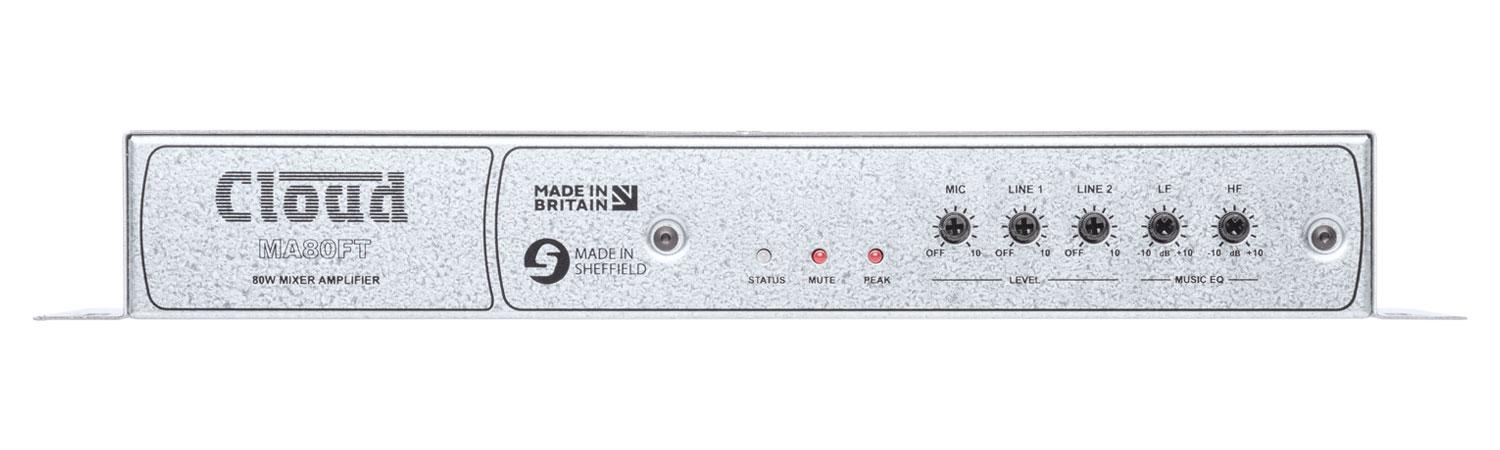

Cloud Electronics MA80FT 80W Mini Amplifier

Cloud MA80FT Mini Amplifier | 80W Mono | 4Ω / 70V / 100V | Mic & Line Inputs | Compact Design

The MA80FT is a Mini Amplifier providing 80W Mono Output at eiither 4Ω (low impedance) or 70/100v line which is switchable via rear Dip switches. It is fitted with a paging Microphone input with access contacts, a useful 70/100v line input a futher two line inputs and Facility Port input allowing connection of the LM-2 Input Module Wall Plates and the BT-1F Bluetooth Audio Wireless Input Module.

Designed for integration into commercial audio installations and AV systems where de-centralisation of the system component is an advantage. It is intended as an "install and forget" component and is small enough to be fitted into a wall or ceiling void, or directly adjacent to a projector, flat screen or loudspeaker.

1 x 80W Output
High Impedance Line Output 100/70/25V
Low Impendance Line Output 4Ohm Min Load
APD - Auto Wake & Hibernation
Mic Input with EQ and Input Gain
Music EQ Plus Optional EQ Card
Paging Mic Access Contacts (SW/VOX)
Facility Port Input
Aux Output
Dynamic Clip, Thermal & Short Protection
Integrated Universal Power Supply
Variants: EK, AUS, NA
