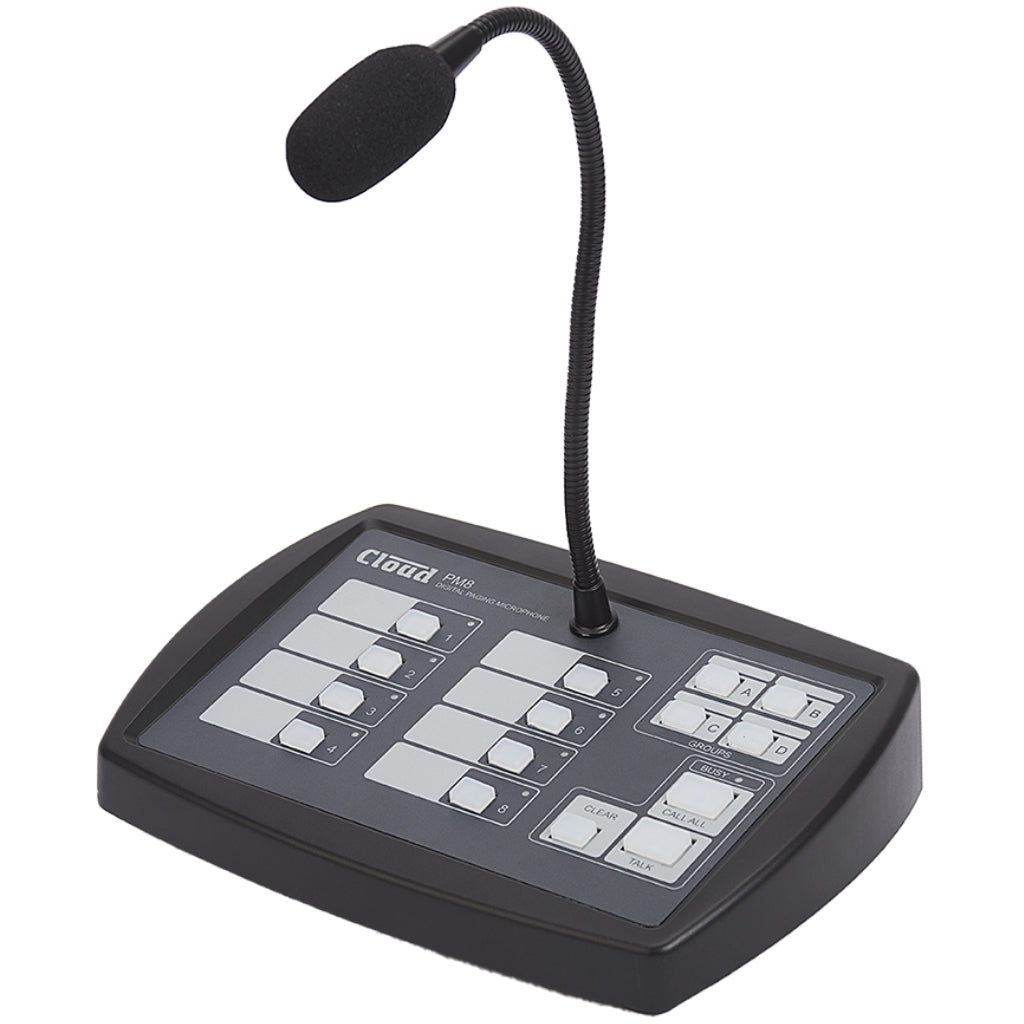

The PM Range of Paging Microphones are designed for general purpose multizone applications and can also be used with non-Cloud products.
Four models of the PM are available: the PM4, PM8, PM12 and PM16. The models differ only in the number of zone select buttons on the front panel (4, 8, 12 or 16 respectively), and consequently in the maximum of zones that can be supported.
The PM is designed to interface directly with recent Cloud products - such as the DCM1 - via the Cloud Digital Paging Interface, which uses standard CAT-5 cable and RJ45 connectors.
The PM is also compatible with the older Cloud CDPM range of digital paging microphones. PM microphones and CDPM microphones may be freely intermixed on the Digital Paging Interface.
Features
Individual and multiple zone selection
Defineable zone groups with group selection
Pre-announcement chime with internal chime sounder
"Talk" and "Call-all" buttons
"Busy" LED
Configurable two-layer announcement priority system
Auto-zone reset after announcement
Zone disable function
| Capsule Type | Electret Condenser | Polar Pattern | Cardioid |
| Sensitivity | 68 dB ±3 dB (0 dB = 1 V/μbar @ 1 kHz) | Frequency Response | 80 Hz – 16 kHz |
| Number of Zones | PM4: 4 PM8: 8 PM12: 12 PM16: 16 |
Chime | 4 user-selectable chimes with internal speaker |

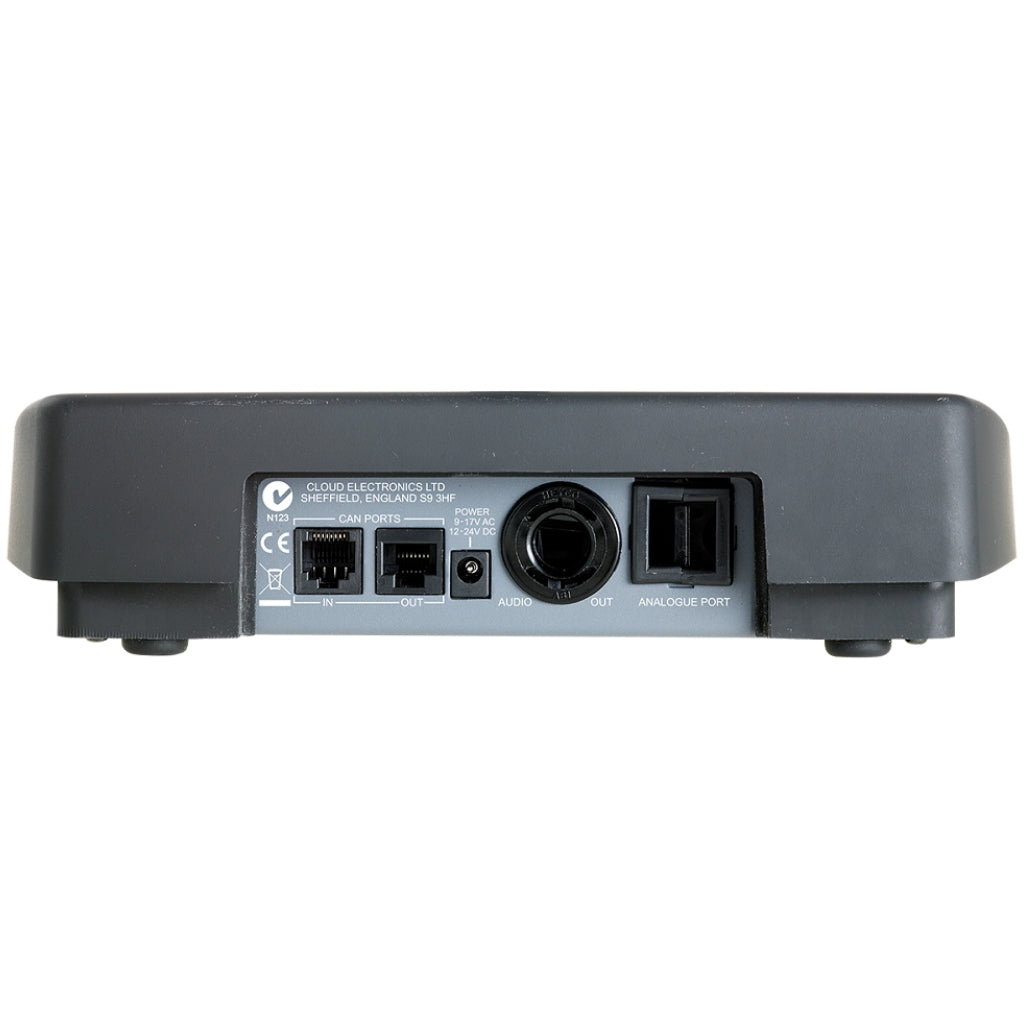

| Digital Interface | Cloud Digital Paging Interface (RJ45) | Analogue Interface | 1) Zone Access Output (Short-to-Ground) 2) Audio Output (Balanced) |
| Power Input (Digital) | Via RJ45 Digital Paging Interface connector | Power Input (Analogue) | Via internal screw-terminal access port connector |
| Local Power Supply | 9 - 17 VAC or 12 - 24 VDC via 2.1 mm coaxial connector | Current Consumption | PM4: 55 mA (idle), 72 mA (peak) PM8: 61 mA (idle), 83 mA (peak) PM12: 67 mA (idle), 95 mA (peak) PM16: 73 mA (idle), 107 mA (peak) |
| Base Unit Dimensions | 245 W x 65 H x 170 D mm (9.65” x 2.56” x 6.7”) |
Gooseneck Length | 300 mm (standard) 140 mm (alternative, Part No. MI100166) |
| Shipping Dimensions | 250 W x 200 H x 240 D mm (10” x 8” x 9”) |
Weight | 1.0 kg / 2.2 lbs (net) 1.3 kg / 2.9 lbs (gross) |
| Description | Downloads |
|---|---|
| Cloud Electronics PM8 - 8 Zone Paging Mic | PM8EK DataSheet | Download |
| Cloud Electronics PM8 - 8 Zone Paging Mic | PM8EK User Manual | Download |
