Crestron Mullion Mount Kit for TSW-770 and TSW-1070 Series, Black | TSW-770/1070-MUMK-B
SKU: TSW-770/1070-MUMK-B
£107.46 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Crestron Mullion Mount Kit for TSW-770 and TSW-1070 Series, Black | TSW-770/1070-MUMK-B

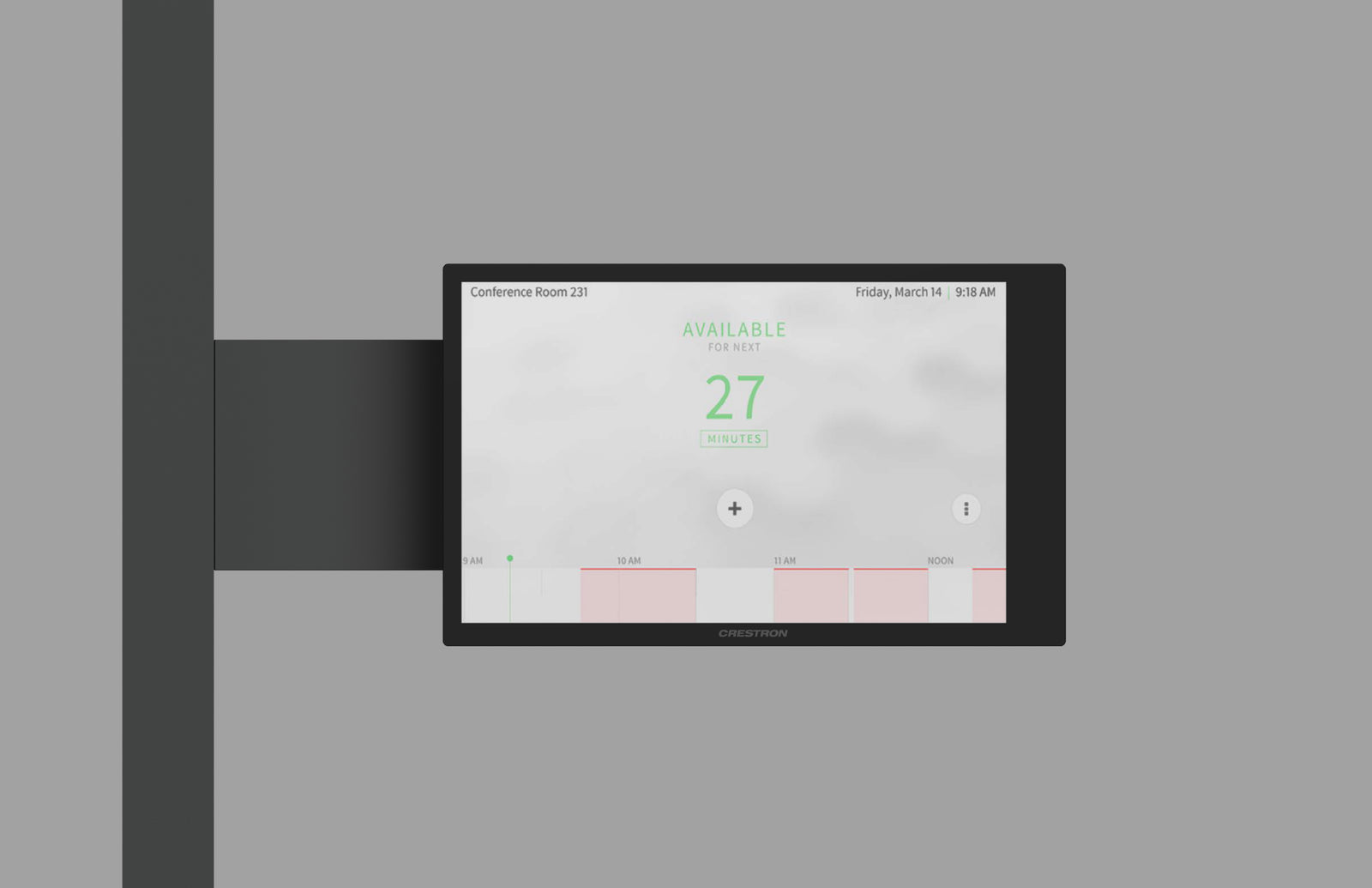

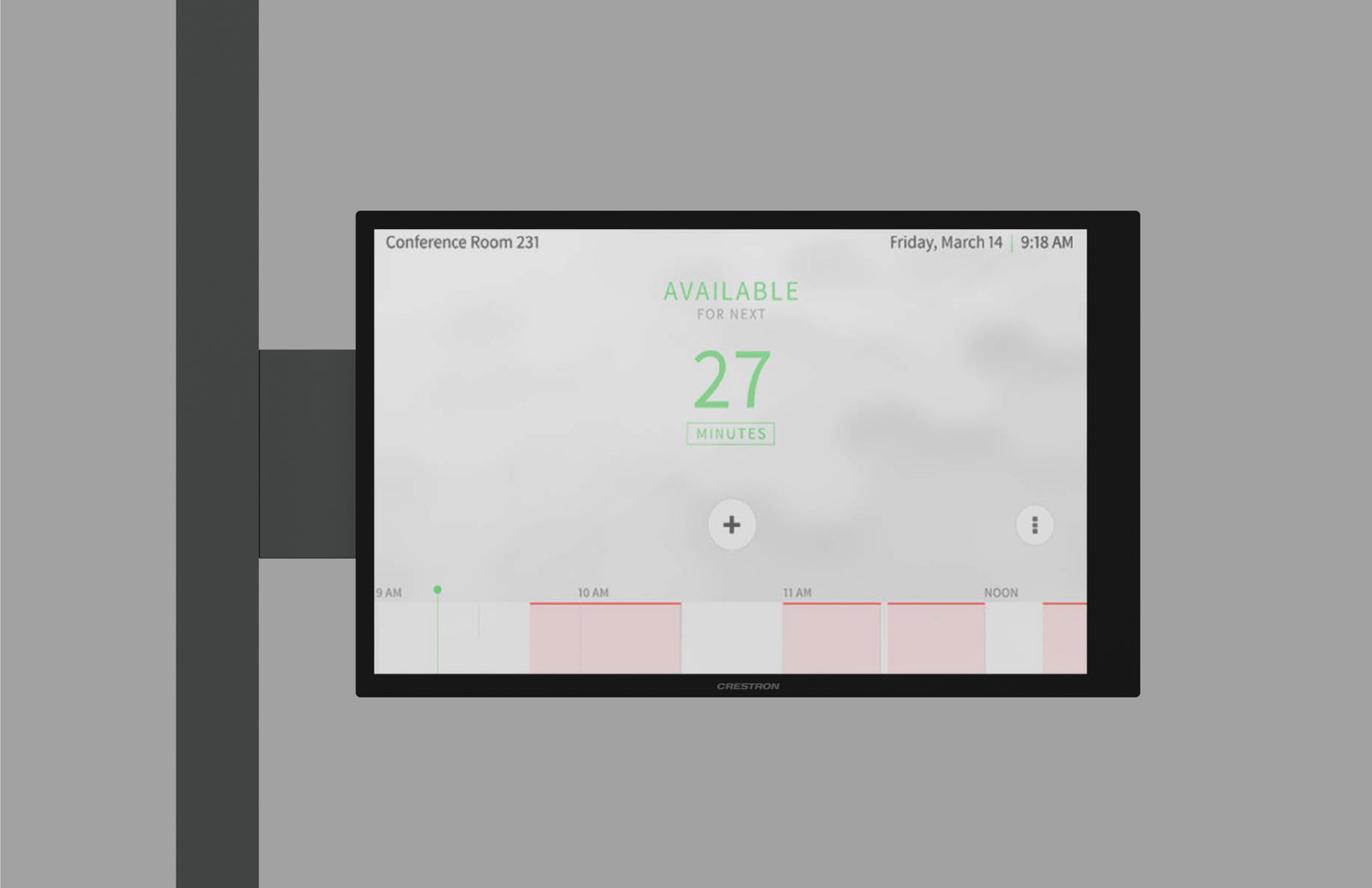

The TSW-770/1070-MUMK permits a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen touch screen to be attached to the mullion of an interior glass wall, window, or partition. The TSW-770/1070-MUMK mounts a compatible touch screen to the left or right of any hollow, metallic vertical mullion. Two mounting brackets are provided that allow the TSW-770/1070-MUMK to be installed in one of two configurations (side mount or front mount). Wiring is run to the touch screen from inside the mullion to create a clean, finished appearance.
The TSW-770/1070-MUMK is ideal for mounting at the entrance to a meeting space for room scheduling applications, and it is compatible with the TSW‑770‑LB and TSW‑1070‑LB light bars to provide a clear indication of the room availability status.
Key Features
Permits mounting a TSW‑770, TSW‑1070, TSS‑770, or TSS‑1070 series touch screen to the mullion of an interior glass wall, window, or partitionIdeal for mounting at the entrance to a meeting space for room scheduling applications
Installs in either side or front mount configuration
Wiring is run inside the mullion for a finished appearance
Compatible with TSW‑770‑LB and TSW‑1070‑LB light bars for a clear indication of the room availability status
Available in black or white finish
-
Category Specification Without Touch Screen With TSW-770/TSS-770 With TSW-1070/TSS-1070 Construction Housing: Aluminum, steel Mounting: Attaches to the inside surface of a mullion Dimensions Height 2.52 in (64 mm) 4.17 in (106 mm) 5.87 in (149 mm) Width 8.97 in (228 mm) 9.30 in (236 mm) 10.63 in (270 mm) Depth 1.70 in (43 mm) 2.44 in (62 mm) 2.46 in (62 mm) -
Description Downloads CAD Drawing Downloads Spec Sheet Downloads
