Crestron UC-C100-Z Crestron Flex Video Conference System Integrator Kit for Zoom Rooms® Software
SKU: UC-C100-Z
£2,726.14 (Excl. VAT)
- Description
- Specifications
- Downloads
-
Professional Zoom Rooms Integration Kit for Custom Meeting Room Systems
The UC-C100-Z Crestron Flex integrator kit provides a customizable video conference solution for use with Zoom Rooms® software. It supports up to three video displays1 (not included) and features a tabletop touch screen and a UC bracket assembly.
Native Zoom Rooms® Software Experience
The UC-C100-Z system features Zoom Rooms conferencing software that enables audio and video connectivity for easy collaboration and content sharing.Custom Room Integration
The UC-C100-Z system provides the essential components needed to design a fully custom video conferencing space using your choice of display devices, cameras, speakers, microphones, and other AV equipment. Any Zoom Rooms software compliant USB camera and USB audio conferencing interface (or speakerphone) may be used.
Intuitive User Interface

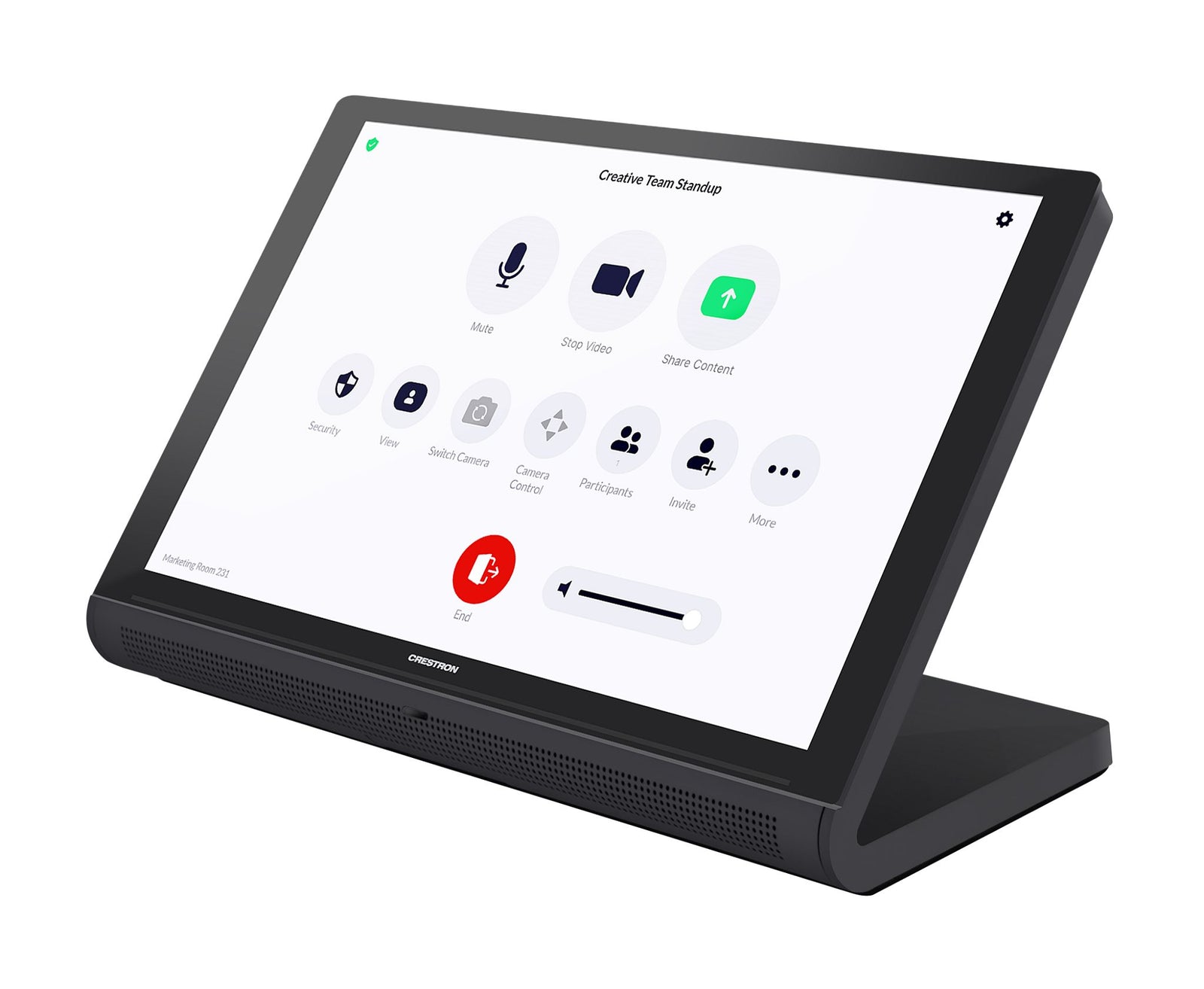

With a large 10.1 in. (257 mm) capacitive touch screen display, the Crestron® tabletop touch screen (TS‑1070) provides superior conferencing control in meeting rooms, huddle spaces, and executive offices. The touch screen also offers optional control of room lighting, shades, thermostats, and other equipment.2Simplified Deployment

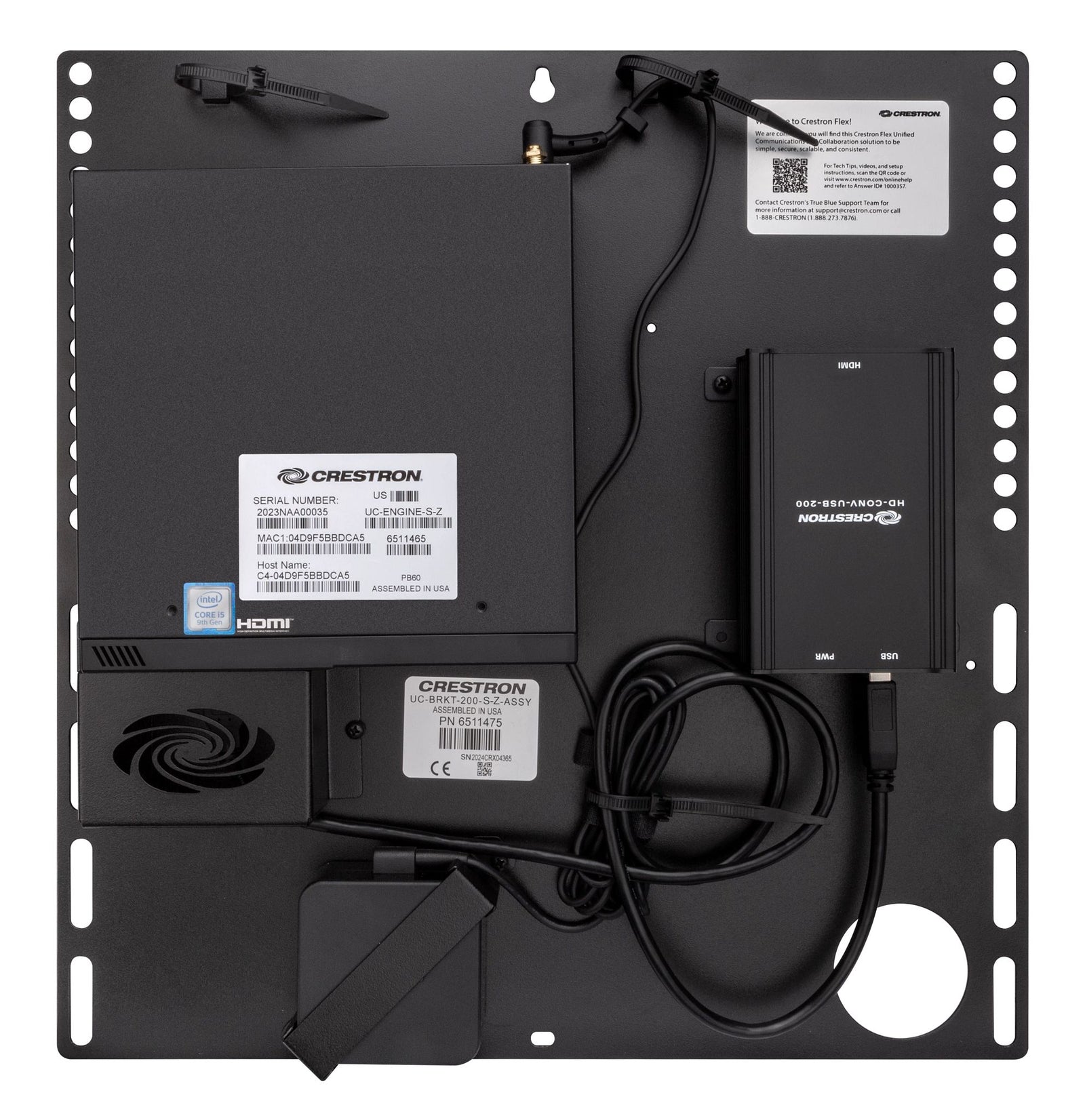

The UC Bracket Assembly provides preassembled components on one ready-to-mount bracket to simplify installation. The assembly can be mounted on a wall, or it can be attached to the rear of the display device.Enterprise‑Grade Security
Crestron Flex is an enterprise‑grade solution that is ideally equipped for mass deployment throughout any sized corporate, university, medical, military, or government facility.Easy Provisioning and Device Management
The XiO Cloud service is an IoT cloud based provisioning service (available separately) that enables installers and IT managers to deploy and manage thousands of devices easily. The XiO Cloud service allows for system alerts, network management and provisioning, and the pairing of a control device to the system’s UC Engine. System updates are controlled by Windows® software update.Key Features
Conferencing integration solution for Zoom Rooms® software
Native Zoom Rooms touch screen UI provides a consistent, simple user experience with one‑touch meeting joins
Complete kit contains a tabletop 10.1 in. touch screen and UC bracket assembly
Network management and provisioning and system alerts through the XiO Cloud® service
Premium‑level support with Crestron Flex Care (optional)
Enterprise-grade security - connects and communicates securely over any enterprise or SMB network
Supports up to three video displays (not included) -
Included Components TS-1070-B-S Description 10.1 in. (257 mm) tabletop touch screen, black UC-BRKT-200-S-Z-ASSY UC Bracket Assembly for Zoom Rooms systems Assembly Includes UC Engine: Mini PC with Zoom Rooms video
HDMI to USB 3.0 converter for content ingest
Mounting hardwareCBL-4K-DP-HD-6 DisplayPort to HDMI Cable, 6 ft (1.8 m); secondary display CBL-CAT5E-7 Ethernet LAN cable for UC Engine, RJ45-to-RJ45, black, 7 ft (2.1 m) CBL-HD-6 HDMI Interface Cable, 6 ft (1.8 m); primary display CBL-HD-20 HDMI Interface Cable, 20 ft (6.1 m); content sharing PWE-4803RU PoE Injector Touch Screen 10.1 in. (257 mm) diagonal capacitive multi-touch TFT LCD, 1920 x 1200 UI Zoom Rooms UI + Crestron Smart Graphics Ethernet 100 Mbps, TCP/IP, DHCP, SSL, TLS, SSH, SNMP, IPv4/IPv6 Power over Ethernet IEEE 802.3at PoE+ compliant PoE Injector Included if network PoE unavailable Construction Plastic body, edge-to-edge glass front Dimensions Height 5.29 in, Width 9.63 in, Depth 4.67 in Weight 2.44 lb (1105 g) UC Engine Intel Core Mini PC, Windows 11 IoT UC Client Zoom Rooms software Management Client XiO Cloud Service Content Ingest HDMI via HDMI to USB 3.0 converter Display Output Supports up to 3 displays Display Output Resolution 1080p Power 100-240VAC adapter included Construction Metal mounting bracket Mounting Wall mount or VESA display mount Bracket Dimensions 15.00 x 14.50 x 1.87 in Bracket Weight 7.7 lb – 7.95 lb -
Description Downloads Datasheet Download
