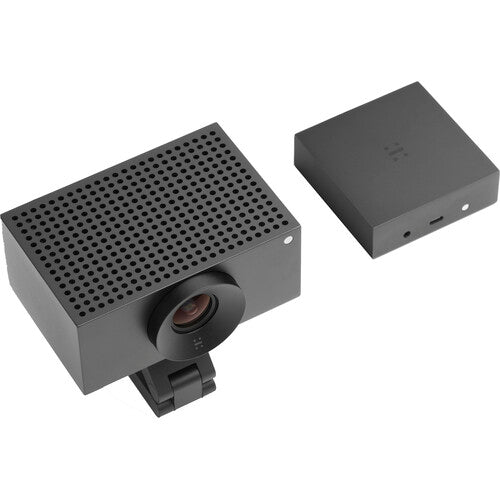

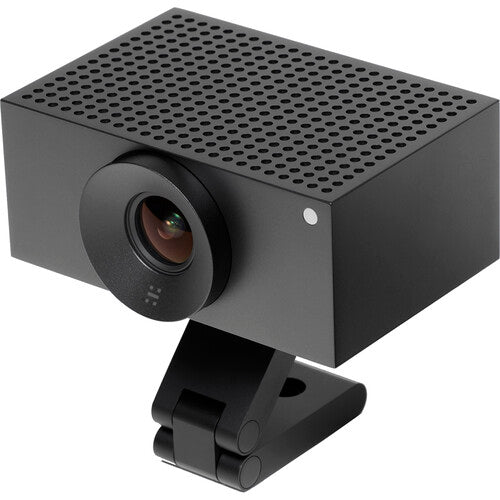

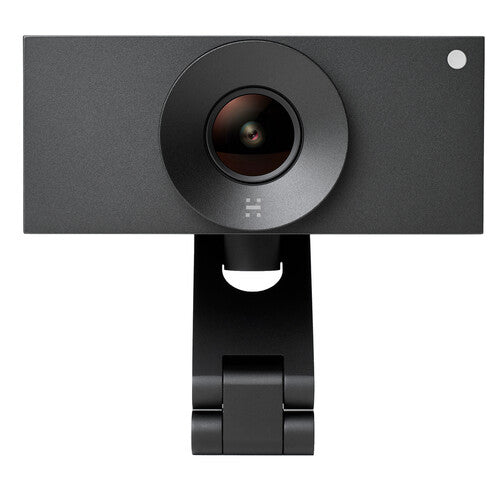

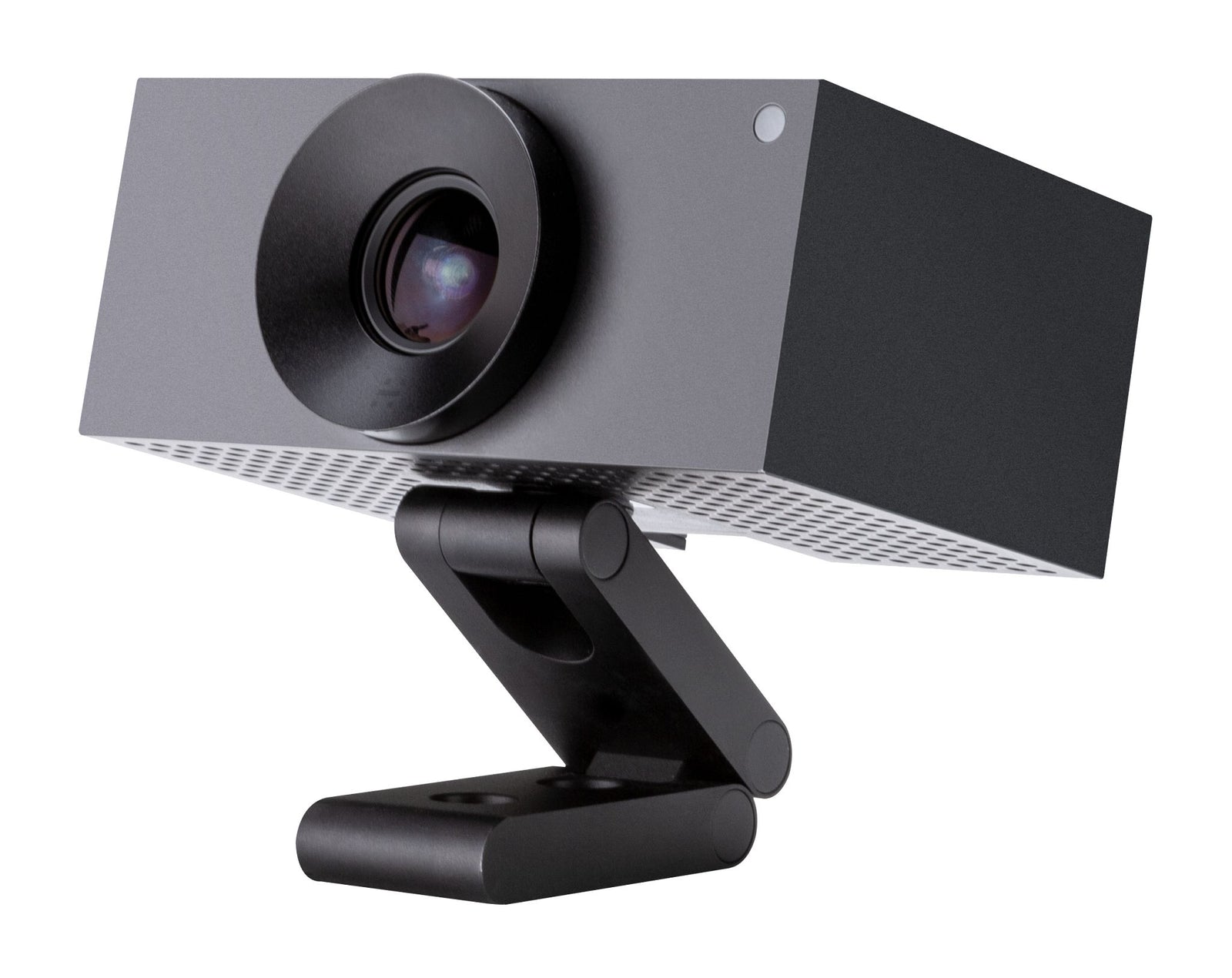

The UC-CAM-L1 is an intelligent, high-definition collaboration camera compatible with Crestron Flex large meeting room videoconferencing solutions. It features a wide-angle 103° diagonal field of view to capture an entire conference room with Full HD 1080p resolution. High precision aspherical optics, a 20.30 MP 1 in. CMOS sensor, portrait lighting, and advanced video processing ensure an immersive, crystal clear video image free from light or noise artifacts or optical aberrations. The camera has no moving parts, ensuring quiet operation, reliability, and accuracy while adjusting Pan, Tilt and Zoom functions.
Advanced Video Processing
The video processing engine uses real-time scaling and artificial intelligence (AI) to understand lighting conditions and adjust exposure accordingly. The engine also uses visual noise filtering to deliver excellent image quality. Genius Framing digital autozoom intelligently detects the people in the room and frames them perfectly for an optimal view with no loss of resolution. People counting analytics detects and reports the number of people in frame for analysis by room utilization software. The camera's software is also upgradeable, allowing for regular enhancements and feature updates.
Mounting Options
The camera's aluminum unibody construction is tripod compatible and includes a mounting bracket for surface or wall installation. The auto-flip feature automatically rotates the image 180° when the camera is installed upside down, providing even more options for installation.
The UC-CAM-L1 is a POE-powered camera that can be mounted at any convenient location up to 100 ft (~30 m) from the included USB to POE adapter.1
Key Features
Full HD 1080p video quality
Wide-angle 103° diagonal field of view
High precision, aspherical glass lens reduces spherical aberrations
Advanced video processing engine provides excellent image quality
5x digital zoom, pan, and tilt
Genius Framing digital autozoom
People counting analytics
Auto-Flip automatic 180° image rotation
Silent operation with no moving parts
Compatible with Crestron Flex systems
POE powered
Upgradable software
Wall and shelf mountable
| Included components | (1) UC-CAM-L1 Camera | Included components | (1) USB to POE Adapter |
| Included components | (1) Wall and Shelf Mount | Included components | (1) 3.3 ft (1 m) Power Adapter |
| Included components | (1) 6.6 ft (2 m) Ethernet Cable | Included components | (1) USB Type-C® Male to USB Type-C Male Cable |
| Included components | (1) USB Type-C Male to USB 3.0 Type-A Male Cable | Image Sensor | 20.30 Megapixels 1 in. CMOS Sensor |
| Lens | High precision, wide angle, aspherical glass lens | Field of View | 103º diagonal, 92º horizontal, 65º vertical |
| Aperture | f/2.9 | Pan/Tilt/Zoom | 5x digital zoom, pan, and tilt |
| Autozoom | Genius Framing automatic lossless digital zoom intelligently frames around people in the room | Auto-Flip | Automatic 180° image rotation when mounted upside down |
| Dynamic Light Optimization | Auto-adjusts light levels and white balance | Aspect Ratio Output | 16:9 |
| Noise Reduction | Noise reduction through bias compensating spatio-temporal filtering, wide area chroma filtering, flicker elimination | Scaling | Real-time scaling, dewarping, and perspective correction |
| People Counting | Detects and reports the number of people in the frame | Output Resolution | HD 1080p @ 30 fps |
| Connector | RJ45 | Cable | Cat 5e/6/7 |
| USB | USB 3.0 port (via included USB to PoE Adapter)1 | Power Requirement | 5VDC |
| Housing | Aluminum unibody | Mounting | Wall and shelf mount |
| Height | 2.1 in. (53 mm) | Width | 4.8 in. (122 mm) |
| Depth | 3.5 in. (89 mm) | Weight | 1.3 lb (0.6 kg) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
