Crown XLS1502 Two-channel, 525W @ 4Ω Power Amplifier
SKU: CRO0328
£620.90 (Excl. VAT)
- Description
- Specifications
- Downloads
-

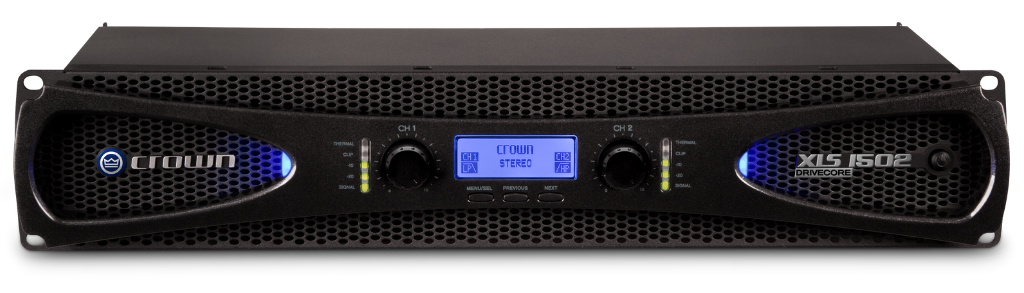

Crown XLS1502 Two-channel, 525W @ 4Ω Power Amplifier
Meet the new XLS DriveCore™ 2 Series
The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.Features
Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
Higher DSP capabilities: More control; has band pass filter per channel
Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
Set sleep mode after specified time without having to press a button
Security setting disables menu buttons; menu locked/unlocked by entering combination
System reset allows factory settings to be restored
Remote power trigger
Peakx™ Limiters provide maximum output while protecting your speakers

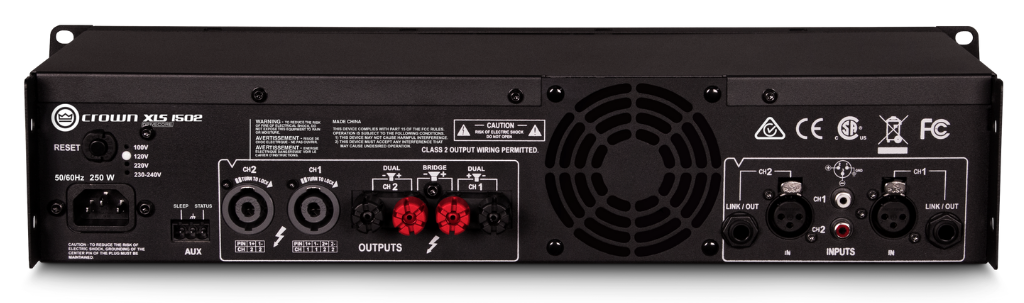

XLR, 1/4", RCA inputs provide flexibility
Integrated PureBand™ Crossover System for better performance and control
Efficient forced-air fans prevent excessive thermal buildup -
Specification Details Sensitivity 1.4 Vrms Frequency Response +0 dB, -1 dB Signal to Noise >103 dB (at .775 Vrms, 6 dB lower) Intermodulation Distortion < 0.3% Damping Factor > 200 THD < 0.5% Crosstalk At 1 kHz: > 85 dB, At 20 kHz: > 55 dB Dimensions 19" (48.3 cm) x 3.5" (8.9 cm) x 7.7" (19.6 cm) Weight 8.6 lbs (3.9 kgs) - CRO0328 : Datasheet
