Meet the new XLS DriveCore™ 2 Series

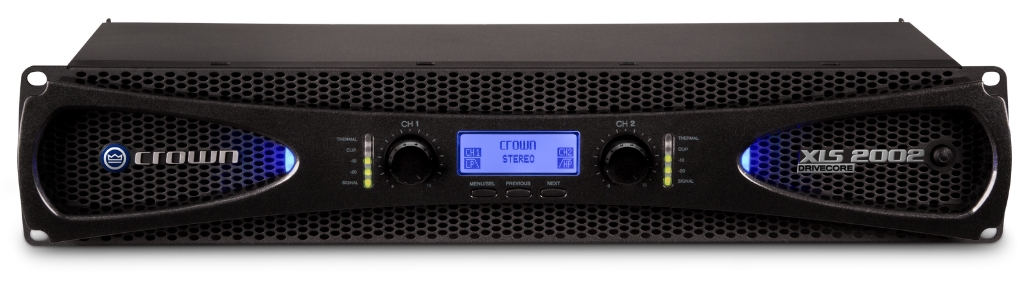

The next generation of XLS got a makeover with a sleek new look, a LCD display that is three times larger, and more DSP with higher capabilities. Like its predecessor, the new XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 2400W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver a powerful, pure sound experience for any venue.
Features
Class D amp with Crown's ultra-efficient DriveCore technology weighs less than 11 lb
Higher DSP capabilities: More control; has band pass filter per channel
Increased lighting functionality; turn off all LED indicators except clip and thermal to reduce distraction in dark venues
Selectable input sensitivity; 1.4Vrms and .775Vrms options so that amp can be driven at full power
Set sleep mode after specified time without having to press a button
Security setting disables menu buttons; menu locked/unlocked by entering combination
System reset allows factory settings to be restored
Remote power trigger
Peakx™ Limiters provide maximum output while protecting your speakers

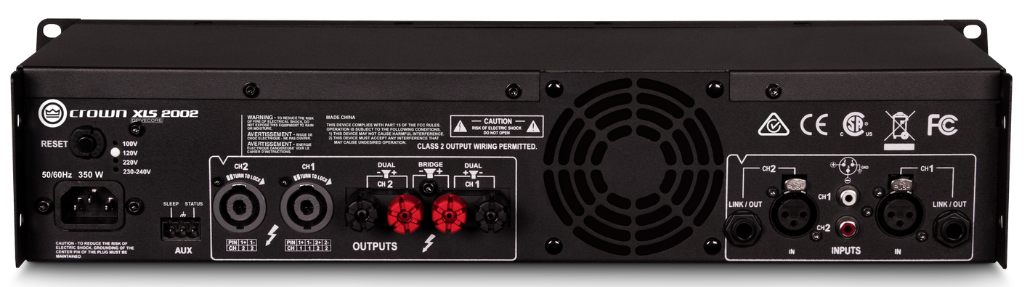

XLR, 1/4", RCA inputs provide flexibility
Integrated PureBand™ Crossover System for better performance and control
Efficient forced-air fans prevent excessive thermal buildup
| Specification | Value |
|---|---|
| Sensitivity | 1.4Vrms |
| Frequency Response | +0dB, -1dB |
| Signal to Noise | >103dB (at .775Vrms, 6dB lower) |
| Intermodulation Distortion | < 0.3% |
| Damping Factor | > 200 |
| THD | < 0.5% |
| Crosstalk | At 1kHz: > 85dB, At 20kHz: > 55dB |
| Dimensions | 19" (48.3 cm) x 3.5" (8.9 cm) x 10.7" (21.2 cm) |
| Weight | 10.8 lbs (4.9 kgs) |
