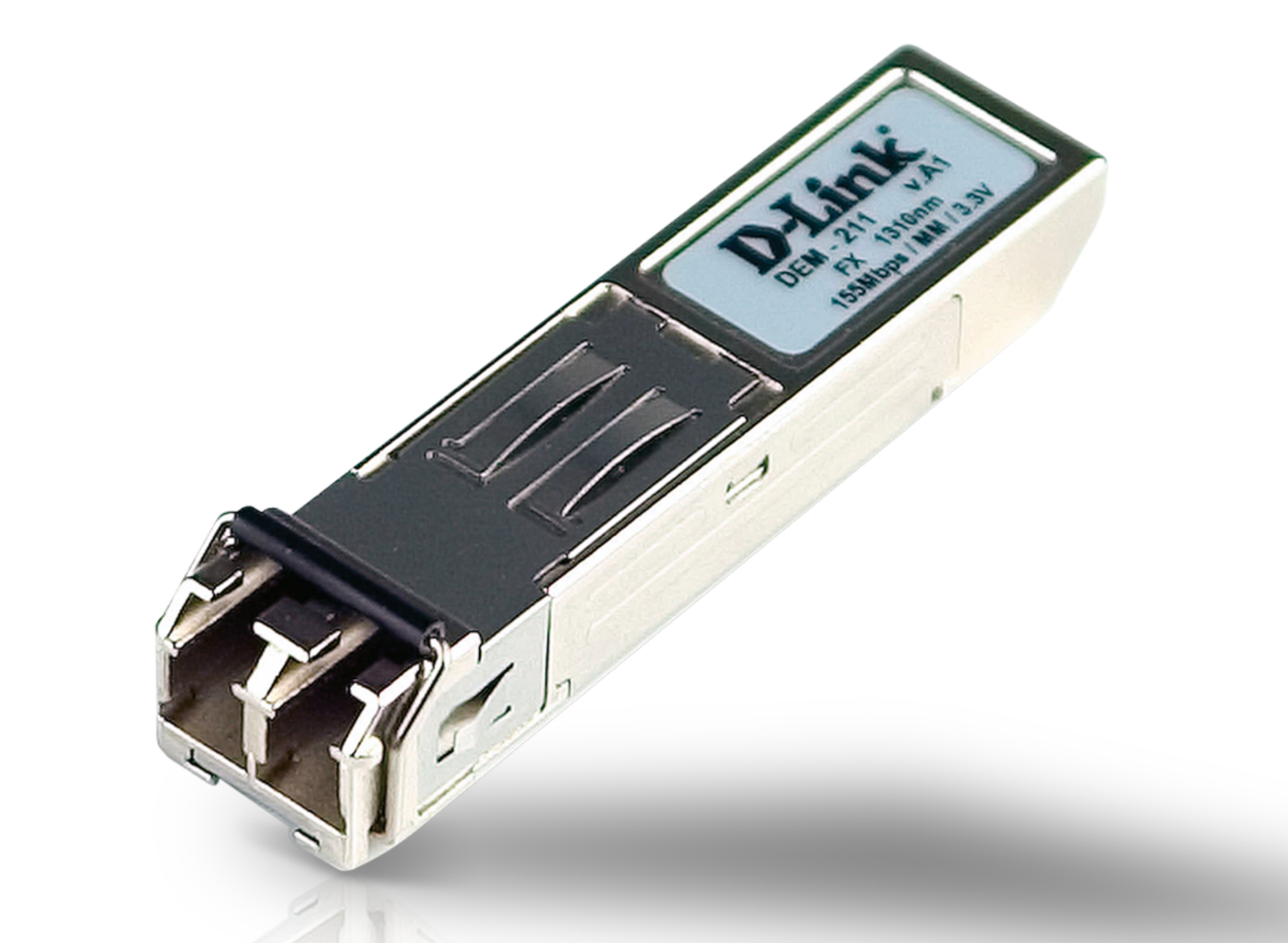

D-Link's DEM-210 and DEM-211 SFP transceivers provide a high performance solution for serial optical data communication applications. They are hot-swappable, Small Form Factor Pluggable (SFP) compliant with the Multi-Source Agreement (MSA) specification. The transceivers have duplex LC connectors and provide IEEE 802.3u compliant link for up to 100Mbps in the half duplex mode (or 200Mbps full-duplex mode) transmission for fiber cable applications.
D-Link's highly integrated transceivers offer low jitter performance for extended optical links support without performance degradation. This high performance enables reliable data transfer in short-, intermediate- and long-distances for building, factory, campus and metropolitan networking applications.
Previous combo-port switch designs have only provided Gigabit copper or SFP fiber-optic connectivity but not 100BASE-FX SFP fiber-optic connectivity. Switch designs like the DES-1226G and DES-3526 are of the former type. D-Link now provides 100BASE-FX SFP fiberoptic connectivity on Gigabit combo SFP ports for new switch model designs. Futher, in our effort to offer a full product porfolio, D-Link has developed the DEM-210 100BASE-FX SFP transceiver which can plug-in to the Gigabit combo SFP fiber-optic slot of selected switches to provide 100BASE-FX connectivity.
The transceiver connects with certain specific supported D-Link switches. It is not for use in the Gigabit SFP fiber-optic ports found in other switches. The current list of D-Link switches that support the new module includes the following: DES-1228, DES-1228P, DES-1252, DHS-3028, DHS-3628F, DHS-3626F, DGS-3612G.
| Compatible Models | DES-1228, DES-1228P, DES-3252P, DES-3228PA, DES-1252, DGS-3612G | Capacity | 100Mbps half-duplex, 200Mbps full-duplex |
| Fiber Type | 62.5/125um Multi-mode | Max Distance | 2km |
| Wavelength | 1310nm | Standard | IEEE 802.3u 100BASE-FX |
| Emissions | FCC Class B, CE, ICES-003, VCCI | Safety | FDA/CDRH, TUV, UL, RoHS |
| Dimensions | 0.5 x 2.28 x 0.3 in | Weight | 0.03 lbs |
| Operating Temp | 0°C to 70°C | Storage Temp | -40°C to 85°C |
| Operating Humidity | 10% to 90% RH | Storage Humidity | 5% to 90% RH |
| Power Budget | 13dB | Voltage | 3.3V |
| Optical Output | Max -14dBm, Min -19dBm | Warranty | 2-Year Limited |
| Description | Downloads |
|---|---|
| Datasheet | Download |
