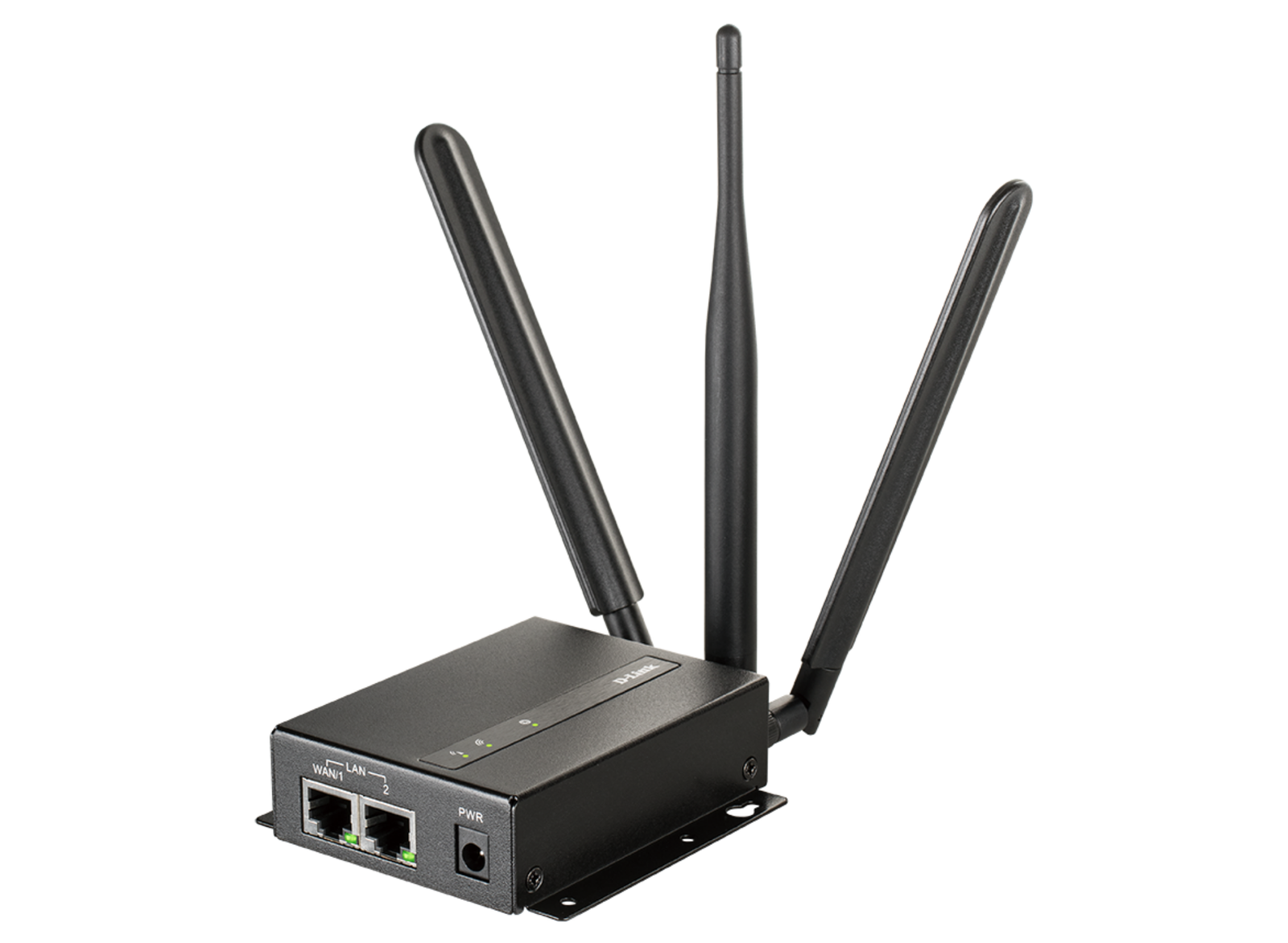

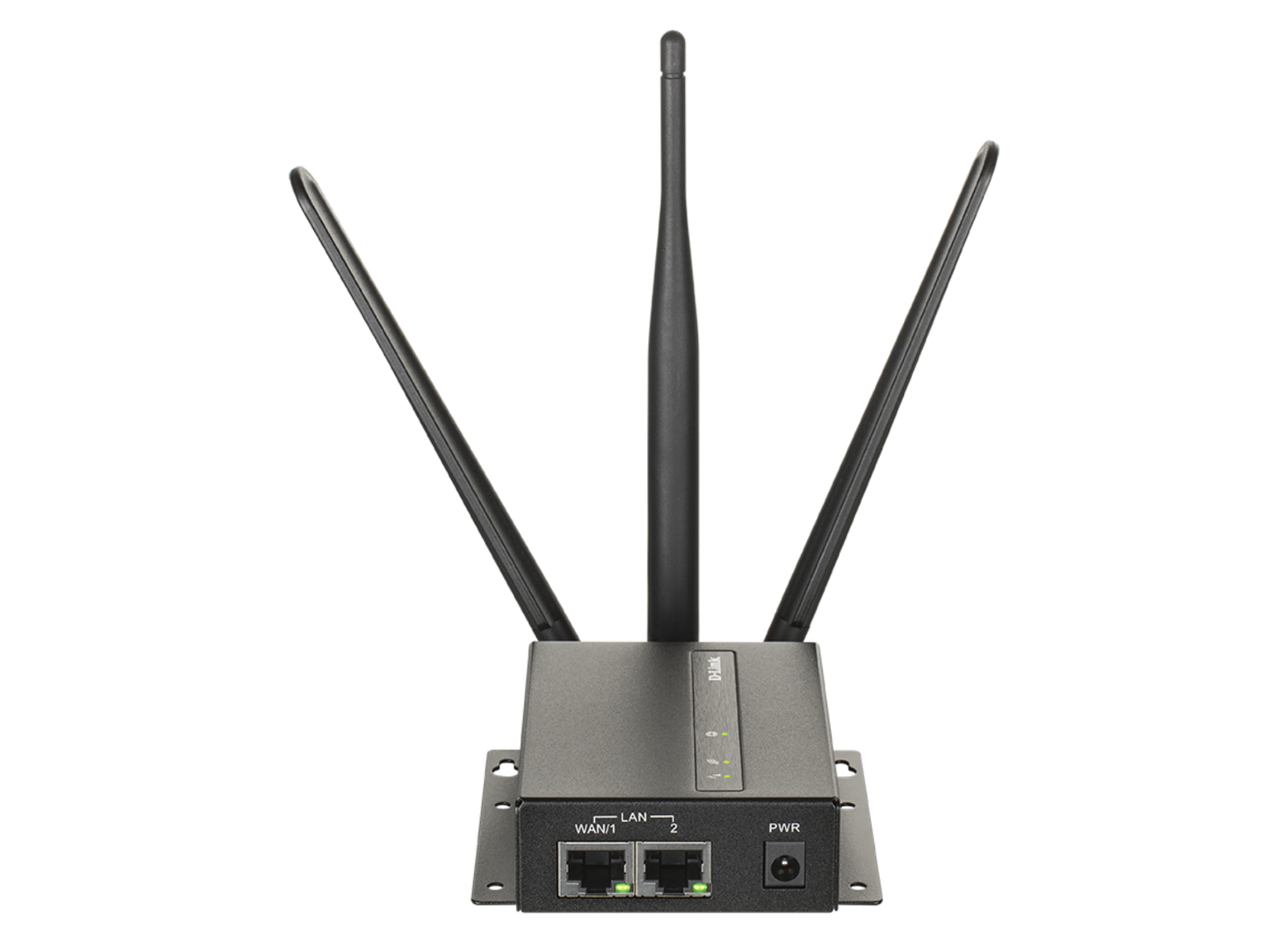

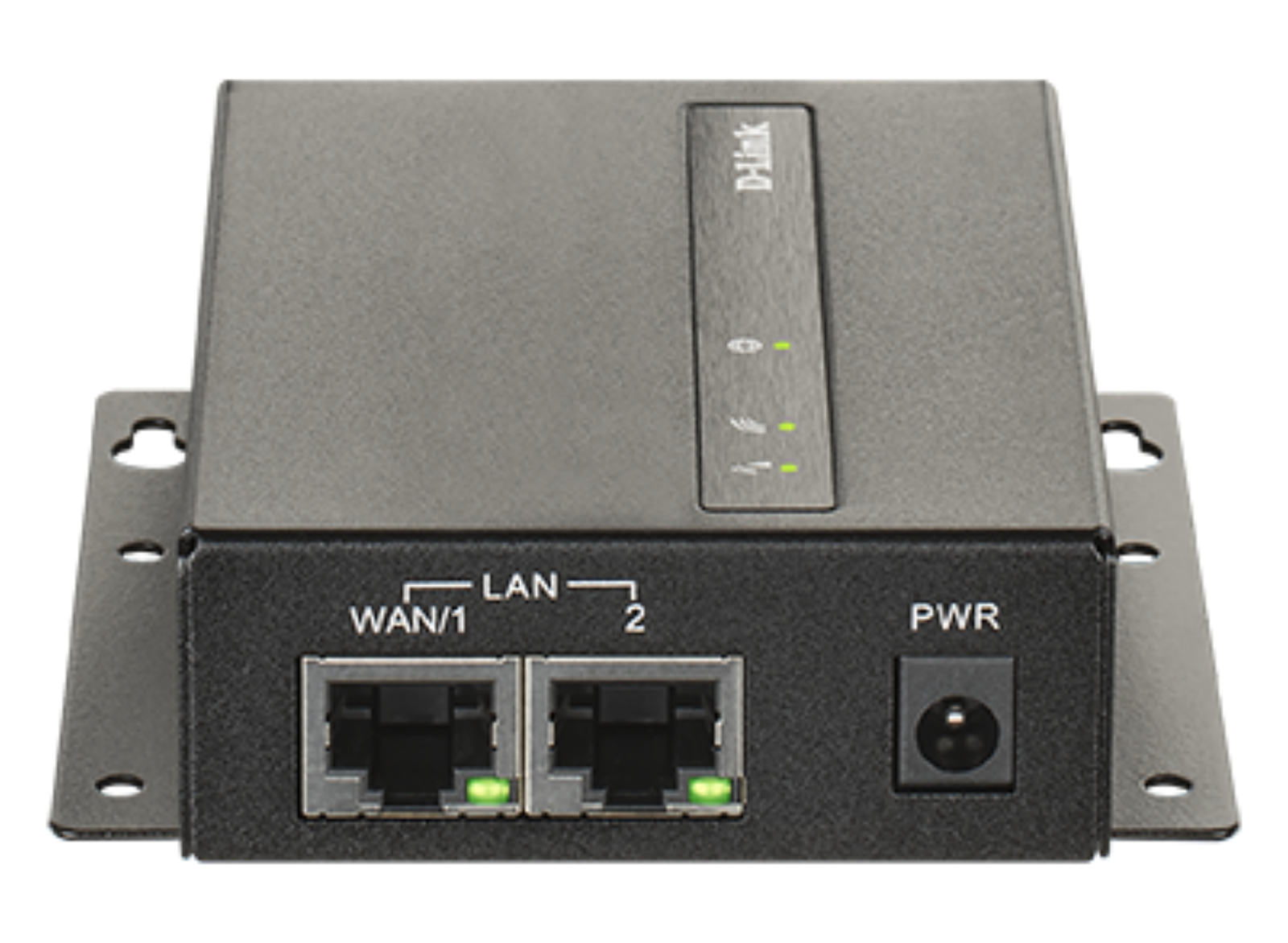

Robust, dual-SIM 4G Wi-Fi VPN Router
Easy-to-deploy, high-performance, industrial-grade 4G/3G mobile router for Machine-to-Machine applications in any environment.
High-speed 4G Internet
Blazing fast 4G/3G LTE download speeds of up to 150 Mbps
Wired and wireless connectivity for broad compatibility
Offers maximum flexibility for your Machine-to-Machine (M2M) applications with wireless and wired connectivity
Dual-SIM slot for always-on Internet
Configurable dual-SIM fallback provides connectivity that you can count on, even if one operator's network goes down
Advanced VPN
Integrated VPN client and server with support for IPSec, PPTP, L2TPv2, GRE, and OpenVPN tunneling
Easy management
Local and remote access through web/Telnet/SSH and SNMP support. TR-069 and D-ECS management platform available for projects.
Rapid deployment anywhere
The wall-mount for easy installation anywhere, small form factor, SNMP management support, Zinc-plated steel case, wide operating temperature and humidity tolerance
Purpose-built for M2M
Remotely monitor and manage your Machine-to-Machine (M2M) networks with the industrial-grade DWM-313. Features such as redundant mobile Internet with dual SIM slots, secure VPN connection, flexible wired and wireless LAN connectivity, ensure your M2M applications stay online, 24/7.
Your Internet will never fail you again
Disruptions can happen at any time, but we’ve developed D-Link’s Failover technology to eliminate them altogether.
If one of your network providers are having connectivity issues, the DWM-313 will automatically switch your connection over to backup 4G/3G cellular data on another network, thanks to the built-in Dual-SIM option - so your business can keep functioning, as normal.
Connectivity where you need it most
Easily connect to your high-speed 4G/3G LTE mobile connection and enjoy downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1 - facilitating fast, reliable and responsive Internet access that enables you to deploy the router in a remote location, and still access your devices from anywhere.
Reliable, secure and high-speed VPN
The DWM-313 can support almost any VPN policy and manage multiple configurations. It even supports IPSec, GRE and OpenVPN protocols as well as handling pass-through traffic.
Advanced VPN configuration options include multiple encryption options, key management, negotiation modes, and VPN authentication using an internal user database.
Easy installation in extreme conditions
The corrosion-resistant zinc-plated steel case and wide operating temperature and humidity tolerance make the DWM-313 an industrial-grade device, ready for the most demanding M2M environment.
Network agility for Enterprise IoT Management
D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency networks for mission critical operations.
With fast, flexible deployment and having full control and visibility over your network, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling device management, traffic analytics, security, cost-management and more.
| Mobile Network Support | LTE Cat.4 Bands 1/3/7/8/20/28/38/40/41, UMTS/HSPA B1/B8 900/2100 MHz | Data Throughput | LTE FDD: 150 Mbps DL / 50 Mbps UL, DC-HSDPA/HSUPA: 42 Mbps DL / 5.76 Mbps UL |
| Device Interfaces | 1 x 10/100 WAN/LAN, 1 x 10/100 LAN, microSD slot | SIM Slots | 2 x SIM slots (Micro-3FF), DC input |
| Wi-Fi Standard | 802.11n/g/b, 1x1, 2.4 GHz band | Wi-Fi Speed | Up to 150 Mbps, 6/9/11/12/18/24/36/48/54 Mbps (11g), 1/2/5.5/11 Mbps (11b) |
| Standards | IEEE 802.3i | Additional Standards | IEEE 802.3u |
| Advanced Features | SNMP Support, Web-based UI | Cloud Management | D-ECS, Remote UPS & Device Management |
| Wireless Security | 64/128-bit WEP | Encryption | 802.11i 128-bit AES |
| Firewall Functions | NAT | Firewall Protection | SPI |
| VPN | IPSec/OpenVPN/PPTP/L2TP/GRE | QoS | Priority levels by IP/port |
| SMS Features | Incoming SMS notification | SMS Functions | Compose, send, read, forward, reply, delete |
| LED Indicators | Network Connectivity, Wi-Fi | Additional Indicators | Signal Strength, RS-232 |
| Power | 5V / 2A adapter | Input Range | DC 5V–18V / 0.7A |
| Enclosure | Zinc-plated steel | Dimensions | 90 x 101 x 27 mm |
| Weight | 210 g | Operating Temp | -30 to 70 °C |
| Storage Temp | -40 to 85 °C | Operating Humidity | 10% to 90% non-condensing |
| Storage Humidity | 0% to 95% non-condensing | Certifications | RoHS, CE |
| Description | Downloads |
|---|---|
| Datasheet | Download |
