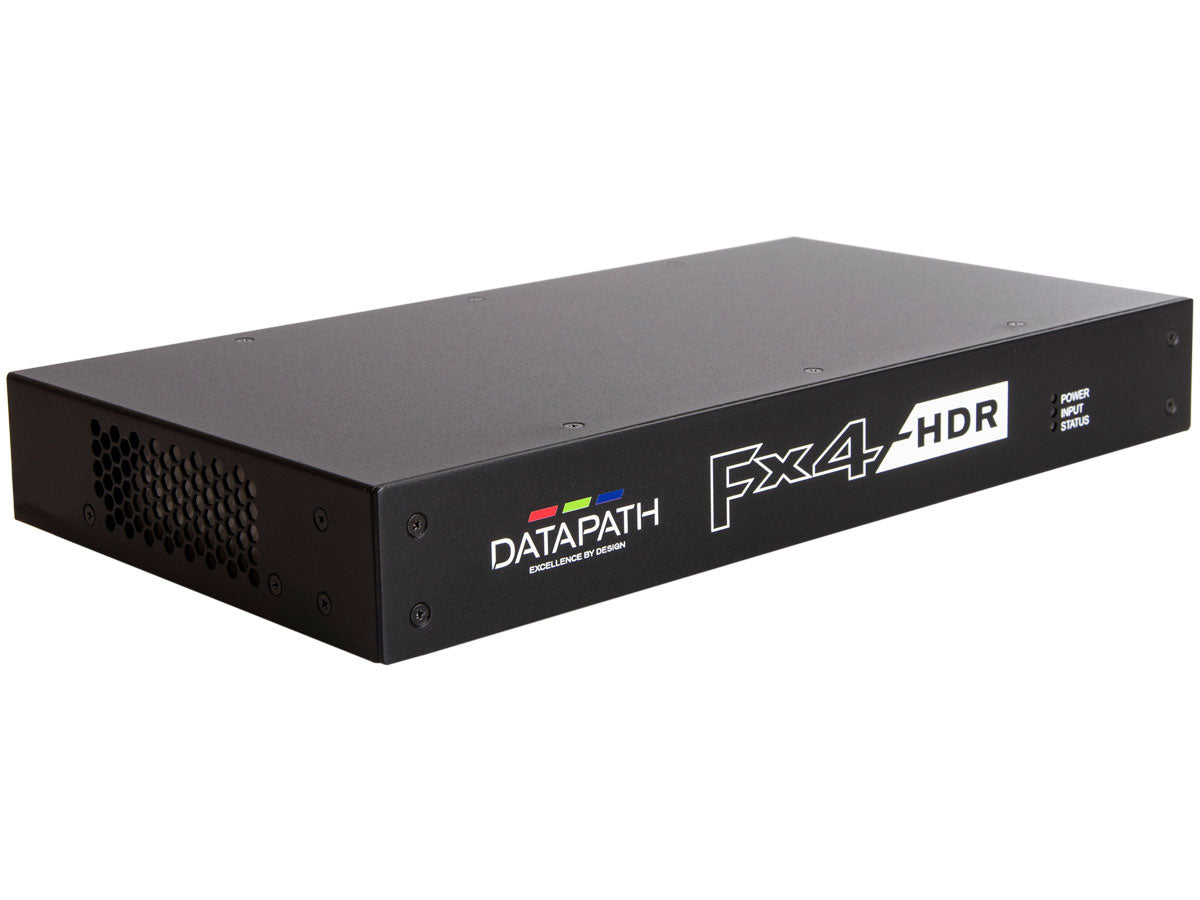

The Datapath Fx4-HDR builds on the success of its award winning Fx4 and x4 predecessors and brings the superb HDR 10-bit colour clarity, 4K60 resolution as well as audio support into the mix.
HDMI 2.0 input
Fully HDCP2.2 capable
Audio support
Rotates, crops and scales
Creativity made simple
Advancements in digital signage requirements mean that customers demand greater freedom in creating and deploying small, medium and large-scale signage projects.
Fx4 HDR’s advanced hardware processing enables complete flexibility for content mapping across multiple output canvases. Join multiple devices to support larger display areas, whilst maintaining synchronisation across all outputs.

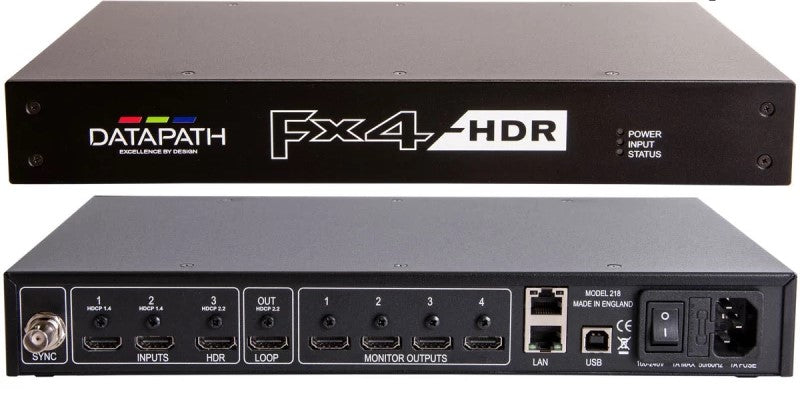

Unparalleled connectivity options
3 Input Choices
The Fx4 features one HDMI 2.0 input and two HDMI 1.4 inputs. The intuitive UI allows users to determine which input is used.
Network Connectivity
Dual Ethernet ports allow users to add the device to their networks. Ethernet loop-though support allows connectivity to all devices with a single network connection to the switch.
Genlocked Input
Auto lock to the active input, or use analog black & burst or tri-level house sync via a robust BNC connector.
Loop-through
A dedicated HDMI 2.0 loop-through output allows users to link multiple devices. Specifically designed prevent any loss of resolution, the original capture signal remains unchanged.
Powered by Wall Designer
Wall Designer allows users to add displays from the ever-expanding database of monitors, visualise their content by adding inputs, backgrounds and adjusting capture regions. Finally, instantly configure all Datapath Fx4-HDR's either via USB or the network ports.
| Specification | Details |
|---|---|
| Dimensions | Size: 316mm (l) x 172mm (w) x 42mm (h) |
| Weight | 1.86kg |
| Operating Temperature | 0°C to 35°C / 32°F to 96°F |
| Power Requirements | IEC switched and fused mains connector |
| 100-240V, 50/60Hz, 35W | |
| Video Input Connections | 1 x HDMI 2.0 (2160p60 or equivalent up to 616MP/s) |
| 2 x HDMI 1.4 (2160p60 (4:2:0), 2160p30 or equivalent up to 297MP/s) | |
| Video Output Connections | 4 x HDMI 1.4 (1080p60, 1200p60 or equivalent up to 165MP/s)* |
| 1 x HDMI 2.0 loop-through port, locked to selected video input resolution | |
| Input Surface | 8K x 8K maximum |
| Genlock Input | Analog black-burst on dedicated BNC connector, or any video input (selectable) |
| Control Interfaces | Dual 100Base-T Ethernet ports with inbuilt managed switch |
| USB 2.0 Type B connector (full speed operation) | |
| Firmware Support | Updates supported via USB and Ethernet connection |
| Storage | -20°C to 70°C / -4°F to 158°F |
| Relative Humidity | 5%-90% non-condensing |
| Warranty | 3 years |
