SDI and HDMI Inputs on a Budget
The SE-650 is Datavideo's most affordable SDI+HDMI switcher available.
With 2 SDI inputs and 2 HDMI inputs, the SE-650 is compatible with both professional and consumer-grade cameras while being one of the least expensive switchers in our catalog.

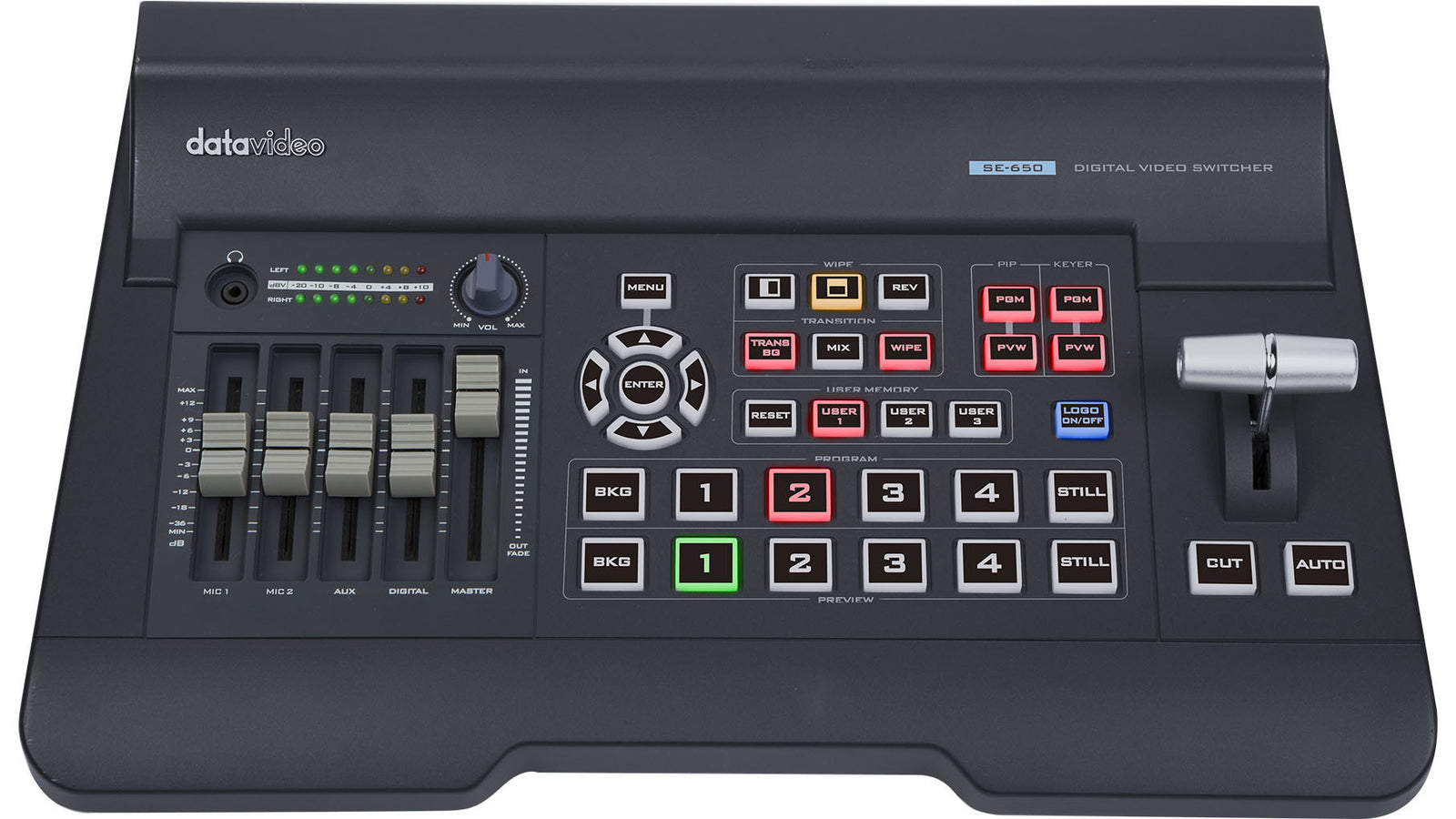

Easy on the Outside. Professional on the Inside.
The SE-650's intuitive control panel makes switching a piece-of-cake for experienced users, as well as for beginners such as volunteers and students.
Though it's geared for novice users, the SE-650 is packed with advanced features such as lumakey and chromakey
Built-in Audio Mixer
The SE-650's built-in audio mixer means that you've got everything you need to control your audio input levels.
For most productions, this means that there's no need to buy a separate external audio mixer.
Stunning Video Effect Enrich the Scene and Built-in Animations and Backgrounds
Down stream keyers(DSK) , up stream keyers(USK) and picture-in-picture(PIP) generators combined with a dual chromakeyer give you enough freedom to be creative.
Choose between a variety of pre-saved animated stinger transitions and virtual set backgrounds.
User Memories
You can save a complex process into a user memory, turning multiple tasks into a one-finger job.
Plug-and-Play
There is no need to install the driver to connect with the laptop. The images and videos can be directly input to the switcher through the HDMI interface of the laptop.
Professional 10-bit Processing Switcher
Providing you the best and professional quality of video processing.
| Feature | Details |
|---|---|
| Model Number | SE-650 |
| Video Standard | HD |
| Video Format | 1080i 50/59.94/60Hz, 720p 50/59.94/60Hz |
| Video Processing | SDI: 4:2:2, HDMI: YUV 4:2:2 10 bit, RGB: 4:4:4 |
| Input Routable / Crosspoint | All 4, repeatable |

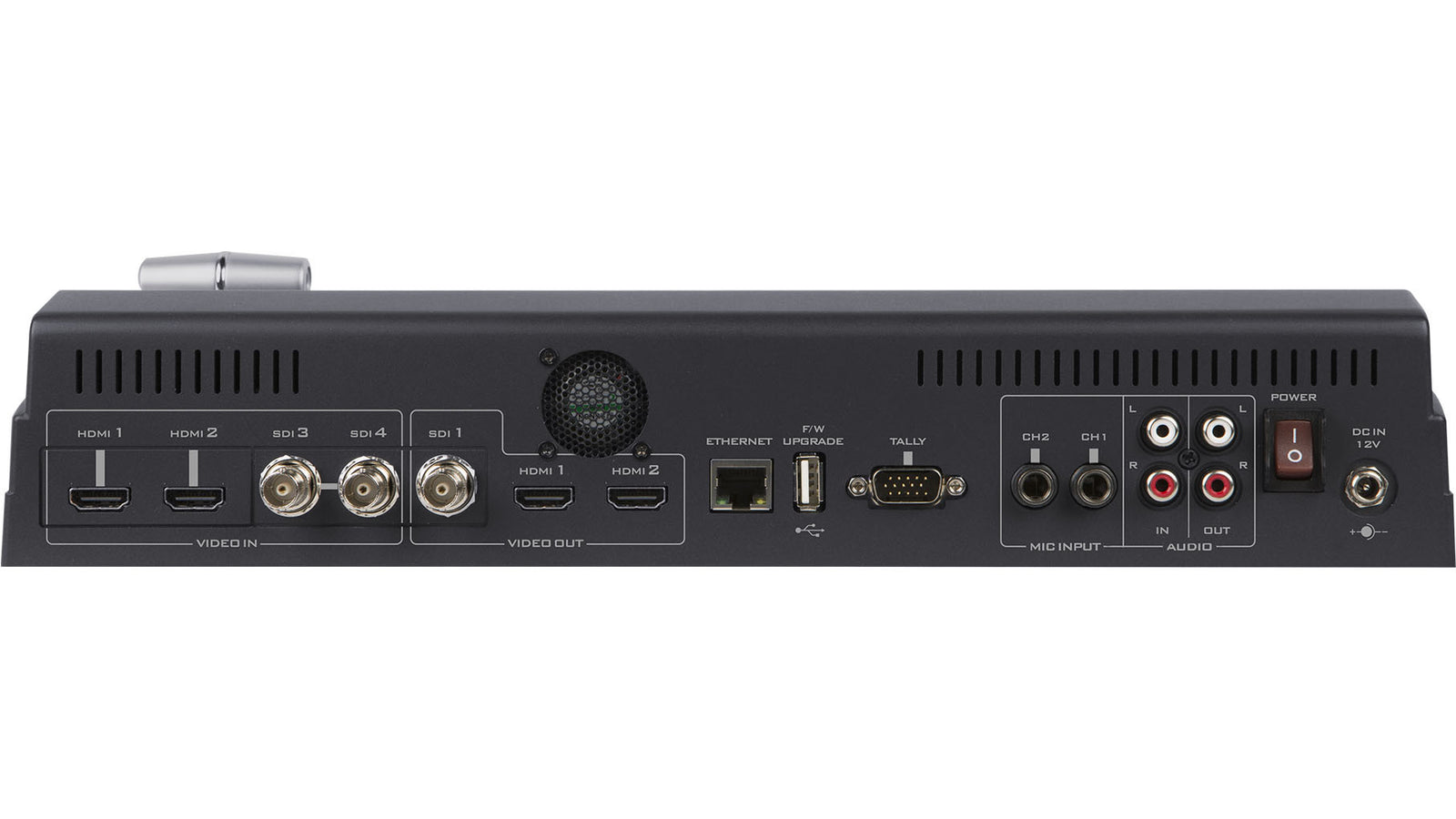

| Video Input | 2x HD-SDI, 2x HDMI |
| Mix HD & SD Source | ---- |
| Computer Graphic Interface | 2 via HDMI |
| Video Output | 2 x HDMI (1 MV, 1 Assignable), 1 x HD-SDI (Assignable) |
| Down-converted Output | ---- |

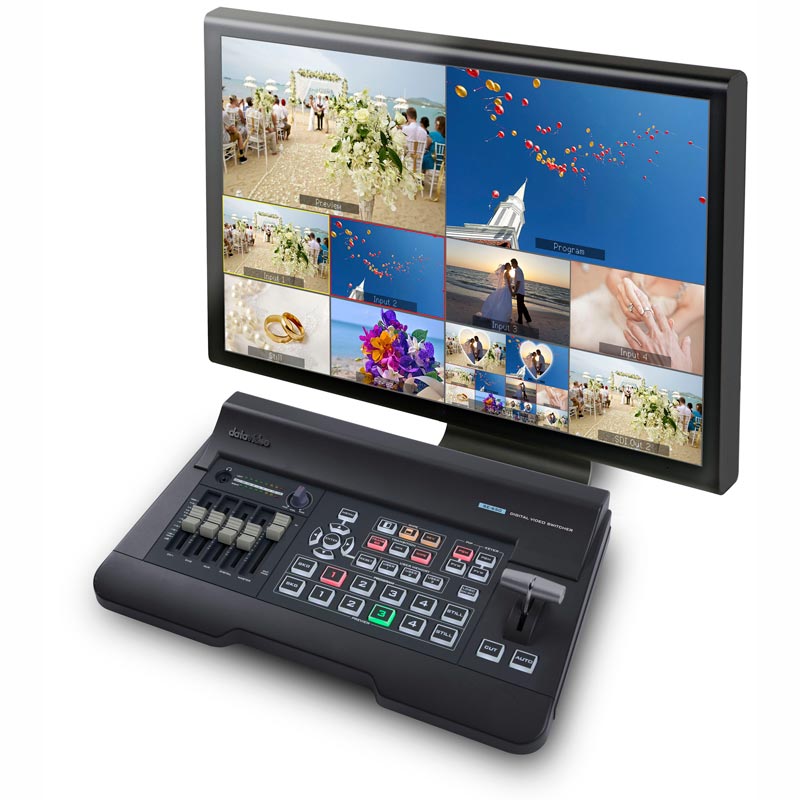

| Built-in Multi-view Monitoring Out | HDMI & SDI assignable |
| Analogue Audio Input | 1 x Stereo RCA (L/R), 2 x Mono Microphone |
| Analogue Audio Output | 1 x Stereo RCA (L/R), 1 x Stereo headphone (Mini Jack with volume control) |
| Digital Embedded Audio Support | Input 2 channels, Output 2 channels |
| Audio Delay Calibration | ---- |
| A+V Switching | Yes |
| Chromakey | 1 |
| Title Creator | ---- |
| USK | 2x Keyer support Chromakey/ Linear/ Luma Key |
| DSK | 1x DSK support Lumakey/ Linear key (Key / Fill) |
| Picture in Picture | 1 |
| Logo Insertion | 1 |
| Still Store | 500 |
| Effects | FTB, Cut, 32 Wipe with border |
| Transition Preview | Full transitions preview |
| Sync / Reference In/Out | Built-in Genlock (internal) |
| Tally Output | 1x D-sub 15pin, dual color |
| PC Remote Control | DVIP (Ethernet) |
| Camera Control | ---- |
| Built-in Audio Mixer | Yes, 4 channels |
| Storage | ---- |
| Recording File System | ---- |
| Recording File Format | ---- |
| Video Encode | ---- |
| Audio Encode | ---- |
| Streaming Protocol | ---- |
| Firmware Update | USB |
| Special Features | Free Virtual Set and Stinger transition included |
| Chassis | Unibody |
| Dimension (LxWxH) | 400 x 250 x 82 mm |
| Weight | 1.9 kg |
| Power | DC 12V, 29W |
| Operating Temp. Range | 0~40 °C |
| What's in the Box | 1 x SE-650 product, 1 x AD Switch DC 12V with AC Cord |
| Description | Downloads |
|---|---|
| DataVideo 4 Input HD Digital Video Switcher | SE-650 User Manual | Downloads |
