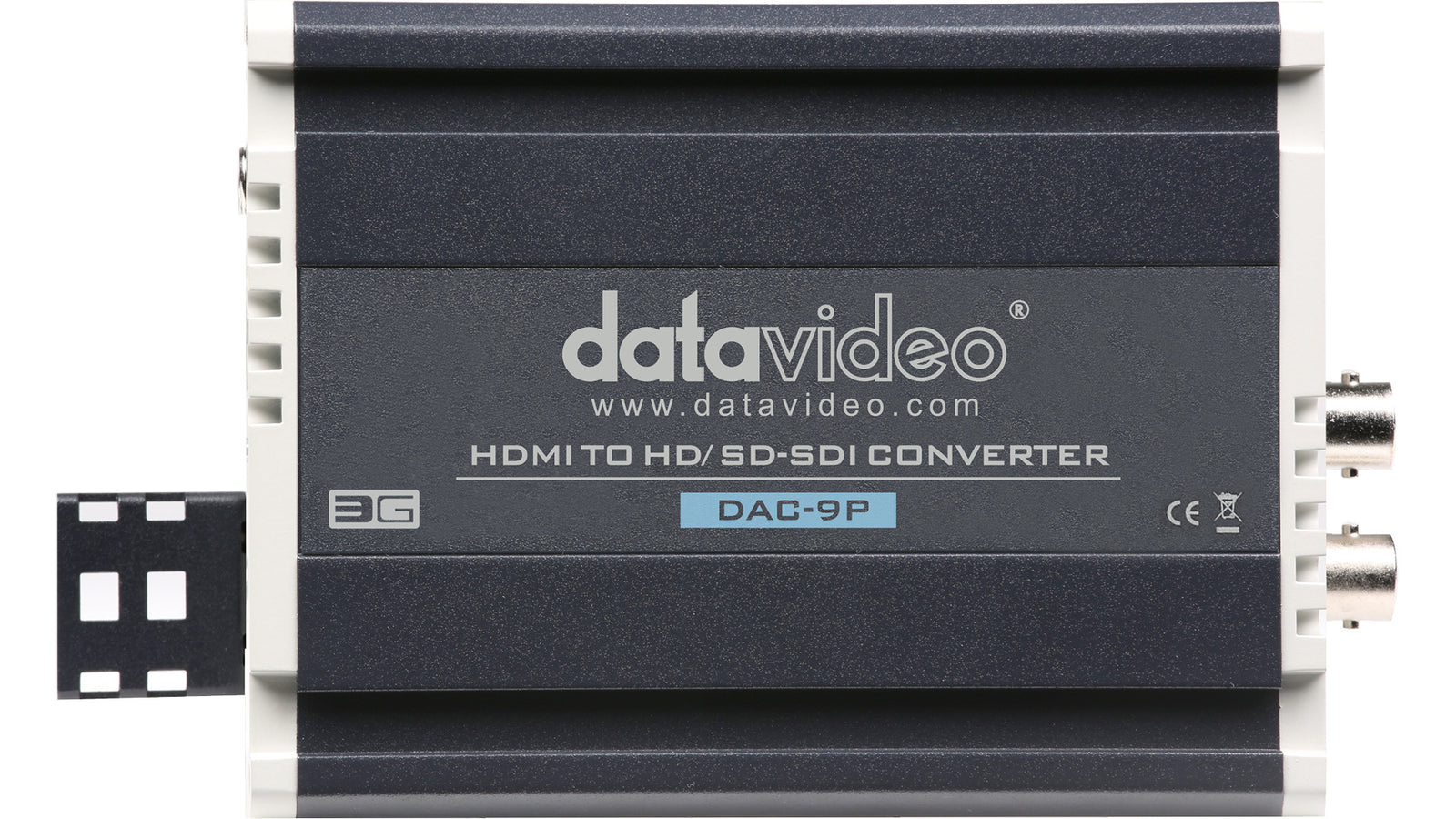

HDMI to SDI Conversion
The DAC-9P supports HDMI to 3G/HD/SD-SDI conversion, allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders.
Better transmission through SDI
By using the DAC-9P, user can convert HDMI to High Definition & Standard Definition SDI and take advantage of the long-distance transmission, high quality and affordable connectivity that SDI cables offer.
Audio embedded within SDI output signal
The DAC-9P embeds the audio from HDMI into the SDI signal so only one single cable is needed.

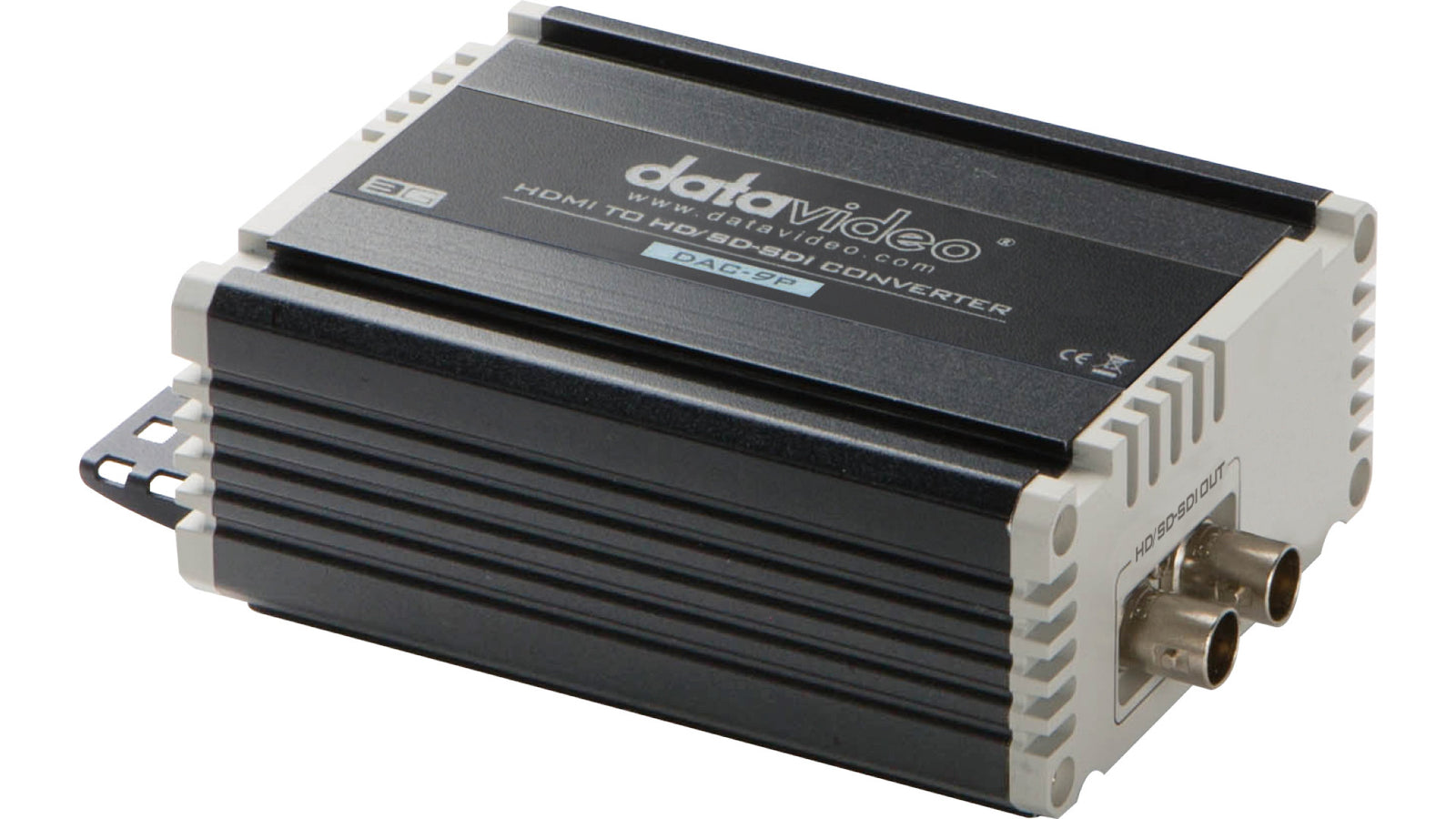

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
| Feature | Description |
|---|---|
| Model Number | DAC-9P |
| Conversion | HDMI to 3G/HD/SD-SDI |

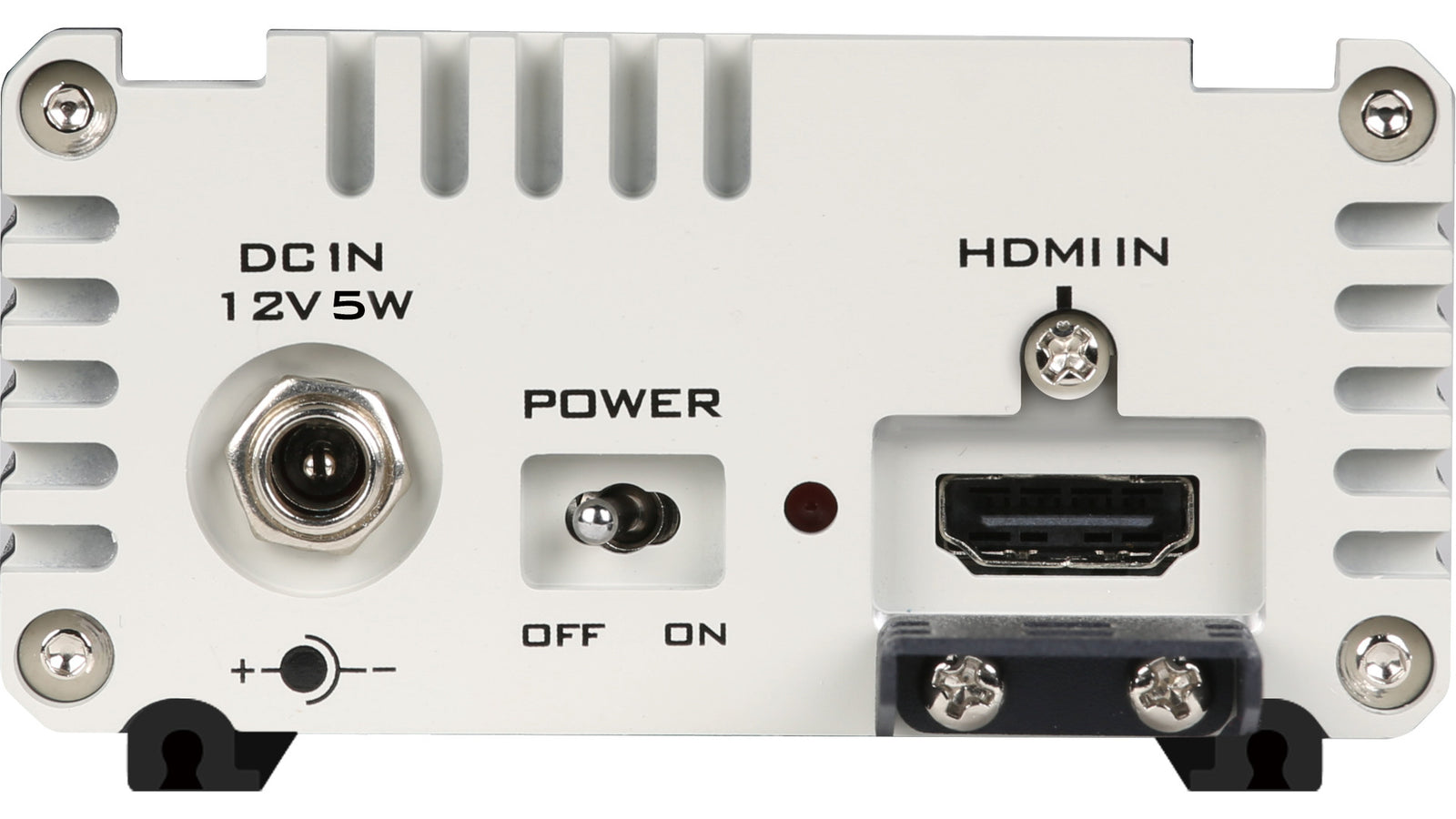

| Video Inputs | 1x HDMI |
| Loop Through | ---- |

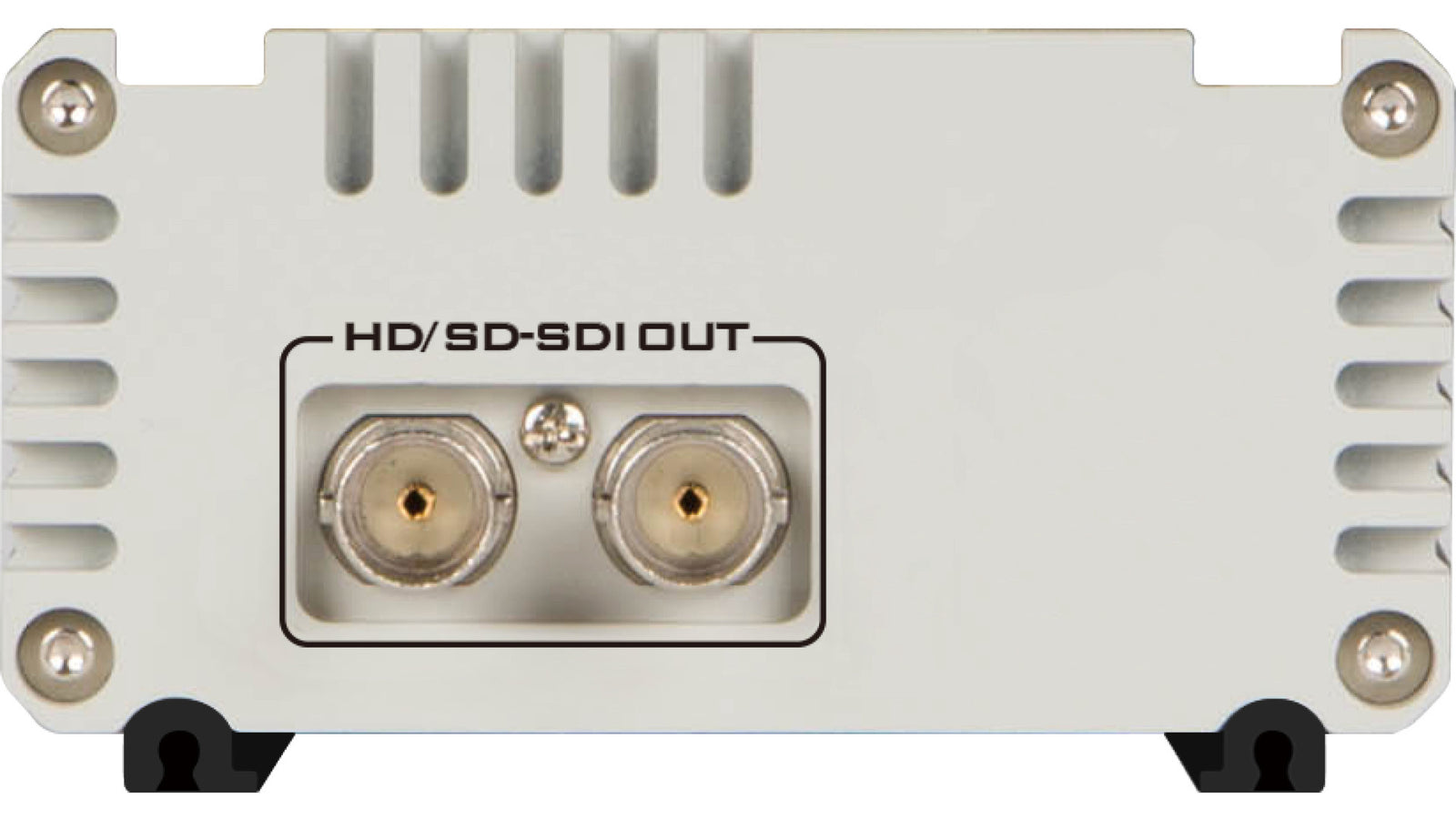

| Video Outputs | 2x 3G/HD/SD-SDI with embedded Audio |
| Audio Inputs | 2x HDMI Audio embedded |
| Audio Outputs | 2x SDI Audio embedded |
| Audio Format Selection | ---- |
| Audio Gain | ---- |
| Supported Video Input Formats | 1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 576i (PAL), 480i (NTSC) |
| Output Resolutions | Automatically matches SD, HD, and 3G HDMI video input |
| Equalizer | ---- |
| Reclock | ---- |
| SDI Cable Drive | Yes |
| Updates and Configuration | ---- |
| Dimension (LxWxH) | 112 x 85 x 45 mm |
| Weight | 0.3 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V, 5W |
| What's in the Box | 1 x DAC-9P, 1 x AD Switch DC 12V |
| Description | Downloads |
|---|---|
| DataVideo 4K HDMI To SDI Converter | DAC-9P Instruction Manual | Downloads |
