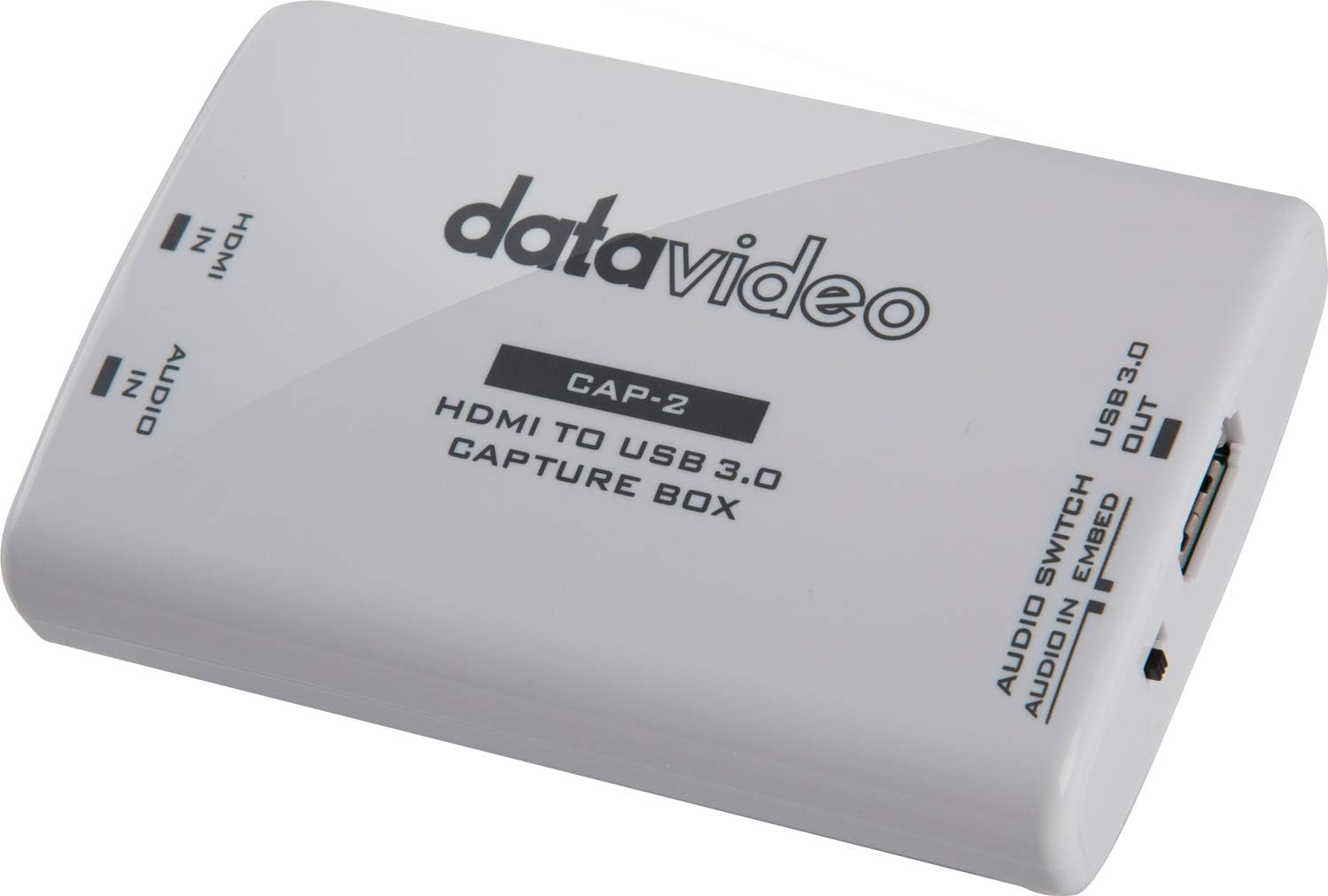

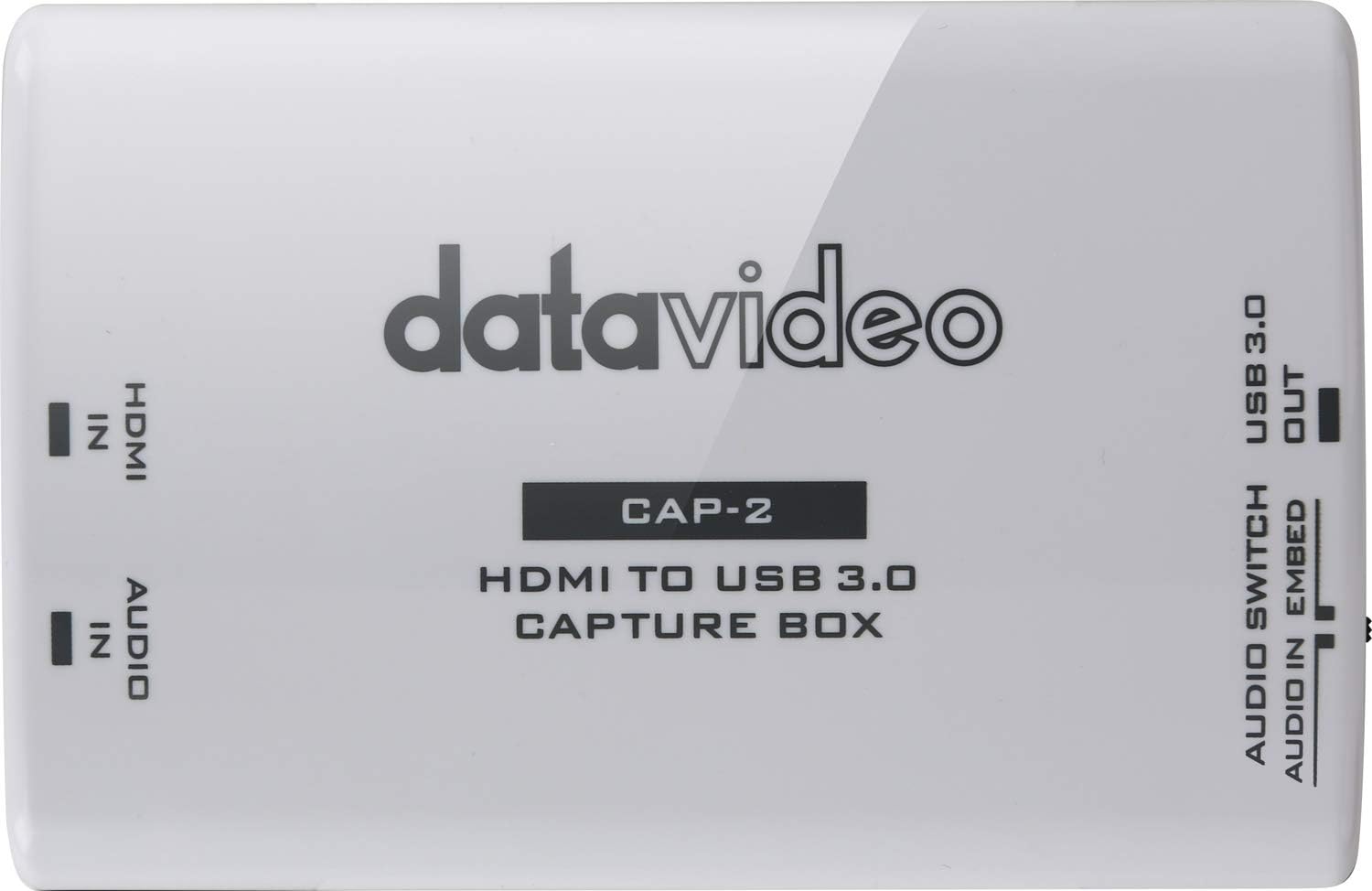

DataVideo HDMI to USB 3.0 Capture Box
CAP-2 HDMI IN to USB 3.0 Capture Box
CAP-2 HDMI IN to USB 3.0 Capture Box is an HDMI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system.
It features a stereo line in external audio, which can be switched as HDMI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.

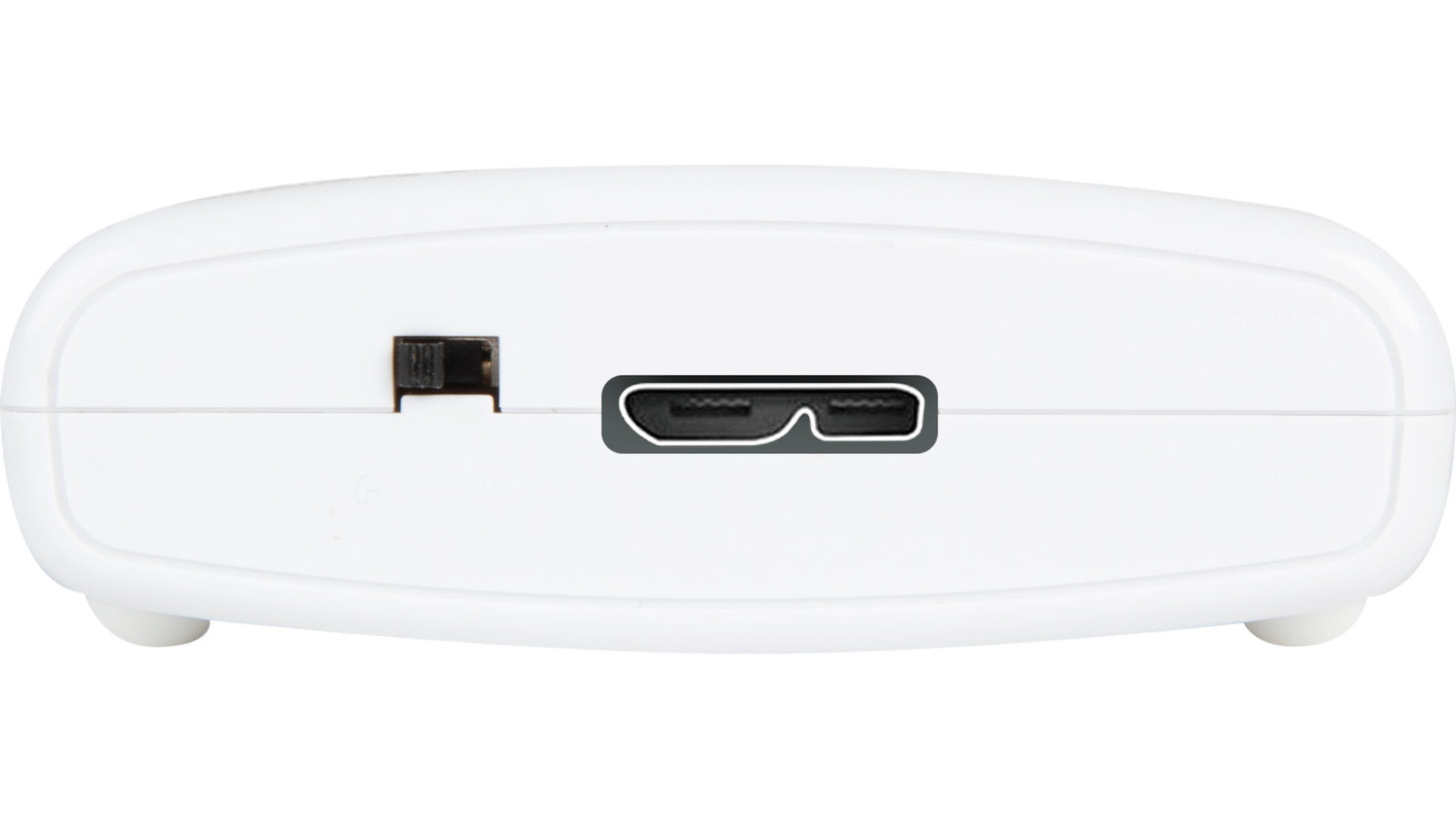

USB 3.0 Interface
No external power is needed.
Plug-and-Play
Support UVC. Operations with video format (resolution and frame rate) auto-detection capability
Compatible with Various Operating Systems
Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime

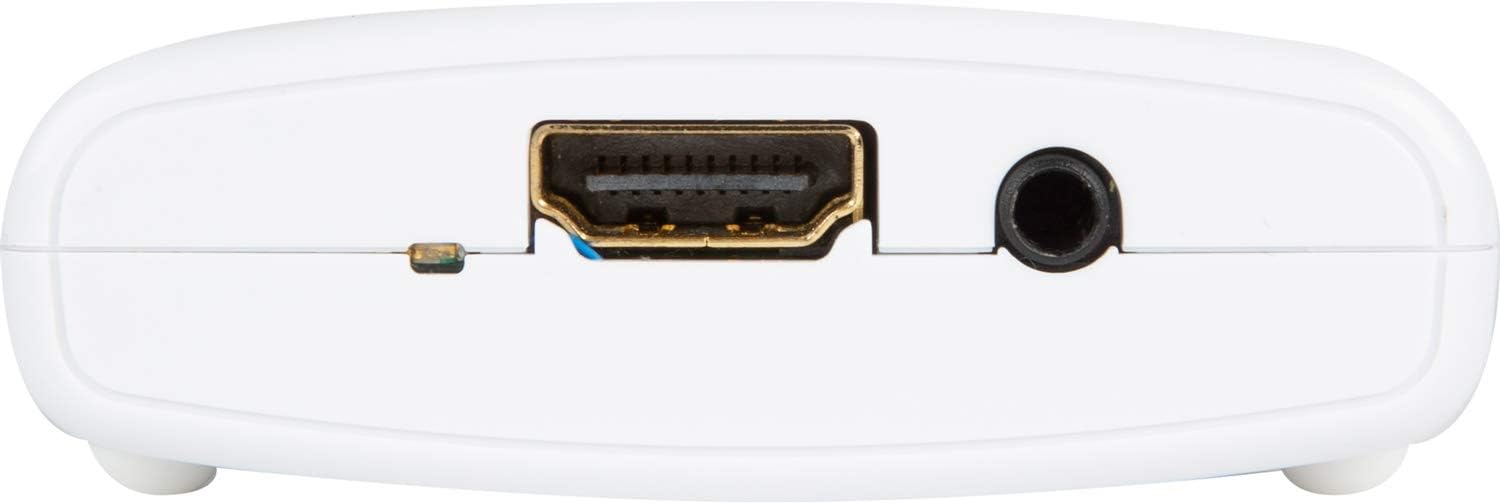

Stereo Line in External Audio
Switched as HDMI embedded audio or external line-in audio. -
Feature Specification Model Number CAP-2 Input 1x HDMI Output 1x USB 3.0 (Micro B) Input Video Bandwidth 150MHz (pixel clock rate) Output Video Bandwidth Up to 350Mbps (USB) Supported Input Video Formats 1920x1080p (60/59.94/50/30/29.97/25/24/23.976), 1920x1080i (60/59.94/50), 1680x1050p (60), 1600x1200p (60), 1440x900p (75/60), 1400x1050p (60), 1366x768p (60), 1360x768p (60), 1280x1024p (75/60), 1280x720p (60/59.94/50), 1024x768p (75/60), 800x600p (75/60), 720x576p (50), 720x480p (60), 640x480p (60) Supported Output Video Formats 1920x1080p (60/50/30/25/24), 1680x1068p (60), 1440x1080p (60), 1440x896p (60), 1360x768p (60), 1280x768p (60), 1280x720p (60/50), 1024x768p (60), 960x536p (60), 848x480p (60), 768x576p (60), 720x480p (60/50), 640x480p (60), 640x360p (60) Audio Input HDMI Embedded Audio & 3.5mm stereo in Audio Format 2-Channel, 44.1KHz and 48KHz sample rate embedded in, up to 24-bit PCM, fixed 48KHz output Capture Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0) Firmware Update Via USB Port Software Compatibility Windows: Amcap, Google Plus Hangouts, OBS, Skype, VLC, Xsplit Broadcaster, Zoom.us; Linux: VLC, OBS; Mac OS X: OBS, Quicktime player, VLC, Facetime Supported OS Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04 Power Supply Via USB Power Consumption 2W Operation Temperature 0~40°C Storage Temperature -20~60°C Humidity 20~90% RH (no condensation) Minimum System Requirement Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64); OS X (10.10 or above); Linux Ubuntu 14.04; PC: Intel® Core™ i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher; Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher; 4GB RAM or higher Dimension (LxDxH) 105 x 68 x 23 mm Weight 70g What's in the Box 1 x CAP-2, 1 x USB 3.0 Cable -
Description Downloads DataVideo HDMI to USB 3.0 Capture Box | CAP-2 Instruction Manual Downloads
