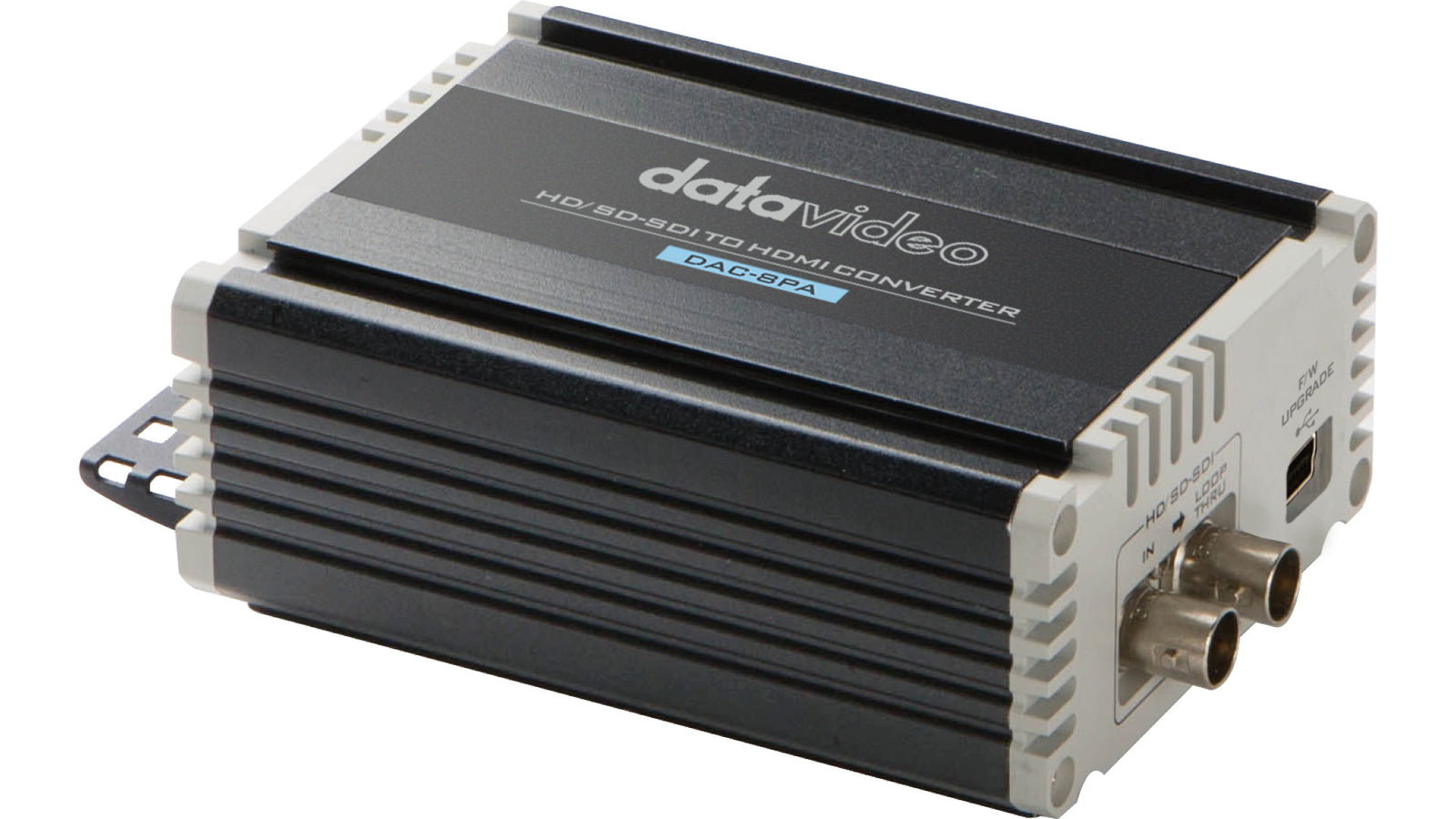

DataVideo SDI to HDMI Converter
Convert SDI to HDMI with Audio De-Embedding Options
The DAC-8PA allows you to convert an SDI signal (up to 1080p60) to HDMI. It includes the option to de-embed audio to a stereo RCA output.
Supports 1080p 50/60
Automatic input signal detection and HDMI support for High Color (Deep Color).
Supports stereo audio output

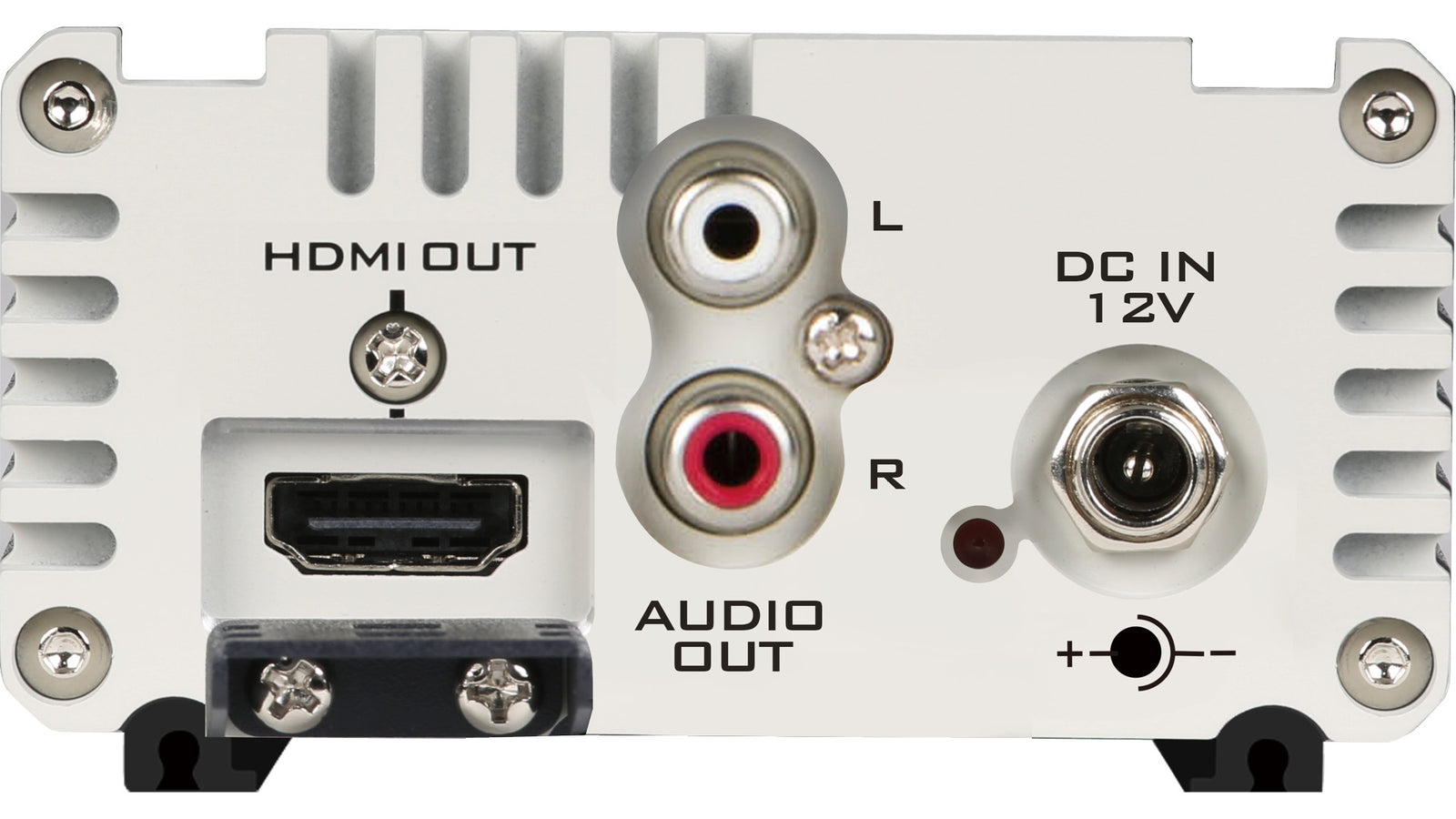

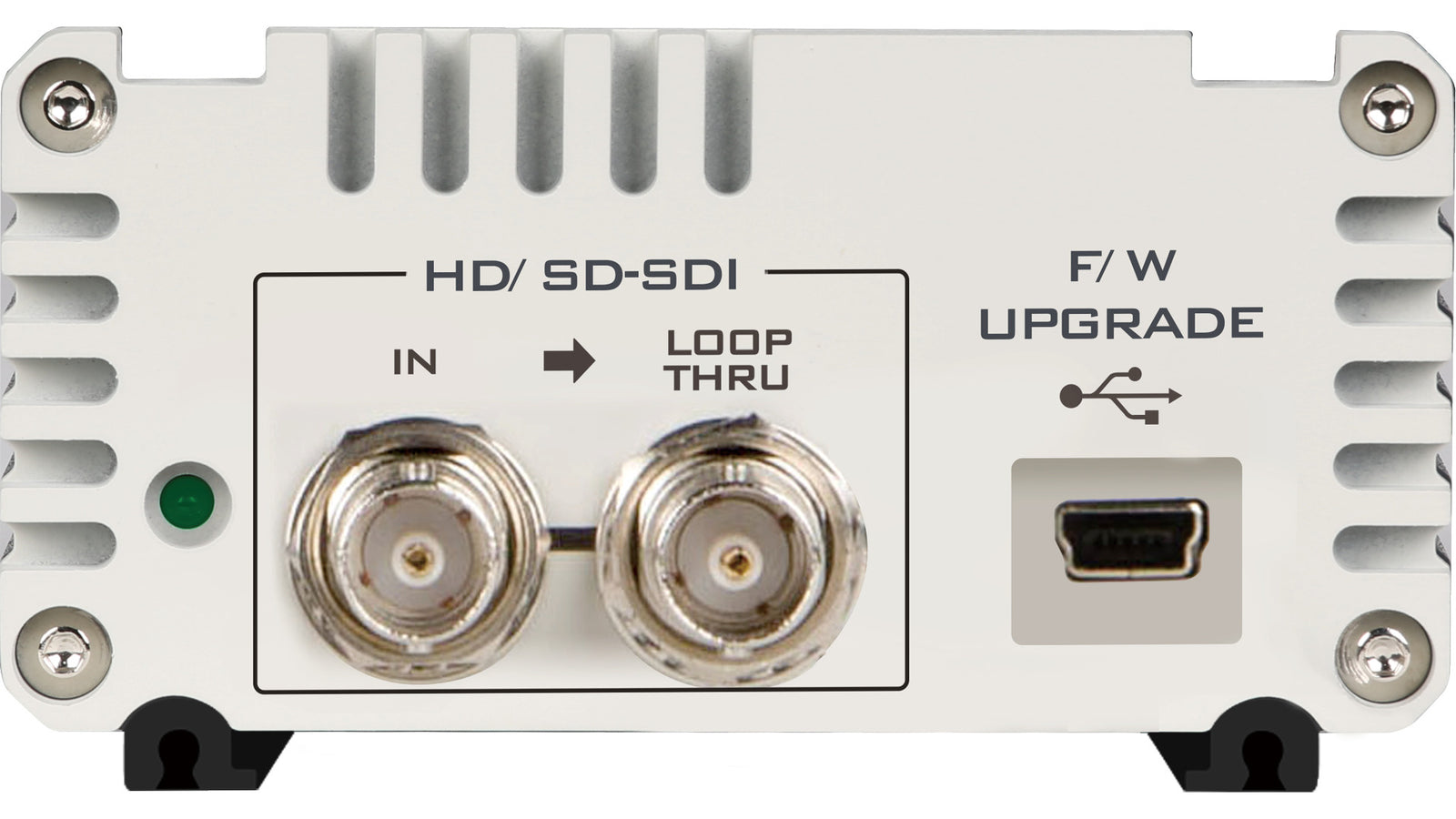

One SDI loopthrough output and one HDMI output.
Aluminum alloy and robust design
Very robust and durable. The DAC series has a robust metal housing that can withstand even the most extreme conditions. Low heat loss, ideal for use for several hours in a normally ventilated environment.
| Feature | Details |
|---|---|
| Model Number | DAC-8PA |
| Conversion | 3G/HD/SD-SDI to HDMI |
| Video Inputs | 1x 3G/HD/SD-SDI |
| Loop Through | 1 |
| Video Outputs | 1x HDMI |
| Audio Inputs | 2x SDI Audio embedded |
| Audio Outputs | 2x RCA (stereo) |
| Audio Format Selection | ---- |
| Audio Gain | ---- |
| Supported Video Input Formats | 1080p, 1080i, 720p, 625i (PAL), 525i (NTSC) |
| Output Resolutions | Automatically combines SD, HD, 3G SDI |
| Equalizer | Yes |
| Reclock | Yes |
| SDI Cable Drive | Yes |
| Updates and Configuration | Mini USB x 1 |
| Dimension (LxWxH) | 112 x 85 x 45 mm |
| Weight | 0.4 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V, 4W |
| What's in the Box | 1 x DAC-8PA, 1 x AD Switch DC 12V |
| Description | Downloads |
|---|---|
| DataVideo SDI to HDMI Converter | DAC-8PA Instruction Manual | Downloads |
