DataVideo SDI to USB 3.0 Capture Box

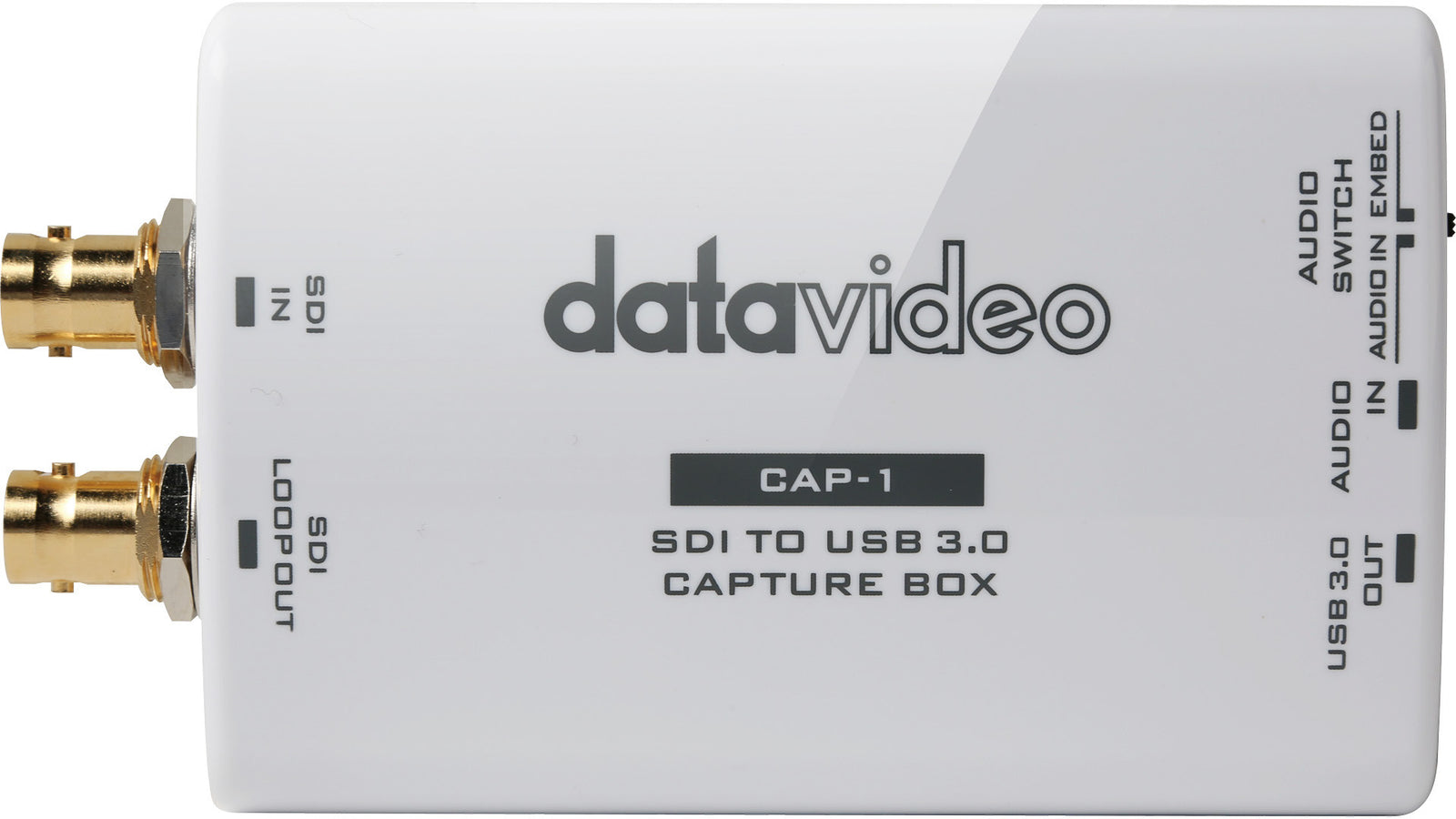

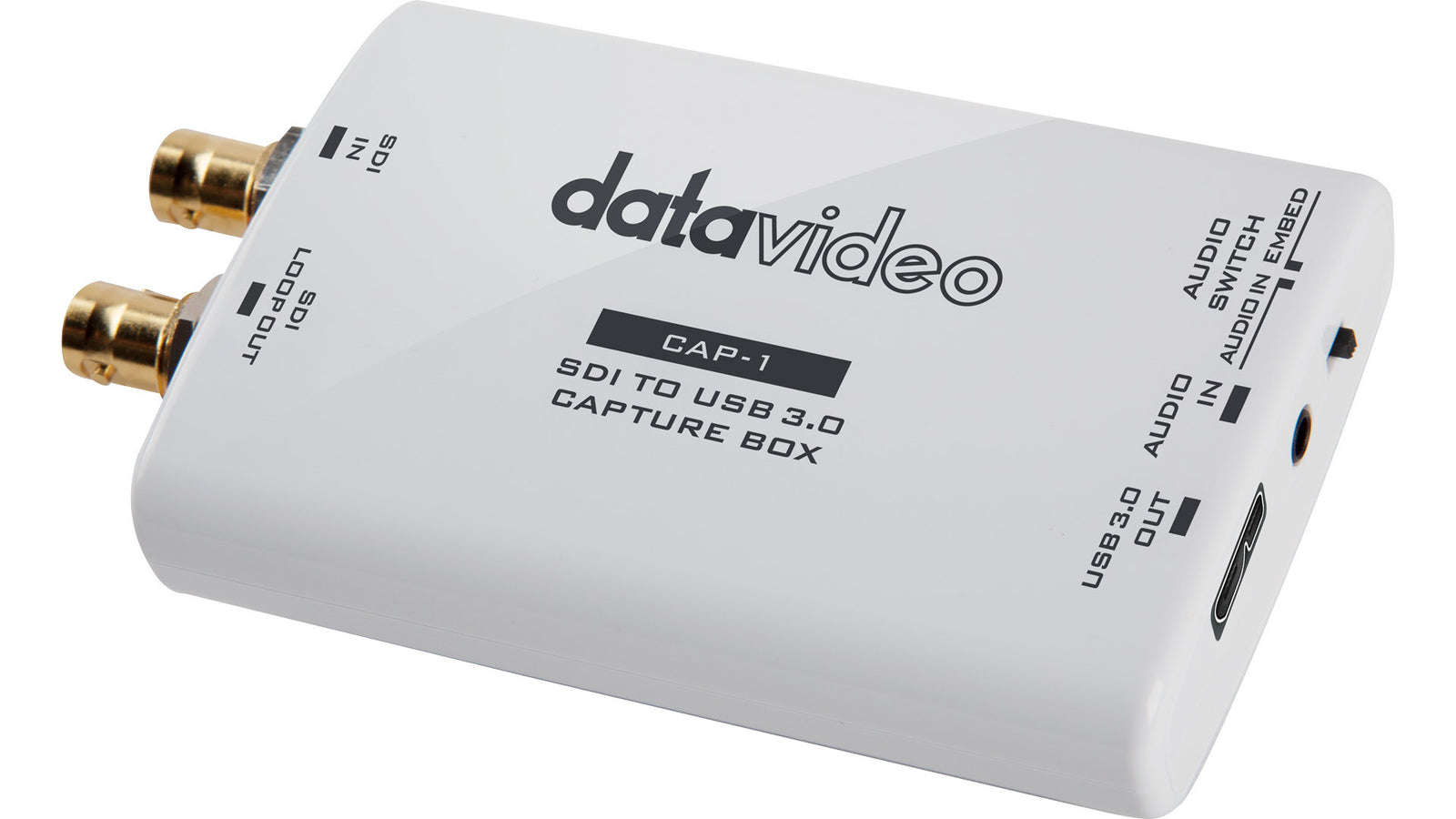

CAP-1 SDI to USB 3.0 Capture Box
CAP-1 SDI to USB 3.0 Capture Box is an SDI-USB Capturing device, which supports up to 1080p50/60. Plug and play in the various operating system. It features stereo line in external audio, which can be switched as SDI embedded audio or external line-in audio. There are more flexible and powerful settings for capturing.
SDI to USB 3.0 Capture Box

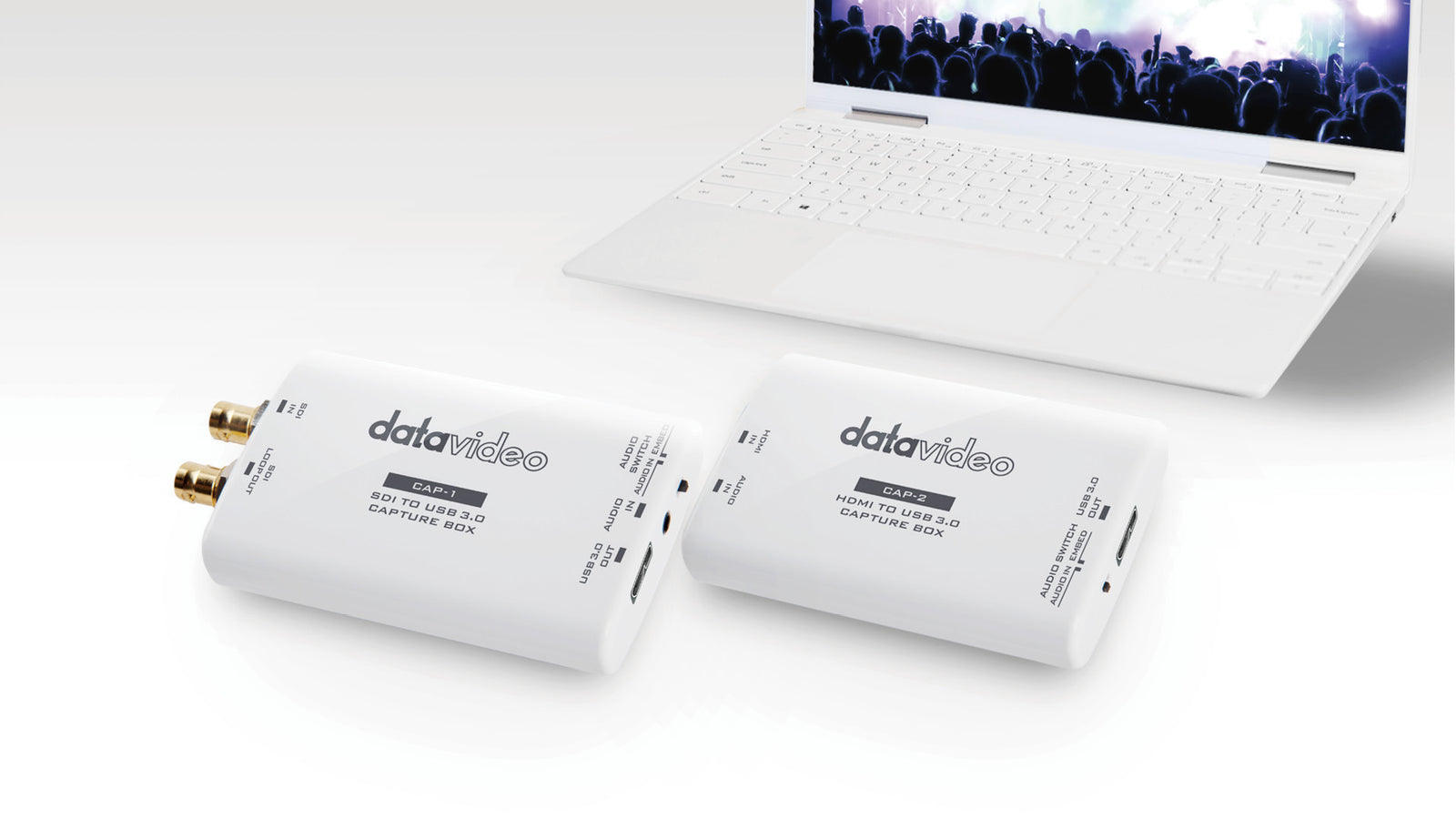

This new capture device takes 3G-SDI in with embedded or external audio and converts to USB 3.0 to connect your AV signal directly to your computer for streaming, recording or video conferencing. The USB compliant CAP-1 is ideal to use with any SDI equipped camera or switcher and it’s plug-n-play design requires no drivers to install. Stream from your SDI source directly to YouTube, Facebook or popular conferencing services such as Zoom, SKYPE, Teams or GotoMeeting.

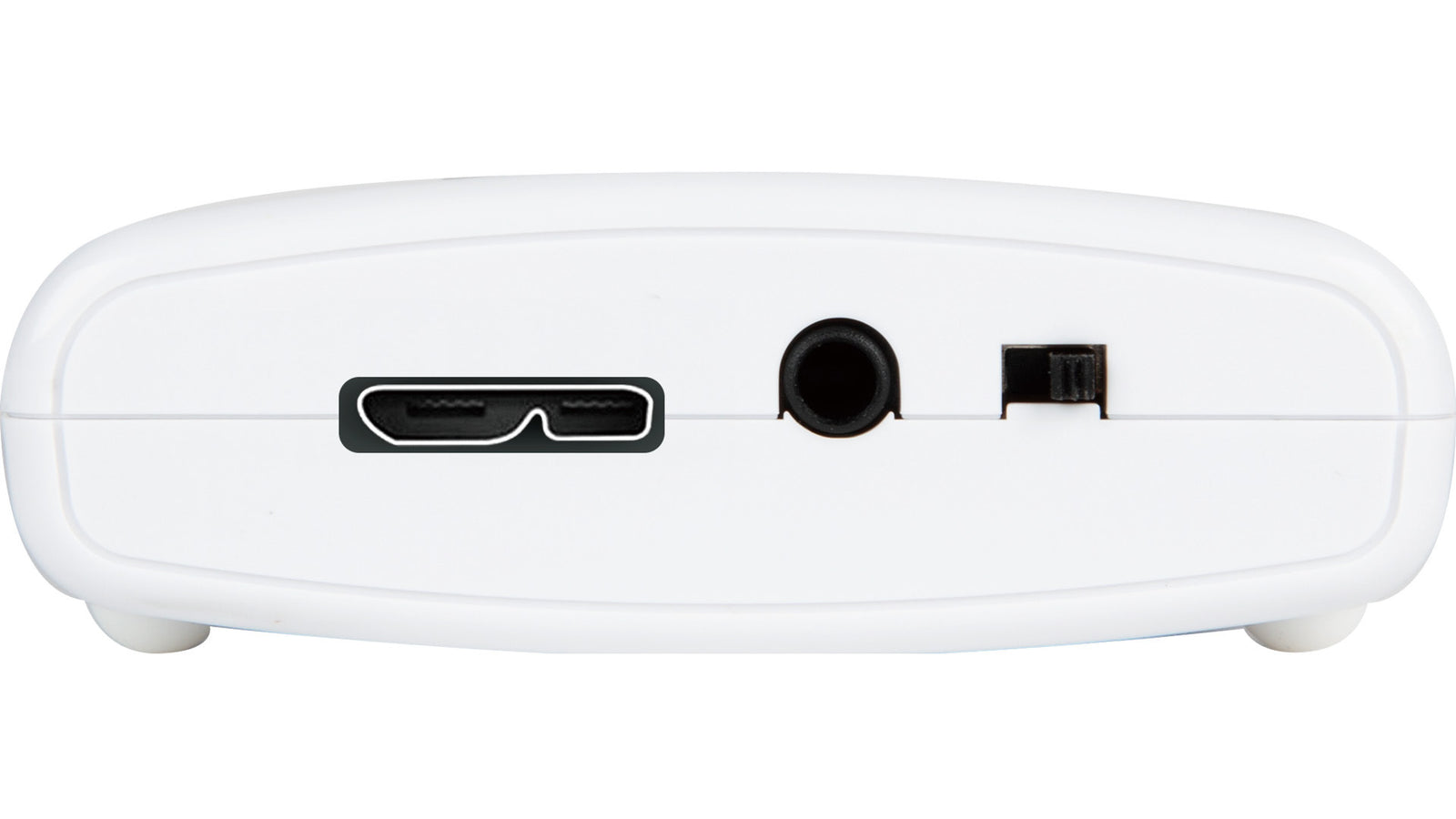

USB 3.0 Interface
No external power is needed. Power source from USB connection.
Plug-and-Play
Support UVC. Operations with video format (resolution and frame rate) auto-detection capability. Scalable video resolution. Connect to video conference platform
Compatible with various operating systems
Support Windows: Amcap, Google Plus Hangouts, OBS (Open Broadcast Software), Skype, VLC, Xsplit Broadcaster, Zoom.us
Linux: VLC, OBS
Mac OS X: OBS, Quicktime player, VLC, Facetime
Stereo line in external audio

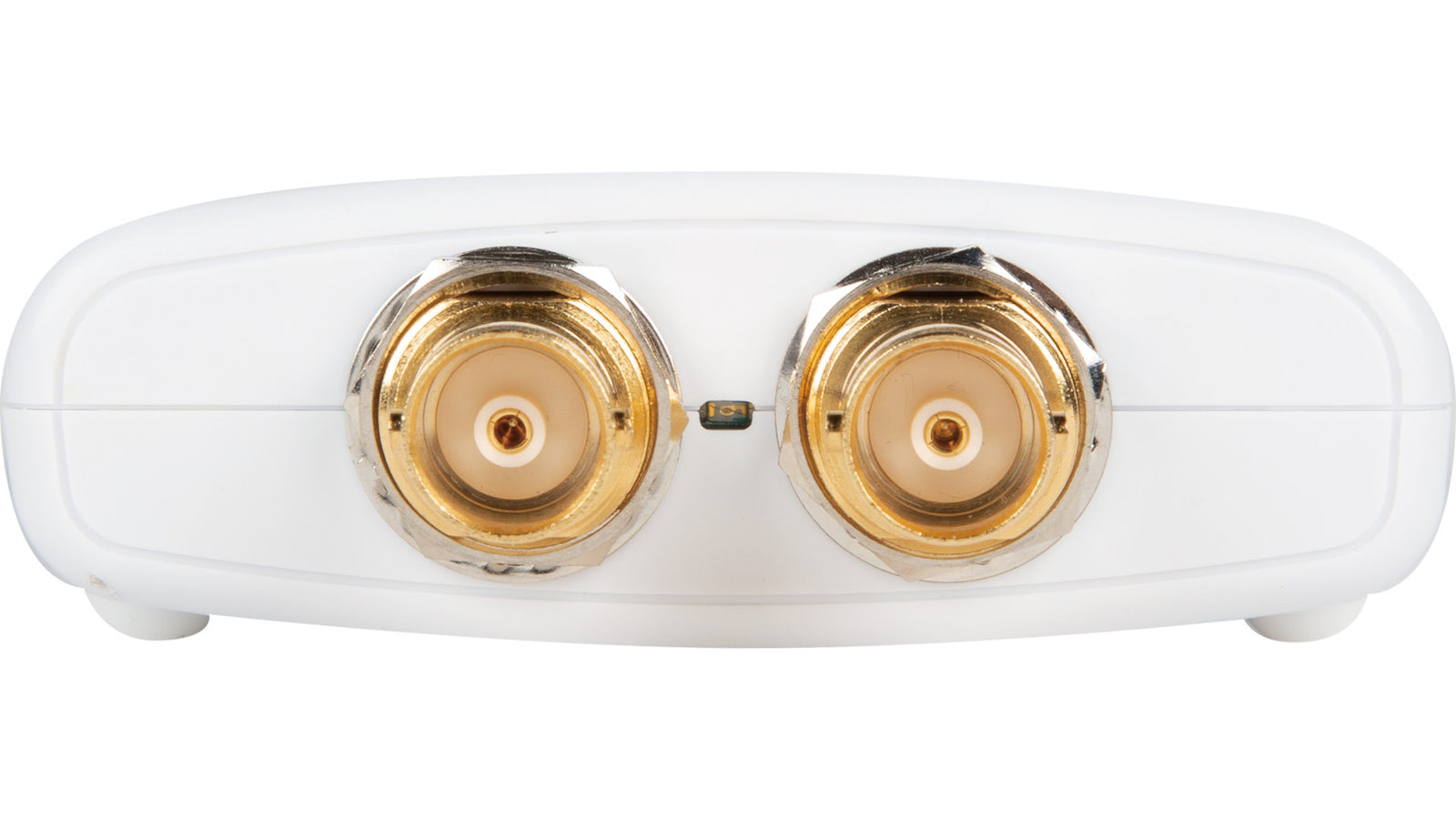

SDI Loop-out for monitoring or recording the video source.
Switched as SDI embedded audio or external Mini-Jack audio.
| Feature | Specification |
|---|---|
| Model Number | CAP-1 |
| Input | 1x HD/3G-SDI |
| Output | 1x USB 3.0 (Micro B), 1x SDI loopthrough |
| Input Video Bandwidth | 150MHz (pixel clock rate) |
| Output Video Bandwidth | Up to 350Mbps (USB) |
| Supported Input Formats | 1920x1080p 60/59.94/50/30/29.97/25/24/23.976, 1920x1080i 60/59.94/50, 1280x720p 60/59.94/50 |
| Supported Output Formats | 1920x1080p 60/59.94/50/30/29.97/25/24/23.976, 1920x1080i 60/59.94/50, 1280x720p 60/59.94/50 |
| Audio Input | SDI Embedded Audio & 3.5 mm stereo in |
| Audio Format | 2-Channel, 16-bit PCM |
| Capture Video Format | YUY2 (USB3.0), MJPG (USB2.0/3.0) |
| Firmware Update | Via USB Port |
| Software Compatibility | Windows: Amcap, Google Plus Hangouts, OBS, Skype, VLC, Xsplit Broadcaster, Zoom.us; Linux: VLC, OBS; Mac OS X: OBS, Quicktime player, VLC, Facetime |
| Supported OS | Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64), OS X (10.10 or above), Linux Ubuntu 14.04 |
| Power Supply | Via USB |
| Power Consumption | 3W |
| Operation Temperature | 0~40°C |
| Storage Temperature | -20~60°C |
| Humidity | 20~90% RH (no condensation) |
| Minimum System Requirement | Windows® 7(SP1) / Windows 10 / Windows 8.1 / Windows 7 (x86, x64); OS X (10.10 or above); Linux Ubuntu 14.04; PC: Intel® Core™ i5-4440 3.10GHz + NVIDIA® GeForce® GTX 660 or higher; Laptop: Intel® Core i7-4810MQ + NVIDIA GeForce GTX 870M or higher; 4GB RAM or higher |
| Dimension (LxDxH) | 121 x 68 x 23 mm |
| Weight | 92g |
| What's in the Box | 1 x CAP-1, 1 x USB 3.0 Cable |
| Description | Downloads |
|---|---|
| DataVideo SDI to USB 3.0 Capture Box | CAP-1 Instruction Manual | Downloads |
