DataVideo SDI to VGA Converter
Wide Range Conversion for Great Compatibility
The DAC-60 supports 3G/HD/SD-SDI to VGA conversion, suits projector and LCD screen display really well.
Independent SDI loop through
SDI loop through is unaffected by the adjustments of resolution setting to the VGA signal, users can connect the original video signal to other terminal device.

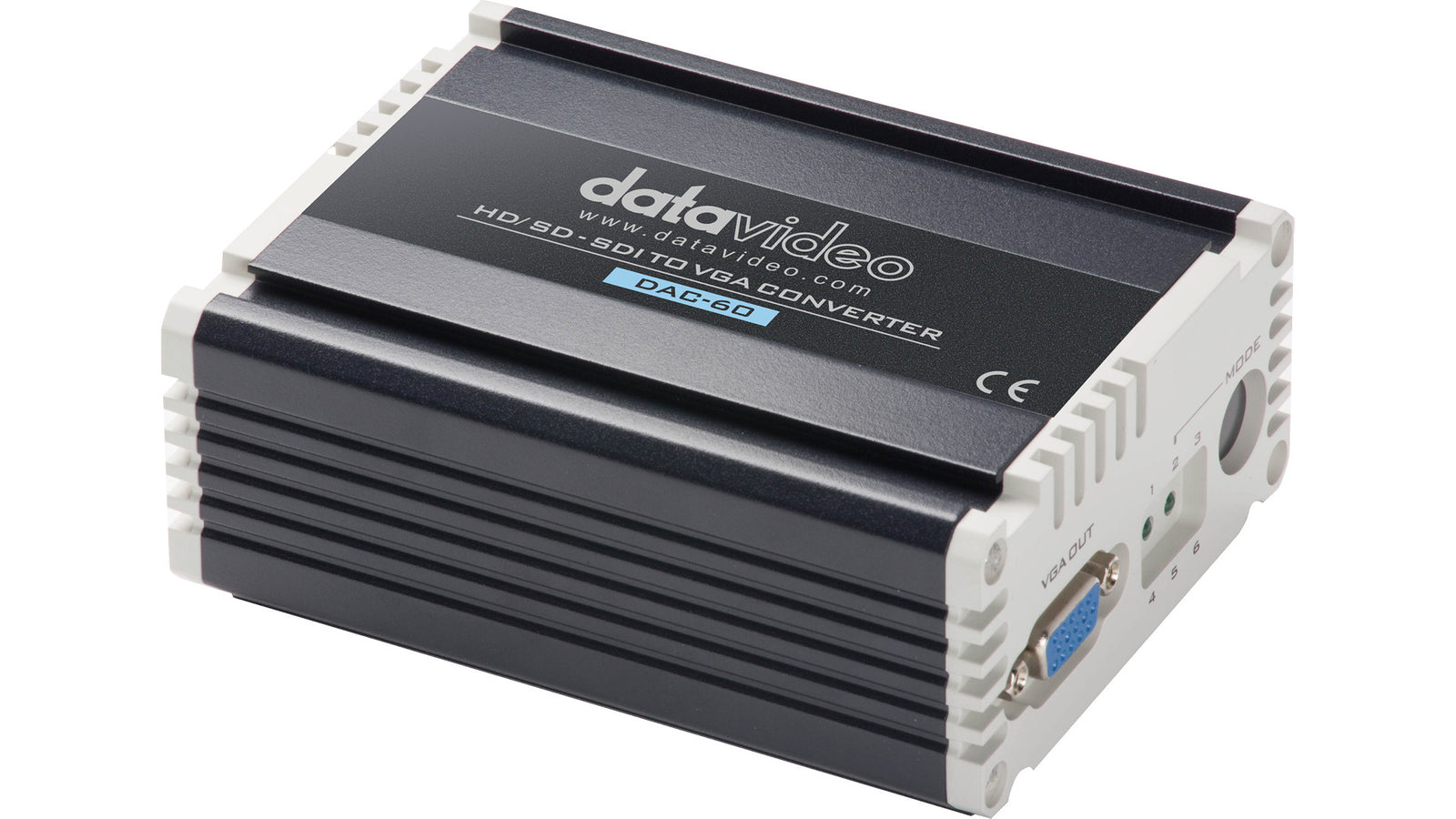

Aluminum Alloy and Heavy Duty Design
Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.
| Feature | Description |
|---|---|
| Model Number | DAC-60 |
| Conversion | 3G/HD/SD-SDI to VGA |

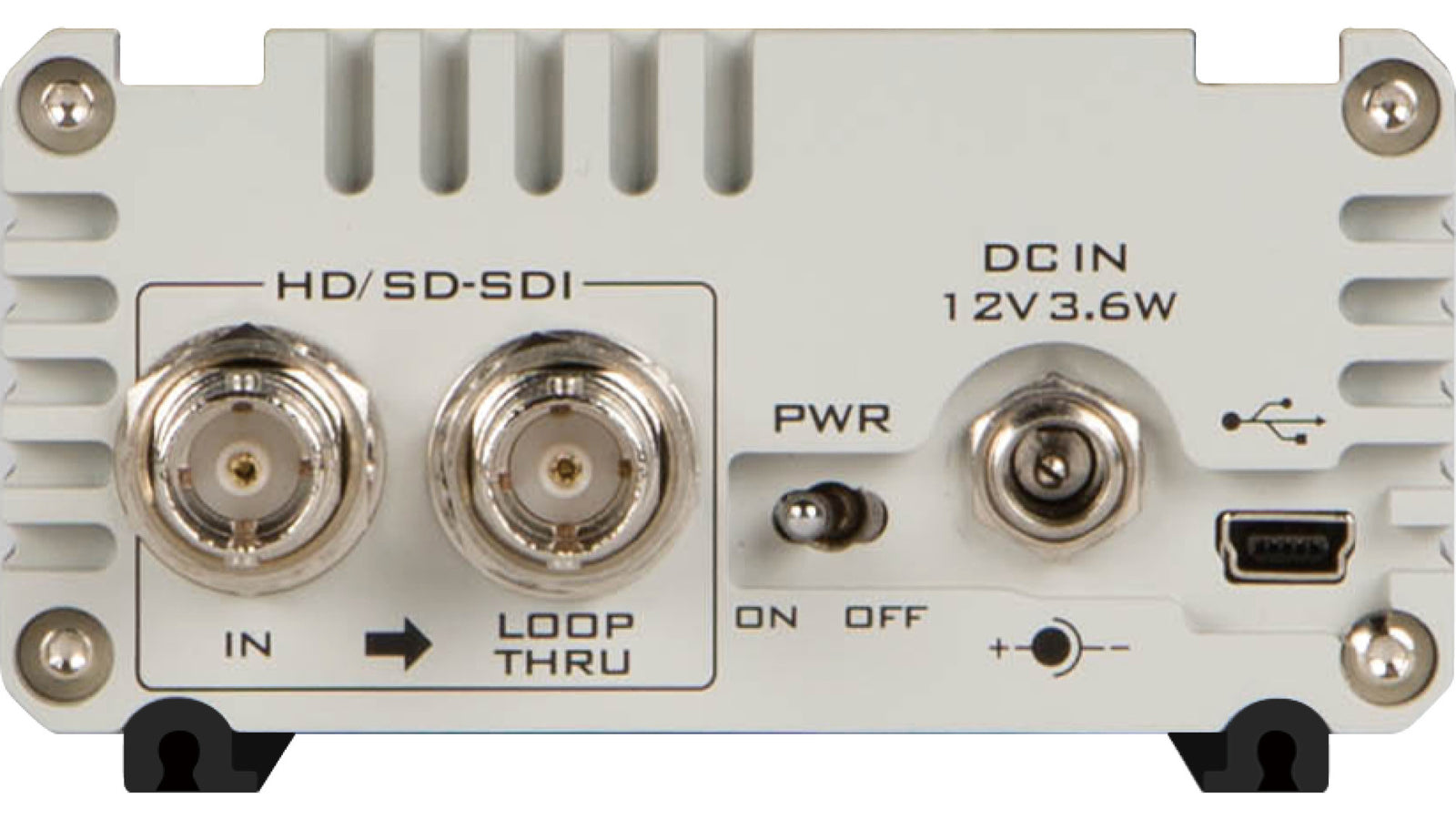

| Video Inputs | 1x 3G/HD/SD-SDI |
| Loop Through | Yes |

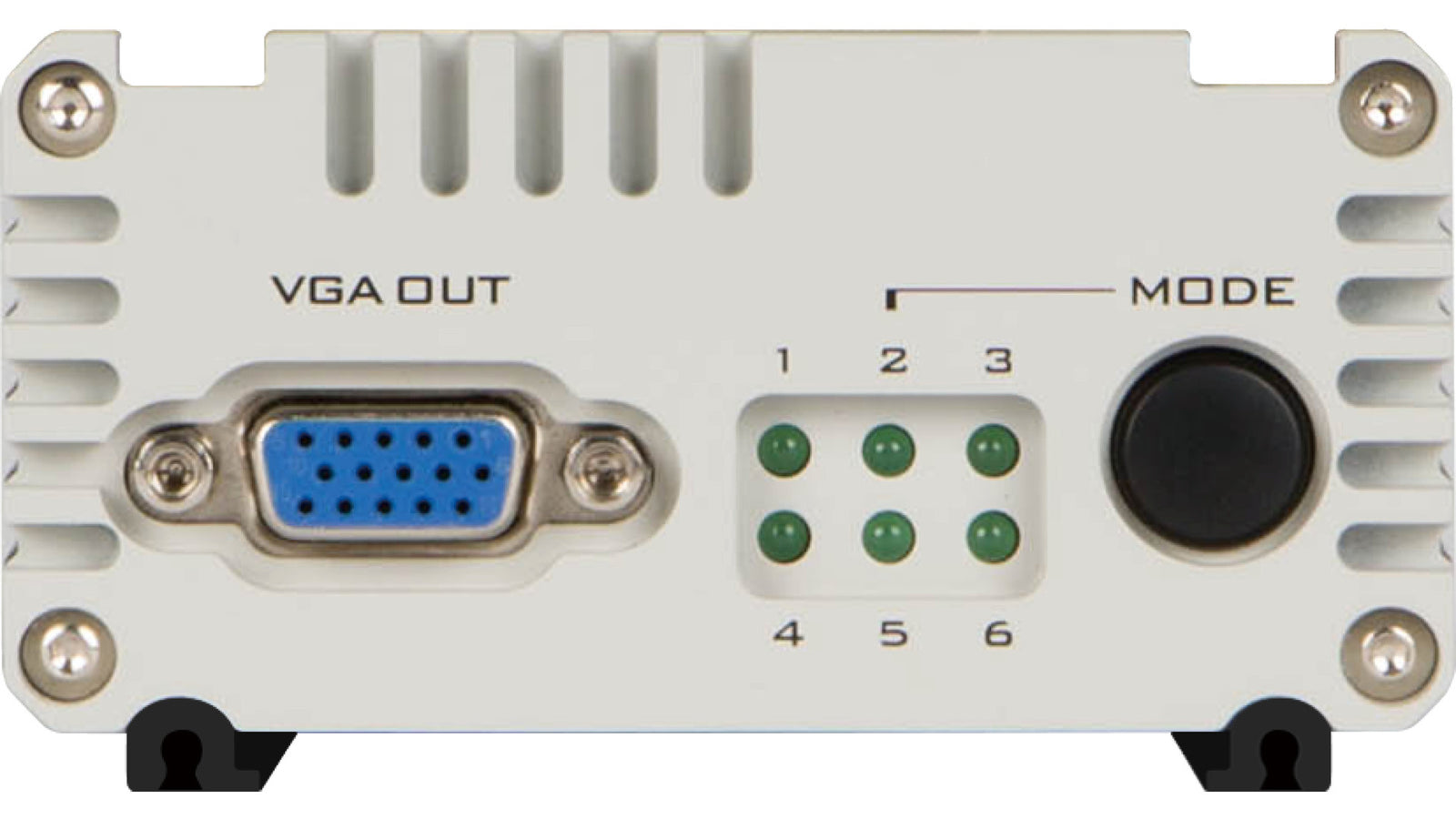

| Video Outputs | 1x VGA |
| Audio Inputs | ---- |
| Audio Outputs | ---- |
| Audio Format Selection | ---- |
| Audio Gain | ---- |
| Supported Video Input Formats | 1080p, 1080i, 720p, 576i, 480i |

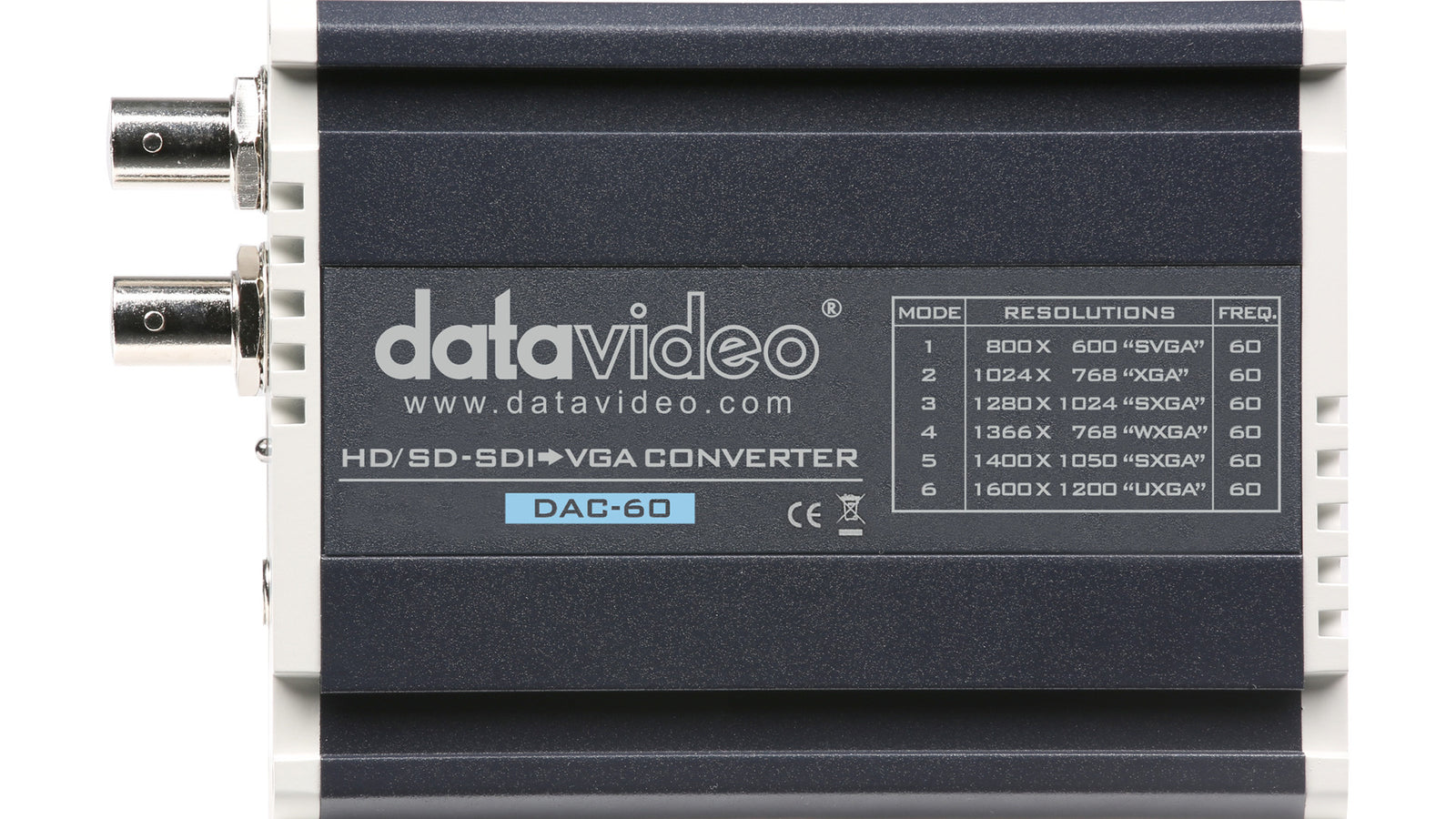

| Output Resolutions | 1920x1200, 1920x1080, 1600x1200, 1400x1050, 1366x768, 1280x1024, 1280x800, 1024x768, 800x600 |
| Equalizer | Yes |
| Reclock | Yes |
| SDI Cable Drive | Yes |
| Updates and Configuration | Mini USB x 1 |
| Dimension (LxWxH) | 112 x 85 x 45 mm |
| Weight | 0.4 kg |
| Operating Temp. Range | 0~40 °C |
| Power | DC 12V, 3.6W |
| What's in the Box | 1 x DAC-60 product, 1 x AD Switch DC 12V |
| Description | Downloads |
|---|---|
| DataVideo SDI to VGA Converter | DAC-60 Instruction Manual | Downloads |
