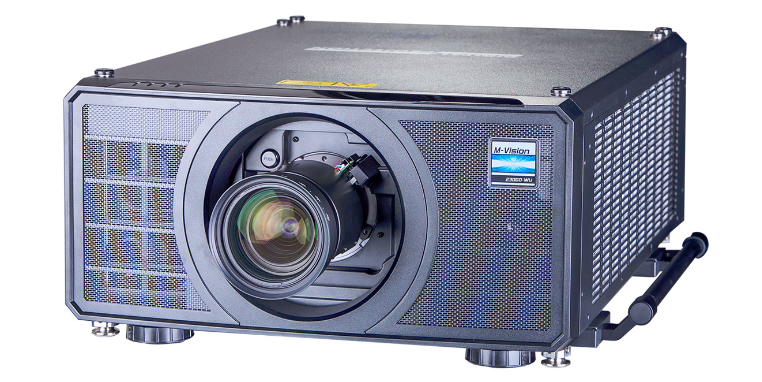

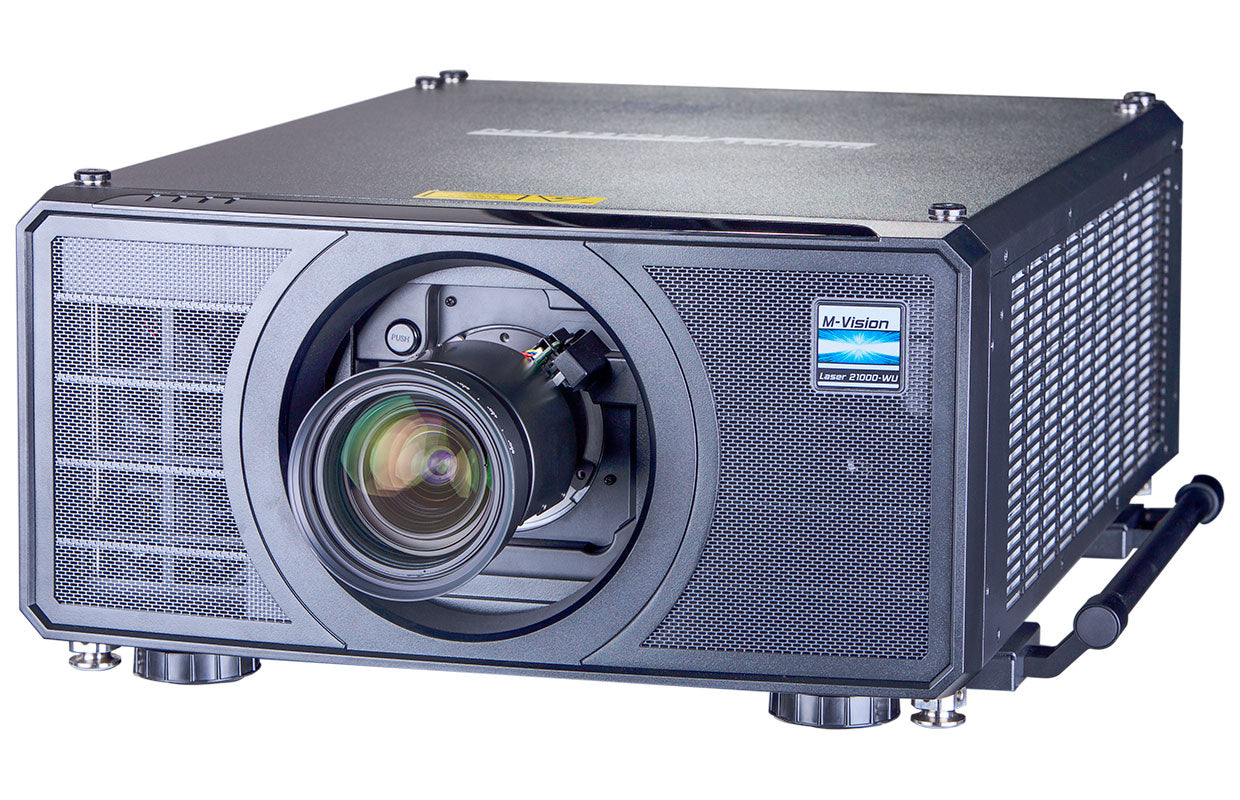

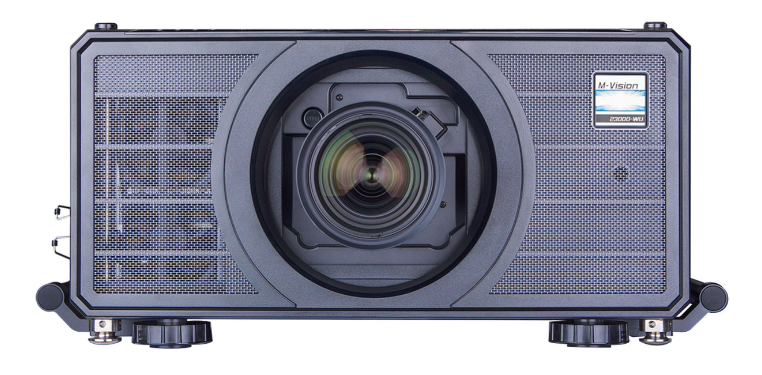

| Colour System: |
Blue Laser Phosphor + 4-segment colour wheel |
| Display Type: |
1 x 0.96" DarkChip™ DMD™ |
| DMD Specification: |
1920 x 1200 pixels native display.
Fast transit pixels for smooth greyscale and improved contrast. |
| Aspect Ratio: |
16x10 |
| Fill Factor |
87% |
| Key Features: |
Video & Graphics Processing
- HDMI 1.4b for Side by Side, Frame Packing, Frame Sequential & TopBottom 3D Formats.
- Dual Flash Processing can be used to multiply the displayed frame rate for 3D sources.
- Dual Pipe Processing: Two sources in parallel for Left and Right eyes.
- Synchronisation of active glasses.
- 3G-SDI with loop-through.
- 24p and 1080p native display.
Geometry Correction
- Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, and Image Rotation.
- Blanking control for custom input window sizing.
- Scaling for fixed aspect ratio screens.
Edge Blending
- Correction for non-active pixels at the edge of the display.
Picture in Picture
- Two sources can be displayed either one within the other (PIP) , or side by side, with the original aspect ratios maintained.
HDBaseT® Interface
- Built in support for transmission of uncompressed High Definition Video over standard CAT5e/6 LAN cable.
- Allows the projector to be placed up to 100m from source with low cost cabling.
Colour Processing
- Powerful seven-point colour correction for accurate colour matching.
Projector Controller Software
- Intuitive user interface for network control.
- Simultaneous control of user-defined groups of projectors.
- At-a-glance monitoring of projector status.
Projector Automation
- Real-time clock provides daily on/off automation.
Installation
- Integrated stacking mount pins.
- Eye bolts included for easy rigging.
|
| Source Compatibility |
3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant.
HDMI including Deep Color™ processing.
Graphics standards up to 1920 x 1200 resolution at 60Hz via HDMI or DisplayPort. |
| Inputs/Outputs |
| Video & Computer |
Communication & Control |
| Type |
Connector |
Qty |
Type |
Connector |
Qty |
DisplayPort 1.1a
HDMI 1.4a
3G-SDI in
3G-SDI out
HDBaseT (see LAN) |
DisplayPort
HDMI
BNC
BNC
LAN RJ45 |
2
2
1
1
1 |
3D Sync Out
3D Sync In
LAN
RS232
Wired Remote
12V Trigger
NOTE: The HDBaseT and LAN ports are not shared.
|
BNC
BNC
RJ45
9-pin D-Sub
3.5mm Stereo Jack
3.5mm Stereo Jack |
1
1
1
1
1
2 |
|
| 3D Formats Supported |
Frame Packing
Dual Pipe
Frame Sequential
Side By Side (half)
Top and Bottom |
| HDTV Formats Supported |
1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz), 1080i (50Hz, 60Hz), 720p (50Hz, 60Hz) |
| Computer Compatibility |
Up to 1920 x 1200 |
| Bandwidth |
165 MHz on analog RGB
165 Megapixels per second on HDMI |
| Remote Control |
Addressable IR Remote Control, wireless and wired
On-Board keypad |
| Automation Control |
Crestron RoomView® Connected
PJLink Class 1
LAN
RS232
AMX (Device Discovery)
Served web page |
| Colour Temperature |
3200K to 9300K |
| Operation |
 |
| illumination Type |
Laser Light Source |
| Typical illumination Life |
20,000 hours |
| Lenses |
| Lens |
Part No. |
Optimised Focus Range* |
Lens Shift (Frame) |
| 0.9 - 1.2 : 1 zoom |
120-624 |
0.92m - 13.46m |
Vert: 0.45 (U) 0.45 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 1.20 - 1.56 : 1 zoom |
120-625 |
1m - 17.5m |
Vert: 0.5 (U) 0.5 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 1.50 - 2.00 : 1 zoom |
120-626 |
2m - 21.8m |
Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 2.00 - 4.00 : 1 zoom |
120-627 |
2.5m - 41.8m |
Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
| 4.00 - 7.00 : 1 zoom |
120-628 |
4m - 42m |
Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.15 (L) 0.15 (R) frame |
* Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
|
| Lens Mount |
Motorised shift, zoom and focus, with programmable shift |
| Mechanical Mounting |
Front/Rear Table
Front/Rear Ceiling
Adjustable Front/Rear Feet |

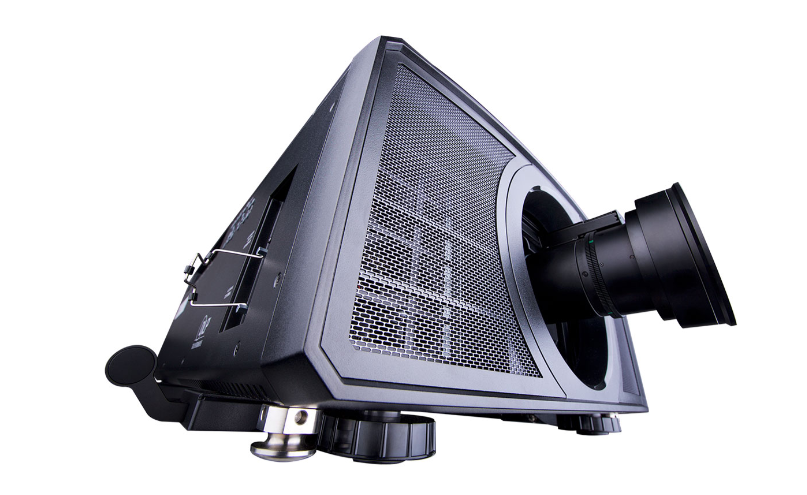

| Orientation |
Table Top or Inverted: Yes
Pointing Up: Yes
Pointing Down: Yes
Roll (Portrait): Yes |
| Power Requirements |
100 - 240VAC 50/60Hz single phase * Note that in 120V operation, the projector will be at 65% brightness |
| Power Consumption |
Typical 2000W @ 240VAC in Normal mode
Typical 1200W @ 240VAC in ECO mode
Typical 1200W @ 110VAC in Normal mode
Typical 1000W @ 110VAC in ECO mode |
| Thermal Dissipation |
Typical 6482 BTU/Hour @ 220VAC in Normal mode
Typical 3753 BTU/Hour @ 110VAC in Normal mode |
| Fan Noise |
Normal mode: 45 dBA max, 42 dBA typical
Eco mode: 42 dBA max, 39dBA typical |
| Operating/Storage Temperature Operating: |
Operating: 0 to 40C (32 to 104F)
Storage: -20 to 60C (-4 to 140F) |
| Operating Humidity |
10% to 90% relative, non-condensing |
| Weight |
49 kg / 108 lbs |
| Dimensions |
H: 24.8 cm W: 53.0 cm L: 69.5 cm
H: 9.8 in W: 20.9 in L: 27.4 in |
| Safety & EMC Regulations |
UL/cUL, CB, CCC, FCC Class A , CE, RoHS 2
IEC EN 60825-1:2014 Class 1 Laser Product
IEC 60825-1:2007 Class 3R Laser Product
IEC EN 62471-5:2015 Risk Group 3 |
