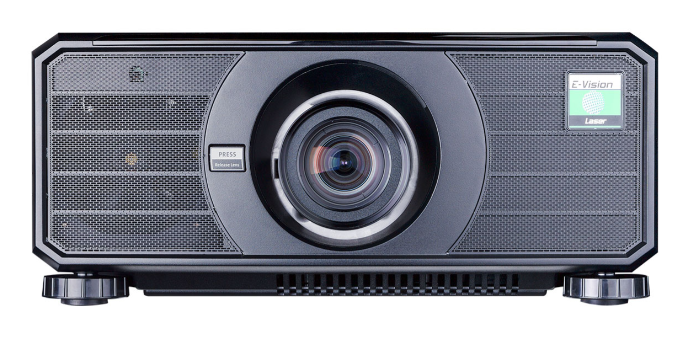

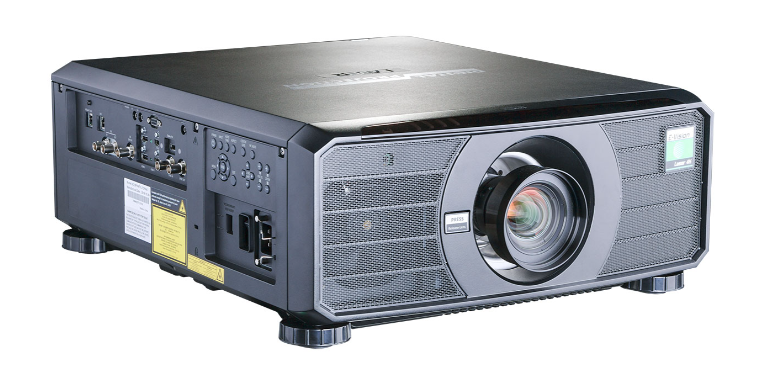

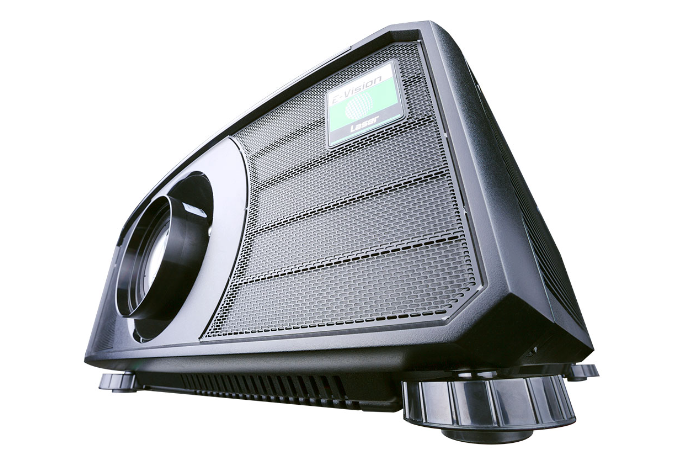

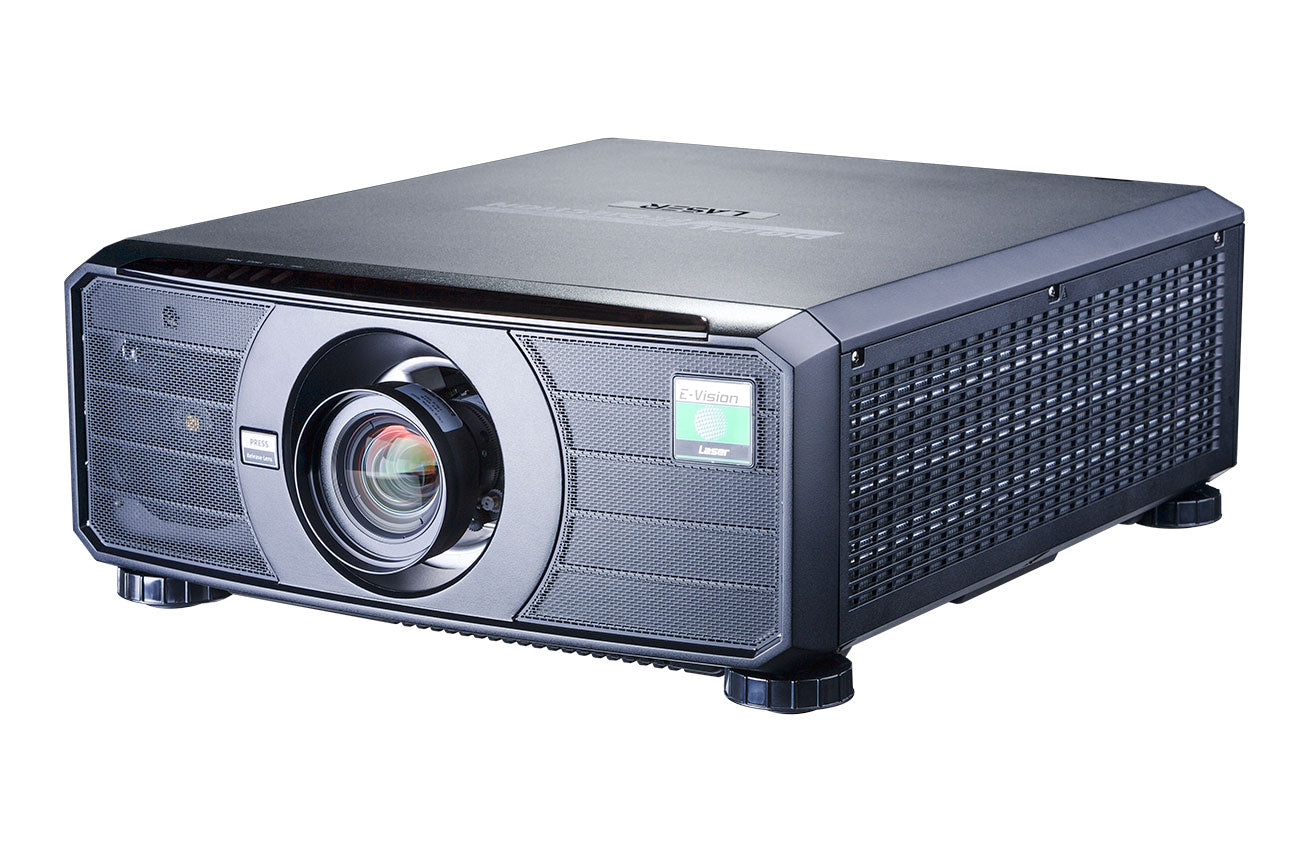

Digital Projection 118-150

E-Vision Laser 4K-UHD Projector

• Description
• Specifications
• Downloads

• 7,500 lumens of solid-state illumination at a resolution of 3840 × 2160
  The E-Vision Laser 4K-UHD delivers a stunning 7,500 lumens from a stable solid-state light source, capable of producing over 20,000 hours of illumination. The 4K UHD resolution delivers stunning detail and image subtlety that only 4K-UHD powered by Texas Instruments DLP chip can. This single chip projector was developed with Fit and Forget’ directive, ensuring it needs only minimal maintenance throughout the lifetime of the display.

  Equally compelling is the lack of lamp replacements due to the solid state illumination system. By bypassing regular lamp replacement cycles, almost all costs related to the E-Vision Laser are incurred at time of purchase. This key characteristic allows the E-Vision Laser 4K-UHD to have a much lower cost of ownership over the lifespan of the display.

  Combine the exceptional bright, long-life illumination source with a host of other precision features, and you have a projector solution that’s perfectly suited to a diverse range of professional venues. HDMI 2.0 comes as standard as well as HDMI 1.4b for when you need Frame Sequential and Dual Pipe 3D.



• Colour System:	Laser Phosphor with colourwheel
  Display Type:	1 x 0.66" WQXGA+ TRP UHD DMD™
  DMD Specification:	Display resolutions 4K-UHD (3840 x 2160) or WQXGA+ (2716 x 1528) 8.3 megapixels on screen at 4K-UHD Fast transit pixels for smooth greyscale and improved contrast.
  Aspect Ratio:	16:9
  Fill Factor	Not applicable: Smooth Picture DMD™
  Key Features:	Video & Graphics Processing HDR processing Two projectors in one - 4K-UHD and WQXGA+. DisplayPort 1.2. 2 x HDMI 2.0. 2 x HDMI 1.4b for Dual Pipe processing and Frame Sequential 3D format. Sequential Processing: 3D via single HDMI 1.4b input. Dual Pipe Processing: 3D Left and Right Eyes via two HDMI 1.4b inputs. Synchronisation of active glasses. 3G-SDI with loop-through. DICOM simulation mode. Geometry Correction Cornerstone, Vertical & Horizontal Keystone, Pincushion & Barrel, Arc and Image Rotation. Non-linear warp. Digital zoom, pan and scan. Blanking control for custom input window sizing. Scaling available for fixed aspect ratio screens. Unscaled processing for pixel mapped display. Edge Blending Blending control available for all sides with width control. Correction for non-active pixels at the edge of the display. Picture in Picture Two sources can be displayed simultaneously using 2D inputs: either picture in picture (PIP), or side by side (PBP), with original aspect ratios maintained. HDBaseT® Interface Built in support for reception of uncompressed High Definition Video over standard CAT5e/6 LAN cable. Allows projector to be placed up to 100m from source with low cost cabling. Supports up to 4K UHD 3840 x 2160@60Hz 4:2:0 or 4K UHD 3840 x 2160@30Hz 4:4:4 Colour Processing Four colour modes available. Powerful seven point colour correction for accurate colour matching with presets. Easy colour temperature selection. Manual seven point colour adjustment. Traditional lifts and gains. Projector Controller Software Intuitive user interface for network control. Simultaneous control of user-defined groups of projectors. At-a-glance monitoring of projector status. Projector Automation Real-time clock provides daily on/off automation. E-mail alerts for system status.
  Source Compatibility	2D graphics standards up to 4K-UHD 3840 x 2160 resolution at 60Hz via HDMI 2.0, HDBaseT (4:2:0) and DisplayPort inputs. 3D graphics standards up to WQXGA at 120Hz DualPipe via HDMI 1.4b inputs. 3GSDI is SMPTE 292M, SMPTE 259M-C and SMPTE 424M compliant. WQXGA+ mode 2D sources up to WQXGA+ at 120Hz can be displayed scaled to fit WQXGA+. 3D sources up to WQXGA at 120Hz can be displayed scaled to fit WQXGA+. 4K-UHD mode 2D sources up to 4K-UHD will be displayed scaled to fit 4K-UHD. Auto mode Sources greater than WQXGA+ will be displayed scaled to fit 4K-UHD. Sources up to WQXGA+ will be displayed scaled to fit WQXGA+.
  Inputs/Outputs	Video & Computer Communication & Control Type Connector Qty Type Connector Qty DisplayPort 1.2 (2D) HDMI 1.4b (3D) HDMI 2.0 (2D) 3G-SDI in (2D) 3G-SDI out HDBaseT (see LAN) (2D) DisplayPort HDMI HDMI BNC BNC RJ45 1 2 2 1 1 1 3D Sync Out 3D Sync In LAN RS232 Wired Remote 12V Trigger 3D Sync IR Out NOTE: One of the LAN ports is shared with HDBase-T. BNC BNC RJ45 9-pin D Sub 3.5mm Stereo Jack 3.5mm Stereo Jack BNC 1 1 2 1 1 2 1
  3D Formats Supported	Frame Sequential Dual-Pipe
  HDTV Formats Supported	1080p (24Hz, 25Hz, 30Hz, 50Hz, 60Hz, 100Hz, 120Hz) 1080i (50Hz, 60Hz) 720p (50, 60Hz) 2K (24Hz, 25Hz, 30Hz, 50Hz, 60Hz) 4K-UHD (24Hz, 25Hz, 30Hz, 50Hz, 60Hz)
  Computer Compatibility	2D 4K-UHD up to 60Hz. WQXGA+ up to 120Hz. 3D Supported formats will be displayed within WQXGA+.
  Bandwidth	498 megapixels per second via DisplayPort and HDMI 2.0.
  Remote Control	Addressable IR remote control, wireless and wired. On-Board keypad
  Automation Control	Crestron RoomView® Connected PJLink Class 1 LAN RS232 AMX (Device Discovery) Served web pages (projector status, projector control, Crestron RoomView®, network settings, alert mail setup, time setup, error log, On Screen Display)
  Colour Temperature	3200K to 9300K
  Operation
  illumination Type	Laser Light Source
  Typical illumination Life	20,000 hours
  Lenses	Lens Part No. Optimised Focus Range* Lens Shift (Frame) 0.38 :1 fixed 117-341 0.68m - 2.44m Depends on image size, see Installation Guide. 0.74 - 0.93 :1 zoom 115-339 1.02m - 12.7m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 0.76 :1 fixed 112-499 0.81m - 5.08m none 1.24 - 1.78 :1 zoom 112-500 1.33m - 11.73m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 1.71 - 2.25 :1 zoom 112-501 1.83m - 14.9m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 2.2 - 3.67 :1 zoom 112-502 2.36m - 24.2m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 3.54 - 5.36 :1 zoom 112-503 3.8m - 35.35m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame 5.24 - 8.27 :1 zoom 112-504 5.59m - 54.8m Vert: 0.5 (U) 0.3 (D) frame, Hor: 0.1(L) 0.2 (R) frame * Lens focal ranges above are the optimised distances but are likely to focus further, please contact your RSM for more details. Lens ratio tolerances: E-Vision Series: +/-3%. HighLite Series: +/- 5%. M-Vision Series: +/- 2%. Titan Series: +/-2%, INSIGHT Series: +/-2%,
  Lens Mount	Motorised and programmable shift, zoom and focus. Intelligent Lens Memory with 10 user-definable preset positions (except UST lens).
  Mechanical Mounting	Front/Rear Table Front/Rear Ceiling Adjustable Front/Rear Feet
  Orientation	Table Top or Inverted: Yes Pointing Up:        Yes Pointing Down:   Yes Roll (Portrait):      Yes
  Power Requirements	100-130VAC and 200-240VAC selectable, 50/60Hz single phase
  Power Consumption	950 W @220 Vac (1000 W @110 Vac)
  Thermal Dissipation	Max 3139 BTU/hour @100 VAC Max 3002 BTU/hour @240 VAC
  Fan Noise	Smooth Picture On: Normal mode: typical 40 (max 42) dBA Eco2 mode: typical 37 (max 39) dBA Smooth Picture Off: Normal mode: typical 38 (max 40) dBA Eco2 mode: typical 34 (max 36) dBA
  Operating/Storage Temperature Operating:	Operating: 5 to 40C (41 to 104F) Storage: -10 to 60C (14 to 140F)
  Operating Humidity	10 to 85% non-condensing
  Weight	28.15 kg / 62 lbs
  Dimensions	L: 59.83 cm x W: 50 cm x H: 21.85 cm L: 23.55 in x W: 19.68 in x H: 8.60 in
  Safety & EMC Regulations	CE, FCC Class A, CCC, UL/cUL, FDA CB, KC, CEL, CECP
