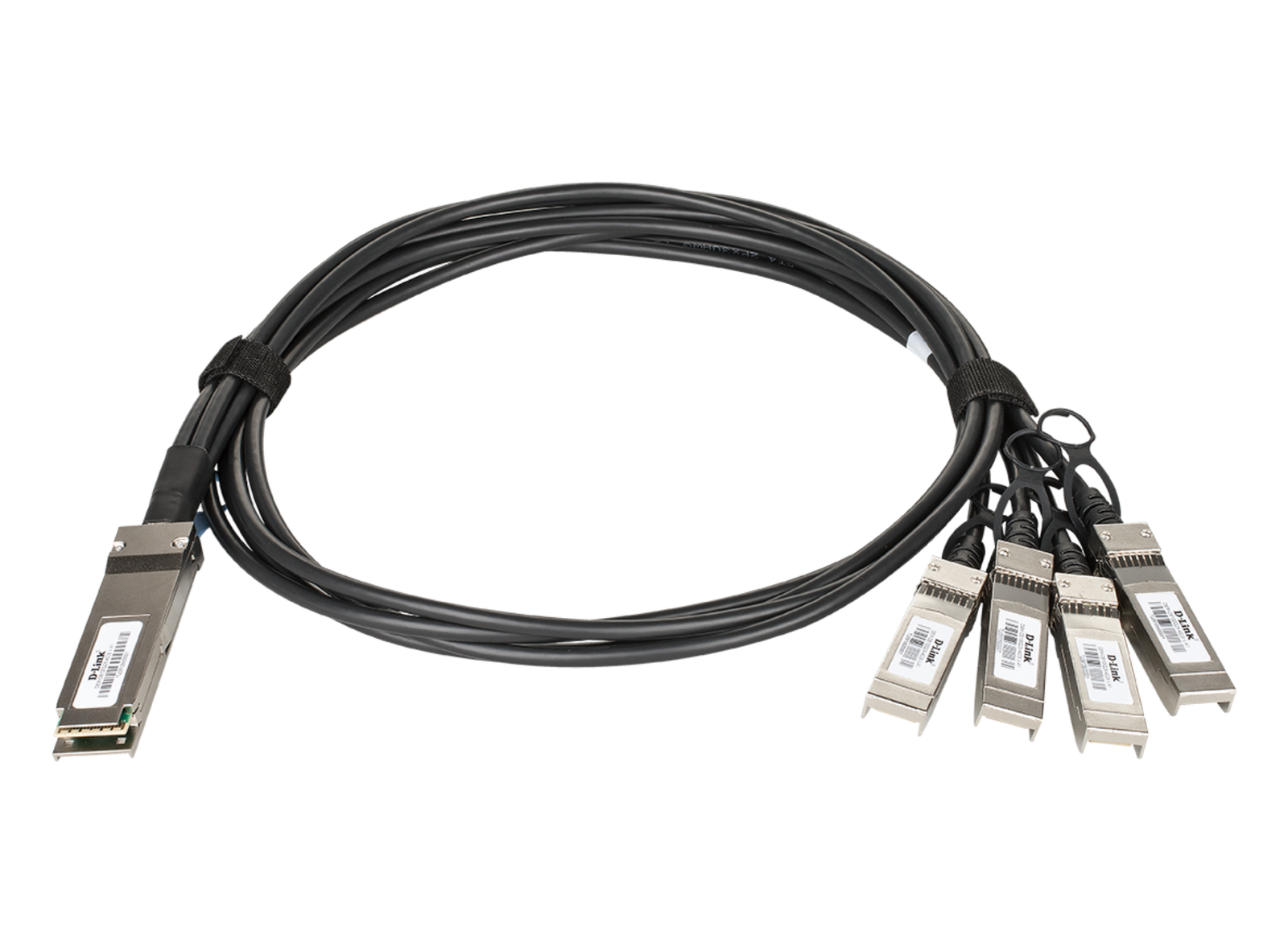

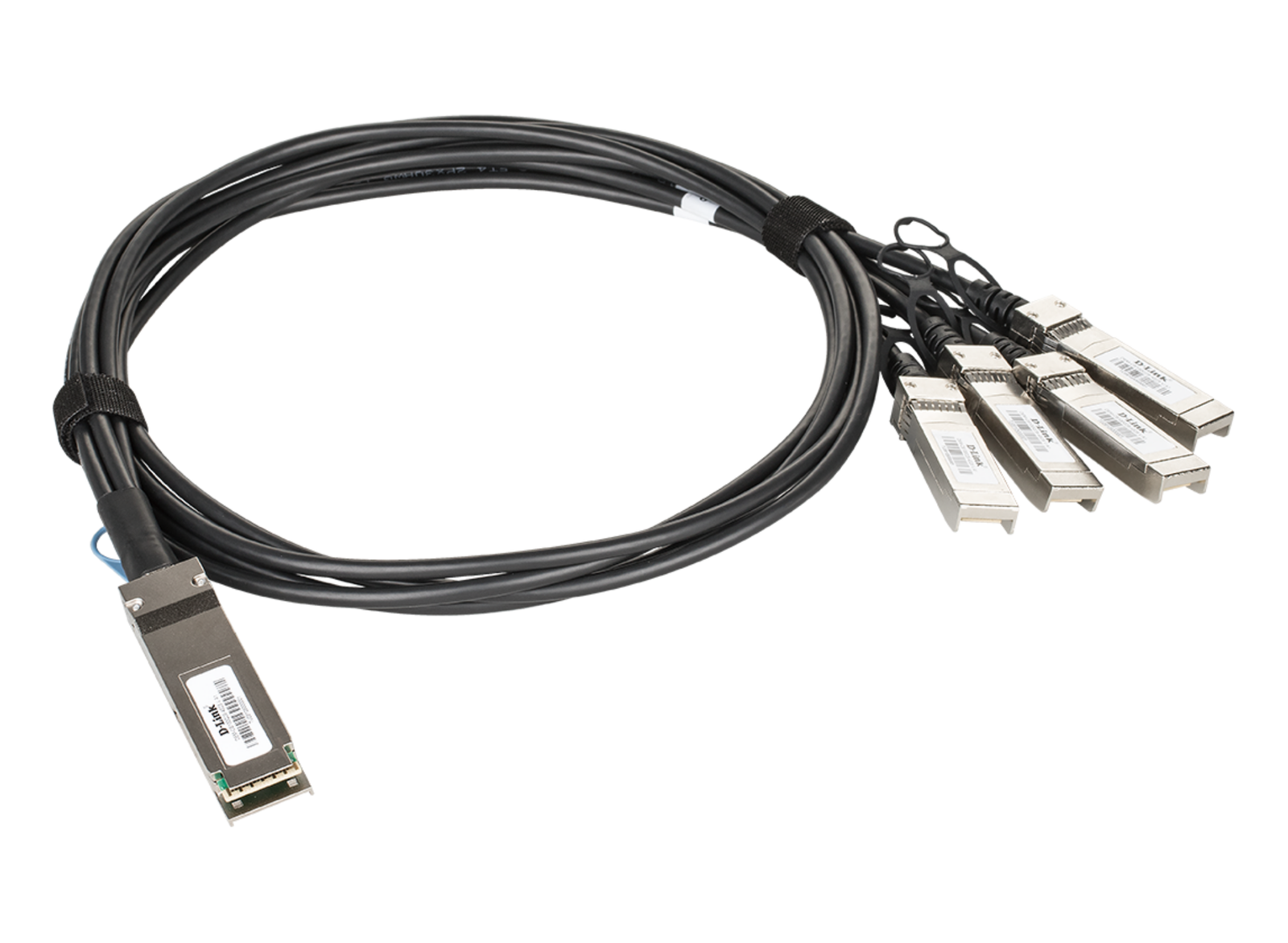

High-quality 100G QSFP28 connection cables with 4 x 25G SFP28 breakout (fanout) interface for fibre aggregation applications.
Quad Small Form-factor Pluggable 28 (QSFP28)
100 Gbps data rate
Compliant with the following standards:
SFF-8436
SFF-8636
SFF-8665
EIA-364
EIA-364-1000.01
| Model | DEM-CB100Q28-4S28 | Device Rate | 100 Gbps |
| Connector Type | QSFP28 Cable Assembly | Wire AWG | 30 AWG |
| SFP MSA Standard | SFF-8436, SFF-8636, SFF-8665 | Electrical Connector Performance | EIA-364, EIA-364-1000.01 |
| Flammability Standard | UL 94 | Minimum Cable Bend Radius | 23 mm (0.91 in) |
| Cable Impedance | 100 Ohms | Voltage | 30 V AC |
| Current | 0.5 A | Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
| Description | Downloads |
|---|---|
| Datasheet | Download |
