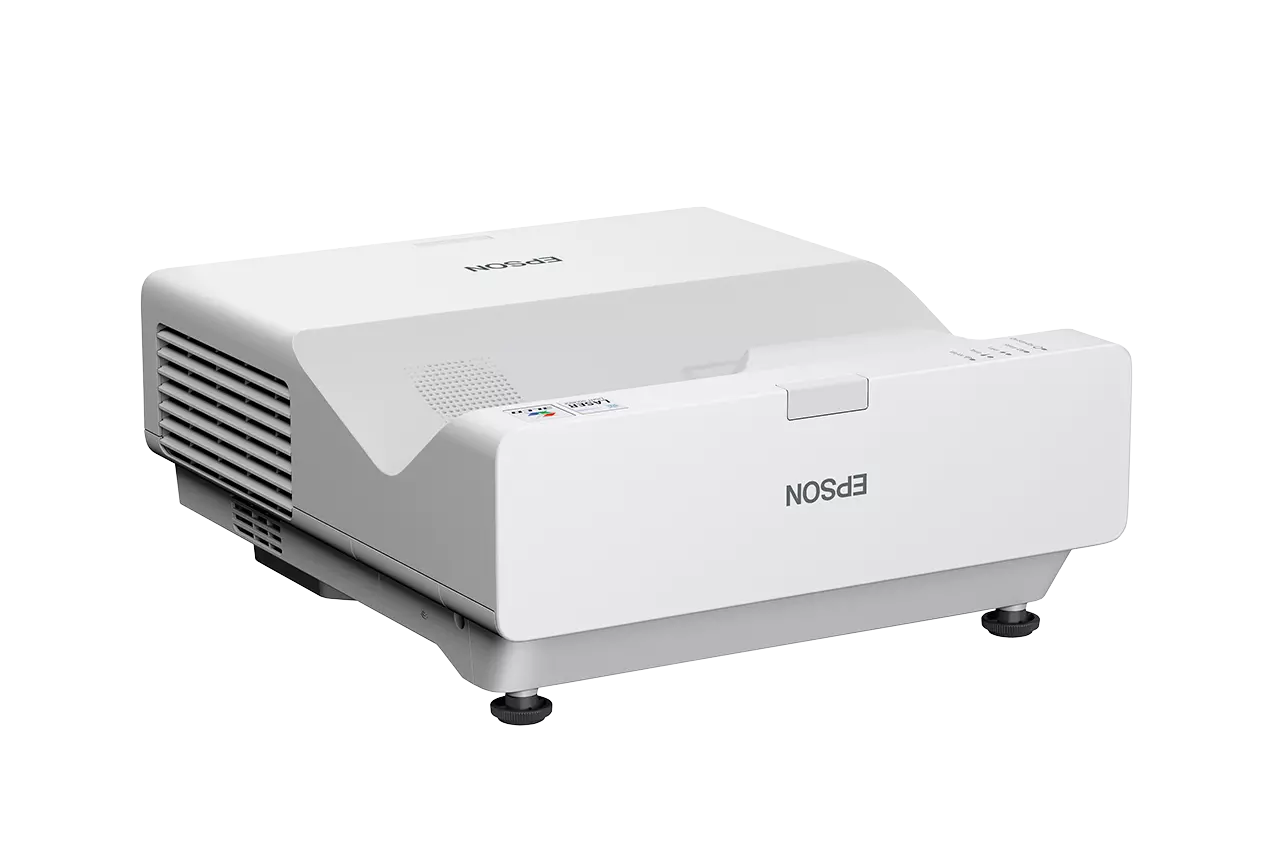

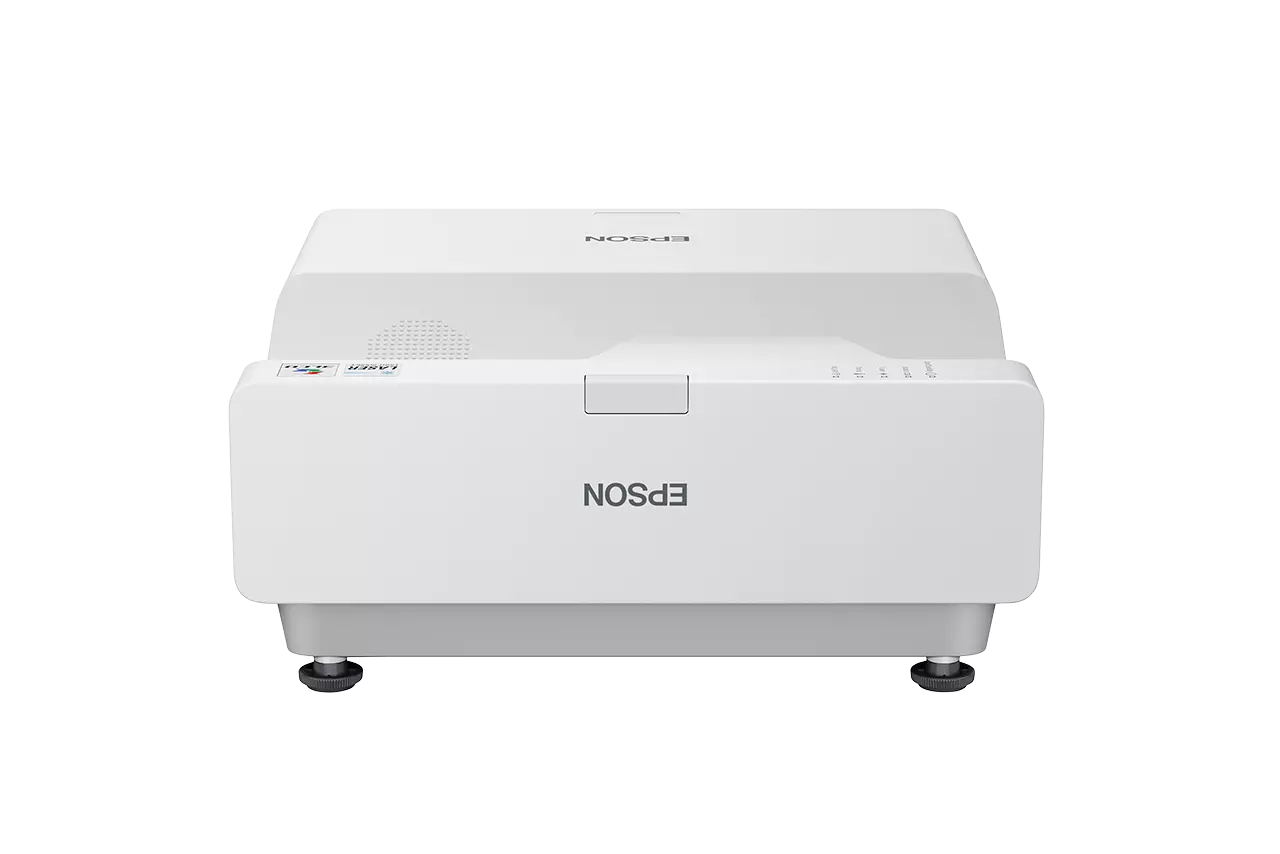

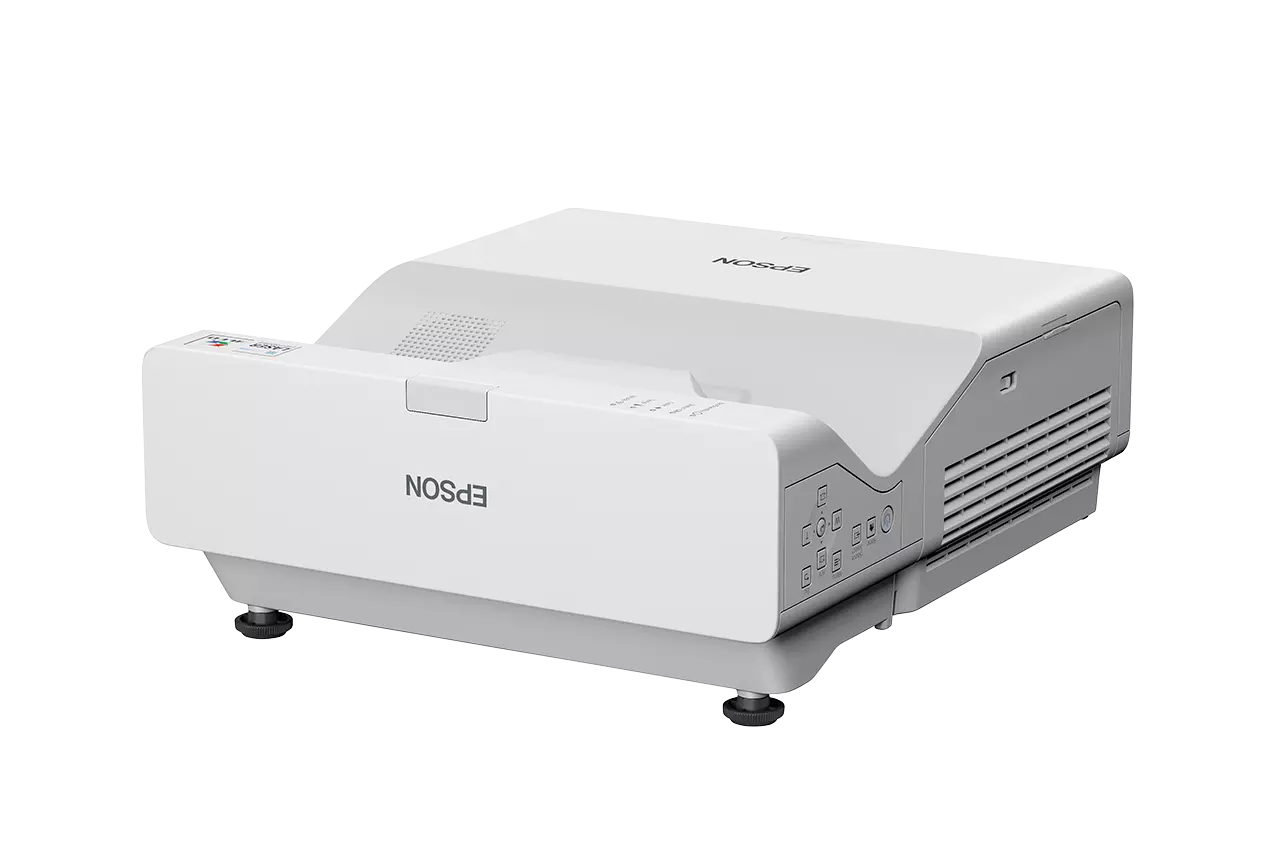

Epson EB-770Fi Laser Display Projector - 4100 Lumens
The EB-770Fi is a step up from the EB-770F, with added interactive features.

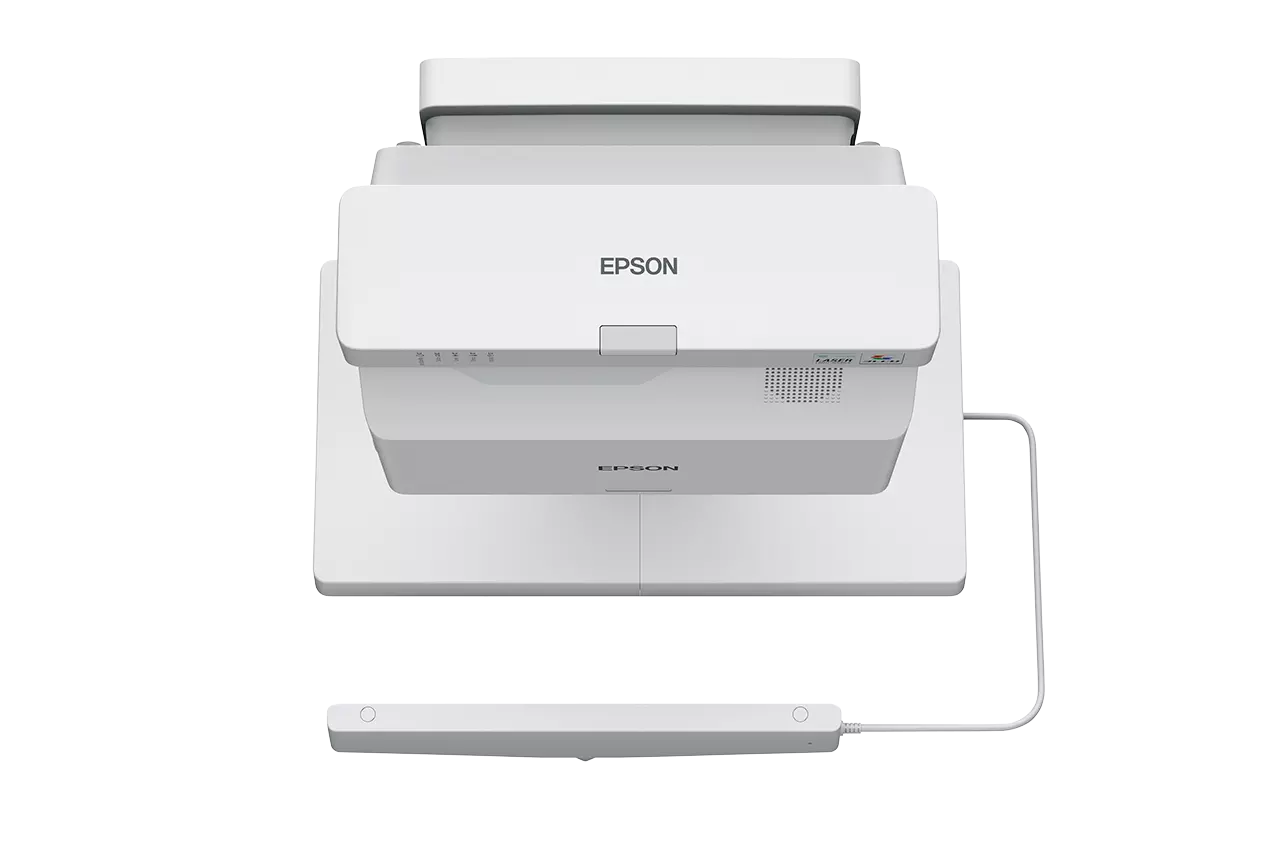

Interactive technology enables two digital pens to be used on the display simultaeously (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be contolled via the display, projecting documents or objects from a desk for the whole room to see in incredible detail.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", clearly visible from all angles and at a distance.

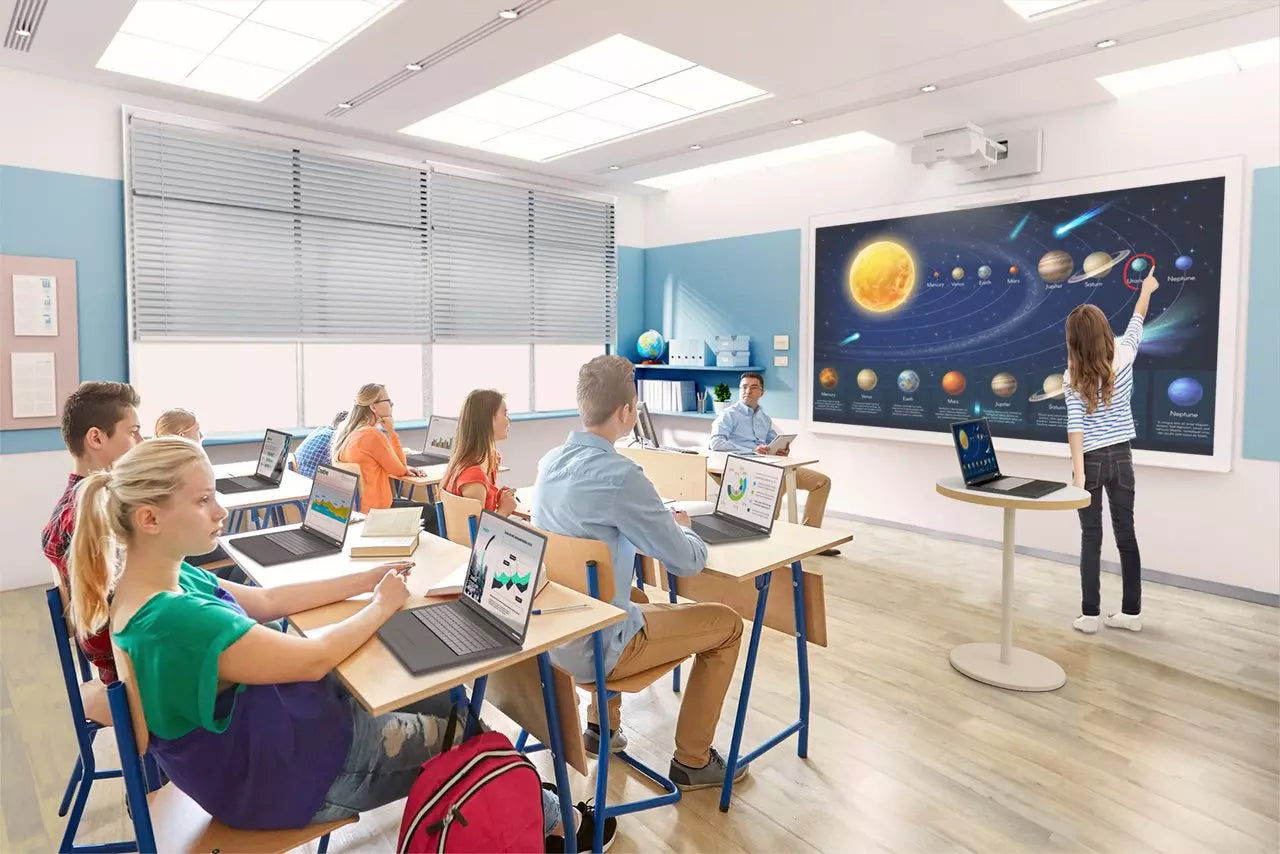

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allows participants to effortlessly share content from their PCs or mobile devices.
The experience is immersive and user-friendly.

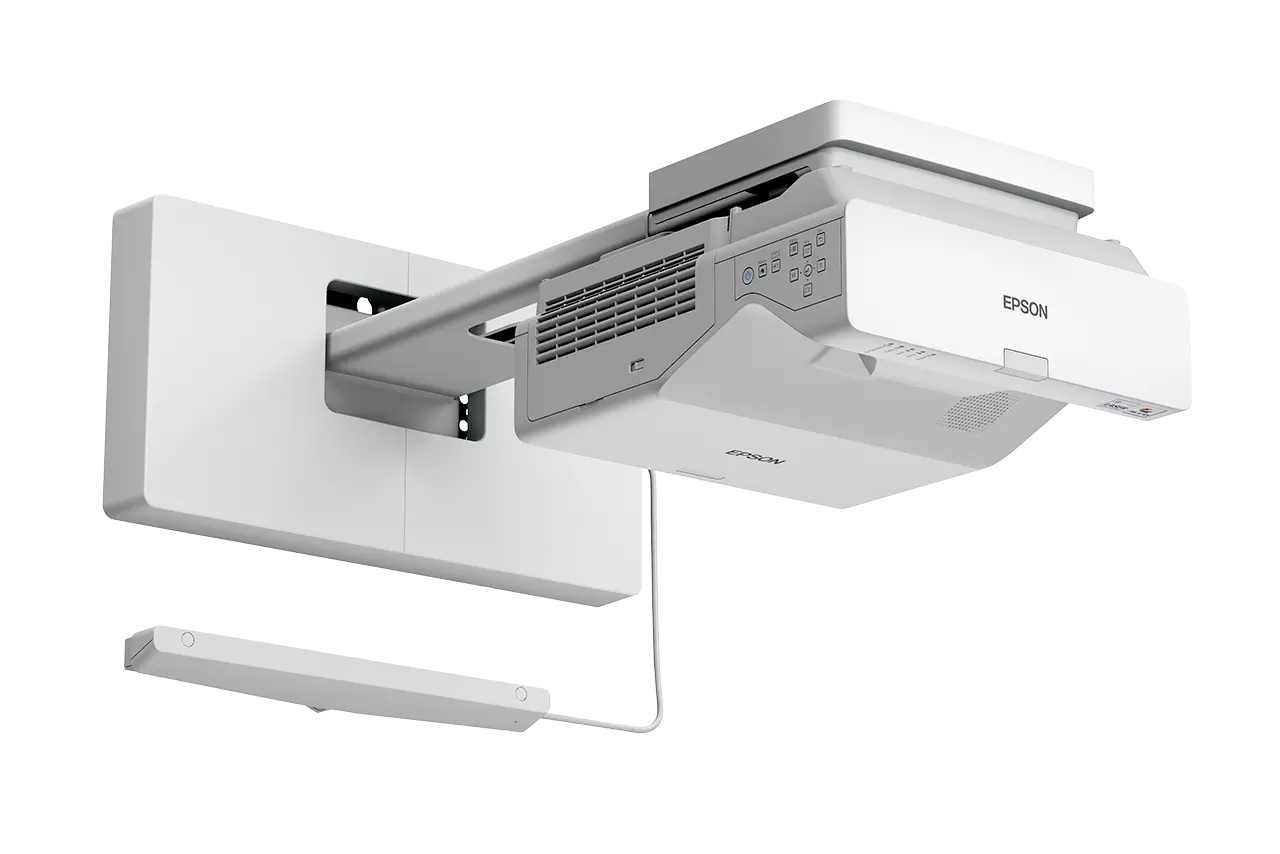

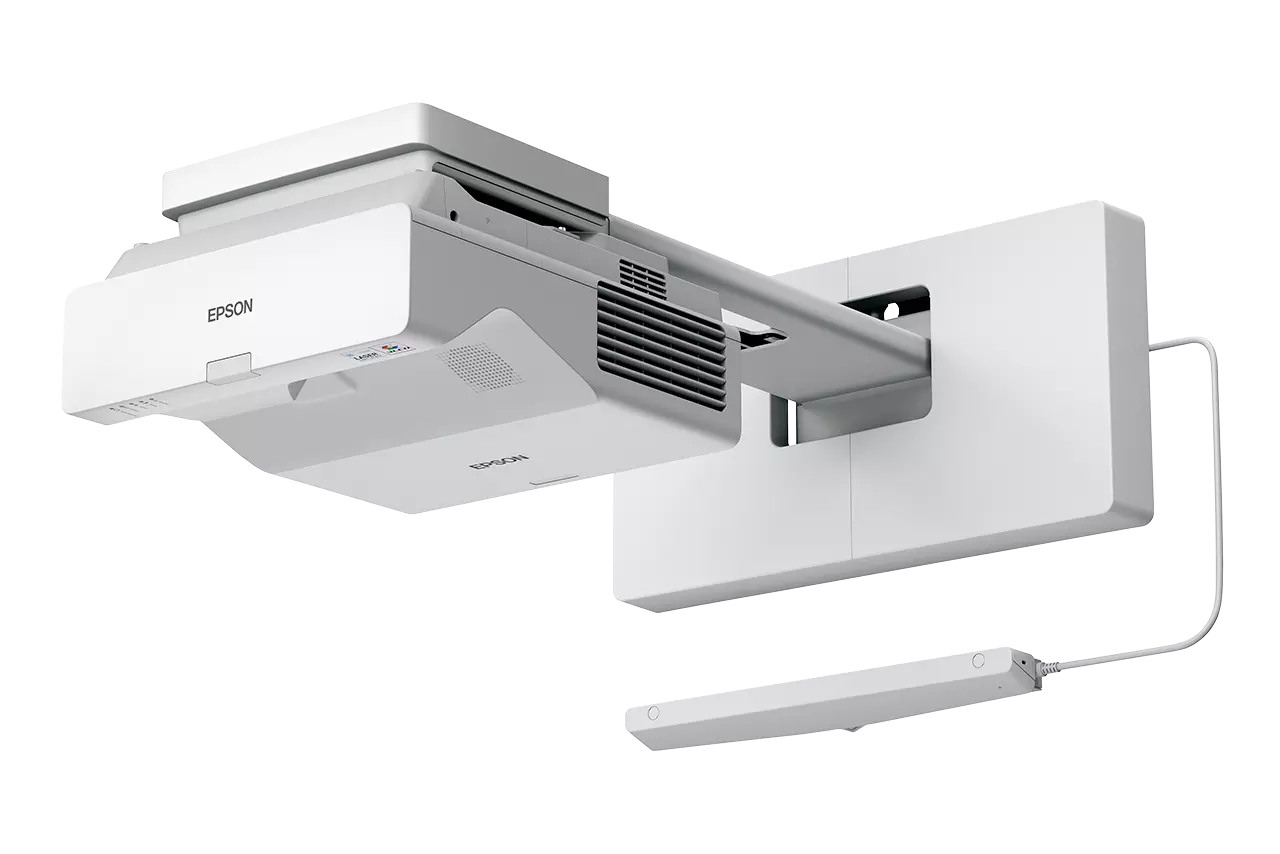

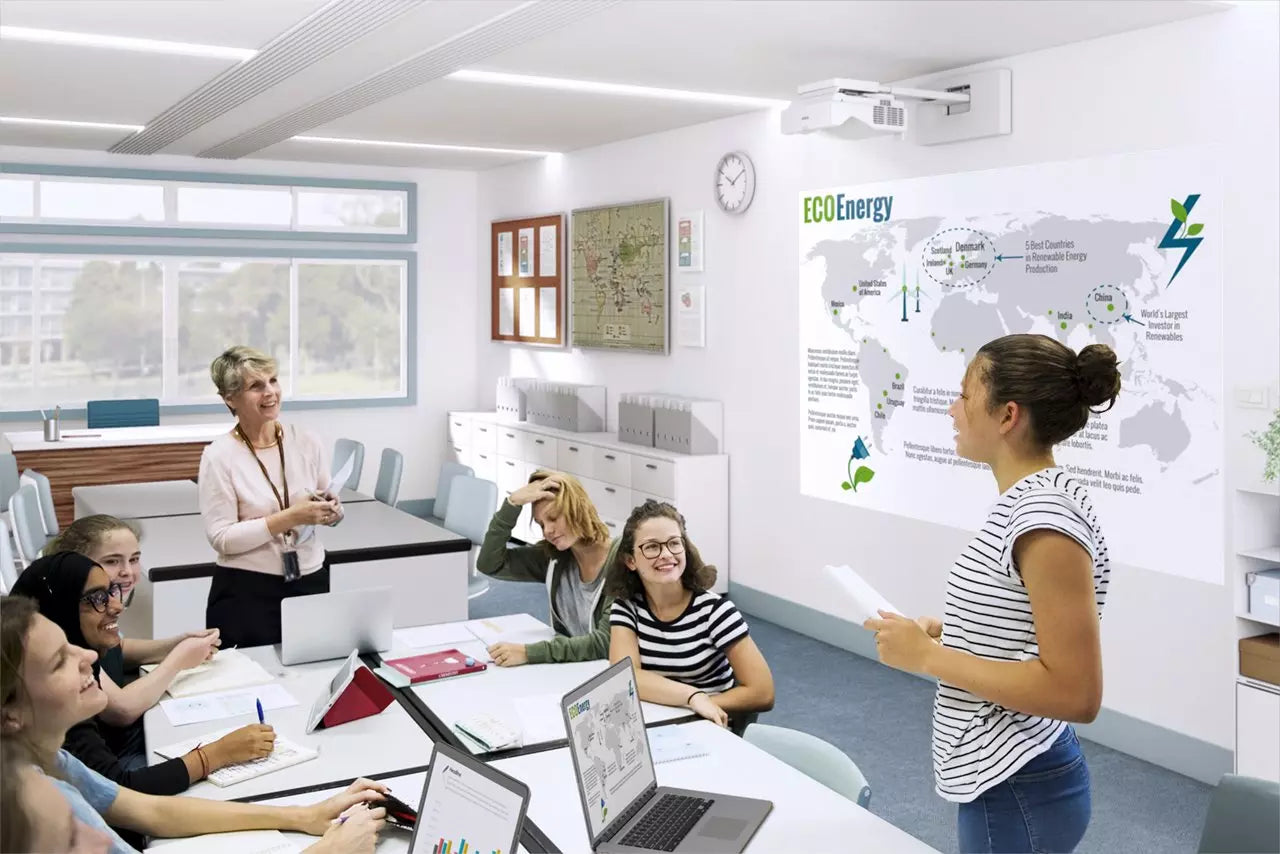

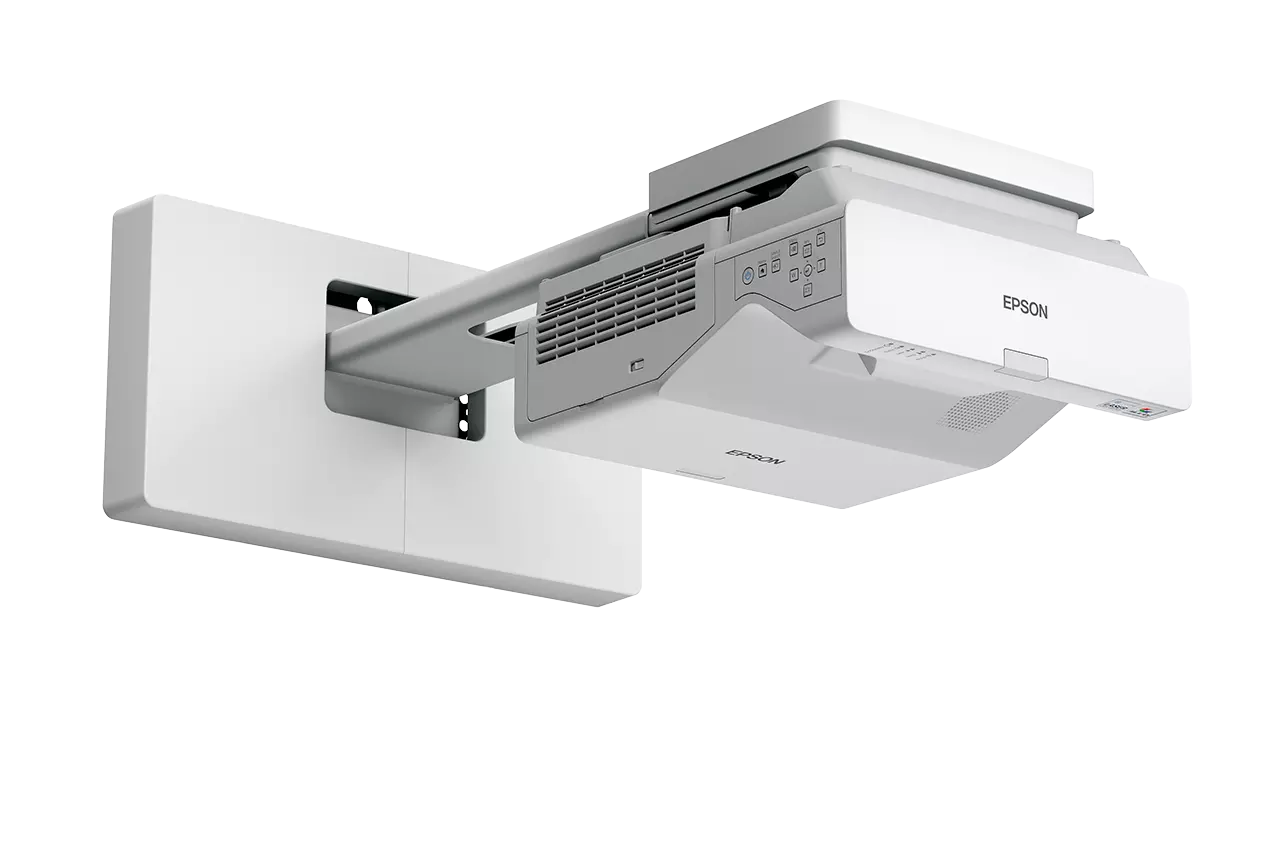

The ultra short throw lens allows safe, unobtrusive positioning above the display, enabling presenters free access to interact without casting shadows.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles; and presenters are not subjected to LCD panel direct blue light radiation.
| Category | Details |
|---|---|
| Technology | |
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.62 inch with C2 Fine |
| Image | |
| Color Light Output | 4,100 Lumen- 2,800 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 4,100 Lumen - 2,800 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | 1080p |
| Aspect Ratio | 16:9 |
| Contrast Ratio | Over 2,500,000 : 1 |
| Light Source | Laser |
| Laser Light Source | 20,000 hours Durability High, 30,000 hours Durability Eco |
| Optical | |
| Throw Ratio | 0.25 - 0.35:1 |
| Zoom | Digital, Factor: 1 - 1.35 |
| Lens | Optical |
| Screen Size | 60 inches - 100 inches |
| Projection Lens F Number | 1.6 |
| Projection Lens Focal Length | 3.7 mm |
| Projection Lens Focus | Manual |
| Offset | 5 : 1 |
| Connectivity | |

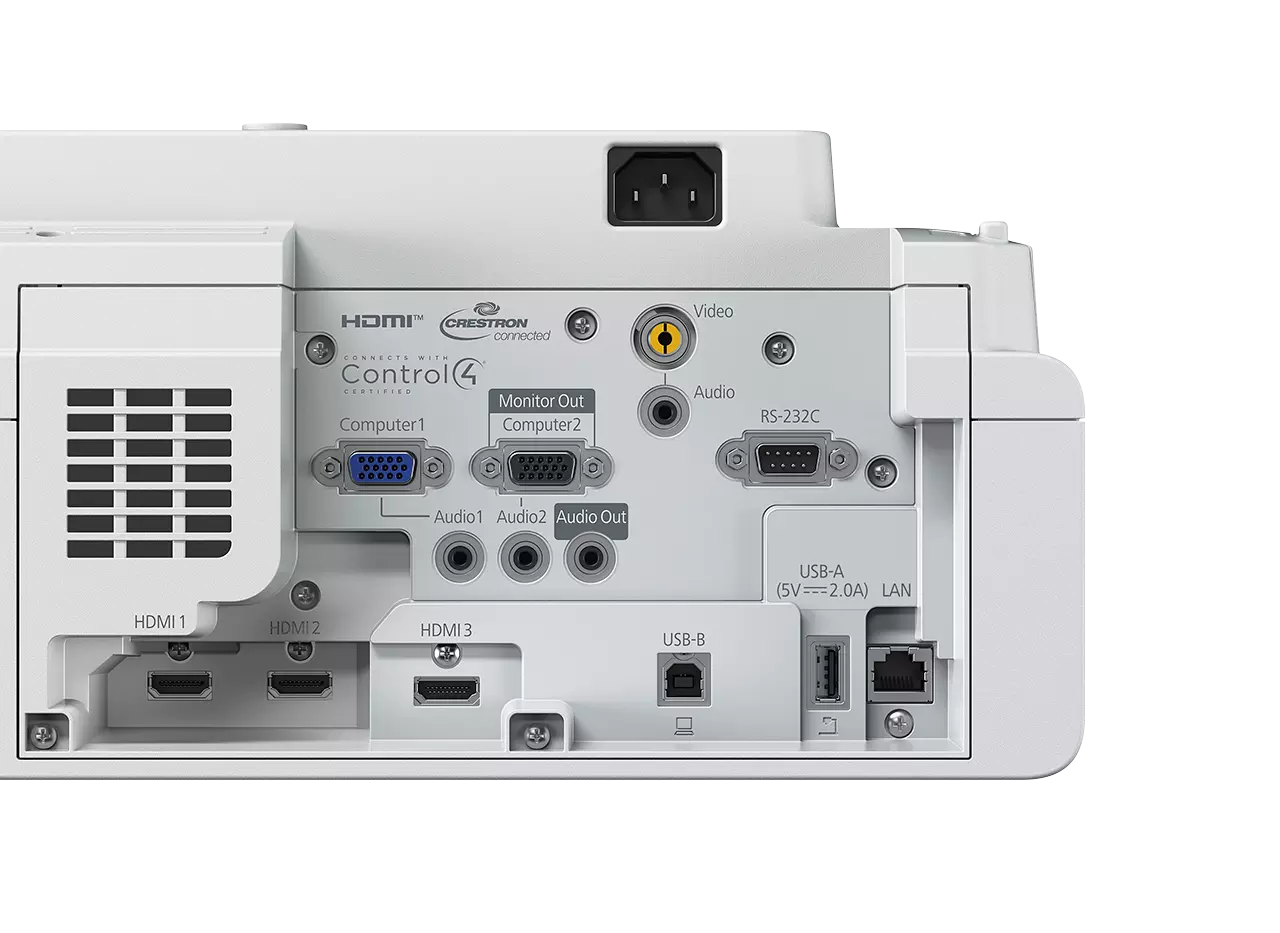

| Interfaces | USB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touch interface (optional) |
| Network Protocol | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | |
| Security | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code |
| Interactivity | Yes - pen and finger-touch |
| Video Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM |
| Projector control | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General | |
| Power consumption | 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Heat Dissipation | 895 BTU/hour (max) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 356 x 395 x 133 mm (Width x Depth x Height) |
| Product weight | 6 kg |
| Noise Level | Normal: 37 dB (A) - Economy: 27 dB (A) |
| Supported Temperature | Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management |
| Options | Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Loudspeaker | 16 Watt |
| Room Type / Application | Meeting room / Classroom |
| Positioning | Ceiling Mounted, Desktop, Wall Mounted |
| Colour | White |
| Warranty | 60 months Carry in or 12,000 h |
| Description | Downloads |
|---|---|
| EB-770Fi Datasheet | Downloads |
