| Projection System |
3LCD Technology, RGB liquid crystal shutter |
| LCD Panel |
0.62 inch with C2 Fine |
| Image |
|
| Color Light Output |
4,000 Lumen- 2,800 Lumen (economy) |
| White Light Output |
4,000 Lumen - 2,800 Lumen (economy) |
| Resolution |
1080p |
| High Definition |
Full HD |
| Aspect Ratio |
16:9 |
| Contrast Ratio |
Over 2,500,000 : 1 |
| Light source |
Laser |
| Laser Light source |
20,000 hours Durability High, 30,000 hours Durability Eco |
| Keystone Correction |
Auto vertical: ± 15 °, Manual horizontal ± 15 ° |
| Colour Video Processing |
10 Bits |
| 2D Vertical Refresh Rate |
192 Hz - 240 Hz |
| Colour Reproduction |
Up to 1.07 billion colours |
| Optical |
|
| Throw Ratio |
0.45 - 0.61:1 |
| Zoom |
Digital, Factor: 1 - 1.35 |
| Lens |
Optical |
| Screen Size |
55 inches - 125 inches |
| Projection Lens Focus |
Manual |
| Offset |
11 : 1 |
| Connectivity |
|

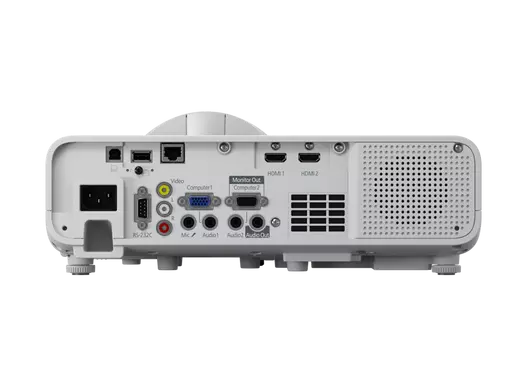

| Interfaces |
USB 2.0, USB 2.0 Type B (Service Only), RS-232C, Ethernet Interface (1000 Base-T/ 100-Base TX/ 10-Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (2x), Miracast, Jack plug out, Jack plug in (2x), Microphone input |
| Epson iProjection App |
Ad-Hoc / Infrastructure |
| Network Protocol |
HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features |
|
| Security |
Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 2D Colour Modes |
Dynamic, Cinema, Presentation, sRGB, Blackboard, DICOM SIM |
| Other features |
Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Easy OSD pre-setting, Edge Blending, Email notification, Home Screen, Horizontal and vertical keystone correction, Instant on/off, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, Quick Corner, Screen Mirroring, Set-up wizard, Split-Screen-Function, Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video Color Modes |
Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |
| Projector control |
via: AMX, Crestron, Extron, Crestron (RS-232c only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General |
|
| Power consumption |
201 Watt (Normal On-Mode), 144 Watt (Eco On-Mode), 260 Watt (Normal Peak-mode), 191 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
| Heat Dissipation |
884 BTU/hour (max) |
| Supply Voltage |
AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions |
325 x 337 x 90 mm (Width x Depth x Height) |
| Product weight |
4.6 kg |
| Noise Level |
Normal: 37 dB (A) - Economy: 27 dB (A) |
| Supported Temperature |
Storage -10° C - 60° C |
| Supported Humidity |
Operation 20% - 80%, Storage 10% - 90% |
| Included Software |
EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management |
| Options |
|

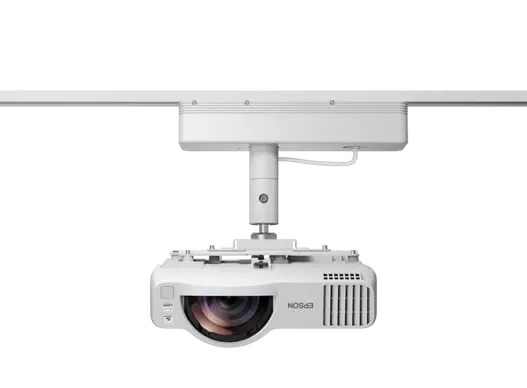

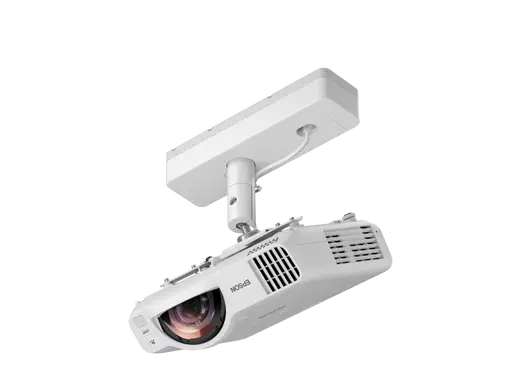

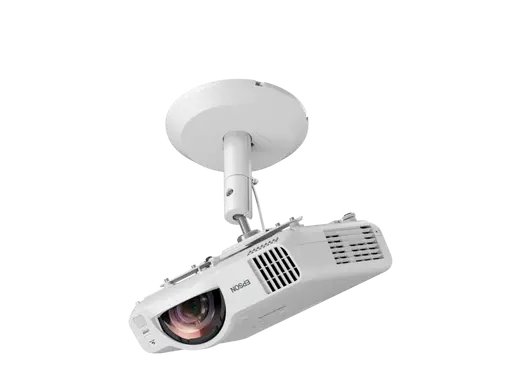

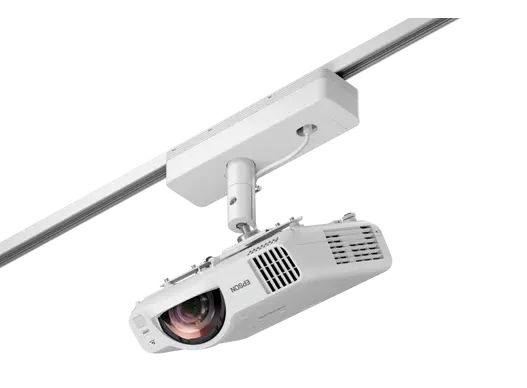

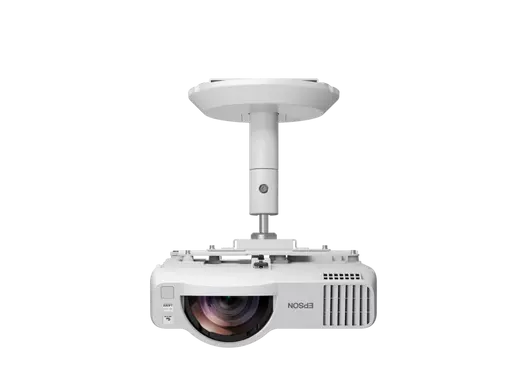

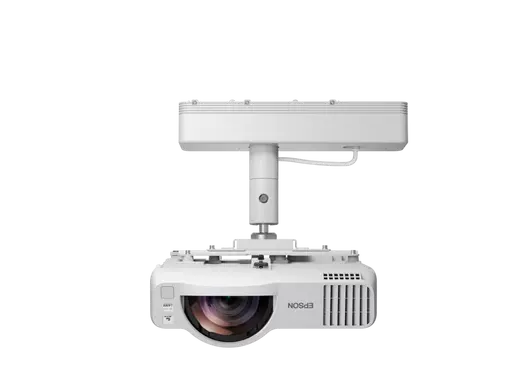

| Ceiling mount |
Connection and control box, External Speaker, Visualiser camera, Wall mount |
| Loudspeaker |
16 Watt |
| Room Type / Application |
Boardroom, Meeting room / Classroom |
| Positioning |
Ceiling Mounted, Table Mounted, Wall Mounted |
| Colour |
White |
| Other |
|
| Warranty |
60 months Carry in or 12,000 h |
