Projection System |
3LCD Technology, RGB liquid crystal shutter |
LCD Panel |
1.43 inch with C2 Fine |
Image |
|
Color Light Output |
30,000 Lumen- 20,000 Lumen (economy) |
White Light Output |
30,000 Lumen - 20,000 Lumen (economy) |
Portrait Colour Light Output |
30,000 lm |
Portrait White Light Output |
30,000 lm |
Resolution |
WUXGA |
High Definition |
4K enhancement |
Aspect Ratio |
16:10 |
Contrast Ratio |
Over 2,500,000 : 1 |
Native Contrast |
3,500 : 1 |
Light source |
Laser |
Laser Light source |
20,000 hours Durability High, 30,000 hours Durability Eco |
Keystone Correction |
Manual vertical: ± 45 °, Manual horizontal ± 30 ° |
Color Video Processing |
10 Bits |
Color Reproduction |
Upto 1.07 billion colours |
Optical |
|
Zoom |
Motorized |
Lens |
Optical, varies by lens |
Lens Shift |
Motorized - Vertical ± 65 %, horizontal ± 30 % |
Lens position memory |
10 positions |
Screen Size |
100 inches - 1,000 inches |
Projection Lens Focus |
Motorized, varies by lens |
Offset |
varies by lens |

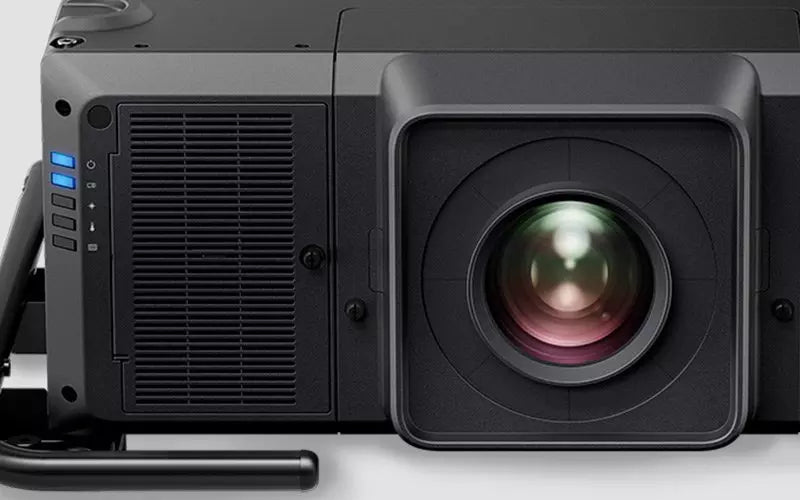

Interchangeable Lens |
Yes |
Standard Lens |
Not included |
Connectivity |
|
Interfaces |

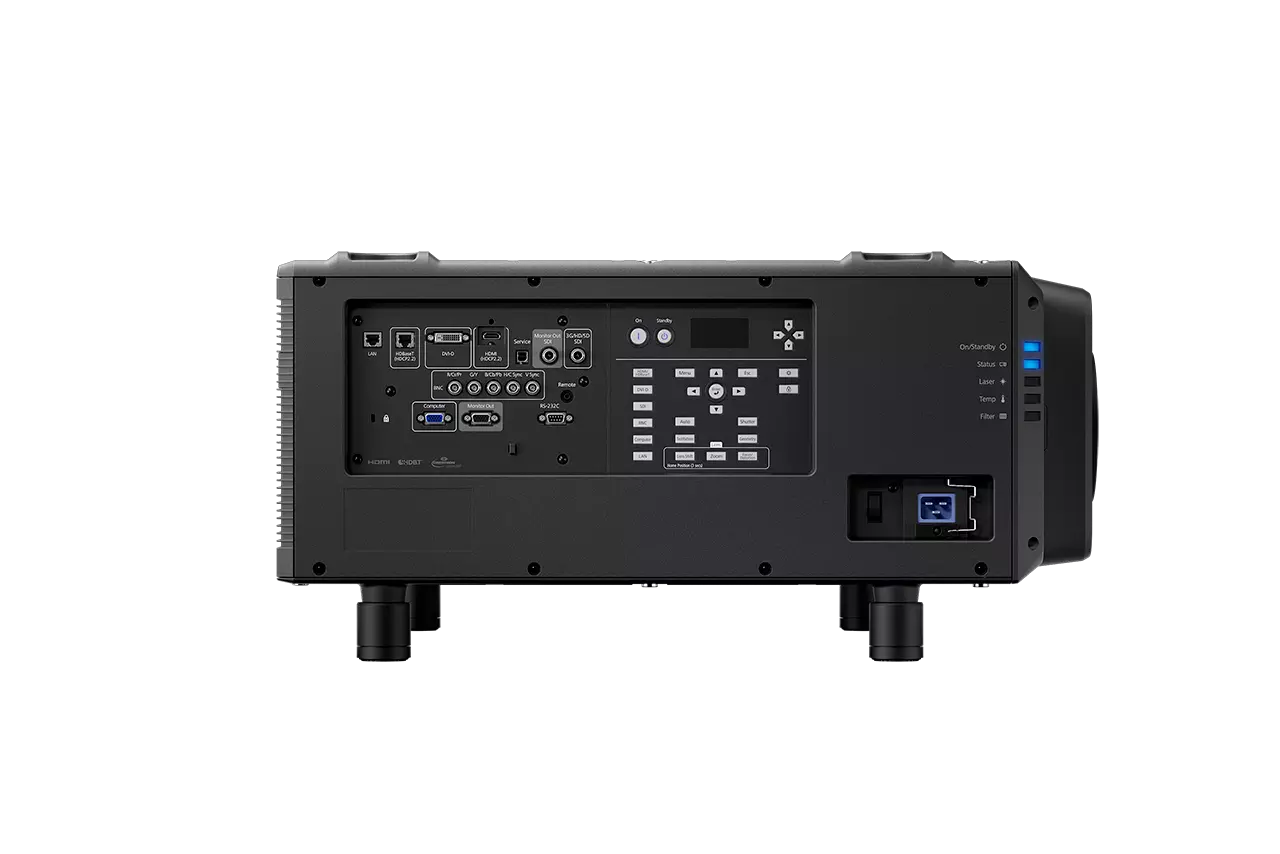

USB 1.0-A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11b/g/n (optional), VGA in, VGA out, DVI in, BNC in, HDBaseT, HD-SDI, HDMI (HDCP 2.2), Remote |
Epson iProjection App |
Ad-Hoc / Infrastructure |
Advanced Features |
|
Security |
Security bar, Control panel lock, Password lock, Wireless LAN security, Password protection |
Other features |
4K enhancement, Absolute Black, Auto Calibration, Edge Blending, Frame interpolation, Lens position memory, Long light source life, OSD copy function, Point correction, Power on button, Quick Corner, Schedule Function, Split-Screen-Function, Super resolution, Web Control, Web Remote, iProjection App |
Video Color Modes |
Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection, BT709 |
Projector control |
via: AMX, Crestron, Extron XTP |
General |
|
Power consumption |
1,748 Watt (Normal On-Mode), 2,325 Watt (Normal Peak-mode), 1,511 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby) |
Heat Dissipation |
7,905 BTU/hour (max) |
Supply Voltage |
AC 200 V - 240 V, 50 Hz - 60 Hz |
Product dimensions |
790 x 710 x 299 mm (Width x Depth x Height) |
Product weight |
63.8 kg |
Noise Level |
Normal: 49 dB (A) - Economy: 41 dB (A) |
Supported Temperature |
Storage -10° C - 60° C |
Supported Humidity |
Operation 20% - 80%, Storage 10% - 90% |
Included Software |
EasyMP Monitor, EasyMP Multi PC Projection |
Options |
Wireless LAN unit |
Room Type / Application |

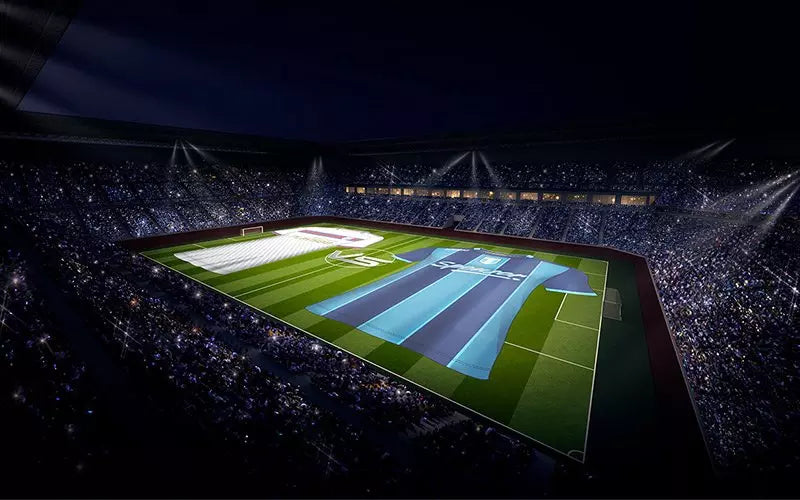

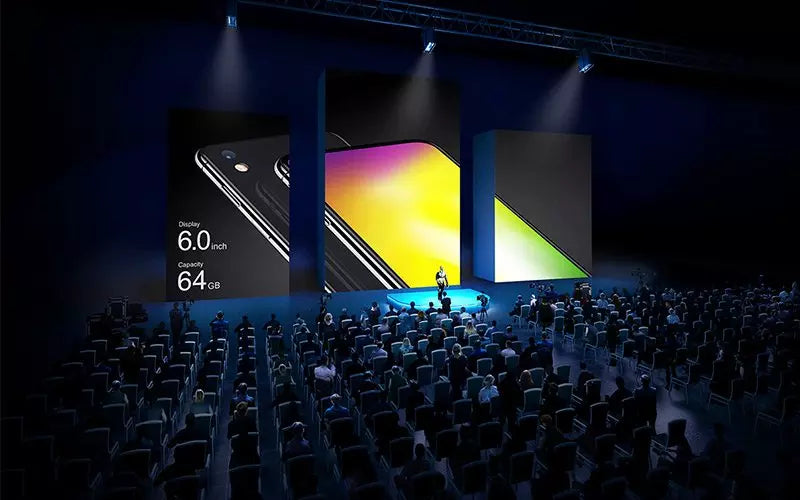

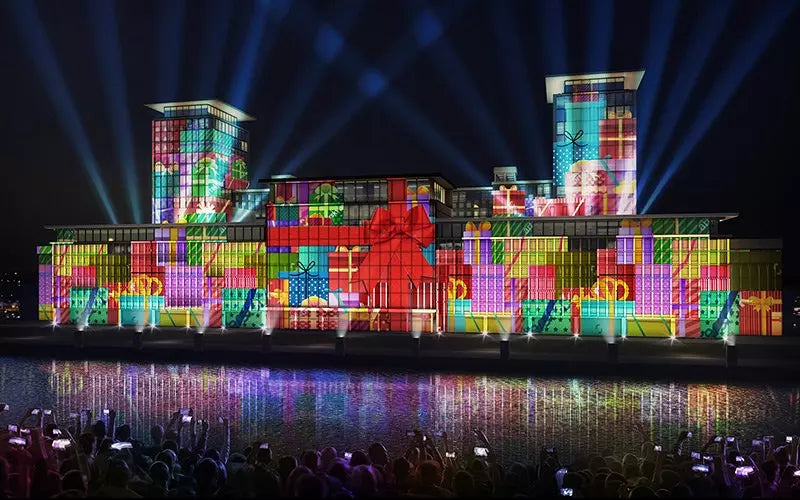

Large Meeting Room / Auditorium, Projection Mapping, Rental / Staging, Visitor Attraction |
Positioning |
Ceiling Mounted, Flying Frame |
Colour |
Black |
Warranty |
60 months Carry in or 20,000 h |
