| 3LCD Technology |
LCD Panel |
| LCD Panel |
0.61 inch with C2 Fine |
| Image |
Color Light Output |
| Color Light Output |
4,000 Lumen - 2,400 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output |
4,000 Lumen - 2,400 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution |
1080p |
| High Definition |
Full HD |
| Aspect Ratio |
16:9 |
| Contrast Ratio |
16,000 : 1 |
| Light source |
Lamp |
| Lamp |
UHE, 230 W, 5,500 h durability, 12,000 h durability (economy mode) |
| Keystone Correction |
Auto vertical: ± 30 °, Manual horizontal ± 30 ° |
| Colour Video Processing |
10 Bits |
| 2D Vertical Refresh Rate |
192 Hz - 240 Hz |
| Colour Reproduction |
Up to 1.07 billion colors |
| Optical |
Throw Ratio |
| Throw Ratio |
1.32 - 2.14:1 |
| Zoom |
Manual, Factor: 1.6 |
| Lens |
Optical |
| Screen Size |
30 inches - 300 inches |
| Projection Distance Wide/Tele |
1.76 m - 2.86 m (60 inch screen) |
| Projection Lens F Number |
1.51 - 1.99 |
| Projection Lens Focal Length |
18.2 mm - 29.2 mm |
| Projection Lens Focus |
Manual |
| Offset |
10 : 1 |
| Connectivity |
USB Display Function |
| USB Display Function |
2 in 1: Image/ Sound |

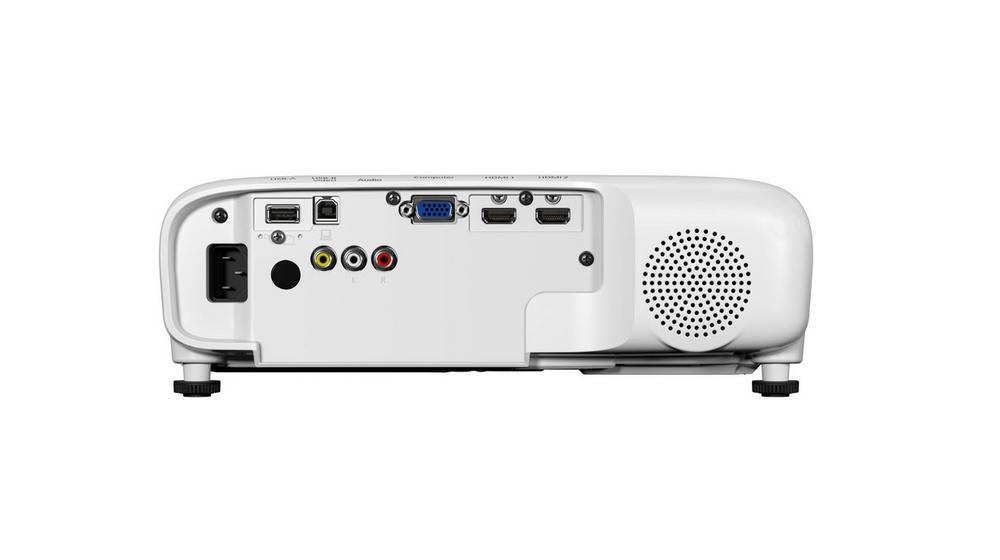

| Interfaces |
USB 2.0-A, USB 2.0, Wireless LAN IEEE 802.11b/g/n, VGA in, HDMI in (2x), Composite in, Miracast |
| Epson iProjection App |
Ad-Hoc / Infrastructure |
| Advanced Features |
Security |
| Security |
Kensington lock, Padlock, Security cable hole, Wireless LAN security, Password protection |
| 2D Colour Modes |
Dynamic, Cinema, Presentation, sRGB, Blackboard |
| Other features |
AV Mute Slide, Built-in speaker, CEC compatible, Direct Power on/off, Document Camera Compatible, Horizontal and vertical keystone correction, Long lamp life, Network projection, OSD copy function, PC Free, Split-Screen-Function, Wireless LAN capable, iProjection set-up by QR code |
| Video Color Modes |
Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Projector control |
via: AMX, Crestron |
| General |
Power consumption |
| Power consumption |
286 Watt - On mode power consumption (Normal) |
|
327 Watt (Peak), 225 Watt (Eco), 0.3 Watt (Energy saving standby) |
| Supply Voltage |
AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions |
309 x 282 x 90 mm (Width x Depth x Height) |
| Product weight |
3.1 kg |
| Noise Level |
Normal: 37 dB (A) - Economy: 28 dB (A) |
| Supported Temperature |
Operation 5° C - 40° C, Storage -10° C - 60° C |
| Supported Humidity |
Operation 20% - 80%, Storage 10% - 90% |
| Included Software |
Epson Projector Management |
| Options |
Air filter, Ceiling mount, Document camera, External Speaker, Safety wire set, Spare lamp, Suspension adapter, WP System - ELPWP20, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Noise |
Operation: 37 dB (A)- Standby: 28 dB (A) |
| Loudspeaker |
16 Watt |
| What's in the box |
Carrying Case, HDMI Cable 1.8m, Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User's Manual Set, Warranty Documents |
| Room Type / Application |
Boardroom, Huddle space / Portable, Meeting room / Classroom |
| Positioning |
Ceiling Mounted, Desktop |
| Colour |
White |
| Other |
Warranty |
| Warranty |
36 months Carry in, Lamp: 36 months or 1,000 h |
