Projection System |
3LCD Technology |
LCD Panel |
0.59 inch with C2 Fine |
Image |
|
Color Light Output |
2,200 Lumen - 1,100 Lumen (economy) |
White Light Output |
2,200 Lumen - 1,100 Lumen (economy) |
Resolution |
WXGA 2 |
Aspect Ratio |
16:10 |
Contrast Ratio |
2,500,000 : 1 |
Native Contrast |
2,000 : 1 |
Light source |
Laser |
Laser Light source |
20,000 hours Durability High, 30,000 hours Durability Eco |
Keystone Correction |
Manual vertical: ± 45 °, Manual horizontal ± 40 ° |
Colour Reproduction |
16.77 million colours |
Optical |
|
Throw Ratio |
1.38 - 2.19:1 |
Zoom |
Motorized, Factor: 1 - 1.58 |
Lens |
Optical |
Screen Size |
30 inches - 150 inches |
Projection Distance Wide |
0.9 m - 4.5 m |
Projection Lens F Number |
1.51 - 1.92 |
Projection Lens Focal Length |
18.2 mm - 28.4 mm |
Projection Lens Focus |
Motorized |
Connectivity |
|
Interfaces |
USB 2.0-A, USB 2.0 Type B (Service Only), Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN b/g/g 25GHz, HDMI in, Jack plug out, SD Card Slot, SD Card playback, Wireless LAN a/n (5GHz) |
Network Protocol |
HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
Advanced Features |
|
Security |
Wireless LAN security, Password protection |
Other features |
A/V mute, Auto Power On, Digital zoom, Edge Blending, Horizontal and vertical keystone correction, Image Shift, Long light source life, Quick Corner, Web Control, Web Remote |
Video Color Modes |
Dynamic, Normal |
Projector control |
via: Crestron, Crestron Integrated Partner, Crestron RoomView |
General |
|
Power consumption |
124 Watt - On mode power consumption (Normal) |
|
149 Watt (Peak), 112 Watt (Eco), 0.4 Watt (Energy saving standby) |
Supply Voltage |
AC 100 V - 240 V, 50 Hz - 60 Hz |
Product dimensions (default position) |
530 x 470 x 250 mm (Width x Depth x Height) |
Dimensions: Projection Unit |
Ø175 x 260 mm (Depth) |
Dimensions: Power Supply |
361 x 110 x 65 mm (Width x Depth x Height) |
Product weight |
5 kg |
Noise Level |
Normal: 34 dB (A) - Economy: 22 dB (A) |
Supported Temperature |
Operation 5° C - 40° C, Storage -10° C - 60° C |
Supported Humidity |
Operation 20% - 80%, Storage 10% - 90% |
Included Software |
Epson Creative Projection, Epson Projector Content Manager |
Options |
Floor stand, Lighting track mount |
What's in the box |
Cable cover, Direct mount unit, HDMI Cable Clamp, Hexagon wrench, Power cable, Remote control incl. batteries, Safety wire set, User's Manual Set |
Room Type / Application |

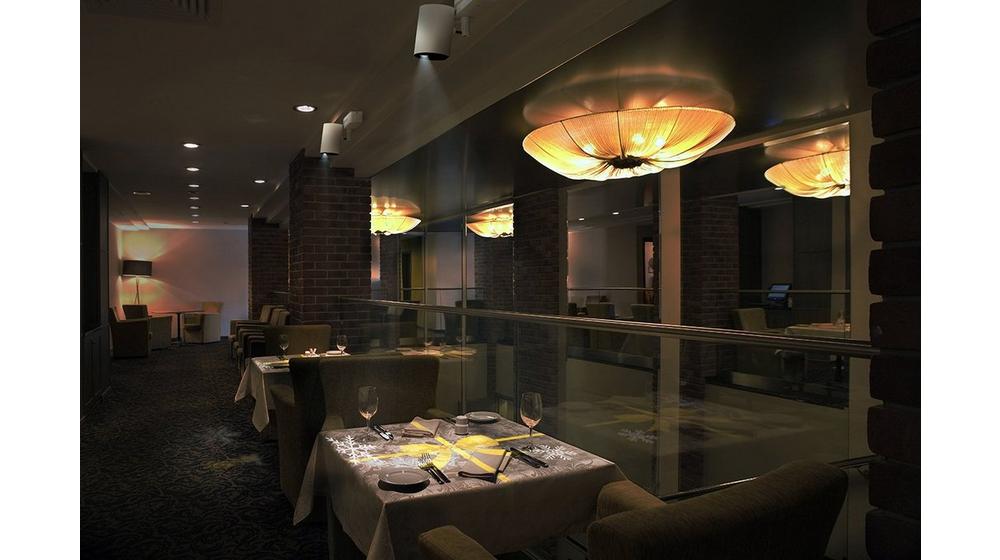

Projection Mapping, Signage / Retail, Visitor Attraction |
Positioning |
Ceiling Mounted, Floor, Lighting Track, Wall Mounted |
Colour |
White |
Other |
Warranty: 60 months Carry in or 12,000 h |
