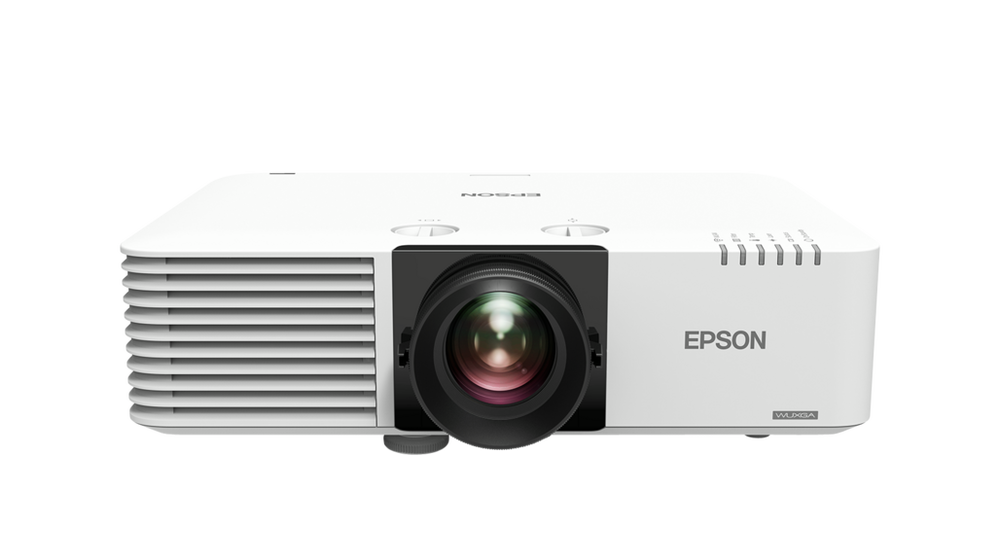

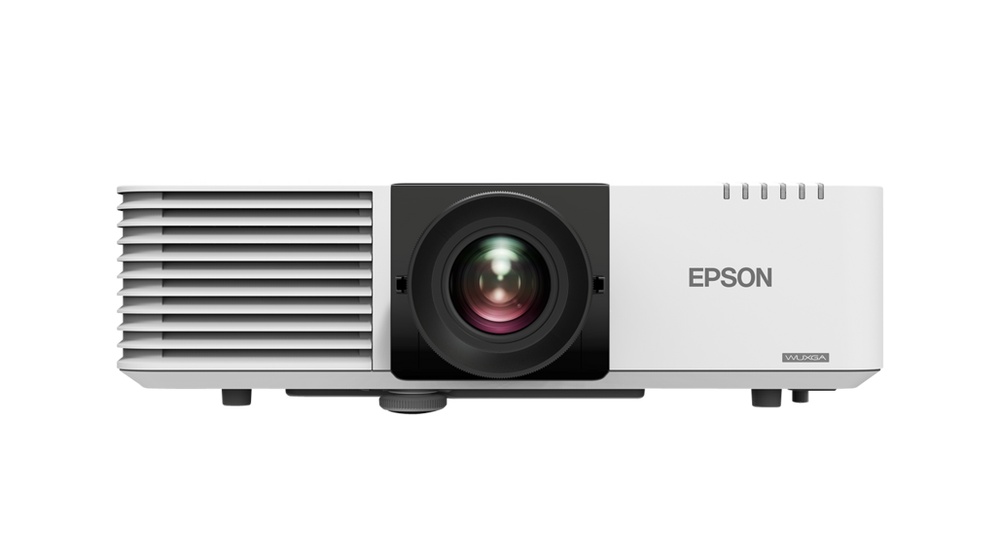

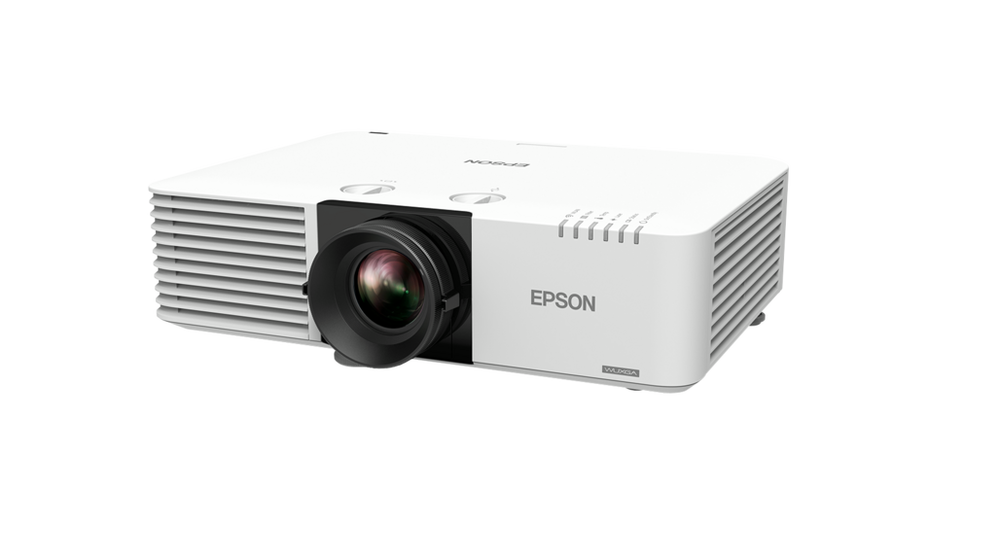

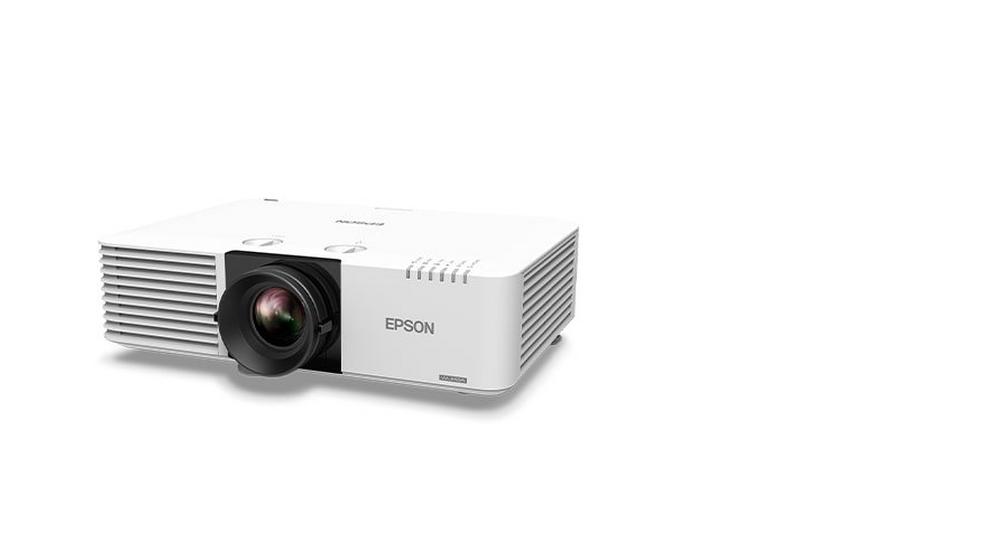

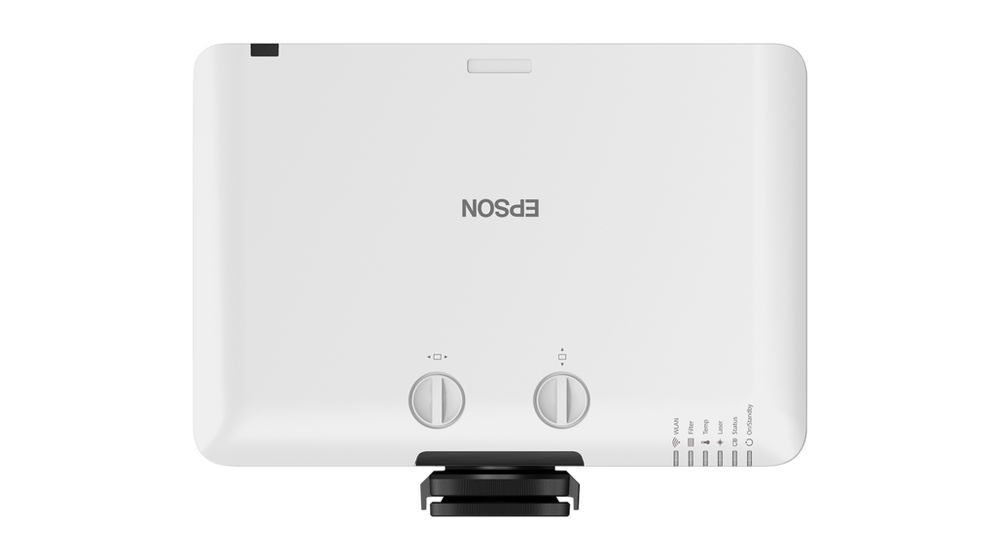

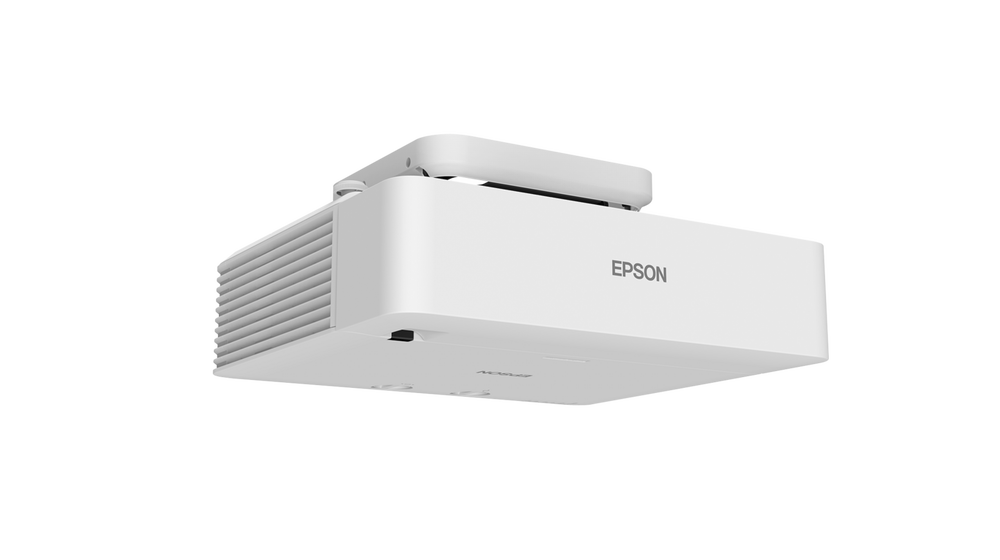

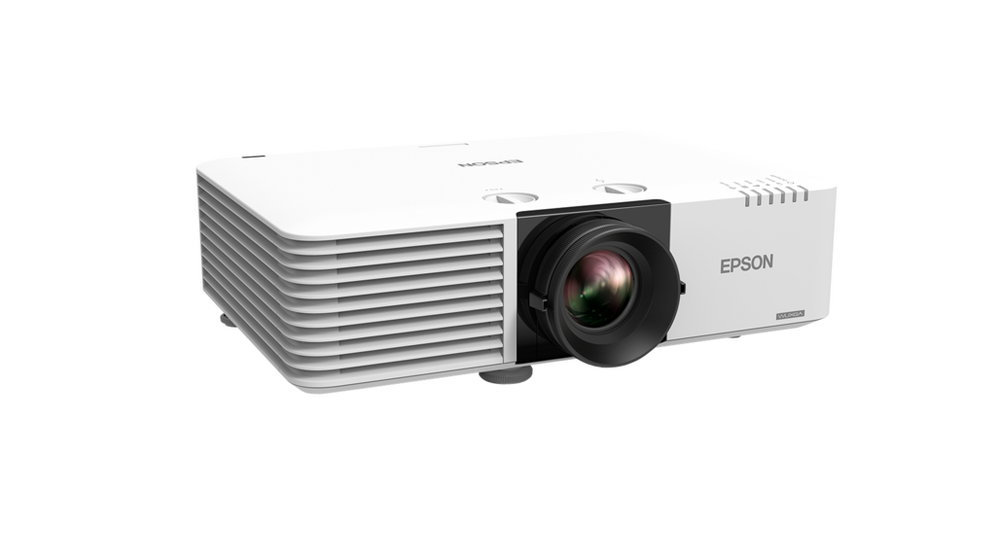

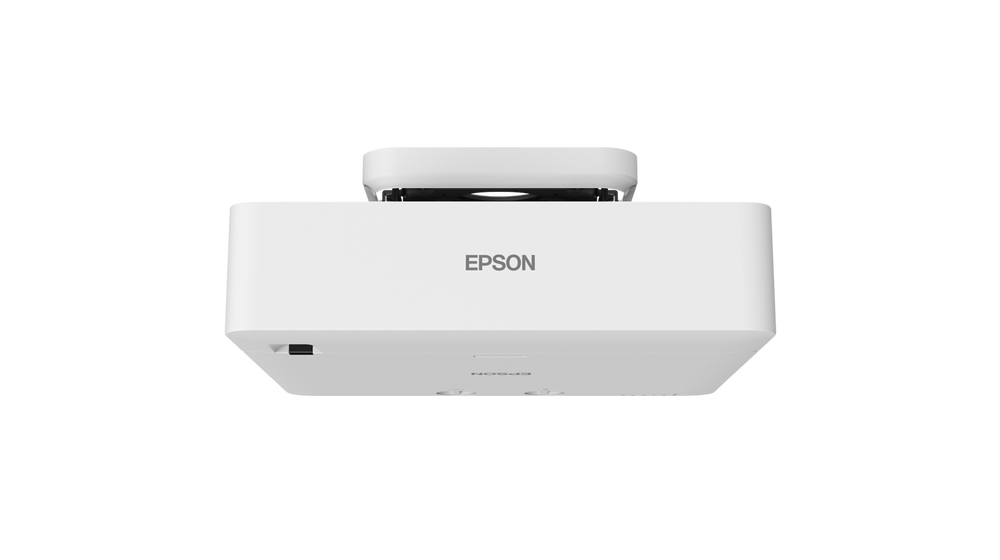

Epson V11HA26040/EB-L630U Laser Display Projector - 6200 Lumens
Laser display solution
6,200-lumen brightness Crisp images and bright colours, even in well-lit rooms
WUXGA resolution Sharp Full HD images for excellent clarity
Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring

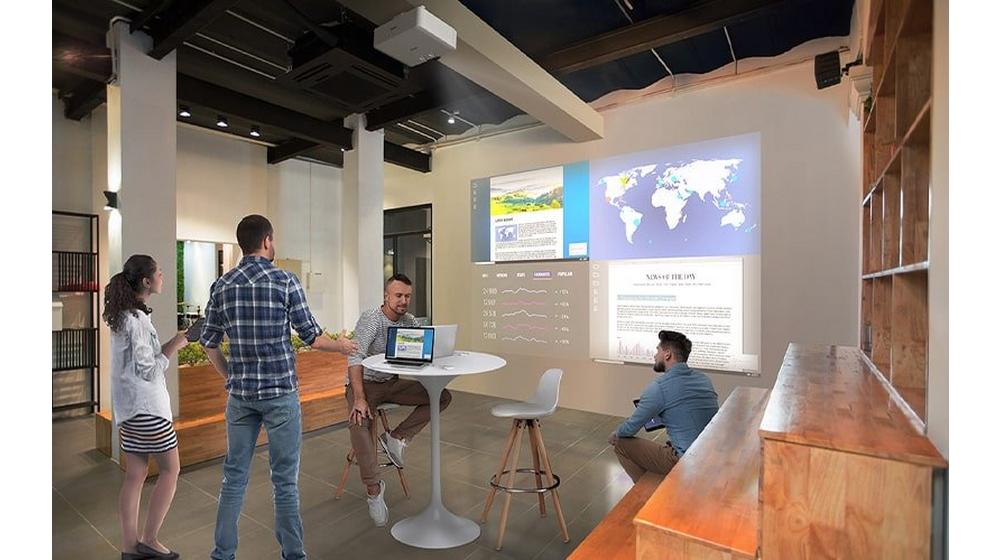

Easy, flexible installation Lightweight and compact design with wide lens shift

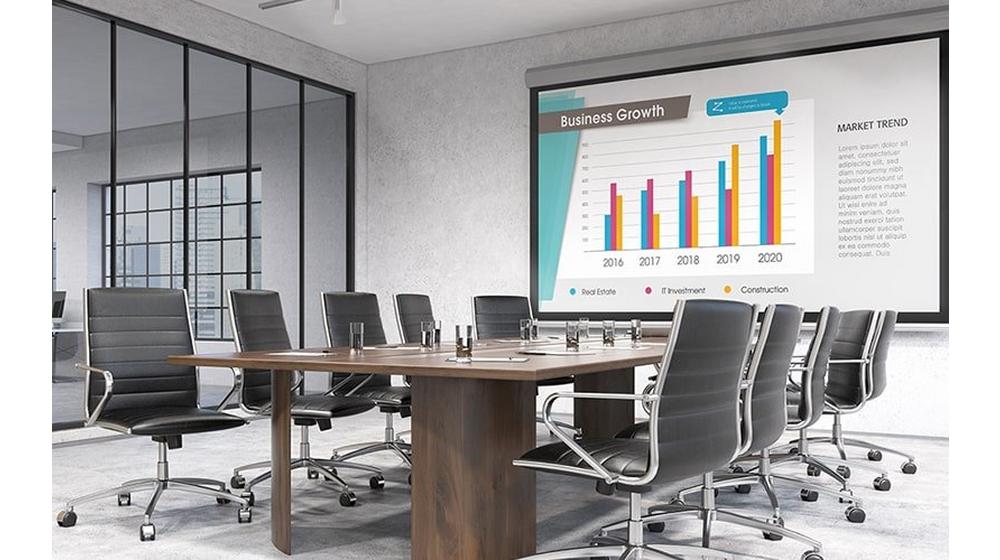

Support social distancing Scalable display size of up to 500 inches
Laser display solution
6,200-lumen brightness Crisp images and bright colours, even in well-lit rooms
WUXGA resolution Sharp Full HD images for excellent clarity
Futureproofed connectivity options 4K input support, HDMI, HDBaseT, integrated Wi-Fi and screen mirroring
Easy, flexible installation Lightweight and compact design with wide lens shift
Support social distancing Scalable display size of up to 500 inches








| Technology | Projection System |
|---|---|
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.67 inch with C2 Fine |
| Image | |
| Color Light Output | 6,200 Lumen - 4,340 Lumen (economy) |
| White Light Output | 6,200 Lumen - 4,340 Lumen (economy) |
| Resolution | WUXGA |
| High Definition | Full HD |
| Aspect Ratio | 16:10 |
| Contrast Ratio | Over 2,500,000 : 1 |
| Light source | Laser |
| Laser Light source | 20,000 hours Durability High, 30,000 hours Durability Eco |
| Keystone Correction | Manual vertical: ± 30 °, Manual horizontal ± 30 ° |
| Colour Video Processing | 10 Bits |
| Colour Reproduction | Up to 1.07 billion colors |
| Optical | |
| Throw Ratio | 1.35 - 2.20:1 |
| Zoom | Manual, Factor: 1 - 1.6 |
| Projection Lens Zoom Ratio | 1.35 - 2.2 : 1 |
| Lens | Optical |
| Lens Shift | Manual - Vertical ± 50 %, horizontal ± 20 % |
| Screen Size | 50 inches - 500 inches |
| Projection Distance Wide | 1.4 m - 14.8 m |
| Projection Distance Tele | 2.4 m - 23.8 m |
| Projection Distance Wide/Tele | 1.44 m - 23.84 m |
| Projection Lens F Number | 1.5 - 1.7 |
| Projection Lens Focal Length | 20 mm - 31.8 mm |
| Projection Lens Focus | Manual |
| Connectivity | Interfaces |

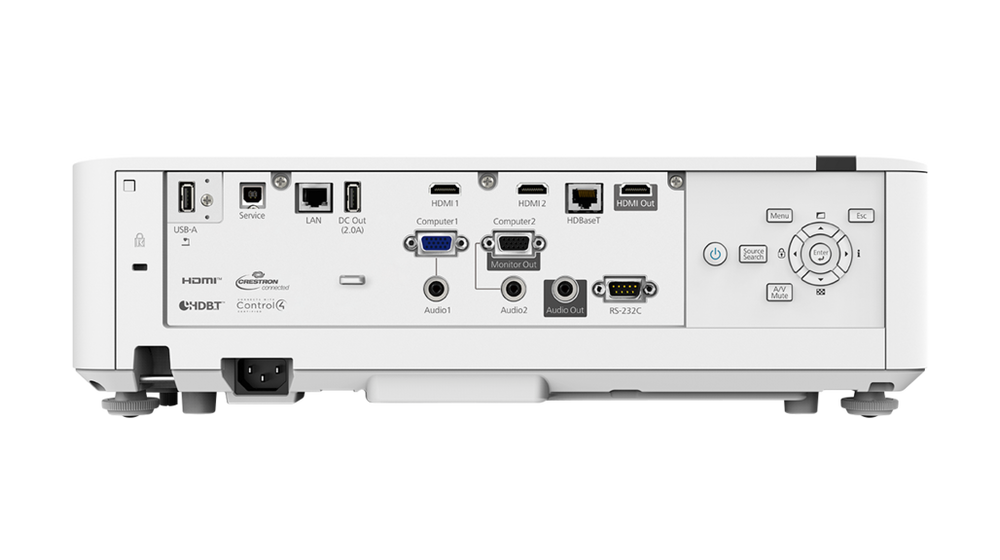

| USB 2.0-A, USB 2.0, RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wireless LAN b/g/g 25GHz, Wireless LAN a/n (5GHz), VGA in (2x), VGA out, HDMI out, HDBaseT, Miracast, Jack plug out, Jack plug in (2x), HDMI (HDCP 2.3) (2x), USB 2 Type A playback | |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | HTTPS, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | Security |
| Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection | |
| 2D Colour Modes | Dynamic, Cinema, Presentation, sRGB, DICOM SIM |
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Home Screen, Horizontal and vertical keystone correction, JPEG Viewer, Long light source life, PC Free, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Super resolution, Ultra-wide display (16:6), Volume control, Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Video Color Modes | Cinema, Dynamic, Presentation, sRGB, DICOM SIM, Multi Projection |

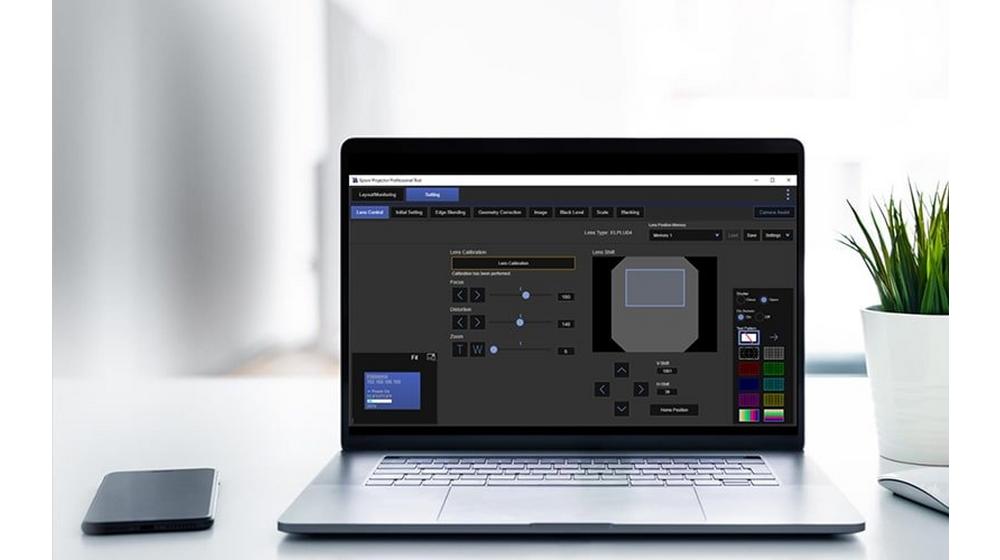

| Projector control | via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General | Power consumption |
| 287 Watt - On mode power consumption (Normal) | |
| 345 Watt (Peak), 258 Watt (Eco), 0.3 Watt (Energy saving standby) | |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 440 x 339 x 136 mm (Width x Depth x Height) |
| Product weight | 8.4 kg |
| Noise Level | Normal: 38 dB (A) - Economy: 27 dB (A) |
| Supported Temperature | Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| If the projector is suspended from a ceiling or wall mount and installed in an environment with heavy oil smoke or places where oils or chemicals are volatilized, places where a lot of smoke or bubbles are used for event staging, or where aroma oils are frequently burned, it can make certain parts of our products susceptible to a material degradation which over time could break and cause the projector to drop from the ceiling. | |
| Options | Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit |
| Loudspeaker | 10 Watt |
| What's in the box | Cable cover, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents |

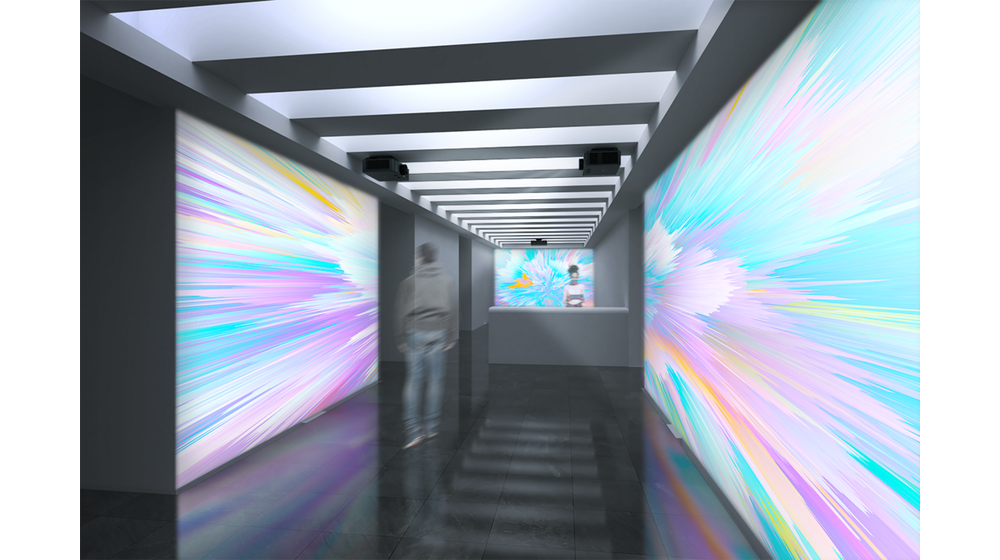

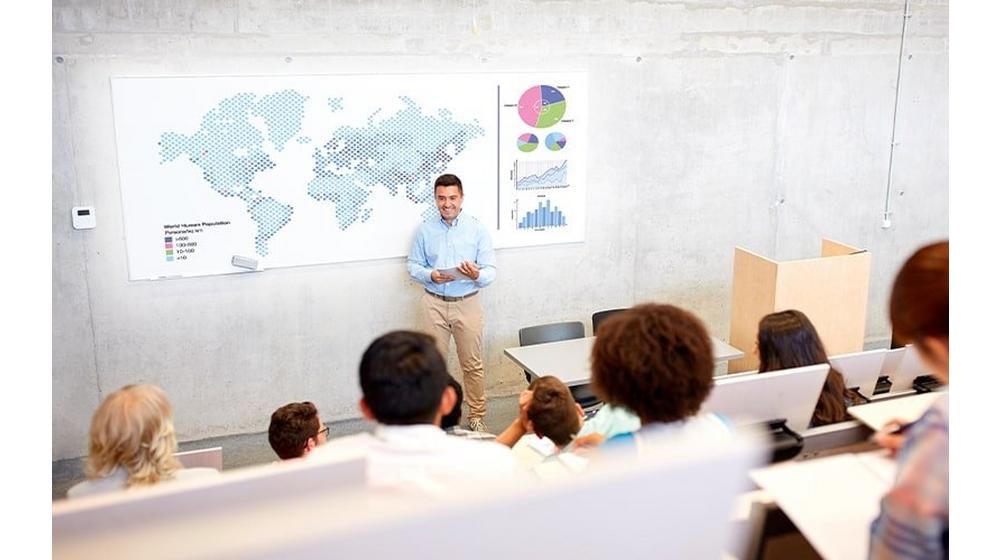

| Room Type / Application | Boardroom, Large Meeting Room / Auditorium, Meeting room / Classroom, Projection Mapping, Signage / Retail, Visitor Attraction |

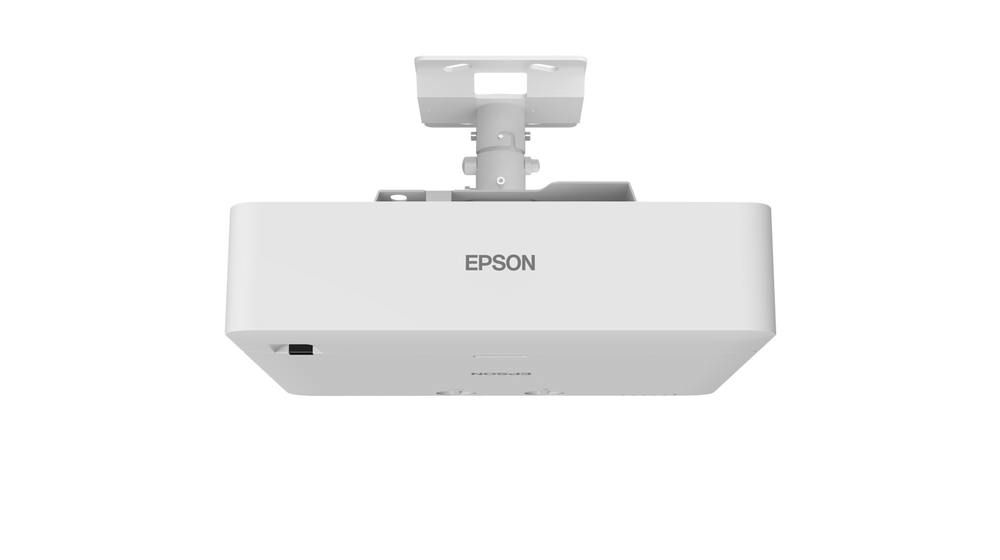

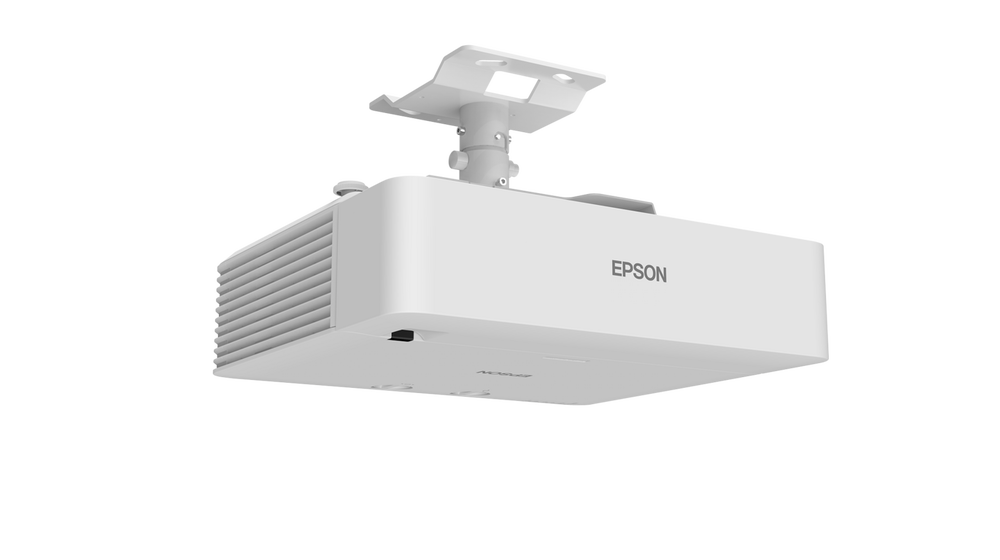

| Positioning | Ceiling Mounted, Desktop |
| Colour | White |
| Other | Warranty |
| 36 months Carry in |
| Description | Downloads |
|---|---|
| Product Guide | Downloads |
| Datasheet |
