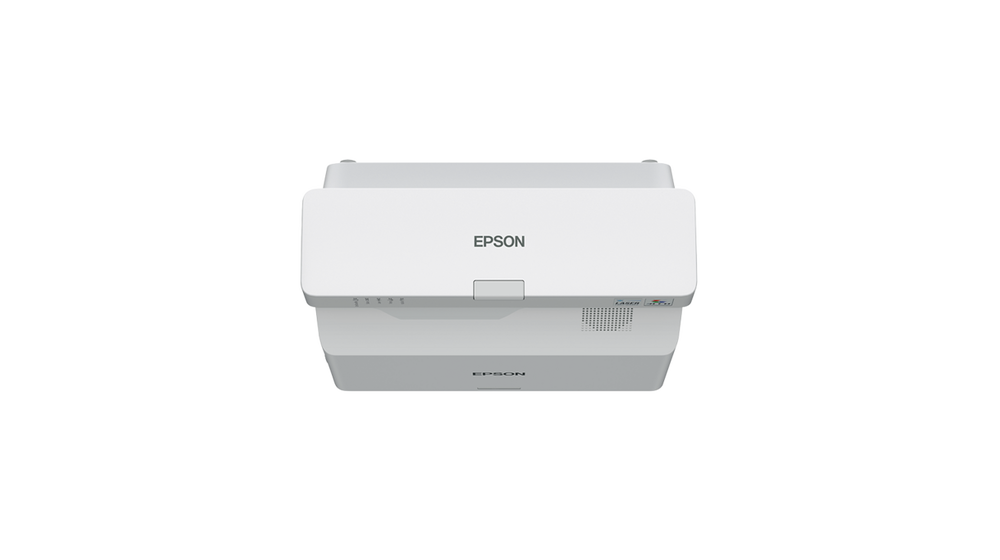

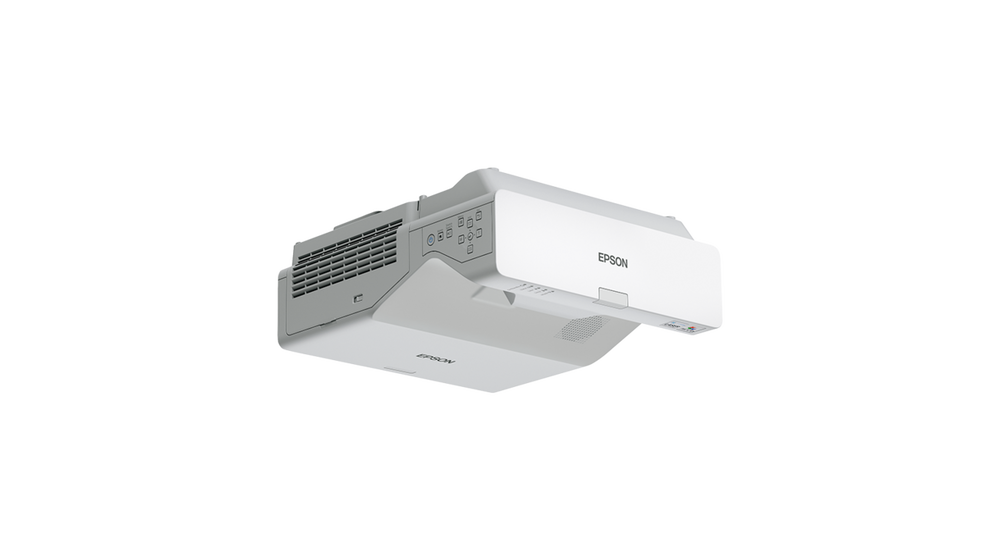

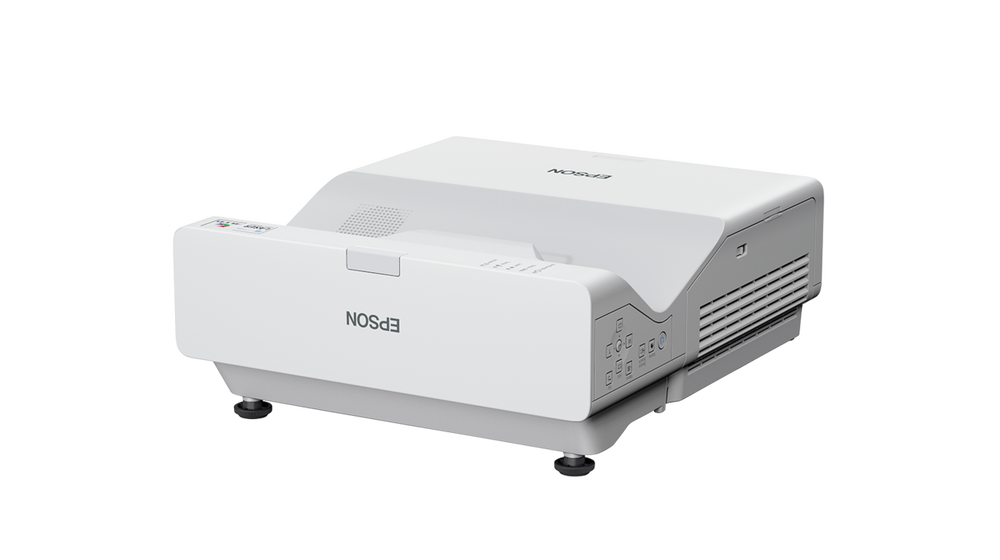

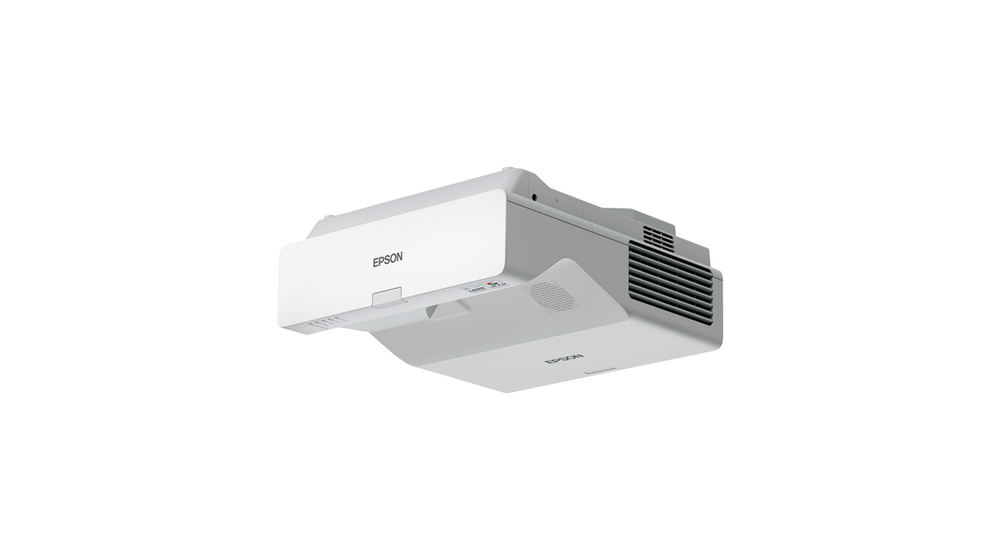

Epson V11HA80080/EB-760Wi Laster Display Projector - 4100 Lumens
Agile USTi laser display
Interactive HD display for any room 53-100" UST display for unrestricted viewing (no shadows/reflections)
Bright and energy efficient laser 4,100lm CLO with 3LCD technology for brighter colours at only 205W
Effortless connectivity options Auto-on, wired / wireless display with USB 2A output for smart sticks
Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
Document camera compatibility Create and record a live, totally immersive lesson or presentation
The EB-760Wi is a step up from the EB-760W, with added interactive features.

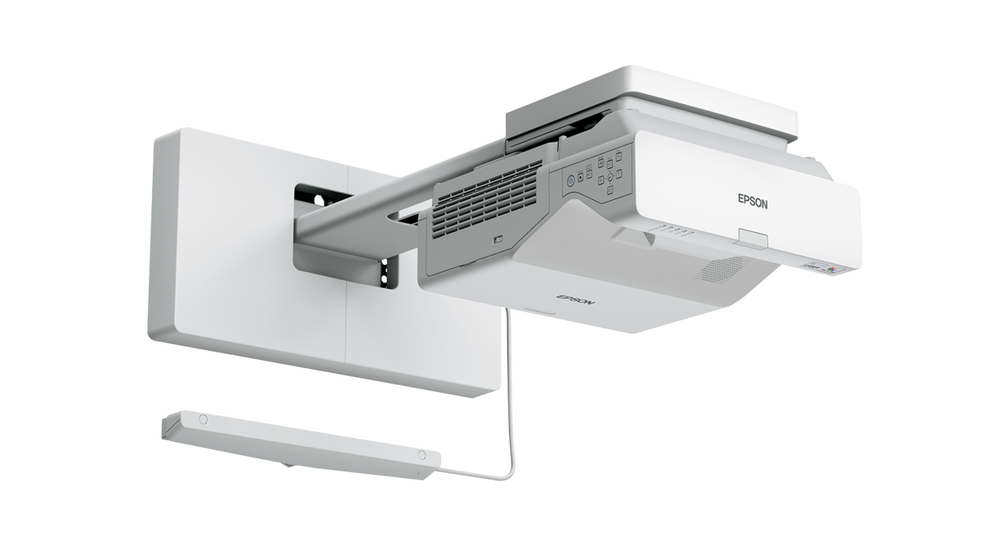

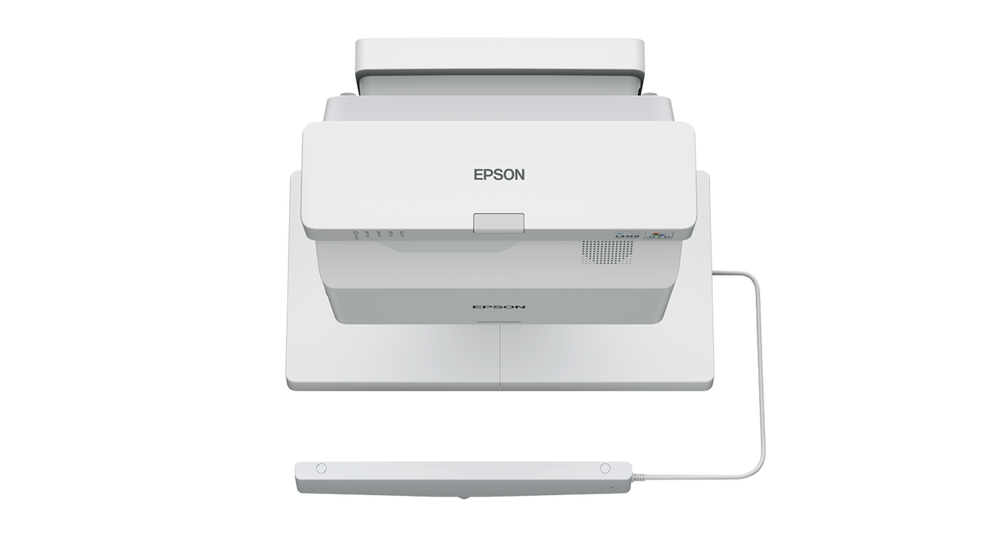

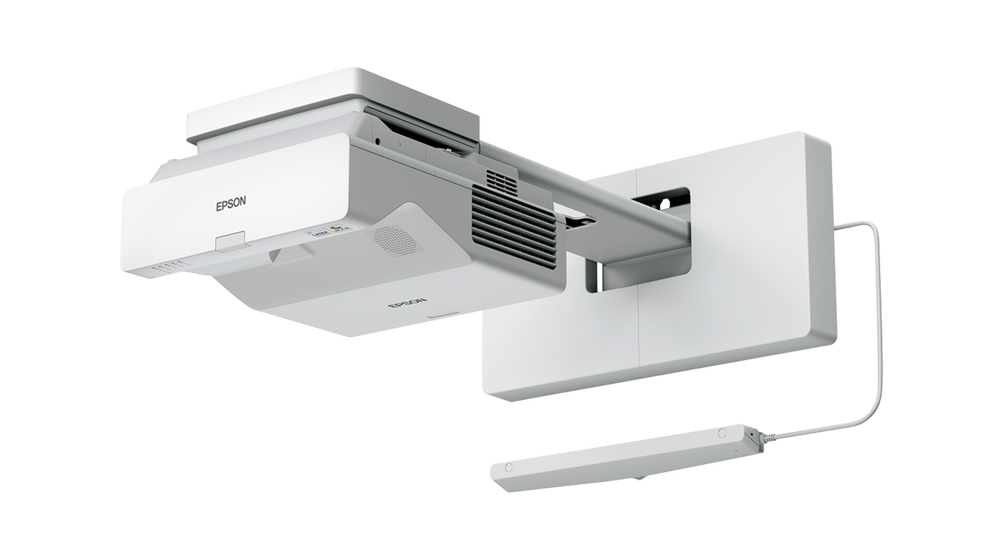

Interactive technology enables two digital pens to be used simultaneously on the display (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be controlled via the display, projecting documents or objects from a desk for everyone to see in incredible HD detail.

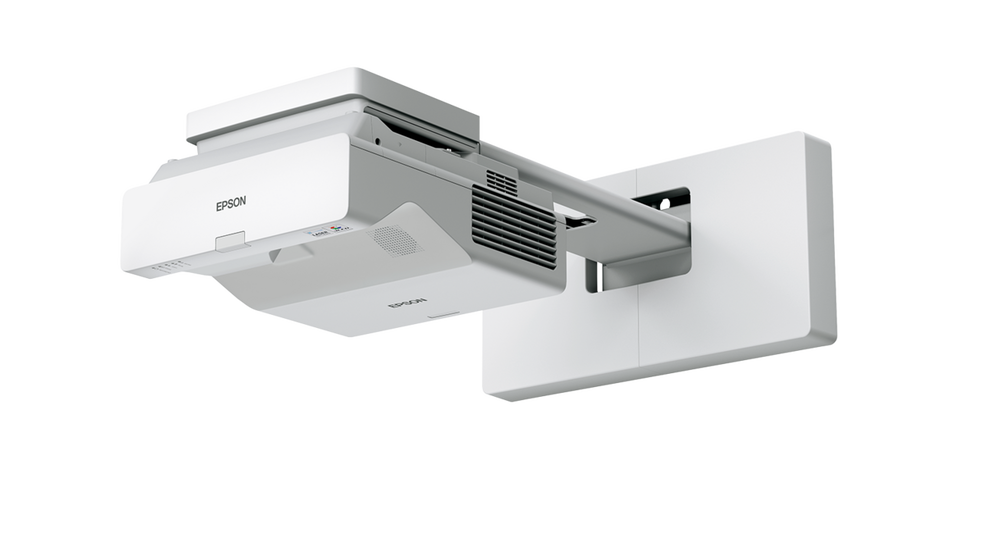

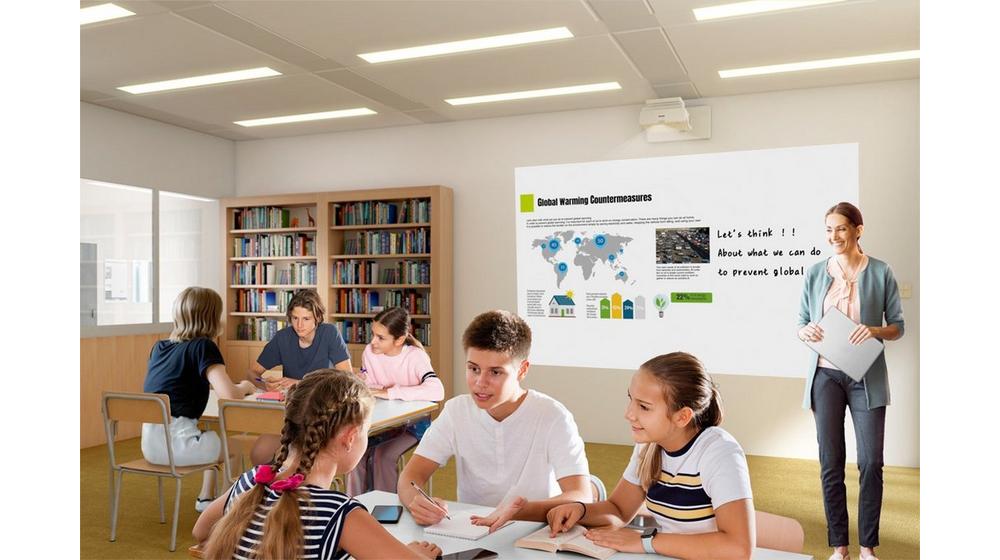

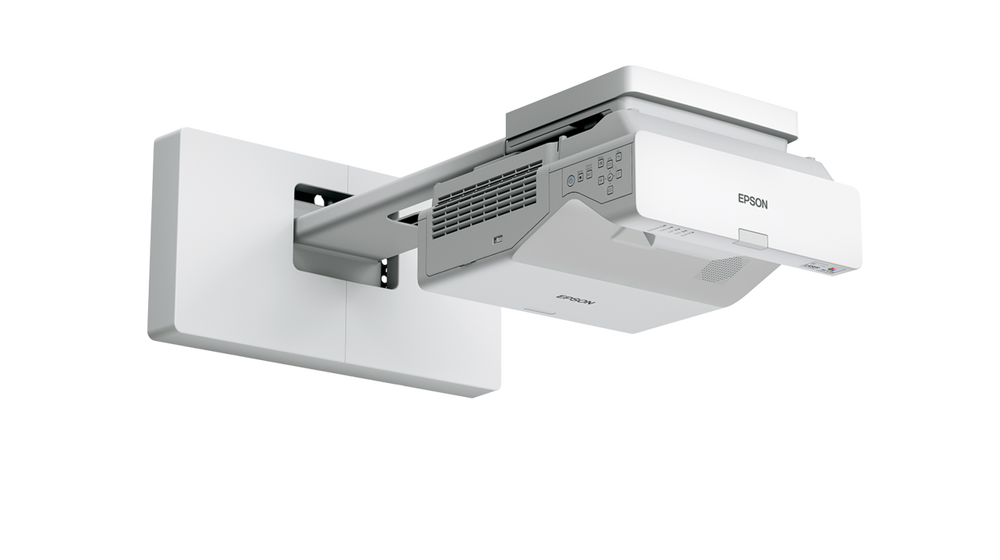

The ultra short throw lens allows safe, discreet positioning above the display, enabling presenters free access to interact without casting shadows.
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", visibly clear from all angles and at a distance.

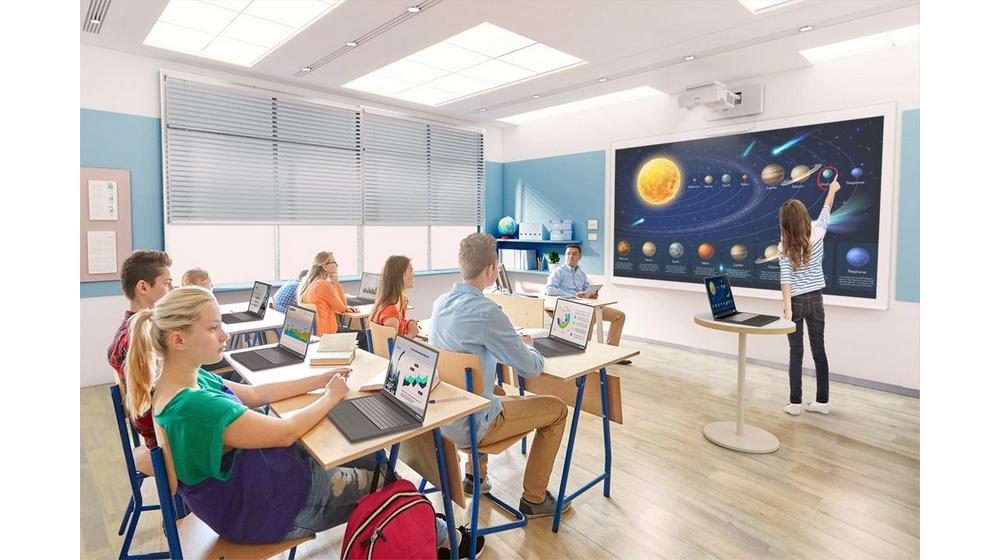

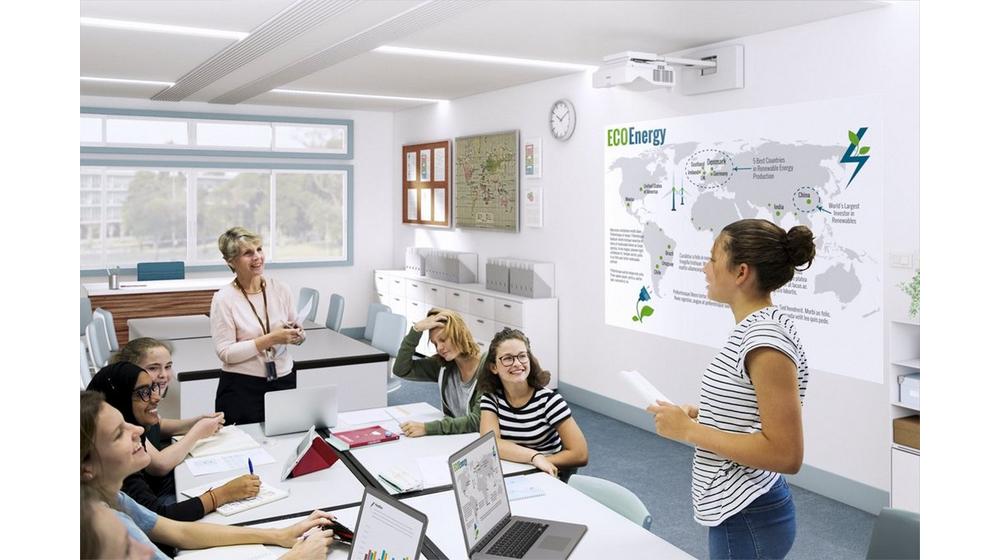

Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles, and presenters are not subjected to LCD panel direct blue light radiation, believed to damage eyes.
| Technology | |
|---|---|
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.59 inch with C2 Fine |
| Image | |
| Color Light Output | 4,100 Lumen - 2,800 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 4,100 Lumen - 2,800 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | WXGA |
| High Definition | HD ready |
| Aspect Ratio | 16:10 |
| Contrast Ratio | Over 2,500,000 : 1 |
| Light source | Laser |
| Laser Light source | 20,000 hours Durability High, 30,000 hours Durability Eco |
| Keystone Correction | Manual vertical: ± 3 °, Manual horizontal ± 3 ° |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 100 Hz - 120 Hz |
| Colour Reproduction | Up to 1.07 billion colours |
| Optical | |
| Throw Ratio | 0.27 - 0.37:1 |
| Zoom | Digital, Factor: 1 - 1.35 |
| Lens | Optical |
| Screen Size | 53 inches - 100 inches |
| Projection Lens F Number | 1.6 |
| Projection Lens Focal Length | 3.7 mm |
| Projection Lens Focus | Manual |
| Offset | 6 : 1 |
| Connectivity | |

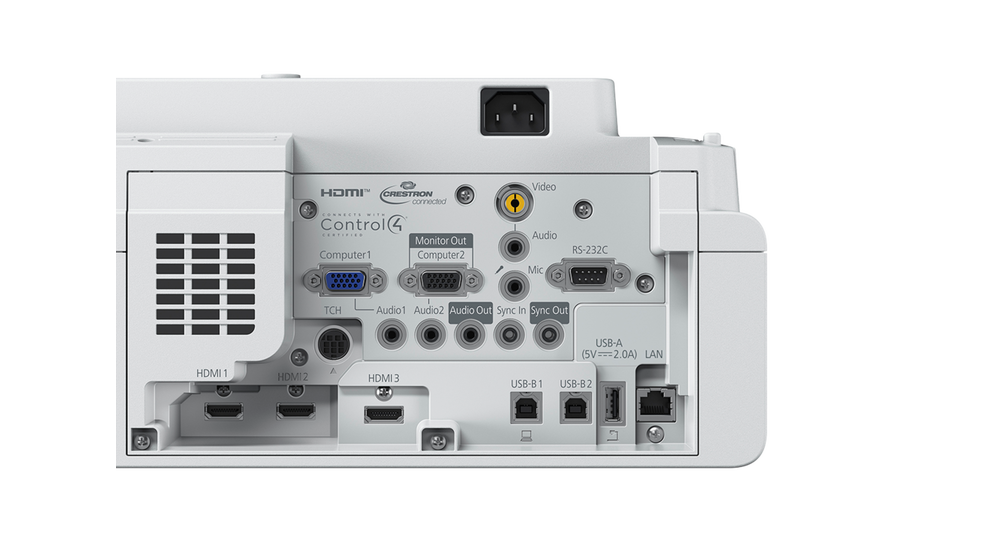

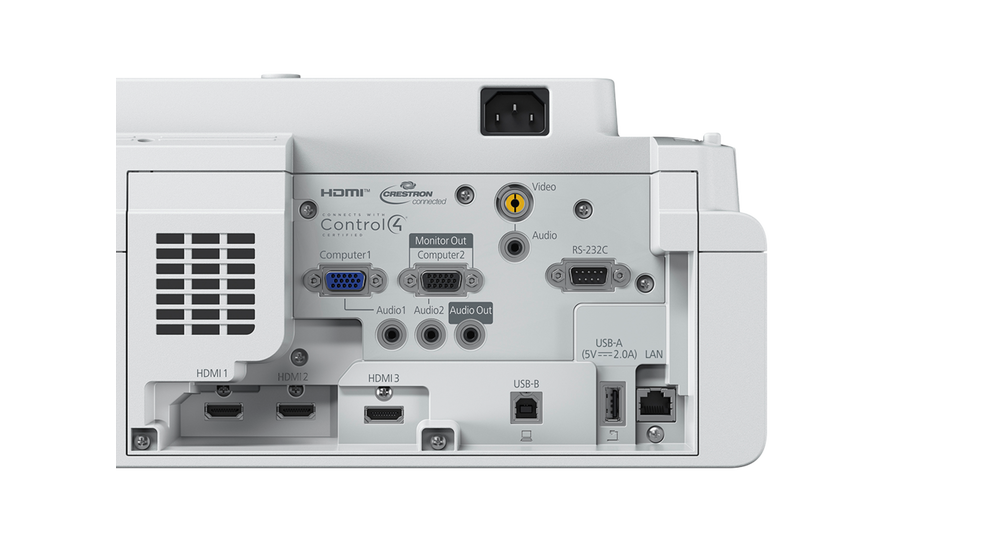

| Interfaces | USB 2.0-A (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), USB 2.0 Type B (Service Only) (2x), Wi-Fi Direct, Microphone input |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | |
| Security | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Other features | A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, JPEG Viewer, Long light source life, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Free, PC Interactive, PC free annotation, Power on button, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Split-Screen-Function, Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by QR code |
| Interactivity | Yes - pen and finger-touch |
| Video Color Modes | Blackboard, Cinema, Dynamic, Presentation, sRGB |
| Projector control | via: Crestron Integrated Partner, Crestron RoomView, Extron IP Link, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General | |
| Power consumption | 197 Watt - On mode power consumption (Normal) |
| Heat Dissipation | 895 BTU/hour (max) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 356 x 395 x 133 mm (Width x Depth x Height) |
| Product weight | 6 kg |
| Noise Level | Normal: 37 dB (A) - Economy: 27 dB (A) |
| Supported Temperature | Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projector Management |
| Options | Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Loudspeaker | 16 Watt |
| What's in the box | 2 x Pen tip(Teflon), 4 x Pen tip(Felt), Interactive pens, Pen Holder/Stand, Power cable, Quick Start Guide, Remote control incl. batteries, USB cable |
| Room Type / Application | Meeting room / Classroom |
| Positioning | Ceiling Mounted, Desktop, Wall Mounted |
| Colour | White |
| Warranty | 60 months Carry in or 12,000 h |
