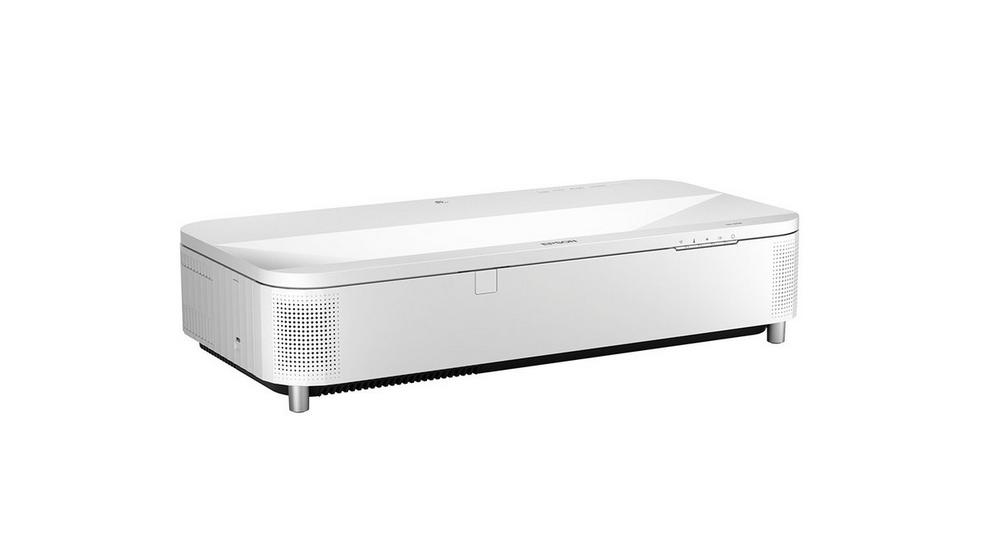

Epson V11HA99080/EB-810E 4K Laser Projector - 5000 Lumens
Super UST 4KE laser display
Scalable 4KE display for any room 80-160" UST display for unrestricted viewing (no shadows/reflections)
Bright and energy efficient laser 5,000 lumens CLO with 3LCD technology for brighter colours
Effortless connectivity options Auto-on, wired/wireless display with USB 2A output for smart sticks
Simple to use and built to last Virtually maintenance free with 5-year, 12,000hr warranty
LED/Video wall alternative Surprisingly affordable with low energy consumption

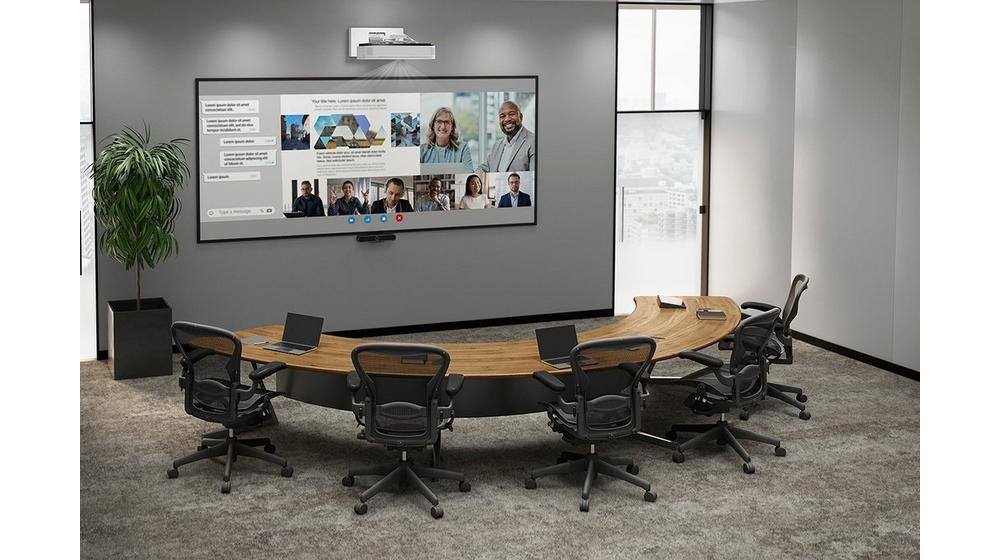

EB-810E's super-ultra-short-throw lens allows discreet positioning close to the wall, enabling presenters free access without casting shadows.
With 5,000 lumens CLO and 3LCD technology, the EB-810E is bright and vibrant up-to 160", which enables content visibility from all angles and distances. The experience is immersive and it's extremely simple to use.
Versatile wired and wireless connectivity options, including Miracast™ screen mirroring, ensure effortless, multi-device content sharing.
Weighing only 12.3kg, it is highly portable, and the Epson Setting Assistant App makes setup quick and simple. The ideal display solution suitable for different room sizes, combined with flexible installation options.

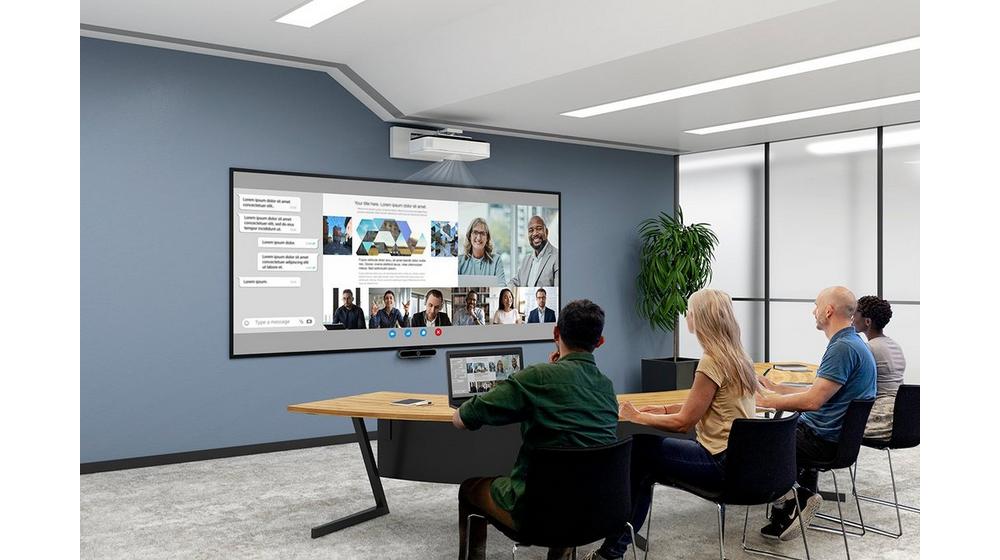

The EB-810E supports multiple aspect ratios and multi-projector edge-blending for a low cost, seamless, energy efficient ultra-wide display, perfect for video conferencing.
Paired with Epson's Ambient Light Rejection Screen, the EB-810E's image quality could be mistaken for a video wall or LED display, but it is surprisingly affordable and consumes a fraction of the energy.
| Technology | Projection System |
|---|---|
| Projection System | 3LCD Technology, RGB liquid crystal shutter |
| LCD Panel | 0.62 inch with C2 Fine |
| Image | |
| Color Light Output | 5,000 Lumen - 3,500 Lumen (economy) In accordance with IDMS15.4 |
| White Light Output | 5,000 Lumen - 3,500 Lumen (economy) In accordance with ISO 21118:2020 |
| Resolution | 1080p |
| High Definition | 4K enhancement |
| Aspect Ratio | 16:9 |
| Contrast Ratio | Over 2,500,000 : 1 |
| Light source | Laser |
| Laser Light source | 20,000 hours Durability High, 30,000 hours Durability Eco |
| Colour Video Processing | 10 Bits |
| 2D Vertical Refresh Rate | 192 Hz - 240 Hz |
| HDR support | HDR10, HLG |
| Optical | |
| Throw Ratio | 0.16 - 0.40:1 |
| Zoom | Digital, Factor: 1 - 1.35 |
| Lens | Optical |
| Screen Size | 80 inches - 160 inches |
| Projection Lens F Number | 1.8 |
| Projection Lens Focal Length | 2.3 mm |
| Projection Lens Focus | Manual |
| Offset | 7 : 1 |
| Connectivity | |

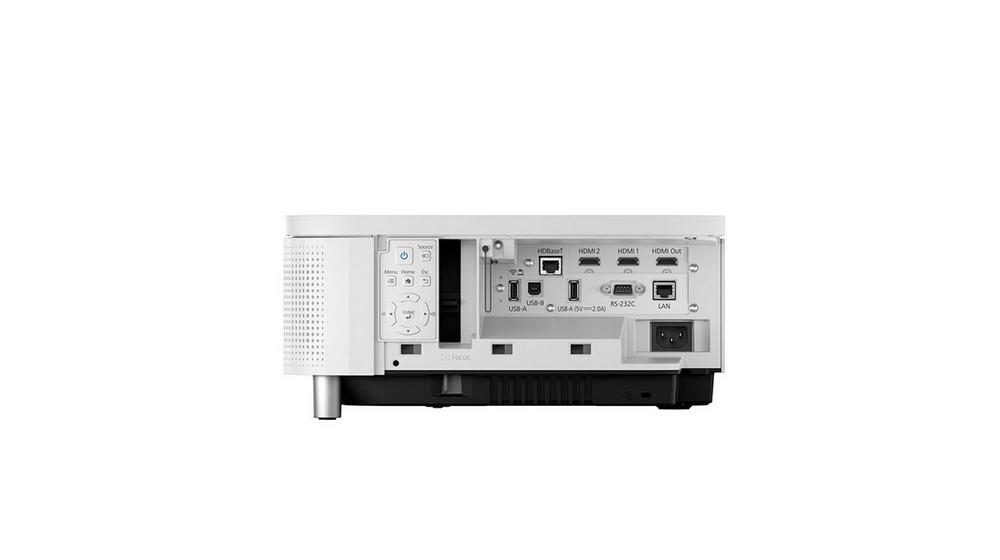

| Interfaces | USB 2.0-A (2x), USB 2.0 Type B (Service Only), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, HDMI in (2x), HDMI out, HDBaseT, Miracast |
| Epson iProjection App | Ad-Hoc / Infrastructure |
| Network Protocol | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Advanced Features | |
| Security | Kensington lock, Control panel lock, Password lock, Padlock, Wireless LAN unit lock, Wireless LAN security, Password protection |
| 3D | No |
| 2D Colour Modes | Dynamic, Natural, Cinema, Presentation, Blackboard, DICOM SIM |
| Other features | 21:9 aspect ratio support, 4K enhancement, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Customizable user logo, Daisy chain Multi-Projection, Digital zoom, Direct Power on/off, Document Camera Compatible, Edge Blending, Email notification, Fit to Screen, Home Screen, Horizontal and vertical keystone correction, Image Shift, JPEG Viewer, Long light source life, PC Free, Point correction, Power on button, Quick Corner, Schedule Function, Screen Mirroring, Source function, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Wireless LAN capable, iProjection App |
| Interactivity | No |
| Video Color Modes | Blackboard, Cinema, Dynamic, Natural, Presentation, DICOM SIM, Multi Projection |
| Projector control | via: AMX, Extron, Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol |
| General | |
| Power consumption | 290 Watt - On mode power consumption (Normal) |
| Heat Dissipation | 380 Watt (Peak), 286 Watt (Eco), 0.4 Watt (Energy saving standby) |
| Supply Voltage | AC 100 V - 240 V, 50 Hz - 60 Hz |
| Product dimensions | 695 x 341 x 156 mm (Width x Depth x Height) |
| Product weight | 12.5 kg |
| Noise Level | Normal: 35 dB (A) - Economy: 26 dB (A) |
| Supported Temperature | Storage -10° C - 60° C |
| Supported Humidity | Operation 20% - 80%, Storage 10% - 90% |
| Included Software | Epson Creative Projection, EasyMP Multi PC Projection, Epson Projector Content Manager, Epson Projector Management, Epson Setting Assistant |

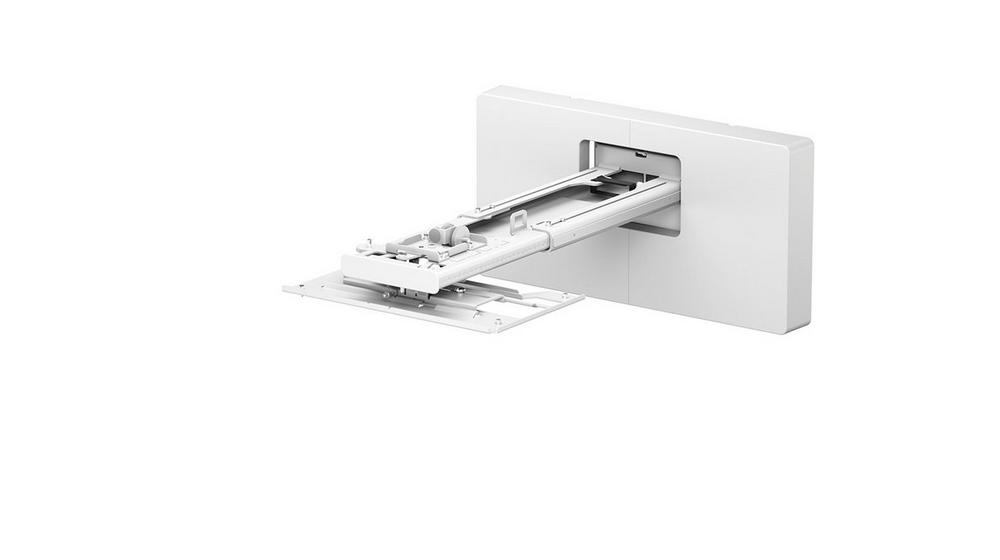

| Options | Air filter, Ceiling mount, Connection and control box, MB22 ceiling mount, Safety wire set, Visualiser camera, WP System - ELPWP10, WP System - ELPWP20, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| What's in the box | Power cable, Quick Start Guide, Remote control incl. batteries |
| Room Type / Application | 4K Streaming, Boardroom, Huddle space / Portable, Large Meeting Room / Auditorium, Meeting room / Classroom, Signage / Retail, Visitor Attraction |

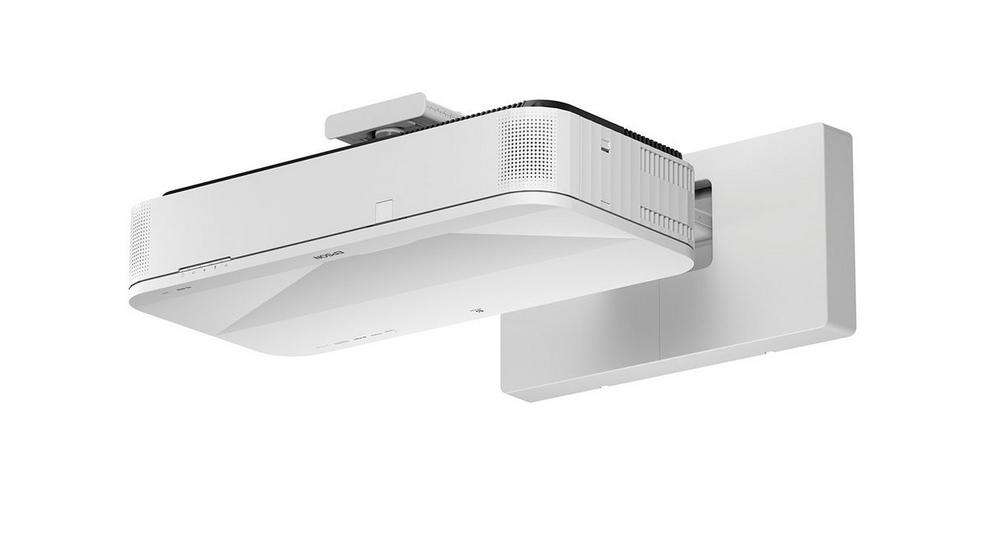

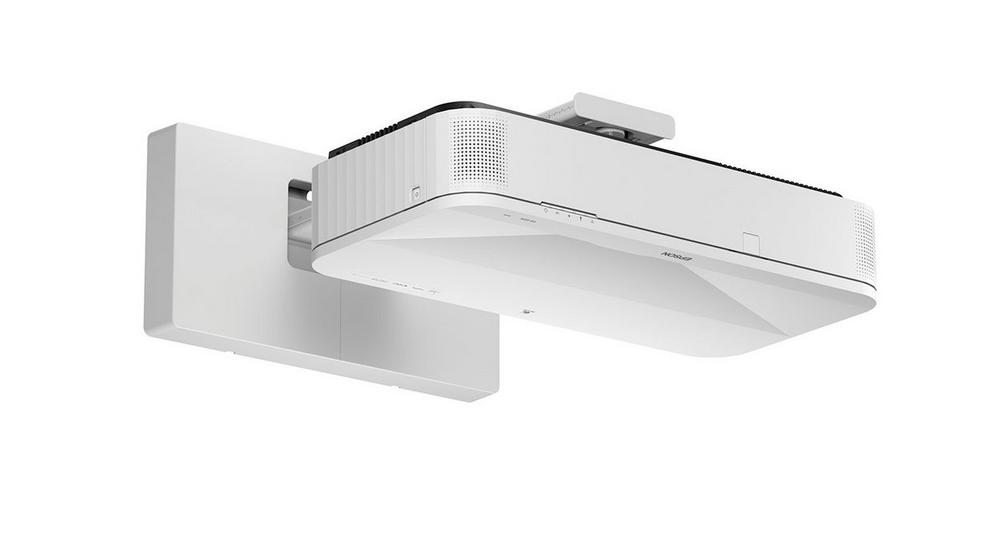

| Positioning | Ceiling Mounted, Desktop, TV Cabinet, Wall Mounted |
| Colour | White |
| Other | |
| Warranty | 60 months Carry in or 12,000 h |
