Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.

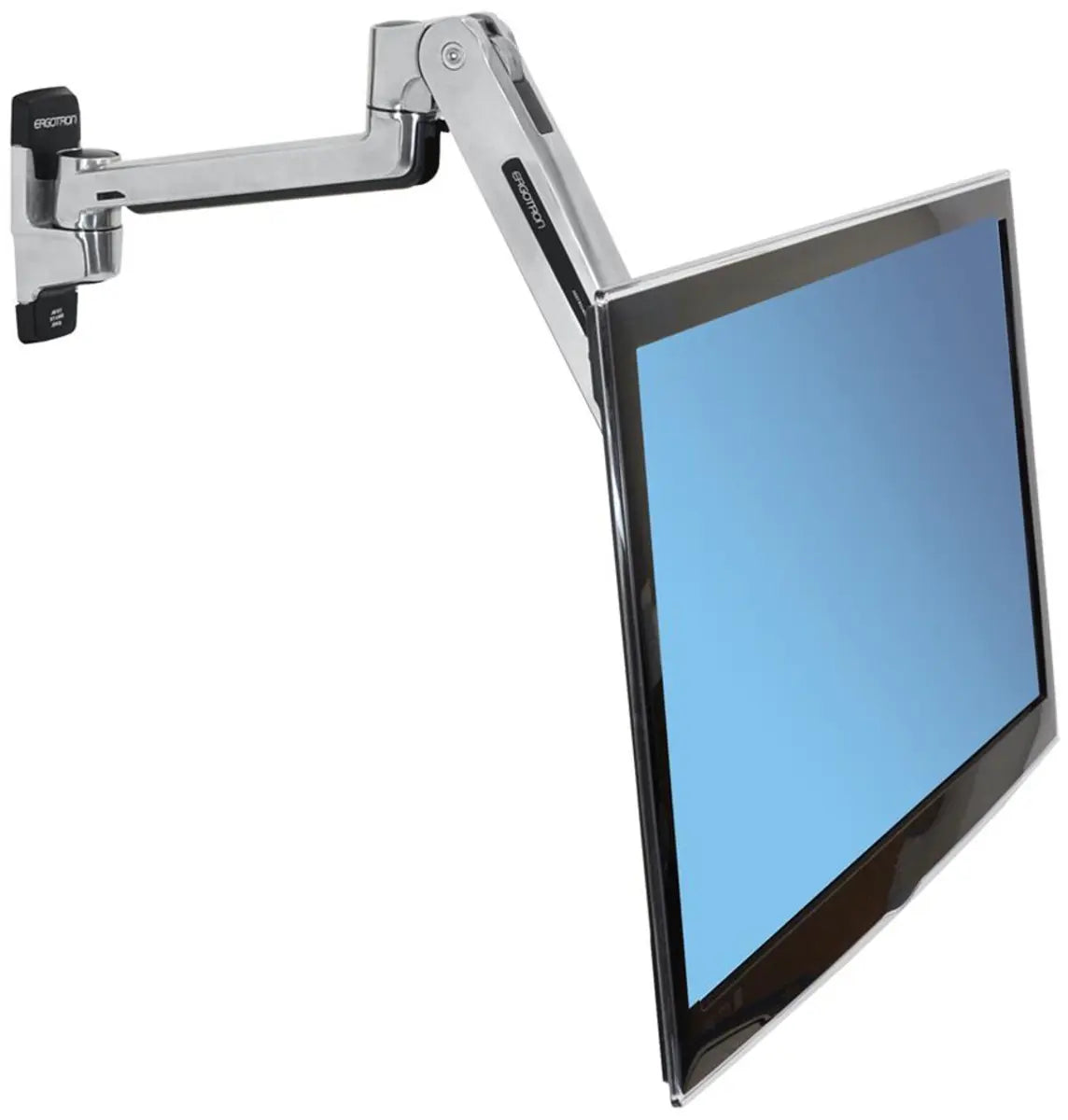

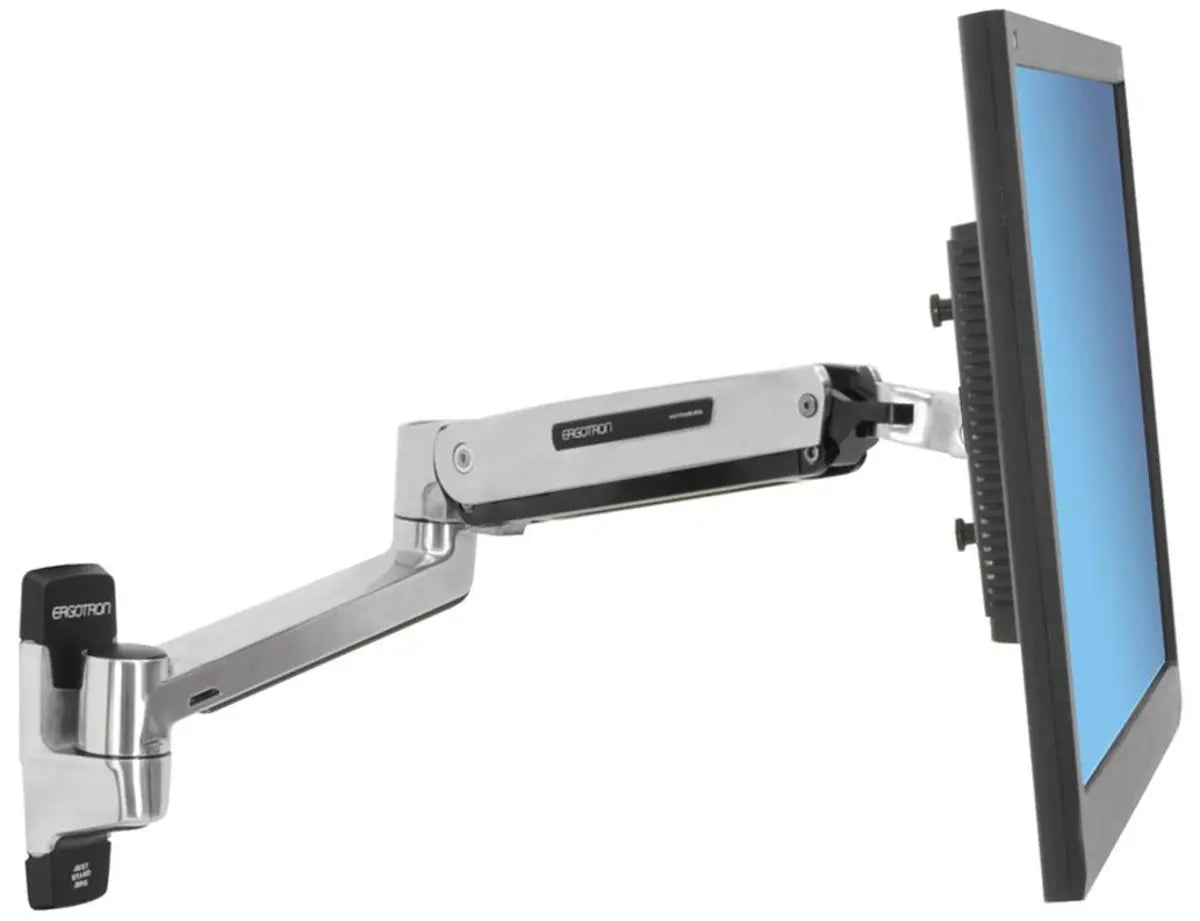

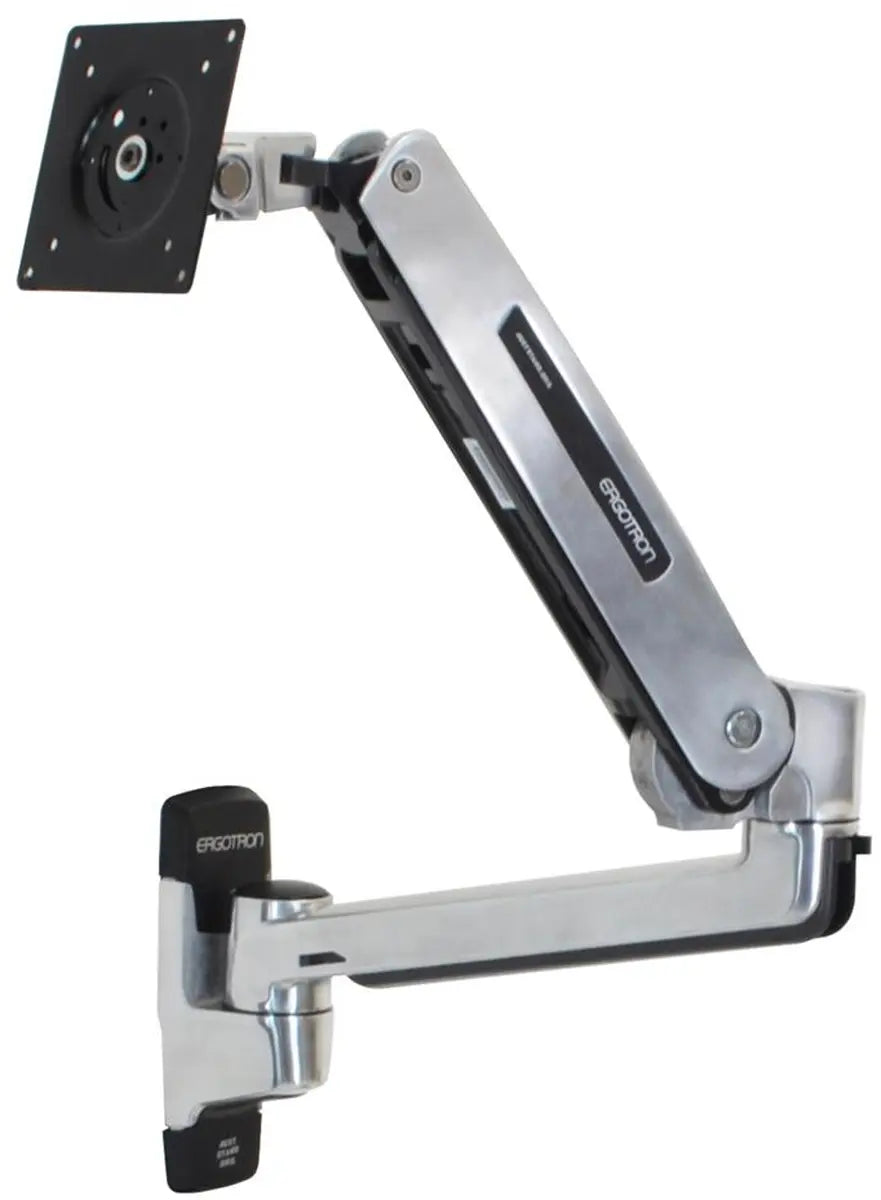

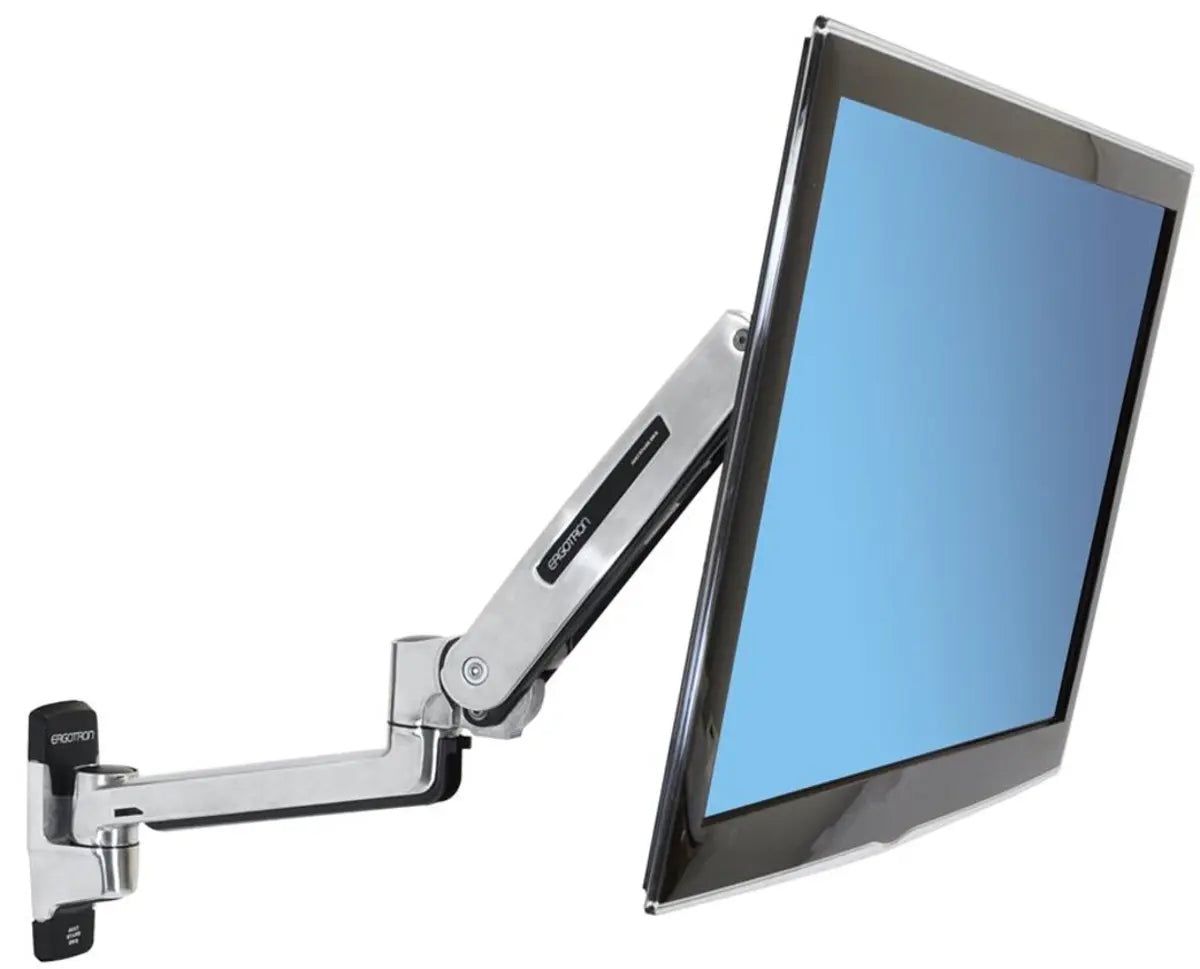

Work at your best sitting or standing with the LX Sit-Stand Wall Arm. The wall attachment keeps your space open for reviewing drafts or for stand-up meetings. Easily place screens or digital signage where you need it for each project, and then reclaim even more work area by folding the arm and pushing it aside during a much-needed screen break. Keep your technology on lock with anchor holes in the base.
Comfortable fit
Offers full monitor movement and improved ergonomics
More motion
20" (51 cm) of height adjustment lets you work sitting or standing
Saves space
Folds within inches of the wall when not in use
Large extension

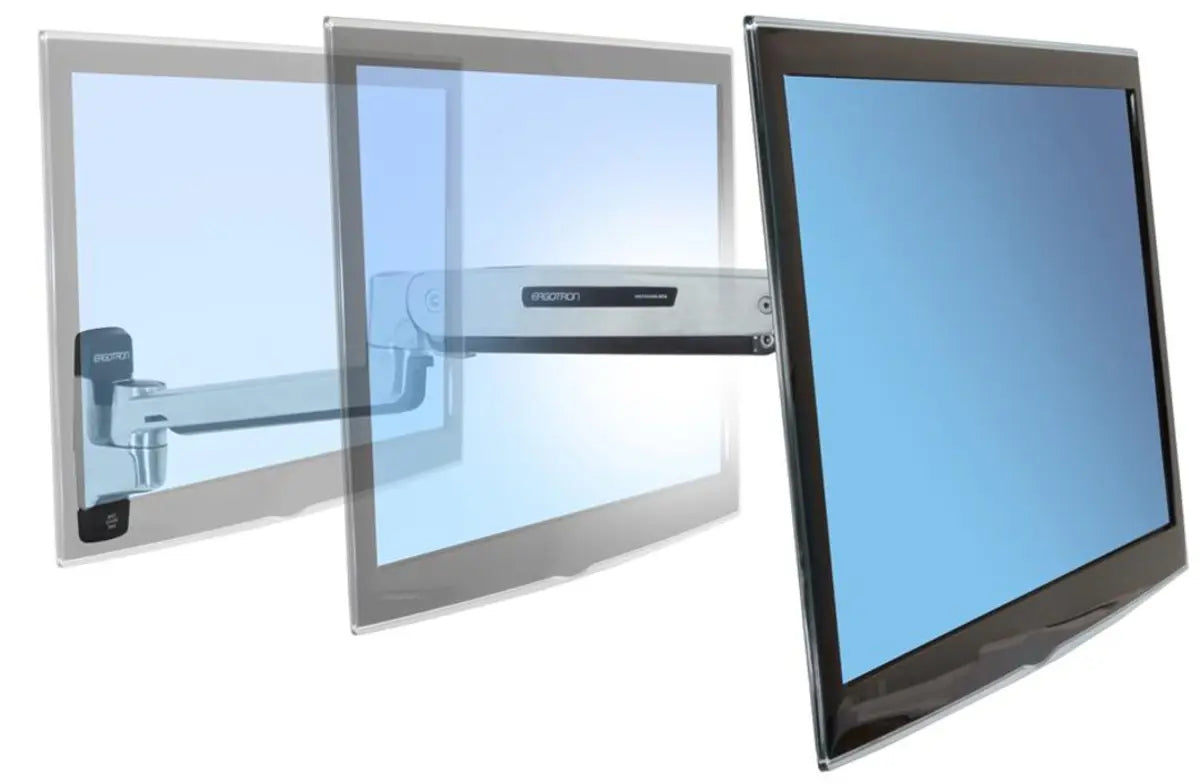

Screen can extend 33" (84 cm) with 62" (157 cm) of side-to-side motion
Sleek build
Streamlined look enhances your work area
Quality design
Built for thousands of movements by passing 10,000-cycle test
| Attribute | Details |
|---|---|
| GTIN | 00698833028492 |
| Part Number | 45-353-026 |
| Product Weight | 11.3 lbs |
| Shipping Weight | 13.7 lbs |
| Description | LX Sit-Stand Wall Mount LCD Arm (polished aluminum) |
| Included Components | LX sit-stand arm, extension, wall-mount base, VESA brackets |
| Quality Tested | 10,000-cycle test applied to lift mechanism |
| Weight Capacity | 7 to 25 lbs (3.1 to 11.3 kg). Monitor depth may affect weight capacity |
| Monitor Tilt Range | 70° up and 5° down |
| Rotation Stop | Limits turn of extension-base connection to 180° |
| Locking Connections | Offer increased theft deterrence and prevent potential disconnections |
| Mounting Standards | VESA MIS-D, 75/100, MIS-E, MIS-F (hole patterns included) |
| Mounting Options | Attaches directly to sturdy vertical surfaces or Wall Track using bracket (97-091, order separately) |

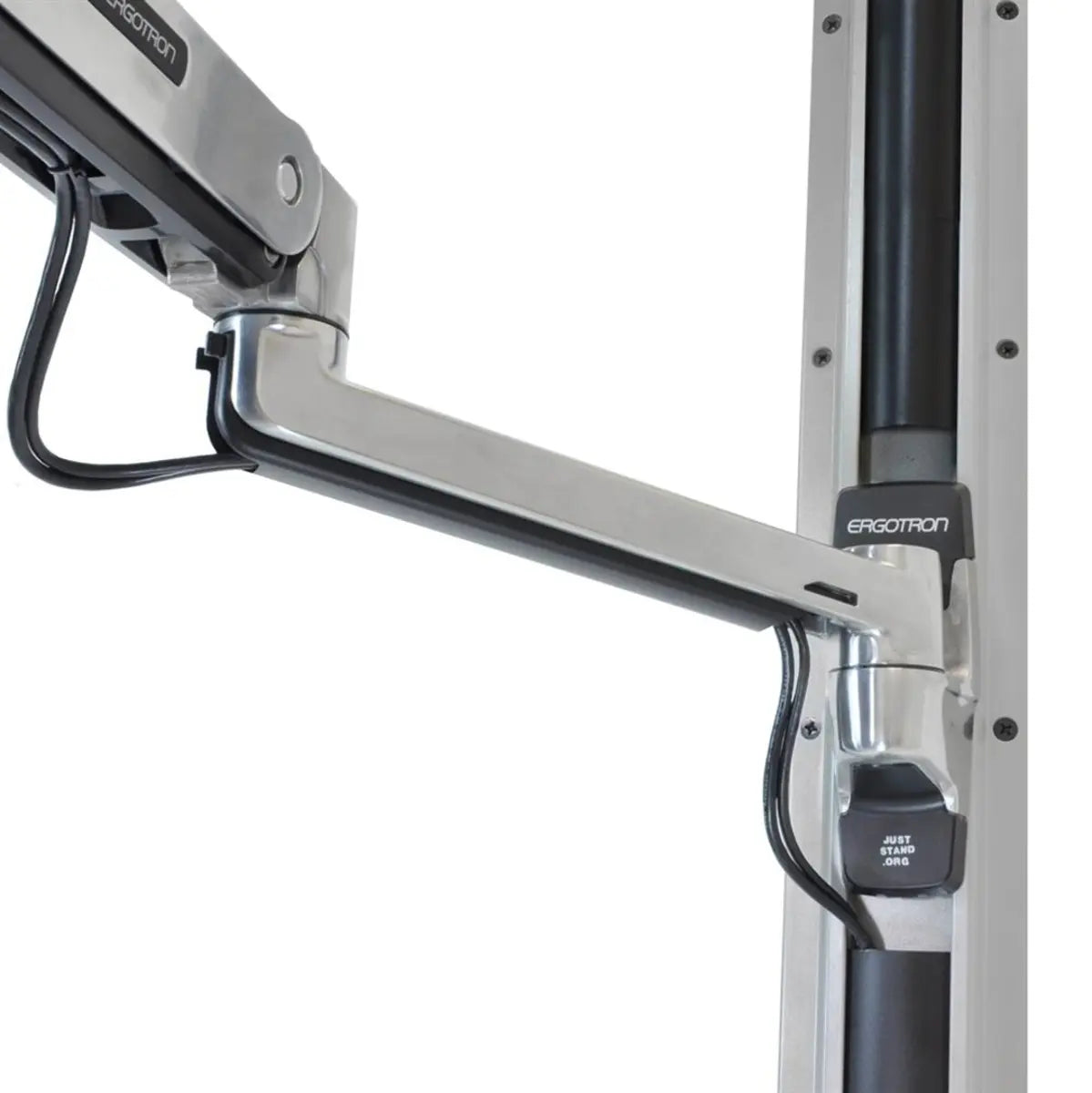

| Cable Management | Routes cables under the arm, out of the way |
| Arm Retraction | Folds back over the base into a compact position |
| Indoor Air Quality | Certified compliance with ANSI/BIFMA indoor air quality standards regarding VOC emissions |
| Shipping Dimensions | 22.1" x 10.9" x 7.3" (56 x 28 x 19 cm) |
| Warranty | Ten years |
| Description | Downloads |
|---|---|
| Ergotron 42" LX Sit-Stand Wall Arm Product Sheet | Downloads |
| Ergotron 42" LX Sit-Stand Wall Arm Recycling Guide | Downloads |
| Ergotron 42" LX Sit-Stand Wall Arm Dimensional Illustrations | Downloads |
| Ergotron 42" LX Sit-Stand Wall Arm Installation Manual | Downloads |
