Enter your screen SKU and we will instantly check whether this mount is suitable for your display based on VESA pattern compatibility.
Heavy duty
Fits VESA-compliant monitors weighing up to 50 lbs (23 kg)
Smooth adjustment
Offers 20° of continuous tilt and 40° pan motion
Flexible views
Allows display to be rotated for portrait or landscape mode
Reliable option
Tested to four times its maximum weight capacity for a secure fit
Excellent value
Affordable wall mount solution for medium displays
Easy install
Set up your mount in three simple steps
| Attribute | Details |
|---|---|
| GTIN | 00698833018028 |
| Part Number | 45-269-009 |
| Product Weight | 3.2 kg |
| Shipping Weight | 4.1 kg |
| Shipping Dimensions | 9" x 9" x 3.9" (22.9 x 22.9 x 9.9 cm) |

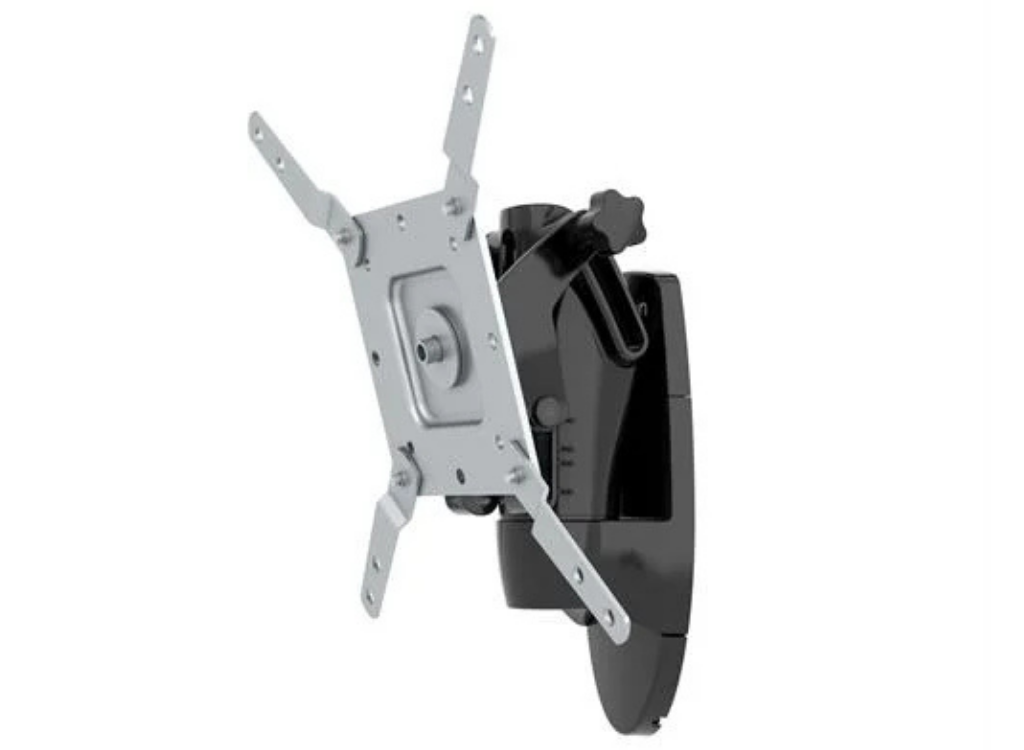

| Description | LX HD Wall Mount Monitor Pivot (black) |
| Includes | Pivot, wall mount base, fasteners for wood stud or concrete wall, attachment hardware |
| Metal Stud Attachment | Steel Stud Wall Mounting Kit (60-591-003) recommended (not included) |
| Mounting Options | Attaches directly to sturdy vertical surfaces; Wall Plate or Wall Track accessory optional |
| Locking Feature | Knob on pivot locks tilt position |
| Display Compatibility | Do not exceed 50 lbs, UL Compliant per UL Standard 1678 |
| Mounting Standards | VESA MIS-D (75/100), MIS-E (200x100), MIS-F (200x200); Adapter kit for larger patterns available |
| Warranty | Five years |
| Description | Link |
|---|---|
| Dimensional Illustrations | Downloads |
| Installation Manual | Downloads |
