Ergotron LX Wall Mount System With Small CPU Holder | 45-253-026
SKU: 45-253-026
£589.67 (Excl. VAT)
- Mounting TypeWall Mounts
- VESA Patterns100x100
- Description
- Specifications
- Downloads
-

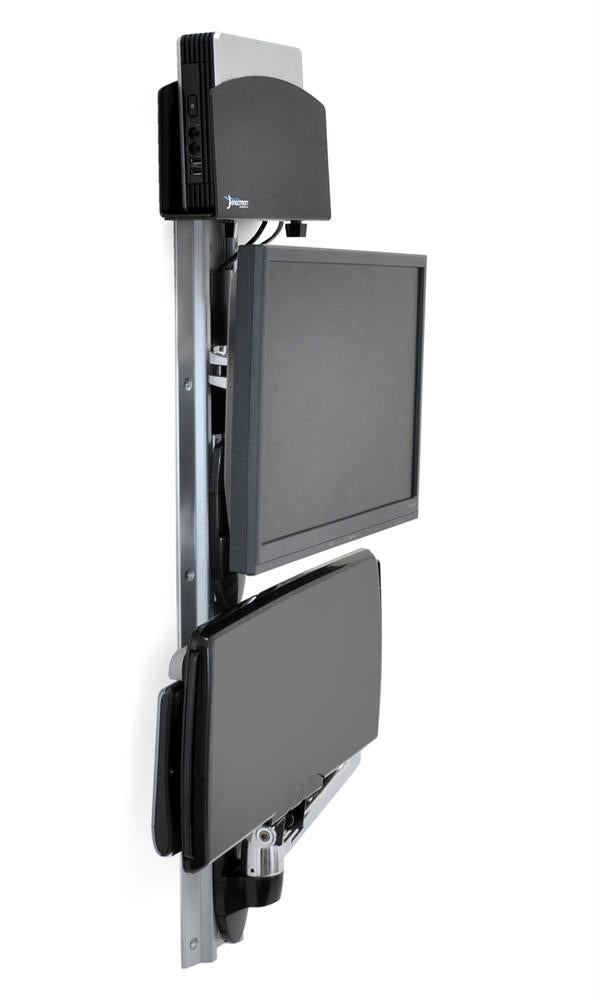

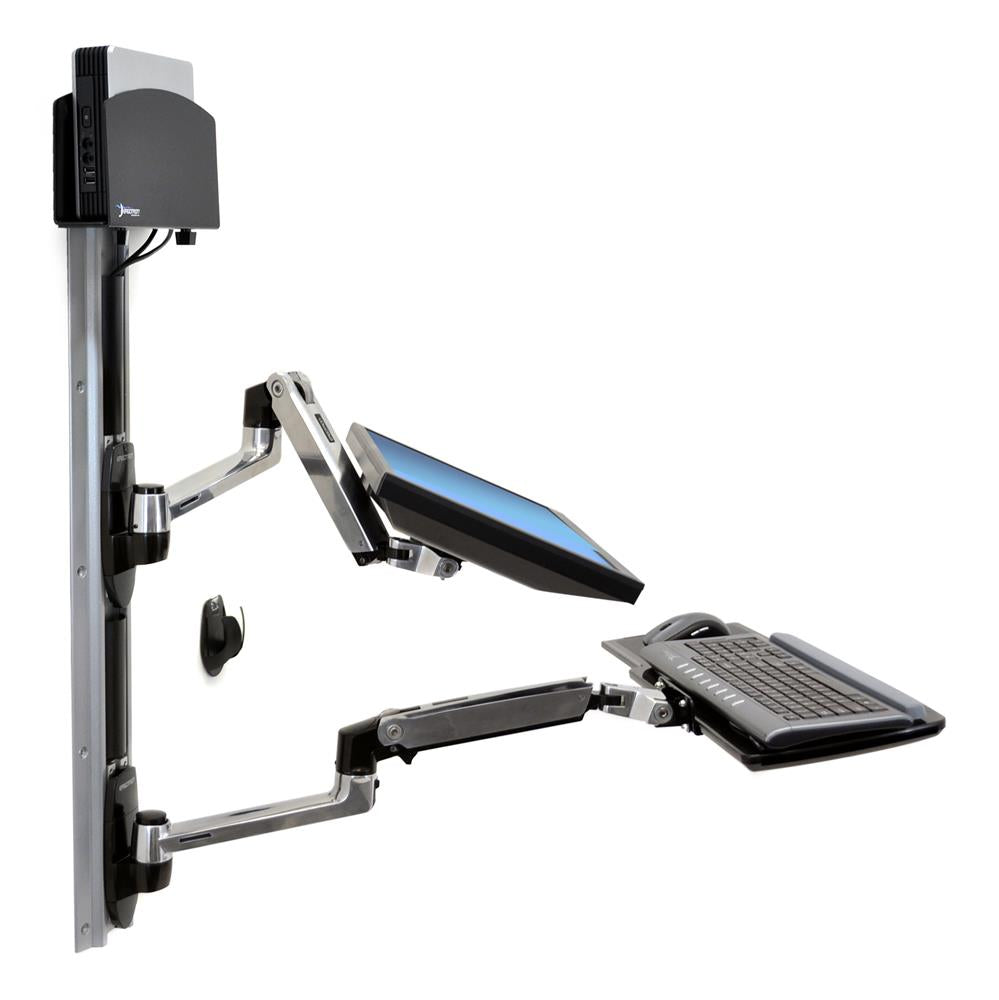

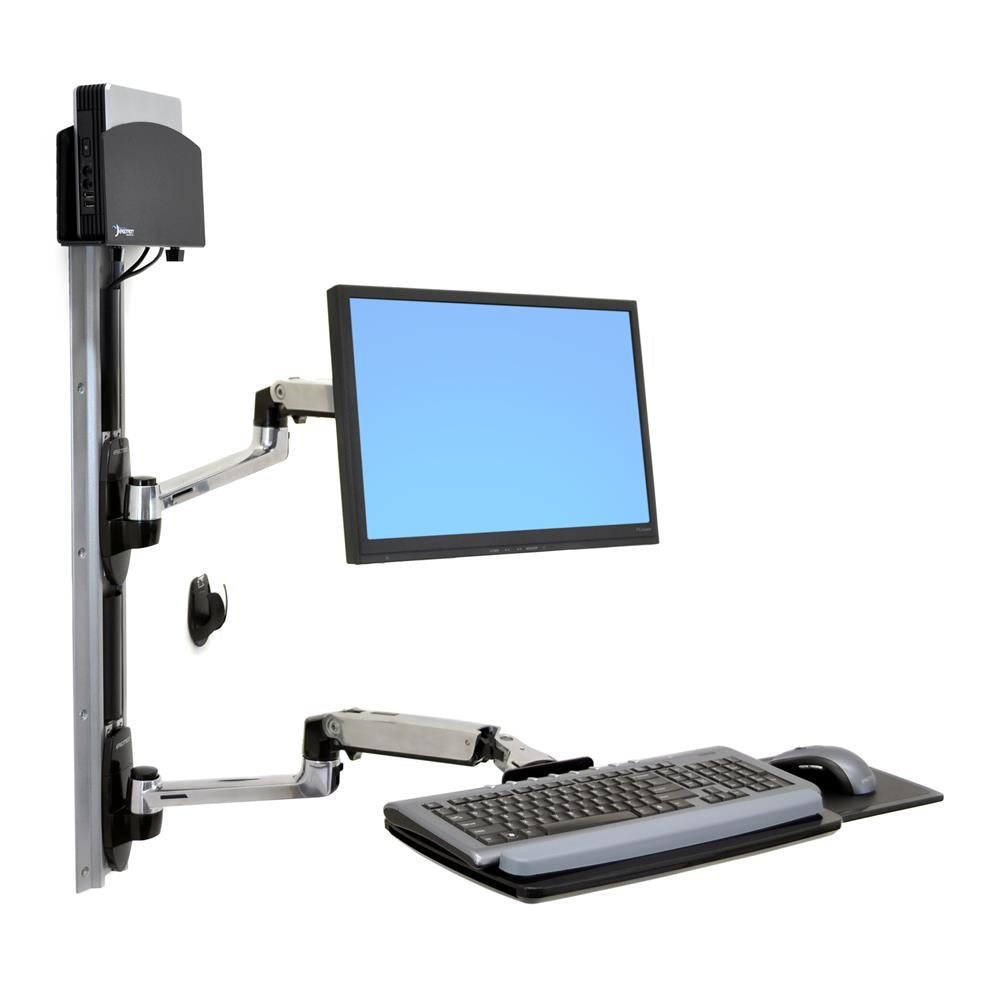

Ergotron LX Wall Mount System With Small CPU Holder
Build stronger connections with patients while comfortably completing documentation with this complete workstation. Easily reposition your screen or keyboard up and down or side to side to keep eye contact with your patients. The wall mount system supports an LCD, keyboard and a PC with a compact footprint that fits in tight spaces.
More motion
Offers 13" (33 cm) of height adjustment with full tilt and pan
Ergonomic set-up
Back-tilt keyboard tray protects wrists from pain or injury
Saves space
Folds within inches of the wall when not in use
Large extension
Offers 25" (63 cm) of screen extension and 35" (89 cm) of keyboard tray extension
Flexible installation

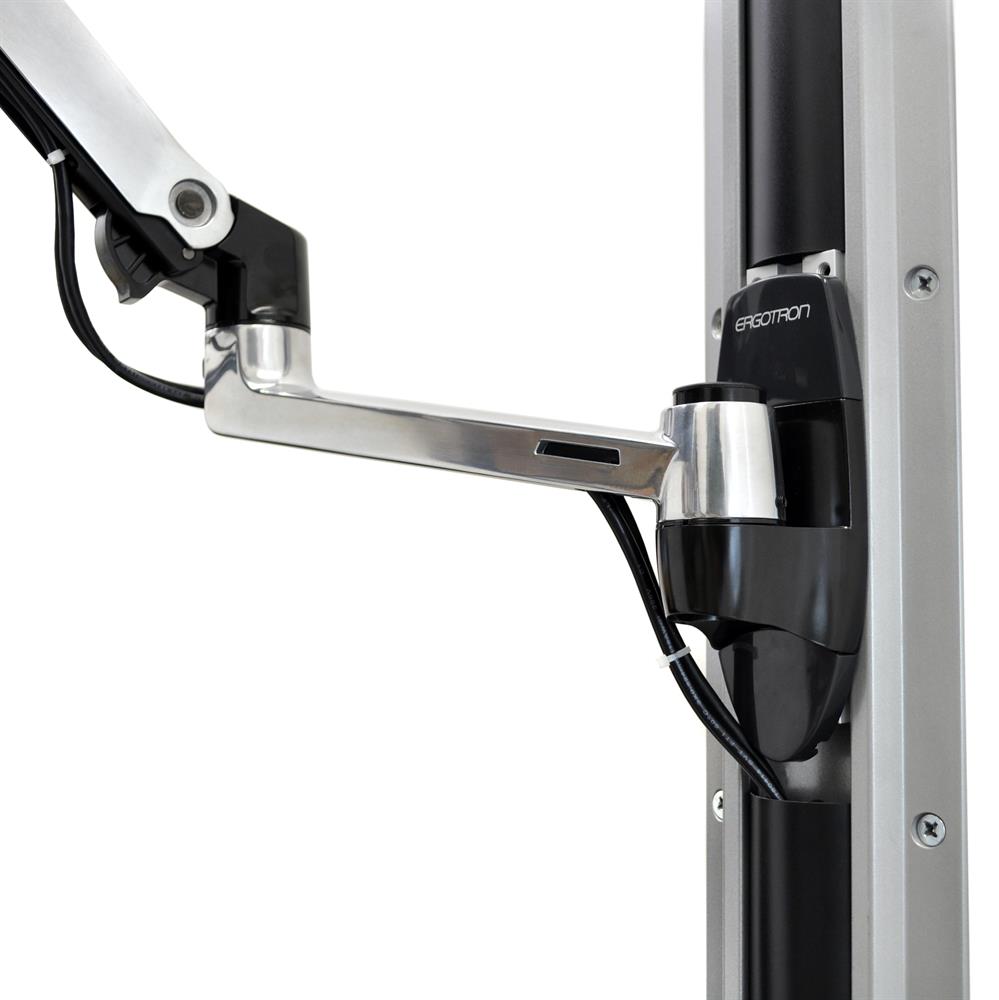

Just loosen the screws to change the arm location on the Wall Track
Quality design
Built for thousands of movements by passing 10,000-cycle test -

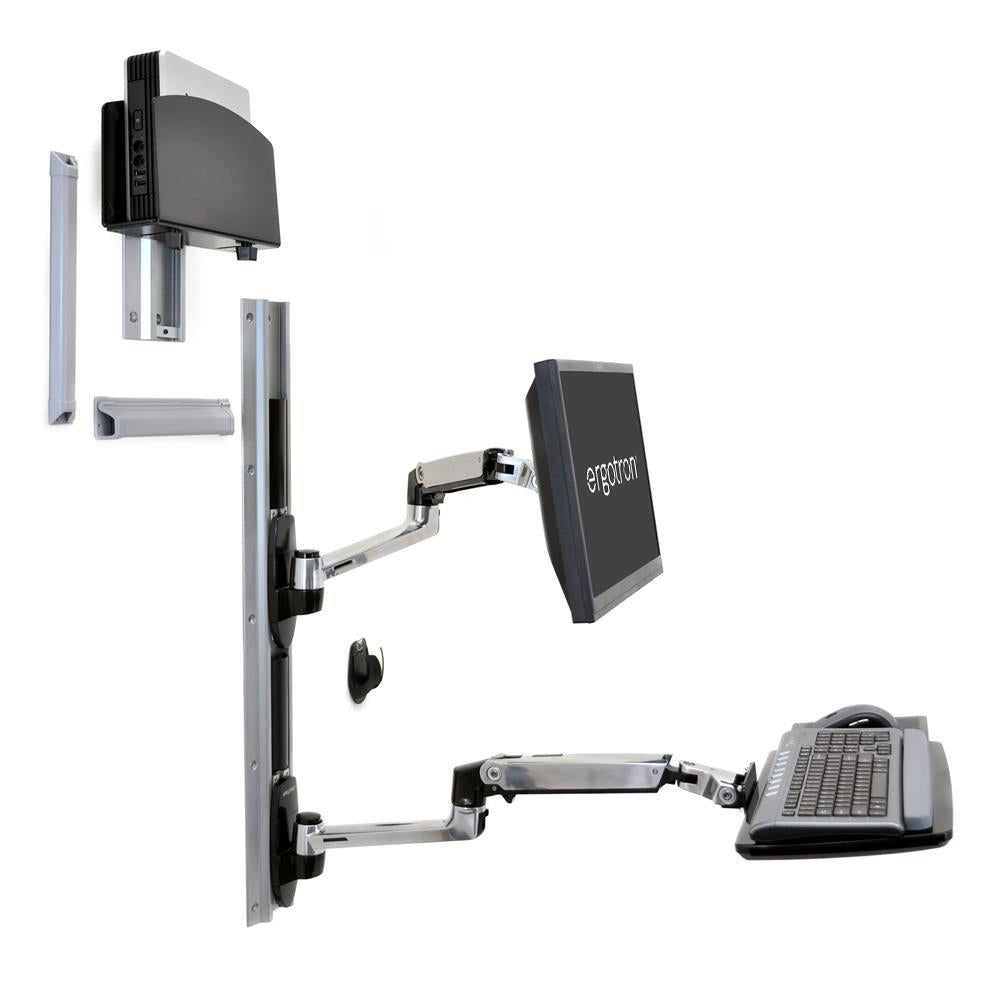

Attribute Details GTIN 00698833014747 Part Number 45-253-026 Product Weight 13.4 kg Shipping Weight 15.9 kg Description LX Wall Mount System (polished aluminum) Included Components - 10" and 34" Wall Tracks with two black track covers - LX Wall Mount LCD Arm - LX Keyboard Arm - Wrist rest - Mouse pad - Mouse holder - Small CPU Holder - Two 10" Cable Channels - Mounting kits for hollow-wall and wall-stud installation Quality Tested 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment Construction Material Polished aluminum offers greater durability and enhanced aesthetics Stability Snap-fit cap secures interface of arms to extensions for greater stability Weight Capacity - Display: 7–25 lbs (3.2–11.3 kg) - Keyboard: 5 lbs (2.2 kg) - CPU: 40 lbs (18 kg) Mounting Standards VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm) CPU Size Range 1-3/8" to 3-3/4" (35 to 95 mm) wide Theft Deterrent Base includes theft deterrent anchor holes for cable locks Shipping Dimensions 37" x 22" x 7.5" (94 x 56 x 19 cm) Warranty Ten years -
Description Downloads Ergotron LX Wall Mount System With Small CPU Holder Product Sheet Download Ergotron LX Wall Mount System With Small CPU Holder Dimensional Illustrations Download Ergotron LX Wall Mount System With Small CPU Holder Installation Manual Download
